Kubota BX2680 vs Kubota L2501F

Across 9 measurable specs, the Kubota L2501F leads 8 categories to 1. Machine pages: Kubota BX2680 and Kubota L2501F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaBX2680	KubotaL2501F

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1005	D1703-M-DI-E4
Engine Type	Liquid cooled, 4-cycle, diesel	Direct injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	61.1 in³	100.47 in³
Rated Engine Speed	3200 rpm	2200 rpm
Engine Power (Gross)	23.3 hp	24.8 hp
PTO Power	19.2 hp	19 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water with pressurized radiator, reverse air-flow design	Water-cooled
Air Cleaner	Dry element	Dry paper single element (dual optional)
Fuel System	Direct injection	Direct injection
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Open center tandem pump gear type	Open center tandem pump, gear type
Implement Flow	5.2 gpm	5.15 gpm
Steering Flow	1.0 gpm	3.13 gpm
Total Hydraulic Flow	6.2 gpm	8.26 gpm
Overall Hydraulic Pump Flow	6.2 gpm	8.26 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0 standard (2-valve rear remote coupler optional)	Not Published
No. of Optional Remote Valves	2 (optional; ISO 7241-1 series A or B)	Up to 3 (self canceling detent valve or float detent valve options)
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	10.0 gal
Coolant Capacity	3.5 qt	6.3 qt
Crankcase Capacity	4.2 qt	6.0 qt
Transmission / Hydraulic System Capacity	3.0 gal	7.1 gal
Front Axle Fluid Capacity	3.8 qt	Not Published
▶PTO & Hitch
PTO Type	Live independent PTO (with hydraulic clutch)	Transmission driven with overrunning clutch
PTO Rear	STD (540 rpm)	540 rpm
Mid-PTO Availability	STD (2500 rpm)	No mid-PTO offered
Category, 3-Point Hitch	SAE Category I Optional	Category I
Hitch Lift Capacity	1,213 lb	1918 lb
Hitch Lift Capacity (at 24”)	680 lb	1389 lb
Lift Control Type	Quarter-inching valve	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission	Gear shift
No. of Speeds	2 Range (Low-High)	8 forward, 4 reverse
Max Travel Speed (Forward)	8.4 mph	10.7 mph
Max Travel Speed (Reverse)	6.5 mph	3.9 mph
Clutch	Dry type single plate - Main clutch 9.45 in.	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS	Not Published
Steering	Integral power steering	Integral type power steering
Brakes	Mechanical, wet disc type	Wet disc type
Seat Suspension & Adjustability	High-back deluxe seat with armrests; fore/aft slide and backrest tilt adjustment	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Tubular steel, non-adjustable tread spacing
Front Axle Rating	Not Published	2865 lb (at 41.3 in tread)
Drawbar Capacity	Max. drawbar load @ hitch: 550 lb.	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	95.5 in (without 3-point hitch)	110.6 in (without 3-point hitch)
Overall Width	45.1 in	55.1 in
Wheelbase	55.1 in	63.3 in
Ground Clearance	6.5 in (minimum; 8.9 in at front axle)	13.6 in
Min. Turn Radius without Brakes	7.5 ft	7.9 ft (with brake applied)
Height to Top of ROPS	83.1 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	1521 lb	2425 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural
R1 Agricultural - Front	18X8.5-10	5-15
R1 Agricultural - Rear	26X12-12	11.2-24
R3 Turf - Front	18X8.5-10	Not Published
R3 Turf - Rear	26X12-12	Not Published
R4 Industrial - Front	18X8.5-10	Not Published
R4 Industrial - Rear	26X12-12	Not Published
▶Loader & Attachments
Quick Attach Loader System	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)	Front Loader (LA525 - 2 Lever Quick Coupler)
Loader Model	LA344S (standard, quick attach); LA344 (pin-on option)	LA525
Loader Lift Height	71.0 in	94.3 in
Loader Lift Capacity (Full Height)	739 lb (LA344 pin-on); 613 lb (LA344S quick attach)	1131 lb
Loader Breakout Force	1,407 lbf (LA344 pin-on); 1,286 lbf (LA344S quick attach)	2373 lbf
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota BX80 Series Brush Guard Insert (S/N C1630 and up) $259.00 S/N C1630 and after Kubota BX80 Series Brush Guard Insert (S/N before C1630) $299.00 S/N before C1630	Kubota Standard L & MX Series Brush Guard Insert Kit $269.00

Find a Kubota dealer near you→

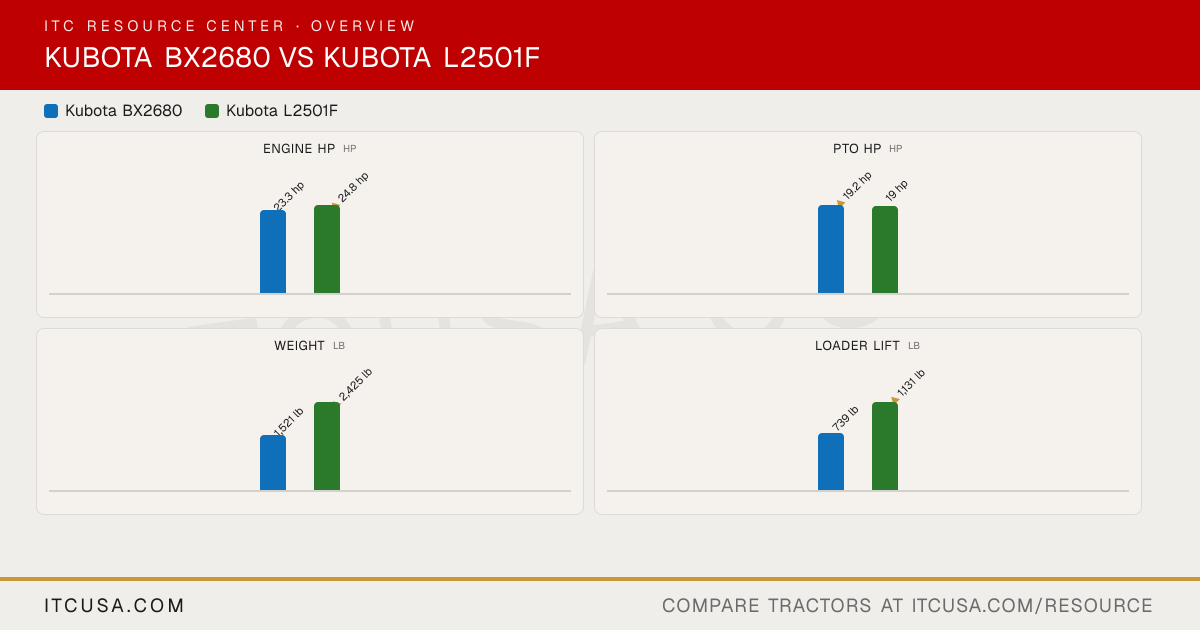

Kubota BX2680 vs Kubota L2501F: Quick Answers

Which has more horsepower, the Kubota BX2680 or the Kubota L2501F?

The Kubota L2501F leads on engine hp at 24.8 hp hp, compared to 23.3 hp hp for the Kubota BX2680.

Which has more PTO horsepower, the Kubota BX2680 or the Kubota L2501F?

The Kubota BX2680 leads on pto hp at 19.2 hp hp, compared to 19 hp hp for the Kubota L2501F.

Which is heavier, the Kubota BX2680 or the Kubota L2501F?

The Kubota L2501F leads on weight at 2,425 lb lb, compared to 1,521 lb lb for the Kubota BX2680.

Which has more loader lift capacity, the Kubota BX2680 or the Kubota L2501F?

The Kubota L2501F leads on loader lift at 1,131 lb lb, compared to 739 lb lb for the Kubota BX2680.

Which has more three-point hitch lift capacity, the Kubota BX2680 or the Kubota L2501F?

The Kubota L2501F leads on 3-pt lift (24 in) at 1,389 lb lb, compared to 680 lb lb for the Kubota BX2680.
