Bad Boy Tractors 4025 vs Kubota BX2680

Across 6 measurable specs, the Bad Boy Tractors 4025 leads 5 categories to 1. Machine pages: Bad Boy Tractors 4025 and Kubota BX2680.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

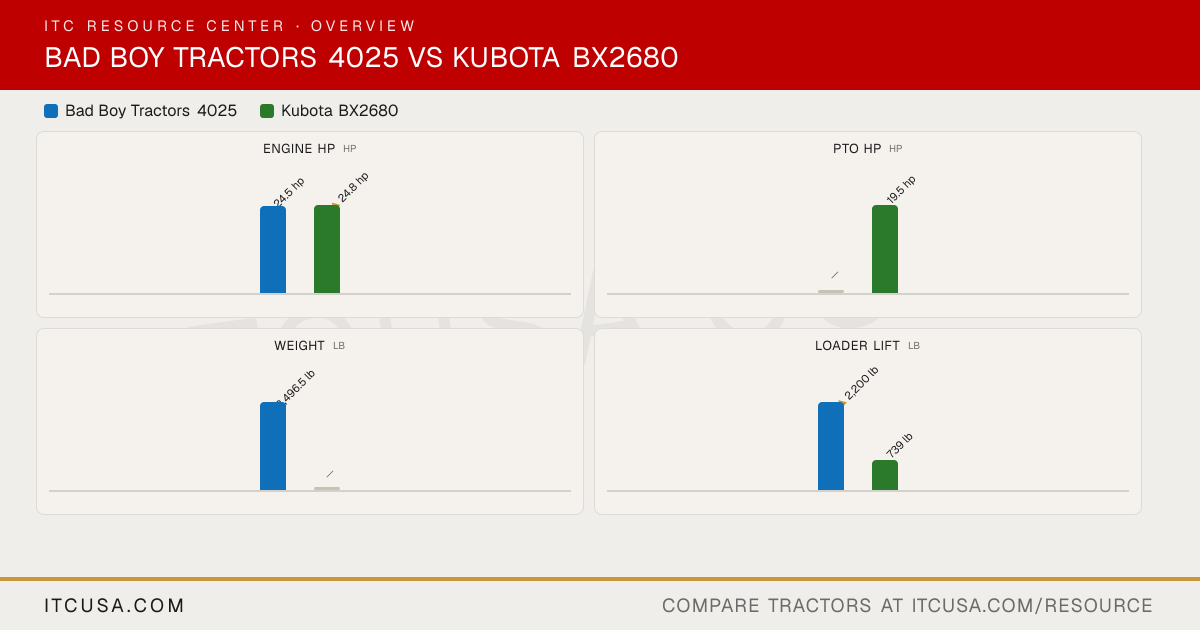

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	KubotaBX2680

▶Engine
PTO Power	540 rpm, 1st stage	19.5 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Present (standard equipment)	Sheet net and replaceable treated paper element, spin on oil filter
Engine Type	Vertical, water cooled 4-cycle, diesel engine	Liquid cooled, 4-cycle, diesel
Fuel System	Diesel fuel system with fuel injection pump	Direct injection
Displacement	104.6 in³	61.1 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	3200 rpm
Cooling System Type	Pressurized Radiator	Water with pressurized radiator, reverse air-flow design
Engine Manufacturer	A1700N6, A1700N5, A1700N4	Kubota
Engine Power (Gross)	24.5 hp	24.8 hp
Engine Emissions Constraints	Not Published	Not Published
▶Weight
Tractor Weight (Base)	3,496.5 lb (3,497 lbs), 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Open center tandem pump gear type
Steering Flow	4.0 gpm	1.0 gpm
Implement Flow	7.5 gpm	5.2 gpm
Total Hydraulic Flow	11.5 gpm (4.0 + 7.5)	6.2 gpm
Hydraulic System Type	Not Published	Open center
System Operating Pressure	463 lbf/cm² maximum	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.5 gpm	6.2 gpm
No. of Optional Remote Valves	Optional (Up to 2)	2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	STD (540 rpm)
PTO Type	Independent	Live independent PTO (with hydraulic clutch)
Lift Control Type	Position control type	Not Published
Hitch Lift Capacity	2,425 lb @ 24 in behind lift point	Not Published
Mid-PTO Availability	Not Published	STD (2500 rpm)
Category, 3-Point Hitch	Category 1	SAE Category I Optional
Hitch Lift Capacity (at 24”)	2,425 lb @ 24 in behind lift point	680 lb
▶Tire Options
R3 Turf - Rear	Not Published	26X12-12
R3 Turf - Front	Not Published	18X8.5-10
Tire Size & Options	OEM website lists IND tires 25X8.50-14 / 15-19.5; Operator Manual spec based on 8.0-16 / 12.4-24	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5	26X12-12
R4 Industrial - Front	25X8.50-14	18X8.5-10
R1 Agricultural - Rear	12.4-24 6PR	26X12-12
R1 Agricultural - Front	8.0-16 4PR	18X8.5-10
▶Fluid Capacity
Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	Not Published
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	Not Published
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	6.6 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	HST: 9.77 gal	Not Published
▶Loader & Attachments
Loader Lift Height	104 in	71.0 in
Loader Breakout Force	3,660 lb	1,286 lbf (bucket pivot pin)
Quick Attach Loader System	SSQA	Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
Loader Lift Capacity (Full Height)	2,200 lb (pivot pin)	739 lb
▶Transmission & Drivetrain
Clutch	None (HST)	Dry type single plate - Main clutch 9.45 in.
No. of Speeds	3 Range	2 Range (Low-High)
Transmission Type	HST (Hydrostatic Transmission) with shuttle type	Hydrostatic transmission
Max Travel Speed (Forward)	Not Published	8.1 mph
Max Travel Speed (Reverse)	Not Published	6.2 mph
Differential Lock & Limited Slip Options	Differential lock	Rear differential lock standard
▶Chassis, Steering & Controls
Brakes	Wet, Multi-Disc	Mechanical, wet disc type
Steering	Hydrostatic power steering	Integral power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	Max. drawbar load @ hitch: 550 lb.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.8 in (65.79 in.)	55.1 in
Overall Width	57.1 in (57.13 in.) [ROPS Model], 55.6 in (55.63 in.) [Cabin Model]	45.1 in
Overall Length	134.9 in (134.88 in.)	—
Ground Clearance	13.2 in (13.19 in.) [ROPS Model], 13.5 in (13.50 in.) [Cabin Model]	6.5 in
Height to Top of ROPS	104.1 in (104.06 in.) [ROPS Model], 88.9 in (88.9 in.) [Cabin Model]	83.1 in
Height to Top of Cab Model	Not Published	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	7.5 ft (2.3 m)
Overall Length with 3-Point Hitch	134.88 in	99.0 in (w/ Front guard)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 4025 vs Kubota BX2680: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Kubota BX2680?

The Kubota BX2680 leads on engine hp at 24.8 hp hp, compared to 24.5 hp hp for the Bad Boy Tractors 4025.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Kubota BX2680?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 739 lb lb for the Kubota BX2680.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Kubota BX2680?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 680 lb lb for the Kubota BX2680.
