Kubota L3301 vs Kubota LX3310

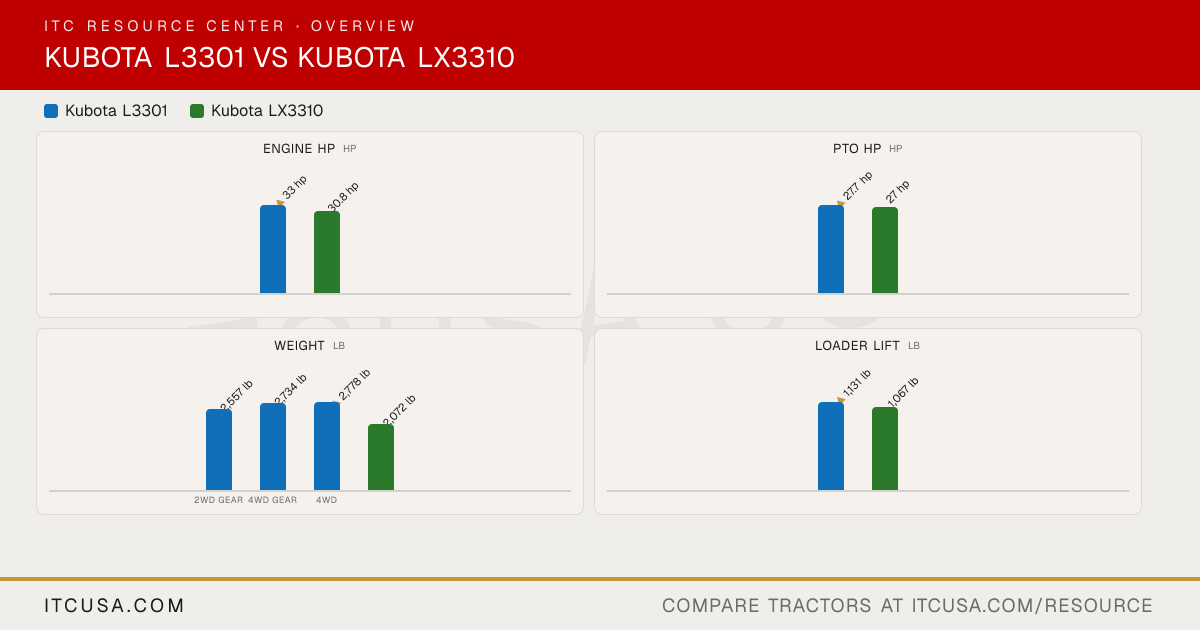

Across 9 measurable specs, the Kubota L3301 leads 7 categories to 2. Machine pages: Kubota L3301 and Kubota LX3310.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3301	KubotaLX3310

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	F (2WD gear), DT (4WD gear): D1803-CR-E4-LB1; HST (4WD): D1803-CR-E4-LB2	V1505-CR-TE5-D36R1
Engine Type	Liquid-cooled, 3-cylinder, 4-cycle, multi-valve diesel, naturally aspirated, common rail direct injection	E-CDIS, liquid cooled, 4-cylinder, diesel
No. of Cylinders	3	4
Displacement	111.4 in³	91.5 in³
Rated Engine Speed	2700 rpm	2500 rpm
Engine Power (Gross)	33 hp	30.8 hp
PTO Power	F (2WD gear), DT (4WD gear): 27.7 hp; HST (4WD): 26.2 hp	27 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled, water with pressurized radiator	Pressurized radiator
Air Cleaner	Dry paper single element	6.0 in Dual paper element
Fuel System	Common rail (CRS) direct injection, electronic fuel injection	Common Rail System (CRS)
Alternator	40 A, 12 V	60 A, 12 V
▶Hydraulics
Pump Type	Open center tandem pump, gear type	Dual pump
Implement Flow	6.3 gpm	5.0 gpm
Steering Flow	3.8 gpm	3.7 gpm
Total Hydraulic Flow	10.1 gpm	8.7 gpm
Overall Hydraulic Pump Flow	10.1 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 3 (self canceling detent valve or float detent valve options)	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	11.1 gal	7.1 gal
Coolant Capacity	6.3 qt	4.5 qt
Crankcase Capacity	7.1 qt	5.0 qt
Transmission / Hydraulic System Capacity	F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal	4.0 gal
Front Axle Fluid Capacity	4.8 qt	5.0 qt
▶PTO & Hitch
PTO Type	Live independent PTO with hydraulic clutch	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	No mid-PTO offered	2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1998 lb	2139 lb
Hitch Lift Capacity (at 24”)	1433 lb	1676 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	F (2WD gear), DT (4WD gear): Synchronized shuttle gear transmission, 8F/8R; HST (4WD): Hydrostatic transmission, 3-range	Hydrostatic transmission
No. of Speeds	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range	3 ranges
Max Travel Speed (Forward)	F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph	13.6 mph
Max Travel Speed (Reverse)	F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph	10.3 mph
Clutch	Dry type single stage	Not Published
Differential Lock & Limited Slip Options	Rear differential lock standard	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS (factory certified) with retractable seat belt	Not Published
Steering	Integral power steering	Hydraulic power steering
Brakes	Mechanical wet disc type, pedals can be locked together	Multi-plate wet disc
Seat Suspension & Adjustability	Not Published	Deluxe high-back suspension seat
Front Axle Type	F (2WD gear): Tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): Bevel gear front axle, non-adjustable tread spacing	Not Published
Front Axle Rating	2865 lb (at 41.3 in tread, 2WD and 4WD models)	Not Published
Drawbar Capacity	730 lb	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in	101.8 in (without 3-point hitch)
Overall Width	55.1 in	53.7 in
Wheelbase	63.3 in	65.6 in
Ground Clearance	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in	14.6 in
Min. Turn Radius without Brakes	F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft	6.9 ft (with brake applied)
Height to Top of ROPS	91.7 in	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	84.6 in
▶Weight
Tractor Weight (Base)	F (2WD gear): 2557 lb; DT (4WD gear): 2734 lb; HST (4WD): 2778 lb	2072 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD)	R1 Agricultural, R4 Industrial, R14
R1 Agricultural - Front	F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16	7.0-12
R1 Agricultural - Rear	11.2-24	12.4-16
R3 Turf - Front	F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14	24x8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	27x8.5-15 (4WD)	23X8.50-14 / 25X8.50-14
R4 Industrial - Rear	15-19.5 (4WD)	12.4-16 / 15-19.5
▶Loader & Attachments
Quick Attach Loader System	LA525: 2-Lever Quick Coupler, no tools required to attach and detach loader	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	LA525	LA535
Loader Lift Height	LA525: 94.3 in	84 in
Loader Lift Capacity (Full Height)	LA525: 1131 lb	1067 lb
Loader Breakout Force	LA525: 2462 lbf	2245 lb
▶Warranty
Warranty Length & Coverage	24 months or 1500 hours (general)	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota LX2610/LX3310 Brush Guard Insert $259.00

Find a Kubota dealer near you→

Kubota L3301 vs Kubota LX3310: Quick Answers

Which has more horsepower, the Kubota L3301 or the Kubota LX3310?

The Kubota L3301 leads on engine hp at 33 hp hp, compared to 30.8 hp hp for the Kubota LX3310.

Which has more PTO horsepower, the Kubota L3301 or the Kubota LX3310?

The Kubota L3301 leads on pto hp at 27.7 hp hp, compared to 27 hp hp for the Kubota LX3310.

Which is heavier, the Kubota L3301 or the Kubota LX3310?

The Kubota L3301 leads on weight at 2,778 lb lb, compared to 2,072 lb lb for the Kubota LX3310.

Which has more loader lift capacity, the Kubota L3301 or the Kubota LX3310?

The Kubota L3301 leads on loader lift at 1,131 lb lb, compared to 1,067 lb lb for the Kubota LX3310.

Which has more three-point hitch lift capacity, the Kubota L3301 or the Kubota LX3310?

The Kubota LX3310 leads on 3-pt lift (24 in) at 1,676 lb lb, compared to 1,433 lb lb for the Kubota L3301.
