Kubota L3600 vs Kubota LX4020
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Kubota L3600, 4 to the Kubota LX4020. Machine pages: Kubota L3600 and Kubota LX4020.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

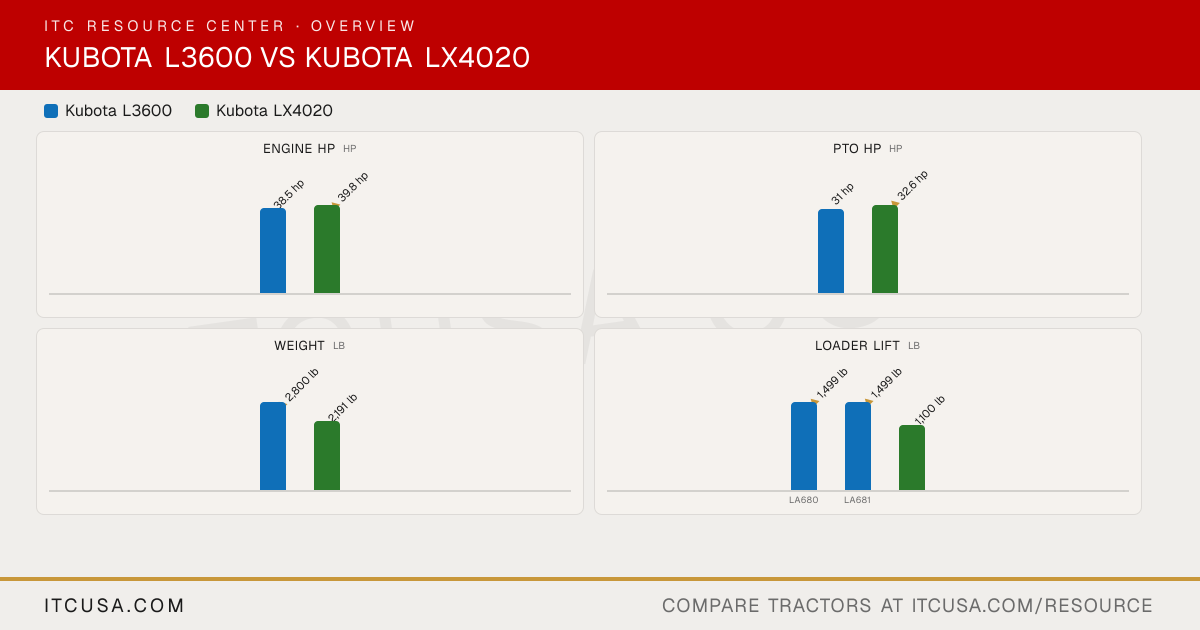

Category Verdict
| Spec | Kubota L3600 | Kubota LX4020 |
|---|---|---|
| Engine HP (hp) | 38.5 hp | ▲ 39.8 hp |
| PTO HP (hp) | 31 hp | ▲ 32.6 hp |
| Weight (lb) | ▲ 2,800 lb | 2,191 lb |
| Loader Lift (lb) | ▲ 1,499 lb | 1,100 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,310 lb | 1,962 lb |
| Lift Height (in) | ▲ 102.4 in | 87.6 in |
| Breakout Force (lbf) | 2,557 lbf | n/a |
| Hydraulic Flow (gpm) | 7.8 gpm | ▲ 9.5 gpm |
| Travel Speed (mph) | 14.3 mph | ▲ 17 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL3600 | KubotaLX4020 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | V1903-A | V1505-CR-TE5-D40R4 |
| Engine Type | Indirect injection, vertical, water-cooled, 4-cycle diesel | Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged |
| No. of Cylinders | 4 | 4 |
| Displacement | 113.3 in³ | 91.4 in³ |
| Rated Engine Speed | 2600 rpm | 2700 rpm |
| Engine Power (Gross) | 38.5 hp | 39.8 hp |
| PTO Power | 31 hp | 32.6 hp |
| Engine Emissions Constraints | Not Published | Not Published |
| Cooling System Type | Water-cooled | Pressurized radiator |
| Air Cleaner | Not Published | 6 in paper filter (with dual element) |
| Fuel System | Indirect injection | Direct injection |
| Alternator | Not Published | Not Published |
Kubota L3600 vs Kubota LX4020: Quick Answers
- Which has more horsepower, the Kubota L3600 or the Kubota LX4020?
- The Kubota LX4020 leads on engine hp at 39.8 hp hp, compared to 38.5 hp hp for the Kubota L3600.
- Which has more PTO horsepower, the Kubota L3600 or the Kubota LX4020?
- The Kubota LX4020 leads on pto hp at 32.6 hp hp, compared to 31 hp hp for the Kubota L3600.
- Which is heavier, the Kubota L3600 or the Kubota LX4020?
- The Kubota L3600 leads on weight at 2,800 lb lb, compared to 2,191 lb lb for the Kubota LX4020.
- Which has more loader lift capacity, the Kubota L3600 or the Kubota LX4020?
- The Kubota L3600 leads on loader lift at 1,499 lb lb, compared to 1,100 lb lb for the Kubota LX4020.
- Which has more three-point hitch lift capacity, the Kubota L3600 or the Kubota LX4020?
- The Kubota L3600 leads on 3-pt lift (24 in) at 2,310 lb lb, compared to 1,962 lb lb for the Kubota LX4020.
