Kubota LX3310HSDC vs Kubota LX3520

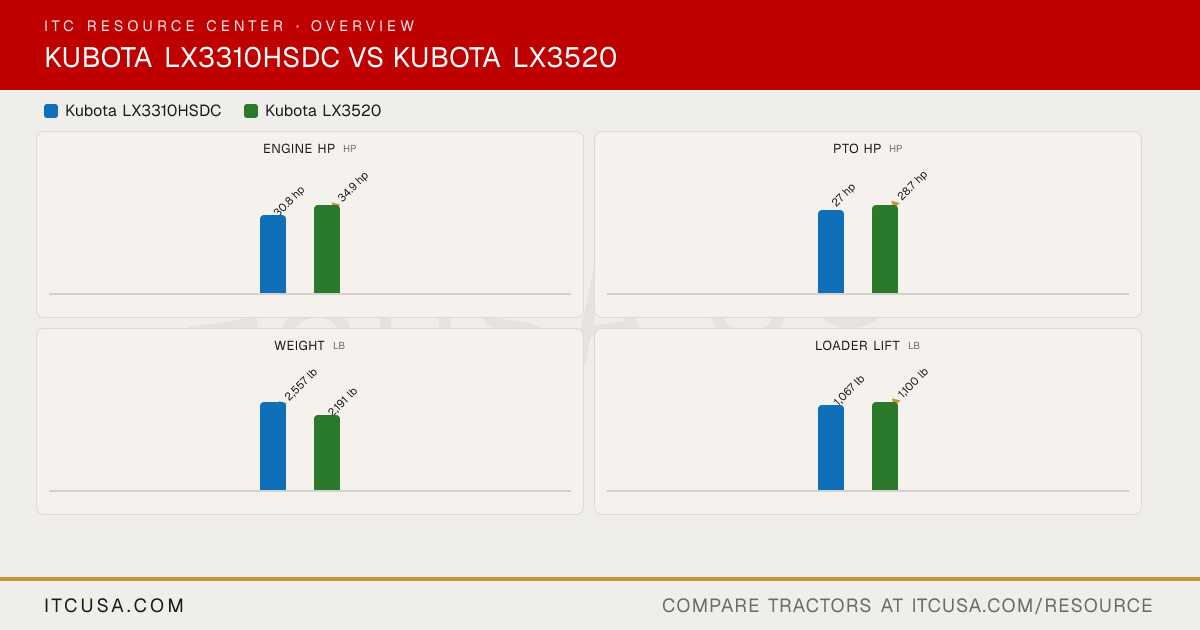

Across 8 measurable specs, the Kubota LX3520 leads 7 categories to 1. Machine pages: Kubota LX3310HSDC and Kubota LX3520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaLX3310HSDC	KubotaLX3520

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V1505-CR-TE5-D36Q1	V1505-CR-TE5-D40R5
Engine Type	E-CDIS, liquid cooled, 4-cylinder, diesel	Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
No. of Cylinders	4	4
Displacement	91.5 in³	91.4 in³
Rated Engine Speed	2500 rpm	2700 rpm
Engine Power (Gross)	30.8 hp	34.9 hp
PTO Power	27 hp	28.7 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Pressurized radiator	Pressurized radiator
Air Cleaner	6.0 in Dual paper element	6 in paper filter (with dual element)
Fuel System	Common Rail System (CRS)	Direct injection
Alternator	60 A, 12 V	Not Published
▶Hydraulics
Pump Type	Dual pump	Dual pump
Implement Flow	5.0 gpm	5.4 gpm
Steering Flow	3.7 gpm	4.1 gpm
Total Hydraulic Flow	8.7 gpm	9.5 gpm
Overall Hydraulic Pump Flow	8.7 gpm	9.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	Optional, up to 2	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	8.4 gal	8.5 gal
Coolant Capacity	4.5 qt	4.5 qt
Crankcase Capacity	5.0 qt	5.0 qt
Transmission / Hydraulic System Capacity	4.0 gal	5.5 gal
Front Axle Fluid Capacity	5.0 qt	4.8 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	2500 rpm	2460 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2139 lb	2535 lb
Hitch Lift Capacity (at 24”)	1676 lb	1962 lb
Lift Control Type	Position control valve	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission	HST (3 ranges)
No. of Speeds	3 ranges	HST (3 range)
Max Travel Speed (Forward)	13.6 mph	17.0 mph
Max Travel Speed (Reverse)	10.3 mph	13.0 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock standard	Standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydraulic power steering	Hydrostatic power steering
Brakes	Multi-plate wet disc	Multi-plate wet disk
Seat Suspension & Adjustability	Deluxe high-back suspension seat	Deluxe suspension seat (high back, designed to absorb shock)
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1100 lb	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	103.9 in (without 3-point hitch)	116.1 in
Overall Width	53.7 in	53.7 in
Wheelbase	65.6 in	66.7 in
Ground Clearance	14.6 in	8.9 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	7.5 ft (with brake applied)
Height to Top of ROPS	Not Published	88.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	84.6 in	85.6 in
▶Weight
Tractor Weight (Base)	2557 lb	2191 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R4 Industrial, R14	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	7.0-12	180/85D12
R1 Agricultural - Rear	12.4-16	320/85D16
R3 Turf - Front	24x8.50-14	24x8.5-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	23X8.50-14	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	12.4-16	14-17.5 or 15-19.5
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	LA535	LA545
Loader Lift Height	84 in	87.6 in
Loader Lift Capacity (Full Height)	1067 lb	1100 lb
Loader Breakout Force	2245 lb	Not Published
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota LX2610/LX3310 Brush Guard Insert $259.00	None tagged yet

Find a Kubota dealer near you→

Kubota LX3310HSDC vs Kubota LX3520: Quick Answers

Which has more horsepower, the Kubota LX3310HSDC or the Kubota LX3520?

The Kubota LX3520 leads on engine hp at 34.9 hp hp, compared to 30.8 hp hp for the Kubota LX3310HSDC.

Which has more PTO horsepower, the Kubota LX3310HSDC or the Kubota LX3520?

The Kubota LX3520 leads on pto hp at 28.7 hp hp, compared to 27 hp hp for the Kubota LX3310HSDC.

Which is heavier, the Kubota LX3310HSDC or the Kubota LX3520?

The Kubota LX3310HSDC leads on weight at 2,557 lb lb, compared to 2,191 lb lb for the Kubota LX3520.

Which has more loader lift capacity, the Kubota LX3310HSDC or the Kubota LX3520?

The Kubota LX3520 leads on loader lift at 1,100 lb lb, compared to 1,067 lb lb for the Kubota LX3310HSDC.

Which has more three-point hitch lift capacity, the Kubota LX3310HSDC or the Kubota LX3520?

The Kubota LX3520 leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,676 lb lb for the Kubota LX3310HSDC.
