Bad Boy Tractors 4035 vs Kubota LX3310HSDC

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 9 categories to 0. Machine pages: Bad Boy Tractors 4035 and Kubota LX3310HSDC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

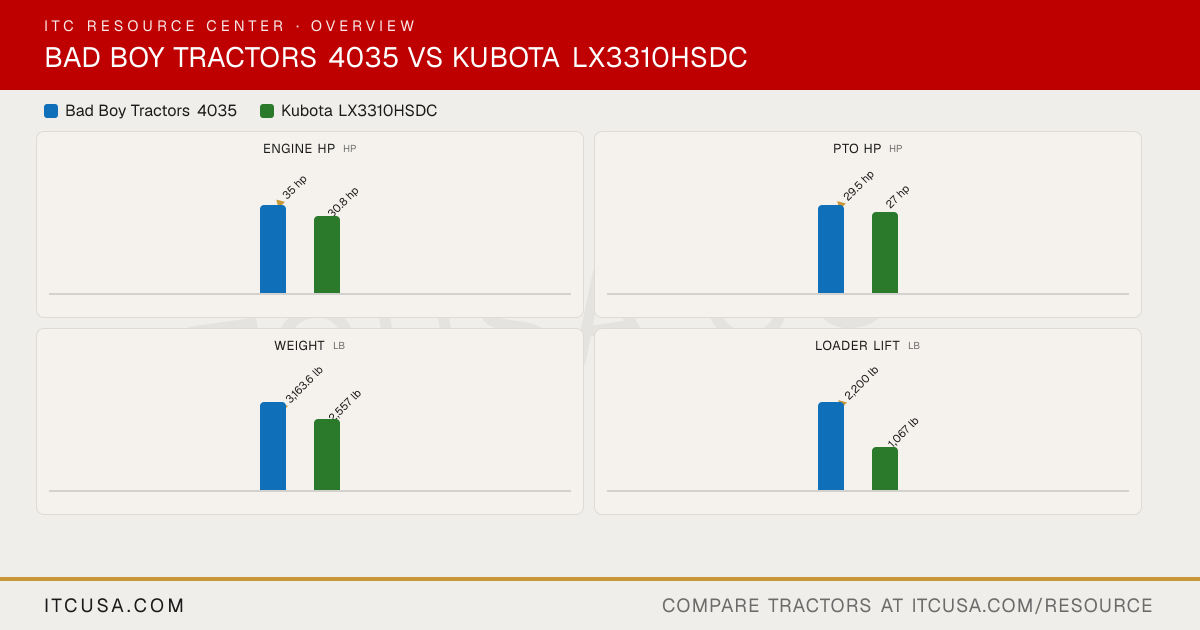

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	KubotaLX3310HSDC

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1700N4-BUTR_4	V1505-CR-TE5-D36Q1
Engine Type	Vertical, 4-stroke, water-cooled diesel	E-CDIS, liquid cooled, 4-cylinder, diesel
No. of Cylinders	3	4
Displacement	104.7 in³	91.5 in³
Rated Engine Speed	2600 rpm	2500 rpm
Engine Power (Gross)	35 hp	30.8 hp
PTO Power	29.5 hp	27 hp
Engine Emissions Constraints	EPA Final Tier4	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Not Published	6.0 in Dual paper element
Fuel System	Not Published	Common Rail System (CRS)
Alternator	50 A, 12 V	60 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual pump
Implement Flow	8.2 gpm	5.0 gpm
Steering Flow	4.4 gpm	3.7 gpm
Total Hydraulic Flow	12.6 gpm	8.7 gpm
Overall Hydraulic Pump Flow	12.6 gpm	8.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 2	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	8.4 gal
Coolant Capacity	1.32 gal	4.5 qt
Crankcase Capacity	1.14 gal	5.0 qt
Transmission / Hydraulic System Capacity	9.77 gal	4.0 gal
Front Axle Fluid Capacity	1.69 gal	5.0 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	2500 rpm
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	2139 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1676 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Hydrostatic transmission
No. of Speeds	3 range (HST)	3 ranges
Max Travel Speed (Forward)	19.08 mph	13.6 mph
Max Travel Speed (Reverse)	19.08 mph	10.3 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydraulic power steering
Brakes	Wet, multi-disc	Multi-plate wet disc
Seat Suspension & Adjustability	Not Published	Deluxe high-back suspension seat
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	103.9 in (without 3-point hitch)
Overall Width	56.7 in	53.7 in
Wheelbase	65.7 in	65.6 in
Ground Clearance	15 in	14.6 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	96.85 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	84.6 in
▶Weight
Tractor Weight (Base)	3,163.6 lb	2557 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R4 Industrial, R14
R1 Agricultural - Front	8.0-16	7.0-12
R1 Agricultural - Rear	12.4-24	12.4-16
R3 Turf - Front	Not Published	24x8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	28x8.50-15	23X8.50-14
R4 Industrial - Rear	43x16.00-20	12.4-16
▶Loader & Attachments
Quick Attach Loader System	SSQA	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	BBL400	LA535
Loader Lift Height	104 in	84 in
Loader Lift Capacity (Full Height)	2,200 lb	1067 lb
Loader Breakout Force	3,660 lb	2245 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	Kubota LX2610/LX3310 Brush Guard Insert $259.00

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 4035 vs Kubota LX3310HSDC: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the Kubota LX3310HSDC?

The Bad Boy Tractors 4035 leads on engine hp at 35 hp hp, compared to 30.8 hp hp for the Kubota LX3310HSDC.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Kubota LX3310HSDC?

The Bad Boy Tractors 4035 leads on pto hp at 29.5 hp hp, compared to 27 hp hp for the Kubota LX3310HSDC.

Which is heavier, the Bad Boy Tractors 4035 or the Kubota LX3310HSDC?

The Bad Boy Tractors 4035 leads on weight at 3,163.6 lb lb, compared to 2,557 lb lb for the Kubota LX3310HSDC.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Kubota LX3310HSDC?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,067 lb lb for the Kubota LX3310HSDC.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Kubota LX3310HSDC?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,676 lb lb for the Kubota LX3310HSDC.
