Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX4020
Massey FergusonMF 1740 E
PTO Power
32.6 hp
Not Published
Alternator
Not Published
Not Published
Air Cleaner
6 inch paper filter (with dual element)
Not Published
Engine Type
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
3-cylinder turbocharged diesel
Fuel System
Not Published
Not Published
Displacement
91.4 in³
111.4 in³
No. of Cylinders
4
3
Rated Engine Speed
2700 rpm
Not Published
Cooling System Type
Pressurized radiator
Not Published
Engine Manufacturer
Kubota
Massey Ferguson (AGCO)
Engine Power (Gross)
39.8 hp
40 hp
Engine Emissions Constraints
Not Published
Stage V
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Not Published
Pump Type
Dual pump
Not Published
Steering Flow
Not Published
Not Published
Implement Flow
Not Published
7.5 gpm
Total Hydraulic Flow
9.5 gpm
Not Published
Hydraulic System Type
Open center
Open-centre
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
9.5 gpm
Not Published
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Up to 2
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position control valve
Not Published
Hitch Lift Capacity
2535 lb
2,205 lb
Mid-PTO Availability
2460 rpm
Not Applicable
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity (at 24”)
1962 lb
Not Published
R3 Turf - Rear
Option 1: 13.6-16; Option 2: 16.6-16
11.2R24
R3 Turf - Front
24X8.50-14
7.0R16
Tire Size & Options
R1 Agricultural, R3 Turf
R1 Agricultural, R3 Turf
R4 Industrial - Rear
Not Applicable
Not Applicable
R4 Industrial - Front
Not Applicable
Not Applicable
R1 Agricultural - Rear
320/85D16
11.2R24
R1 Agricultural - Front
180/85D12
7.0R16
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
5.0 qt
Not Published
Fuel Tank Capacity
8.5 gal
10.6 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
5.5 gal
Not Published
Loader Lift Height
87.6 in
Not Published
Loader Breakout Force
Not Published
Not Published
Quick Attach Loader System
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Not Published
Loader Lift Capacity (Full Height)
1100 lb
Not Published
Clutch
N/A
Not Published
No. of Speeds
3 ranges
8F / 8R
Transmission Type
Hydrostatic transmission
Mechanical
Max Travel Speed (Forward)
17.0 mph
Not Published
Max Travel Speed (Reverse)
13.0 mph
Not Published
Differential Lock & Limited Slip Options
Differential lock standard
Differential lock
Brakes
Multi-plate wet disk
Internal wet disc
Steering
Hydrostatic power steering
Not Published
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Seat Type: Deluxe; Seat Suspension: Adjustable
Not Published
Wheelbase
66.7 in
65.9 in
Overall Width
53.7 in
56.1-59.4 in (1,425-59.4 in)
Ground Clearance
8.9 in
Not Published
Height to Top of ROPS
88.2 in
93.9-94.5 in (2,385-94.5 in)
Height to Top of Cab Model
Not Applicable
Not Applicable
Height to Top of ROPS (folded)
Not Published
Not Published
Min. Turn Radius without Brakes
Not Published
Not Published
Overall Length with 3-Point Hitch
Not Published
121.1 in

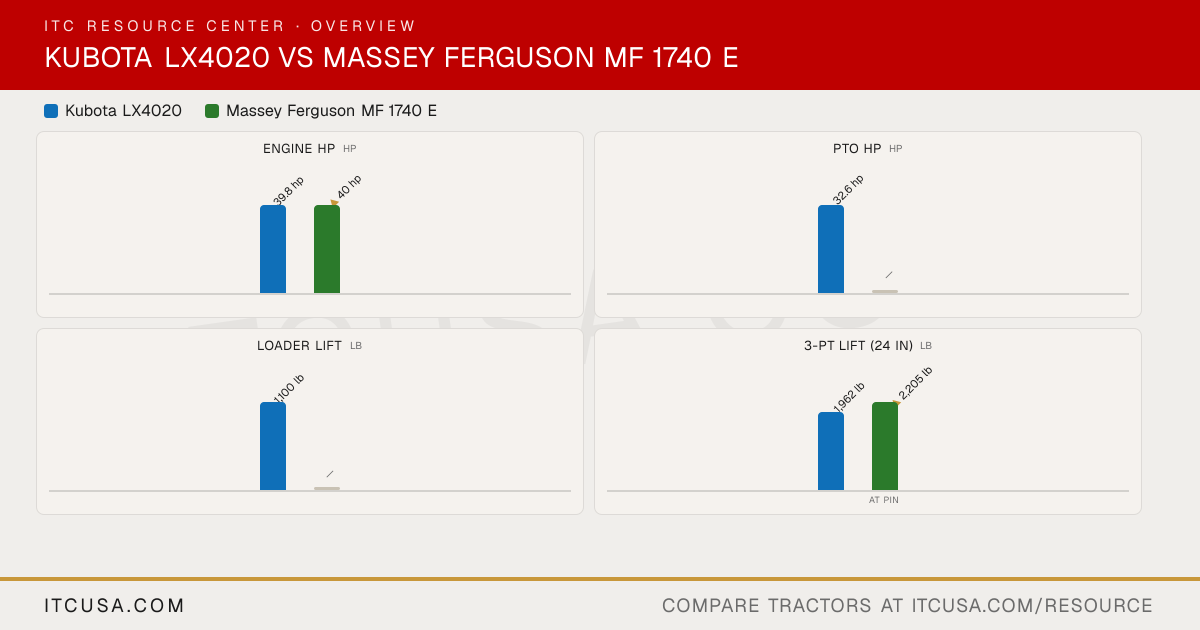

Kubota LX4020 vs Massey Ferguson MF 1740 E: Quick Answers
Which has more horsepower, the Kubota LX4020 or the Massey Ferguson MF 1740 E?
The Massey Ferguson MF 1740 E leads on engine hp at 40 hp hp, compared to 39.8 hp hp for the Kubota LX4020.
Which has more three-point hitch lift capacity, the Kubota LX4020 or the Massey Ferguson MF 1740 E?
The Massey Ferguson MF 1740 E leads on 3-pt lift (24 in) at 2,205 lb lb, compared to 1,962 lb lb for the Kubota LX4020.
