LS Tractor MT122 vs TYM 2205

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, this matchup is a dead heat: 3 categories to the LS Tractor MT122, 3 to the TYM 2205, 1 tied. Machine pages: LS Tractor MT122 and TYM 2205.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT122	TYM 2205
Engine HP (hp)	21.5 hp	21.5 hp
PTO HP (hp)	15 hp	▲ 15.1 hp
Weight (lb)	1,433 lb	▲ 1,472 lb
Loader Lift (lb)	▲ 1,005 lb	847 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,100 lb
Lift Height (in)	72 in	n/a
Breakout Force (lbf)	2,083 lbf	n/a
Hydraulic Flow (gpm)	▲ 6.7 gpm	6.3 gpm
Travel Speed (mph)	▲ 8.7 mph	8.4 mph

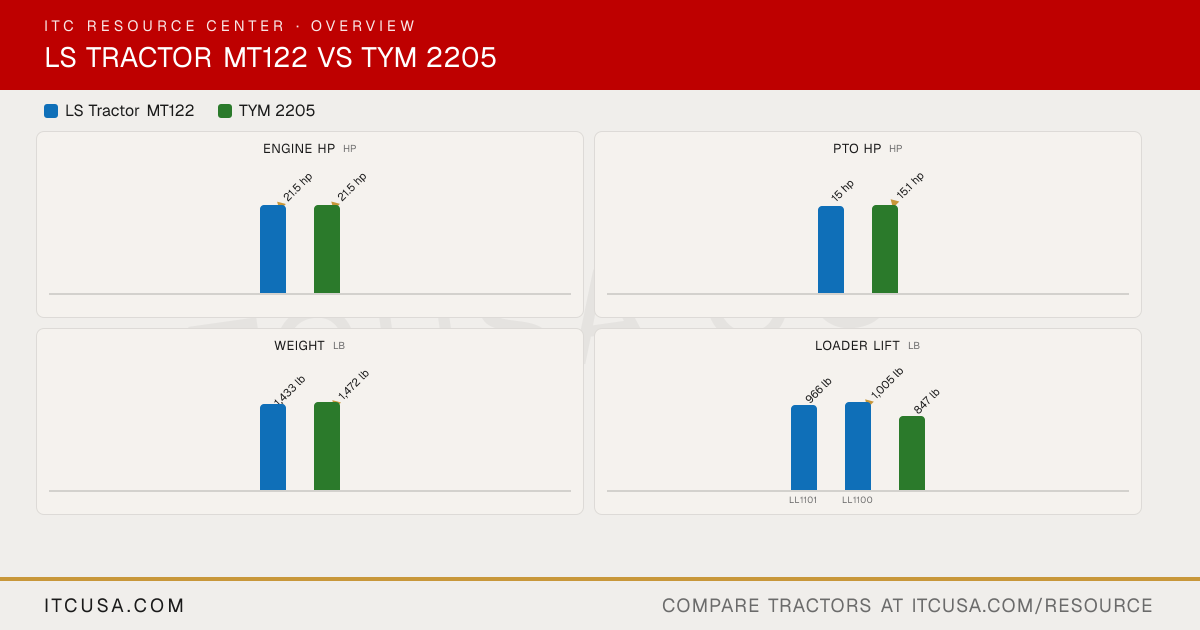

The headline numbers at a glance.

LS Tractor MT122TYM 2205

Engine HPhp

▲21.5 hp

PTO HPhp

15 hp

▲15.1 hp

Weightlb

1,433 lb

▲1,472 lb

Loader Liftlb

966 lb

▲1,005 lb

847 lb

LL1101LL1100

3-Pt Lift (24 in)lb

728 lb

▲1,100 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT122	TYM2205


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV76F	3TNM74F
Engine Type	3-cylinder, indirect injection (swirl chamber), water-cooled	Diesel, swirl chamber combustion, naturally aspirated
No. of Cylinders	3	3
Displacement	68.0 in³	60.6 in³
Rated Engine Speed	3000 rpm	3200 rpm
Engine Power (Gross)	21.5 hp	21.5 hp
PTO Power	15 hp	15.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dry element
Fuel System	In-line injection pump	Indirect injection (swirl chamber)
Alternator	40 A, 12 V	40 A, 12 V

Pump Type	Gear pump, transmission driven	Single gear pump with flow divider
Implement Flow	4.6 gpm	4.2 gpm
Steering Flow	2.1 gpm	2.1 gpm
Total Hydraulic Flow	6.7 gpm	6.3 gpm
Overall Hydraulic Pump Flow	6.7 gpm	Not Published
Hydraulic System Type	Open center system, position control	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1 pair (2 quick couplers)	2

Fuel Tank Capacity	6.6 gal	Not Published
Coolant Capacity	0.9 gal	Not Published
Crankcase Capacity	0.8 gal	Not Published
Transmission / Hydraulic System Capacity	3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe)	Not Published
Front Axle Fluid Capacity	0.5 gal	Not Published

PTO Type	Independent (electro-hydraulic)	Independent (rear and mid)
PTO Rear	Standard (540 rpm)	540 rpm
Mid-PTO Availability	Standard (2,500 rpm)	Available, 2,500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	970 lb	1,100 lb
Hitch Lift Capacity (at 24”)	728 lb	Not Published
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic Drive	Hydrostatic (HST)
No. of Speeds	2 ranges	Infinite (2-range HST)
Max Travel Speed (Forward)	8.70 mph	8.4 mph
Max Travel Speed (Reverse)	5.22 mph	8.4 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical pedal type	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power-assisted hydrostatic
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	High-Back Seat with Foldable Armrest and Retractable Seatbelt; fore/aft adjustable	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal	Not Published

Overall Length with 3-Point Hitch	97 in	94.2 in
Overall Width	47 in	44.5 in
Wheelbase	56 in	53.1 in
Ground Clearance	Not Published	8.3 in
Min. Turn Radius without Brakes	7.87 ft	Not Published
Height to Top of ROPS	87 in	86.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,472 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf	Turf (TURF05): 18x8.50-10 front / 26x12.00-12 rear; Industrial (IND05): 18x8.50-10 front / 26x12.00-12 rear
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.50-10	18x8.50-10
R3 Turf - Rear	26x12.0-12	26x12.00-12
R4 Industrial - Front	18x8.50-10	18x8.50-10
R4 Industrial - Rear	26x12.0-12	26x12.00-12

Quick Attach Loader System	LL1101: Pin-Type Bucket (standard); Quick Attach Assembly (Optional) - Compact Type (dual-lever LH/RH); LL1700: Quick Attach Implement System	Not Published
Loader Model	LL1101; LL1100	BL92S
Loader Lift Height	LL1101: 72.0 in; LL1100: 72.0 in (at pivot pin)	Not Published
Loader Lift Capacity (Full Height)	LL1101: 966 lb; LL1100: 1,005 lb (at pivot pin, maximum height)	BL92S: 847 lb
Loader Breakout Force	LL1101: 1,960 lb; LL1100: 2,083 lb (at pivot pin)	Not Published

Warranty Length & Coverage	6-year limited warranty	Not Published

Find a LS Tractor dealer near you Find a TYM dealer near you

LS Tractor MT122 vs TYM 2205: Quick Answers

Which has more horsepower, the LS Tractor MT122 or the TYM 2205?: They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor MT122 or the TYM 2205?: The TYM 2205 leads on pto hp at 15.1 hp hp, compared to 15 hp hp for the LS Tractor MT122.
Which is heavier, the LS Tractor MT122 or the TYM 2205?: The TYM 2205 leads on weight at 1,472 lb lb, compared to 1,433 lb lb for the LS Tractor MT122.
Which has more loader lift capacity, the LS Tractor MT122 or the TYM 2205?: The LS Tractor MT122 leads on loader lift at 1,005 lb lb, compared to 847 lb lb for the TYM 2205.
Which has more three-point hitch lift capacity, the LS Tractor MT122 or the TYM 2205?: The TYM 2205 leads on 3-pt lift (24 in) at 1,100 lb lb, compared to 728 lb lb for the LS Tractor MT122.

More Head-to-Heads

Category Verdict

Spec	LS Tractor MT122	TYM 2205
Engine HP (hp)	21.5 hp	21.5 hp
PTO HP (hp)	15 hp	▲ 15.1 hp
Weight (lb)	1,433 lb	▲ 1,472 lb
Loader Lift (lb)	▲ 1,005 lb	847 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,100 lb
Lift Height (in)	72 in	n/a
Breakout Force (lbf)	2,083 lbf	n/a
Hydraulic Flow (gpm)	▲ 6.7 gpm	6.3 gpm
Travel Speed (mph)	▲ 8.7 mph	8.4 mph

The headline numbers at a glance.

LS Tractor MT122TYM 2205

Engine HPhp

▲21.5 hp

PTO HPhp

15 hp

▲15.1 hp

Weightlb

1,433 lb

▲1,472 lb

Loader Liftlb

966 lb

▲1,005 lb

847 lb

LL1101LL1100

3-Pt Lift (24 in)lb

728 lb

▲1,100 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT122	TYM2205


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV76F	3TNM74F
Engine Type	3-cylinder, indirect injection (swirl chamber), water-cooled	Diesel, swirl chamber combustion, naturally aspirated
No. of Cylinders	3	3
Displacement	68.0 in³	60.6 in³
Rated Engine Speed	3000 rpm	3200 rpm
Engine Power (Gross)	21.5 hp	21.5 hp
PTO Power	15 hp	15.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dry element
Fuel System	In-line injection pump	Indirect injection (swirl chamber)
Alternator	40 A, 12 V	40 A, 12 V

Pump Type	Gear pump, transmission driven	Single gear pump with flow divider
Implement Flow	4.6 gpm	4.2 gpm
Steering Flow	2.1 gpm	2.1 gpm
Total Hydraulic Flow	6.7 gpm	6.3 gpm
Overall Hydraulic Pump Flow	6.7 gpm	Not Published
Hydraulic System Type	Open center system, position control	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1 pair (2 quick couplers)	2

Fuel Tank Capacity	6.6 gal	Not Published
Coolant Capacity	0.9 gal	Not Published
Crankcase Capacity	0.8 gal	Not Published
Transmission / Hydraulic System Capacity	3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe)	Not Published
Front Axle Fluid Capacity	0.5 gal	Not Published

PTO Type	Independent (electro-hydraulic)	Independent (rear and mid)
PTO Rear	Standard (540 rpm)	540 rpm
Mid-PTO Availability	Standard (2,500 rpm)	Available, 2,500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	970 lb	1,100 lb
Hitch Lift Capacity (at 24”)	728 lb	Not Published
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic Drive	Hydrostatic (HST)
No. of Speeds	2 ranges	Infinite (2-range HST)
Max Travel Speed (Forward)	8.70 mph	8.4 mph
Max Travel Speed (Reverse)	5.22 mph	8.4 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical pedal type	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power-assisted hydrostatic
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	High-Back Seat with Foldable Armrest and Retractable Seatbelt; fore/aft adjustable	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal	Not Published

Overall Length with 3-Point Hitch	97 in	94.2 in
Overall Width	47 in	44.5 in
Wheelbase	56 in	53.1 in
Ground Clearance	Not Published	8.3 in
Min. Turn Radius without Brakes	7.87 ft	Not Published
Height to Top of ROPS	87 in	86.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,472 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf	Turf (TURF05): 18x8.50-10 front / 26x12.00-12 rear; Industrial (IND05): 18x8.50-10 front / 26x12.00-12 rear
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.50-10	18x8.50-10
R3 Turf - Rear	26x12.0-12	26x12.00-12
R4 Industrial - Front	18x8.50-10	18x8.50-10
R4 Industrial - Rear	26x12.0-12	26x12.00-12

Quick Attach Loader System	LL1101: Pin-Type Bucket (standard); Quick Attach Assembly (Optional) - Compact Type (dual-lever LH/RH); LL1700: Quick Attach Implement System	Not Published
Loader Model	LL1101; LL1100	BL92S
Loader Lift Height	LL1101: 72.0 in; LL1100: 72.0 in (at pivot pin)	Not Published
Loader Lift Capacity (Full Height)	LL1101: 966 lb; LL1100: 1,005 lb (at pivot pin, maximum height)	BL92S: 847 lb
Loader Breakout Force	LL1101: 1,960 lb; LL1100: 2,083 lb (at pivot pin)	Not Published

Warranty Length & Coverage	6-year limited warranty	Not Published

Find a LS Tractor dealer near you Find a TYM dealer near you

LS Tractor MT122 vs TYM 2205: Quick Answers

Which has more horsepower, the LS Tractor MT122 or the TYM 2205?

They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor MT122 or the TYM 2205?

The TYM 2205 leads on pto hp at 15.1 hp hp, compared to 15 hp hp for the LS Tractor MT122.

Which is heavier, the LS Tractor MT122 or the TYM 2205?

The TYM 2205 leads on weight at 1,472 lb lb, compared to 1,433 lb lb for the LS Tractor MT122.

Which has more loader lift capacity, the LS Tractor MT122 or the TYM 2205?

The LS Tractor MT122 leads on loader lift at 1,005 lb lb, compared to 847 lb lb for the TYM 2205.

Which has more three-point hitch lift capacity, the LS Tractor MT122 or the TYM 2205?

The TYM 2205 leads on 3-pt lift (24 in) at 1,100 lb lb, compared to 728 lb lb for the LS Tractor MT122.
