Bad Boy Tractors 1022 vs TYM 2205

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the TYM 2205 leads 4 categories to 1 (2 tied). Machine pages: Bad Boy Tractors 1022 and TYM 2205.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1022	TYM 2205
Engine HP (hp)	21.5 hp	21.5 hp
PTO HP (hp)	▲ 15.4 hp	15.1 hp
Weight (lb)	1,433 lb	▲ 1,472 lb
Loader Lift (lb)	617 lb	▲ 847 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,100 lb
Lift Height (in)	78.5 in	n/a
Breakout Force (lbf)	1,253 lbf	n/a
Hydraulic Flow (gpm)	6.3 gpm	6.3 gpm
Travel Speed (mph)	7.8 mph	▲ 8.4 mph

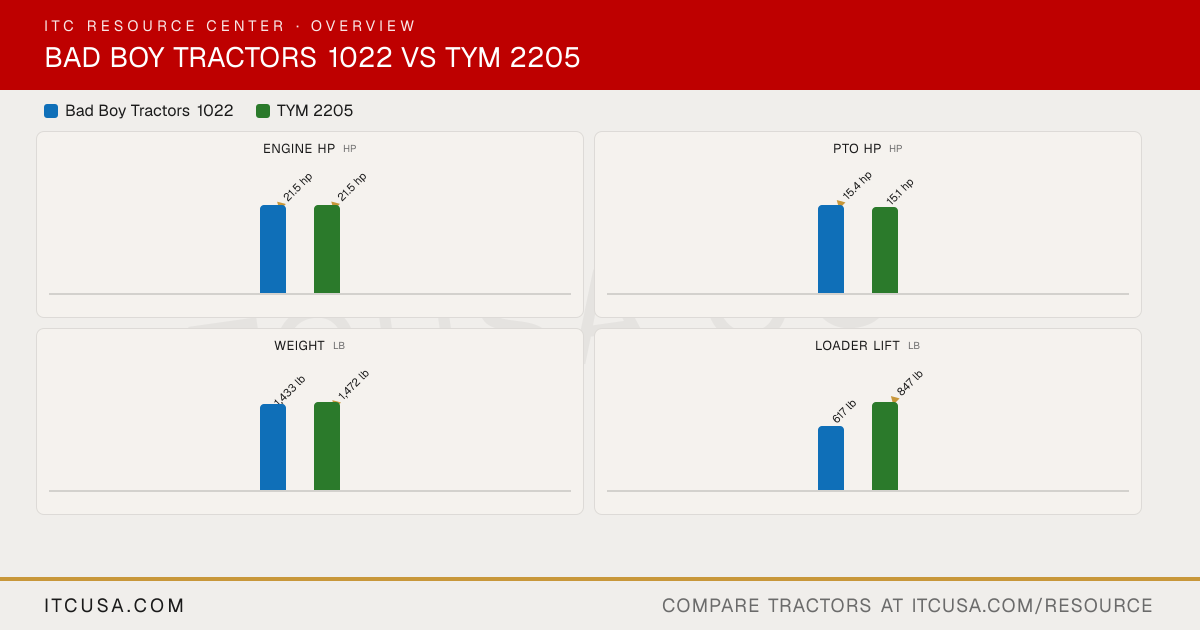

The headline numbers at a glance.

Bad Boy Tractors 1022TYM 2205

Engine HPhp

▲21.5 hp

PTO HPhp

▲15.4 hp

15.1 hp

Weightlb

1,433 lb

▲1,472 lb

Loader Liftlb

617 lb

▲847 lb

3-Pt Lift (24 in)lb

679 lb

▲1,100 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	TYM2205


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNM74F	3TNM74F
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Diesel, swirl chamber combustion, naturally aspirated
No. of Cylinders	3	3
Displacement	60.6 in³	60.6 in³
Rated Engine Speed	3200 rpm	3200 rpm
Engine Power (Gross)	21.5 hp	21.5 hp
PTO Power	15.4 hp	15.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Single dry element	Dry element
Fuel System	Indirect injection	Indirect injection (swirl chamber)
Alternator	40 A, 12 V	40 A, 12 V

Pump Type	Single gear pump with flow divider	Single gear pump with flow divider
Implement Flow	4.17 gpm	4.2 gpm
Steering Flow	2.11 gpm	2.1 gpm
Total Hydraulic Flow	6.3 gpm	6.3 gpm
Overall Hydraulic Pump Flow	6.97 gpm	Not Published
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	2

Fuel Tank Capacity	6.6 gal	Not Published
Coolant Capacity	3.7 qt	Not Published
Crankcase Capacity	2.1 qt	Not Published
Transmission / Hydraulic System Capacity	3.6 gal	Not Published
Front Axle Fluid Capacity	2.6 qt	Not Published

PTO Type	Independent	Independent (rear and mid)
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Available, 2,500 rpm
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,100 lb
Hitch Lift Capacity (at 24”)	679 lb	Not Published
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	2 range	Infinite (2-range HST)
Max Travel Speed (Forward)	7.8 mph	8.4 mph
Max Travel Speed (Reverse)	Not Published	8.4 mph
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power-assisted hydrostatic
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Standard adjustable seat	Not Published
Front Axle Type	Selectable 4WD	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	94.2 in
Overall Width	44.5 in	44.5 in
Wheelbase	53.1 in	53.1 in
Ground Clearance	8.3 in	8.3 in
Min. Turn Radius without Brakes	86.6 in	Not Published
Height to Top of ROPS	86.6 in	86.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,472 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Turf (TURF05): 18x8.50-10 front / 26x12.00-12 rear; Industrial (IND05): 18x8.50-10 front / 26x12.00-12 rear
R1 Agricultural - Front	16x7.50-9	Not Published
R1 Agricultural - Rear	24x12.00-12	Not Published
R3 Turf - Front	18x8.5-10	18x8.50-10
R3 Turf - Rear	26x12.00-12	26x12.00-12
R4 Industrial - Front	18x8.5-10	18x8.50-10
R4 Industrial - Rear	26x12.00-12	26x12.00-12

Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL100	BL92S
Loader Lift Height	78.5 in	Not Published
Loader Lift Capacity (Full Height)	617 lb	BL92S: 847 lb
Loader Breakout Force	1,253 lbf	Not Published

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published

Find a Bad Boy dealer near you Find a TYM dealer near you

Bad Boy Tractors 1022 vs TYM 2205: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the TYM 2205?: They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM 2205?: The Bad Boy Tractors 1022 leads on pto hp at 15.4 hp hp, compared to 15.1 hp hp for the TYM 2205.
Which is heavier, the Bad Boy Tractors 1022 or the TYM 2205?: The TYM 2205 leads on weight at 1,472 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM 2205?: The TYM 2205 leads on loader lift at 847 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM 2205?: The TYM 2205 leads on 3-pt lift (24 in) at 1,100 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.

More Head-to-Heads

Category Verdict

Spec	Bad Boy Tractors 1022	TYM 2205
Engine HP (hp)	21.5 hp	21.5 hp
PTO HP (hp)	▲ 15.4 hp	15.1 hp
Weight (lb)	1,433 lb	▲ 1,472 lb
Loader Lift (lb)	617 lb	▲ 847 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,100 lb
Lift Height (in)	78.5 in	n/a
Breakout Force (lbf)	1,253 lbf	n/a
Hydraulic Flow (gpm)	6.3 gpm	6.3 gpm
Travel Speed (mph)	7.8 mph	▲ 8.4 mph

The headline numbers at a glance.

Bad Boy Tractors 1022TYM 2205

Engine HPhp

▲21.5 hp

PTO HPhp

▲15.4 hp

15.1 hp

Weightlb

1,433 lb

▲1,472 lb

Loader Liftlb

617 lb

▲847 lb

3-Pt Lift (24 in)lb

679 lb

▲1,100 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	TYM2205


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNM74F	3TNM74F
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Diesel, swirl chamber combustion, naturally aspirated
No. of Cylinders	3	3
Displacement	60.6 in³	60.6 in³
Rated Engine Speed	3200 rpm	3200 rpm
Engine Power (Gross)	21.5 hp	21.5 hp
PTO Power	15.4 hp	15.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Single dry element	Dry element
Fuel System	Indirect injection	Indirect injection (swirl chamber)
Alternator	40 A, 12 V	40 A, 12 V

Pump Type	Single gear pump with flow divider	Single gear pump with flow divider
Implement Flow	4.17 gpm	4.2 gpm
Steering Flow	2.11 gpm	2.1 gpm
Total Hydraulic Flow	6.3 gpm	6.3 gpm
Overall Hydraulic Pump Flow	6.97 gpm	Not Published
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	2

Fuel Tank Capacity	6.6 gal	Not Published
Coolant Capacity	3.7 qt	Not Published
Crankcase Capacity	2.1 qt	Not Published
Transmission / Hydraulic System Capacity	3.6 gal	Not Published
Front Axle Fluid Capacity	2.6 qt	Not Published

PTO Type	Independent	Independent (rear and mid)
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Available, 2,500 rpm
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,100 lb
Hitch Lift Capacity (at 24”)	679 lb	Not Published
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	2 range	Infinite (2-range HST)
Max Travel Speed (Forward)	7.8 mph	8.4 mph
Max Travel Speed (Reverse)	Not Published	8.4 mph
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power-assisted hydrostatic
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Standard adjustable seat	Not Published
Front Axle Type	Selectable 4WD	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	94.2 in
Overall Width	44.5 in	44.5 in
Wheelbase	53.1 in	53.1 in
Ground Clearance	8.3 in	8.3 in
Min. Turn Radius without Brakes	86.6 in	Not Published
Height to Top of ROPS	86.6 in	86.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,472 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Turf (TURF05): 18x8.50-10 front / 26x12.00-12 rear; Industrial (IND05): 18x8.50-10 front / 26x12.00-12 rear
R1 Agricultural - Front	16x7.50-9	Not Published
R1 Agricultural - Rear	24x12.00-12	Not Published
R3 Turf - Front	18x8.5-10	18x8.50-10
R3 Turf - Rear	26x12.00-12	26x12.00-12
R4 Industrial - Front	18x8.5-10	18x8.50-10
R4 Industrial - Rear	26x12.00-12	26x12.00-12

Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL100	BL92S
Loader Lift Height	78.5 in	Not Published
Loader Lift Capacity (Full Height)	617 lb	BL92S: 847 lb
Loader Breakout Force	1,253 lbf	Not Published

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published

Find a Bad Boy dealer near you Find a TYM dealer near you

Bad Boy Tractors 1022 vs TYM 2205: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the TYM 2205?

They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM 2205?

The Bad Boy Tractors 1022 leads on pto hp at 15.4 hp hp, compared to 15.1 hp hp for the TYM 2205.

Which is heavier, the Bad Boy Tractors 1022 or the TYM 2205?

The TYM 2205 leads on weight at 1,472 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM 2205?

The TYM 2205 leads on loader lift at 847 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM 2205?

The TYM 2205 leads on 3-pt lift (24 in) at 1,100 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
