Which has more horsepower, the LS Tractor MT225S or the New Holland Workmaster 25S?

They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor MT225S or the New Holland Workmaster 25S?

The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which has more loader lift capacity, the LS Tractor MT225S or the New Holland Workmaster 25S?

The LS Tractor MT225S leads on loader lift at 1,067 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.

Which has more three-point hitch lift capacity, the LS Tractor MT225S or the New Holland Workmaster 25S?

The LS Tractor MT225S leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.

LS Tractor MT225S vs New Holland Workmaster 25S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the LS Tractor MT225S leads 6 categories to 0 (1 tied). Machine pages: LS Tractor MT225S and New Holland Workmaster 25S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT225S	New Holland Workmaster 25S
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	▲ 19.3 hp	17.2 hp
Weight (lb)	—	1,444 lb
Loader Lift (lb)	▲ 1,067 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 1,323 lb	728 lb
Lift Height (in)	▲ 84.4 in	72 in
Breakout Force (lbf)	▲ 2,290 lbf	2,078 lbf
Hydraulic Flow (gpm)	▲ 9.3 gpm	6.7 gpm
Travel Speed (mph)	—	9.1 mph

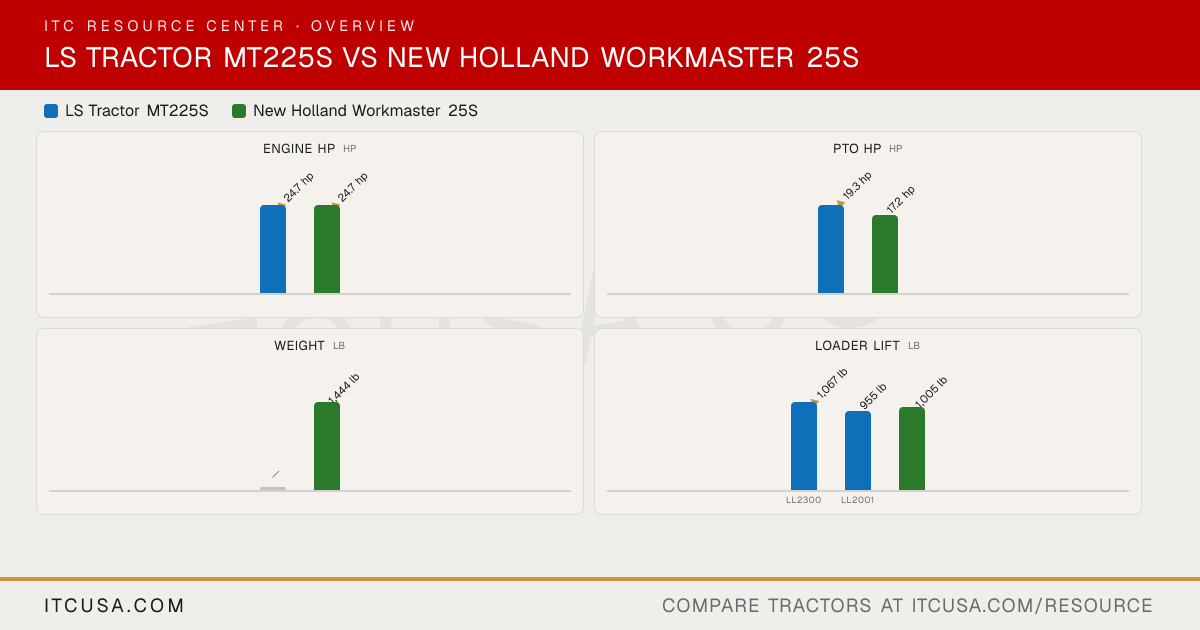

The headline numbers at a glance.

LS Tractor MT225SNew Holland Workmaster 25S

Engine HPhp

▲24.7 hp

PTO HPhp

▲19.3 hp

17.2 hp

Weightlb

—

1,444 lb

Loader Liftlb

▲1,067 lb

955 lb

1,005 lb

LL2300LL2001

3-Pt Lift (24 in)lb

▲1,323 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT225S	New HollandWorkmaster 25S


PTO Power	19.3 hp	17.2 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Dry	Not Published
Engine Type	3-cylinder, Indirect Injection (IDI), Swirl chamber	3-cylinder, naturally aspirated diesel
Fuel System	In-line injection pump	In-line injection pump
Displacement	77.3 in³	76.9 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	3000 rpm
Cooling System Type	Not Published	Pressurized liquid with recirculating bypass
Engine Manufacturer	YANMAR	Yanmar
Engine Power (Gross)	24.7 hp	24.7 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	Not Published	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	Not Applicable	1,805 lb (Cab tractor only)

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Engine-driven	Gear
Steering Flow	3.7 gpm	2.1 gpm
Implement Flow	5.6 gpm	4.6 gpm
Total Hydraulic Flow	9.3 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	9.3 gpm	6.7 gpm
No. of Optional Remote Valves	1 pair (optional)	1
No. of Standard Remote Valves	Not Applicable	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Independent, electro-hydraulic engagement
Lift Control Type	Position control	Lift-hold-lower
Hitch Lift Capacity	1,896 lb	992 lb at ball ends
Mid-PTO Availability	Optional (2500 rpm)	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,323 lb	728 lb

R3 Turf - Rear	31X15.50-15	26X12.0-12
R3 Turf - Front	22X8.50-12	18X8.50-10
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R3 Turf, R4 Industrial
R4 Industrial - Rear	12-16.5	26X12.0-12
R4 Industrial - Front	23X8.50-12	18X8.50-10
R1 Agricultural - Rear	11.2-16	Not Applicable
R1 Agricultural - Front	7-12	Not Applicable

Coolant Capacity	0.9 gal	3.5 qt
Crankcase Capacity	0.8 gal	3.0 qt
Fuel Tank Capacity	6.6 gal	6.6 gal
Front Axle Fluid Capacity	0.8 gal	0.5 gal
Transmission / Hydraulic System Capacity	4.5 gal	3.0 gal

Loader Lift Height	84.4 in	72 in
Loader Breakout Force	LL2300: 2,290 lb; LL2001: Not Published	2,078 lb
Quick Attach Loader System	LL2300: Bobcat-type (skid-steer style) quick attach bucket carrier; LL2001: Not Published	100LC: Quick Mount system (no tools)
Loader Lift Capacity (Full Height)	LL2300: 1,067 lb; LL2001: 955 lb	1,005 lb

Clutch	Not Applicable	Not Applicable
No. of Speeds	3 ranges	Infinite (2-range)
Transmission Type	Hydrostatic Drive	2-Range Hydrostatic / Dual Pedal
Max Travel Speed (Forward)	Not Published	9.1 mph
Max Travel Speed (Reverse)	Not Published	5.5 mph
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical, foot-operated rear diff lock

Brakes	Wet, multi-disc	Wet, multi-disc
Steering	Hydrostatic power steering	Central support, bevel gear type
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	63.4 in	56.1 in
Overall Width	48.7 in	46.7 in
Ground Clearance	Not Published	12 in
Height to Top of ROPS	86.4 in	90 in
Height to Top of Cab Model	Not Applicable	87.4 in
Height to Top of ROPS (folded)	Not Published	64 in
Min. Turn Radius without Brakes	Not Published	94 in
Overall Length with 3-Point Hitch	111.9 in	97.4 in

LS Tractor MT225S vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the LS Tractor MT225S or the New Holland Workmaster 25S?: They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor MT225S or the New Holland Workmaster 25S?: The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which has more loader lift capacity, the LS Tractor MT225S or the New Holland Workmaster 25S?: The LS Tractor MT225S leads on loader lift at 1,067 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.
Which has more three-point hitch lift capacity, the LS Tractor MT225S or the New Holland Workmaster 25S?: The LS Tractor MT225S leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
