LS Tractor MT226E vs New Holland Workmaster 25S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor MT226E leads 7 categories to 1. Machine pages: LS Tractor MT226E and New Holland Workmaster 25S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT226E	New Holland Workmaster 25S
Engine HP (hp)	24.6 hp	▲ 24.7 hp
PTO HP (hp)	▲ 19.2 hp	17.2 hp
Weight (lb)	▲ 2,985 lb	1,444 lb
Loader Lift (lb)	▲ 1,599 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	728 lb
Lift Height (in)	▲ 94.3 in	72 in
Breakout Force (lbf)	▲ 2,962 lbf	2,078 lbf
Hydraulic Flow (gpm)	▲ 12.5 gpm	6.7 gpm
Travel Speed (mph)	n/a	9.1 mph

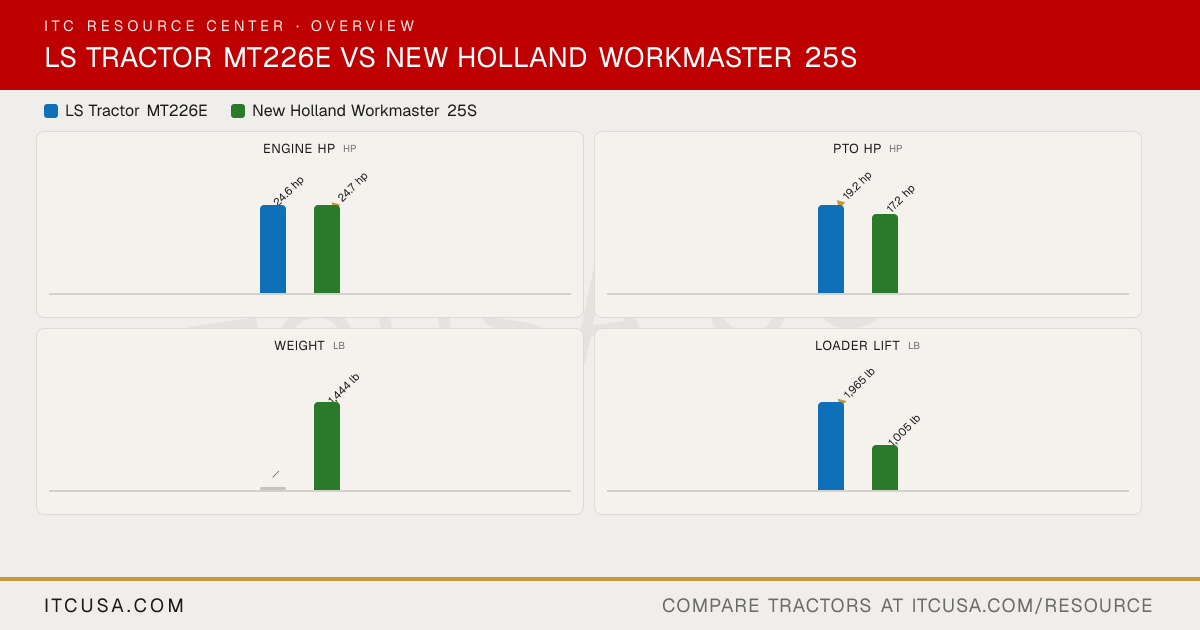

The headline numbers at a glance.

LS Tractor MT226ENew Holland Workmaster 25S

Engine HPhp

24.6 hp

▲24.7 hp

PTO HPhp

▲19.2 hp

17.2 hp

Weightlb

▲2,985 lb

1,444 lb

Loader Liftlb

▲1,599 lb

1,005 lb

3-Pt Lift (24 in)lb

▲1,433 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT226E	New HollandWorkmaster 25S


Engine Manufacturer	MHI	Yanmar
Engine Model	S3L2-W463GTAC	n/a
Engine Type	3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.4 in³	76.9 in³
Rated Engine Speed	2500 rpm	3000 rpm
Engine Power (Gross)	24.6 hp	24.7 hp
PTO Power	19.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final
Cooling System Type	Liquid-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Dry	Not Published
Fuel System	IDI (indirect injection)	In-line injection pump
Alternator	50 A, 12 V	40 A, 12 V

Pump Type	Gear pump	Gear
Implement Flow	7.9 gpm	4.6 gpm
Steering Flow	4.6 gpm	2.1 gpm
Total Hydraulic Flow	12.5 gpm	6.7 gpm
Overall Hydraulic Pump Flow	12.5 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0 (1 pair optional)	0
No. of Optional Remote Valves	1 pair (optional)	1

Fuel Tank Capacity	10.6 gal	6.6 gal
Coolant Capacity	Not Published	3.5 qt
Crankcase Capacity	Not Published	3.0 qt
Transmission / Hydraulic System Capacity	Not Published	3.0 gal
Front Axle Fluid Capacity	Not Published	0.5 gal

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	Standard (540 rpm)	540 rpm
Mid-PTO Availability	Available (option)	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	992 lb at ball ends
Hitch Lift Capacity (at 24”)	1433 lb	728 lb
Lift Control Type	Position control	Lift-hold-lower

Transmission Type	Synchro Shuttle	2-Range Hydrostatic / Dual Pedal
No. of Speeds	F12 x R12	Infinite (2-range)
Max Travel Speed (Forward)	Not Published	9.1 mph
Max Travel Speed (Reverse)	Not Published	5.5 mph
Clutch	Dry Single	Not Applicable
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical, foot-operated rear diff lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Central support, bevel gear type
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	4WD (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	97.4 in
Overall Width	66 in	46.7 in
Wheelbase	66 in	56.1 in
Ground Clearance	Not Published	12 in
Min. Turn Radius without Brakes	11.5 ft (3.5 m)	94 in
Height to Top of ROPS	95 in	90 in
Height to Top of ROPS (folded)	Not Published	64 in
Height to Top of Cab Model	Not Published	87.4 in

Tractor Weight (Base)	2,985 lb	n/a
Weight with ROPS and Loader	Not Published	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	Not Published	1,805 lb (Cab tractor only)

Tire Size & Options	R1 agricultural, R4 industrial, R3 turf and VT (versa turf); VT same size as R4	R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	Not Applicable
R1 Agricultural - Rear	11.2-24	Not Applicable
R3 Turf - Front	25x8.50-14	18X8.50-10
R3 Turf - Rear	41x14.00-20	26X12.0-12
R4 Industrial - Front	27x8.50-15	18X8.50-10
R4 Industrial - Rear	43x16.00-20	26X12.0-12

Quick Attach Loader System	LL3001, LL3002: ISO 24410 Quick Attaching Coupler	100LC: Quick Mount system (no tools)
Loader Model	LL3002	n/a
Loader Lift Height	LL3002: 94.3 in	72 in
Loader Lift Capacity (Full Height)	LL3002: 1,599 lb	1,005 lb
Loader Breakout Force	LL3002: 2,962 lb	2,078 lb

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Find a LS Tractor dealer near you Find a New Holland dealer near you

LS Tractor MT226E vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the LS Tractor MT226E or the New Holland Workmaster 25S?: The New Holland Workmaster 25S leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the LS Tractor MT226E.
Which has more PTO horsepower, the LS Tractor MT226E or the New Holland Workmaster 25S?: The LS Tractor MT226E leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which is heavier, the LS Tractor MT226E or the New Holland Workmaster 25S?: The LS Tractor MT226E leads on weight at 2,985 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.
Which has more loader lift capacity, the LS Tractor MT226E or the New Holland Workmaster 25S?: The LS Tractor MT226E leads on loader lift at 1,599 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.
Which has more three-point hitch lift capacity, the LS Tractor MT226E or the New Holland Workmaster 25S?: The LS Tractor MT226E leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.

More Head-to-Heads

Category Verdict

Spec	LS Tractor MT226E	New Holland Workmaster 25S
Engine HP (hp)	24.6 hp	▲ 24.7 hp
PTO HP (hp)	▲ 19.2 hp	17.2 hp
Weight (lb)	▲ 2,985 lb	1,444 lb
Loader Lift (lb)	▲ 1,599 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	728 lb
Lift Height (in)	▲ 94.3 in	72 in
Breakout Force (lbf)	▲ 2,962 lbf	2,078 lbf
Hydraulic Flow (gpm)	▲ 12.5 gpm	6.7 gpm
Travel Speed (mph)	n/a	9.1 mph

The headline numbers at a glance.

LS Tractor MT226ENew Holland Workmaster 25S

Engine HPhp

24.6 hp

▲24.7 hp

PTO HPhp

▲19.2 hp

17.2 hp

Weightlb

▲2,985 lb

1,444 lb

Loader Liftlb

▲1,599 lb

1,005 lb

3-Pt Lift (24 in)lb

▲1,433 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT226E	New HollandWorkmaster 25S


Engine Manufacturer	MHI	Yanmar
Engine Model	S3L2-W463GTAC	n/a
Engine Type	3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	80.4 in³	76.9 in³
Rated Engine Speed	2500 rpm	3000 rpm
Engine Power (Gross)	24.6 hp	24.7 hp
PTO Power	19.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final
Cooling System Type	Liquid-cooled	Pressurized liquid with recirculating bypass
Air Cleaner	Dry	Not Published
Fuel System	IDI (indirect injection)	In-line injection pump
Alternator	50 A, 12 V	40 A, 12 V

Pump Type	Gear pump	Gear
Implement Flow	7.9 gpm	4.6 gpm
Steering Flow	4.6 gpm	2.1 gpm
Total Hydraulic Flow	12.5 gpm	6.7 gpm
Overall Hydraulic Pump Flow	12.5 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0 (1 pair optional)	0
No. of Optional Remote Valves	1 pair (optional)	1

Fuel Tank Capacity	10.6 gal	6.6 gal
Coolant Capacity	Not Published	3.5 qt
Crankcase Capacity	Not Published	3.0 qt
Transmission / Hydraulic System Capacity	Not Published	3.0 gal
Front Axle Fluid Capacity	Not Published	0.5 gal

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	Standard (540 rpm)	540 rpm
Mid-PTO Availability	Available (option)	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	992 lb at ball ends
Hitch Lift Capacity (at 24”)	1433 lb	728 lb
Lift Control Type	Position control	Lift-hold-lower

Transmission Type	Synchro Shuttle	2-Range Hydrostatic / Dual Pedal
No. of Speeds	F12 x R12	Infinite (2-range)
Max Travel Speed (Forward)	Not Published	9.1 mph
Max Travel Speed (Reverse)	Not Published	5.5 mph
Clutch	Dry Single	Not Applicable
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical, foot-operated rear diff lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Central support, bevel gear type
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	4WD (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	97.4 in
Overall Width	66 in	46.7 in
Wheelbase	66 in	56.1 in
Ground Clearance	Not Published	12 in
Min. Turn Radius without Brakes	11.5 ft (3.5 m)	94 in
Height to Top of ROPS	95 in	90 in
Height to Top of ROPS (folded)	Not Published	64 in
Height to Top of Cab Model	Not Published	87.4 in

Tractor Weight (Base)	2,985 lb	n/a
Weight with ROPS and Loader	Not Published	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	Not Published	1,805 lb (Cab tractor only)

Tire Size & Options	R1 agricultural, R4 industrial, R3 turf and VT (versa turf); VT same size as R4	R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	Not Applicable
R1 Agricultural - Rear	11.2-24	Not Applicable
R3 Turf - Front	25x8.50-14	18X8.50-10
R3 Turf - Rear	41x14.00-20	26X12.0-12
R4 Industrial - Front	27x8.50-15	18X8.50-10
R4 Industrial - Rear	43x16.00-20	26X12.0-12

Quick Attach Loader System	LL3001, LL3002: ISO 24410 Quick Attaching Coupler	100LC: Quick Mount system (no tools)
Loader Model	LL3002	n/a
Loader Lift Height	LL3002: 94.3 in	72 in
Loader Lift Capacity (Full Height)	LL3002: 1,599 lb	1,005 lb
Loader Breakout Force	LL3002: 2,962 lb	2,078 lb

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Find a LS Tractor dealer near you Find a New Holland dealer near you

LS Tractor MT226E vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the LS Tractor MT226E or the New Holland Workmaster 25S?

The New Holland Workmaster 25S leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the LS Tractor MT226E.

Which has more PTO horsepower, the LS Tractor MT226E or the New Holland Workmaster 25S?

The LS Tractor MT226E leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which is heavier, the LS Tractor MT226E or the New Holland Workmaster 25S?

The LS Tractor MT226E leads on weight at 2,985 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.

Which has more loader lift capacity, the LS Tractor MT226E or the New Holland Workmaster 25S?

The LS Tractor MT226E leads on loader lift at 1,599 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.

Which has more three-point hitch lift capacity, the LS Tractor MT226E or the New Holland Workmaster 25S?

The LS Tractor MT226E leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
