LS Tractor MT226ED vs LS Tractor XG3025
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

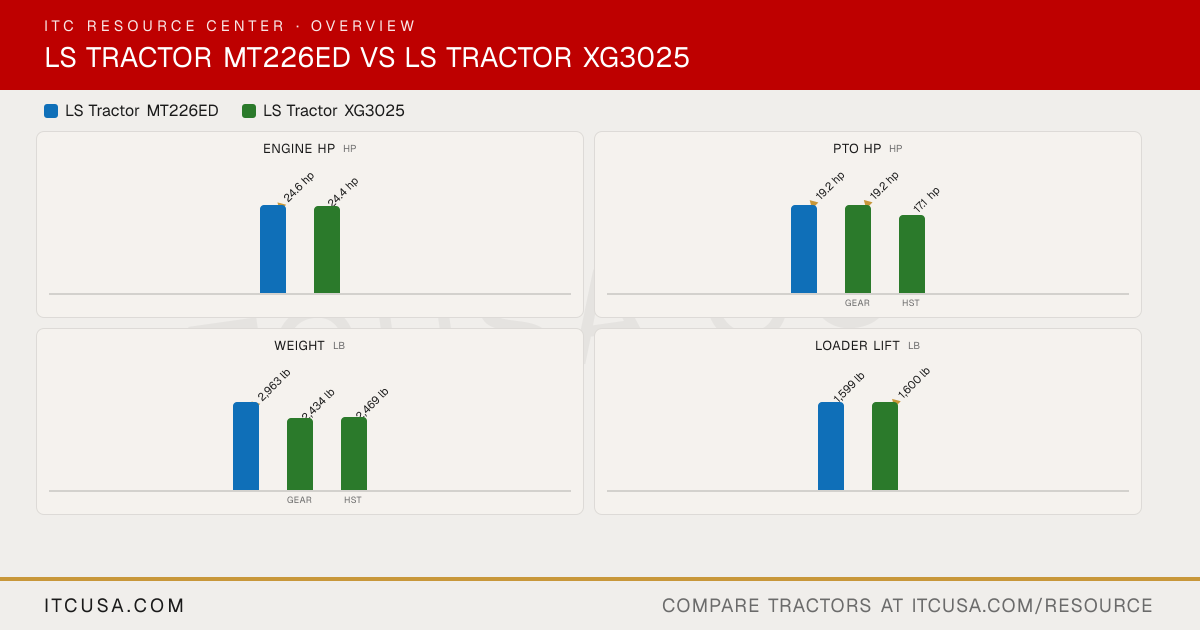

Across 8 measurable specs, the LS Tractor MT226ED leads 3 categories to 1 (4 tied). Machine pages: LS Tractor MT226ED and LS Tractor XG3025.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | LS Tractor MT226ED | LS Tractor XG3025 |
|---|---|---|
| Engine HP (hp) | ▲ 24.6 hp | 24.4 hp |
| PTO HP (hp) | 19.2 hp | 19.2 hp |
| Weight (lb) | ▲ 2,963 lb | 2,469 lb |
| Loader Lift (lb) | 1,599 lb | ▲ 1,600 lb |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | 1,433 lb |
| Lift Height (in) | 94.3 in | 94.3 in |
| Breakout Force (lbf) | ▲ 2,962 lbf | 2,637 lbf |
| Hydraulic Flow (gpm) | 12.5 gpm | 12.5 gpm |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorMT226ED | LS TractorXG3025 |
|---|
| Engine Manufacturer | MHI | Mitsubishi (MHI) |
|---|---|---|
| Engine Model | S3L2-W463GTAC | S3L2 |
| Engine Type | 3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI | Indirect injection, swirl chamber diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 80.4 in³ | 80.4 in³ |
| Rated Engine Speed | 2500 rpm | 2500 rpm |
| Engine Power (Gross) | 24.6 hp | 24.4 hp |
| PTO Power | 19.2 hp | XG3025 (gear): 19.2 hp; XG3025H (HST): 17.1 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Water-cooled |
| Air Cleaner | Dry | Dry |
| Fuel System | IDI (indirect injection) | Indirect injection |
| Alternator | 50 A, 12 V | 50 A, 12 V |
LS Tractor MT226ED vs LS Tractor XG3025: Quick Answers
- Which has more horsepower, the LS Tractor MT226ED or the LS Tractor XG3025?
- The LS Tractor MT226ED leads on engine hp at 24.6 hp hp, compared to 24.4 hp hp for the LS Tractor XG3025.
- Which has more PTO horsepower, the LS Tractor MT226ED or the LS Tractor XG3025?
- They are effectively tied: both machines are rated at 19.2 hp hp for pto hp.
- Which is heavier, the LS Tractor MT226ED or the LS Tractor XG3025?
- The LS Tractor MT226ED leads on weight at 2,963 lb lb, compared to 2,469 lb lb for the LS Tractor XG3025.
- Which has more loader lift capacity, the LS Tractor MT226ED or the LS Tractor XG3025?
- The LS Tractor XG3025 leads on loader lift at 1,600 lb lb, compared to 1,599 lb lb for the LS Tractor MT226ED.
- Which has more three-point hitch lift capacity, the LS Tractor MT226ED or the LS Tractor XG3025?
- They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
