LS Tractor MT232HC vs LS Tractor XR3135

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor XR3135 leads 5 categories to 2 (1 tied). Machine pages: LS Tractor MT232HC and LS Tractor XR3135.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT232HC	LS Tractor XR3135
Engine HP (hp)	31.7 hp	▲ 35 hp
PTO HP (hp)	26.2 hp	▲ 29.7 hp
Weight (lb)	▲ 3,721 lb	3,655 lb
Loader Lift (lb)	2,063 lb	▲ 2,185 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	94.3 in	▲ 94.4 in
Breakout Force (lbf)	▲ 3,723 lbf	3,612 lbf
Hydraulic Flow (gpm)	11.7 gpm	▲ 13.7 gpm

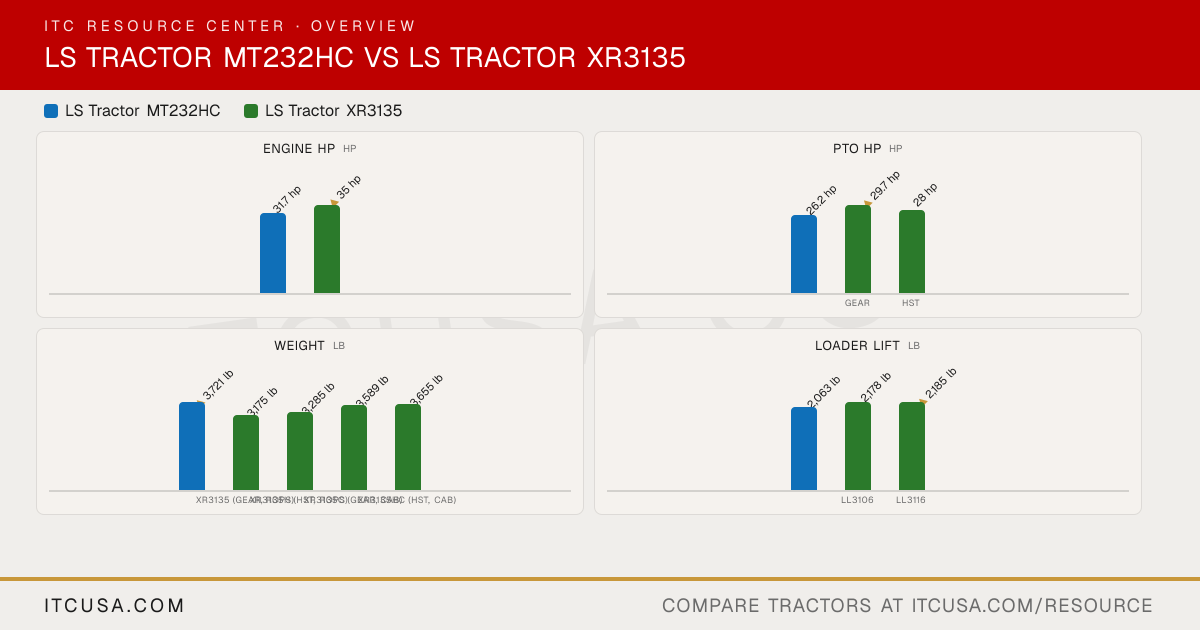

The headline numbers at a glance.

LS Tractor MT232HCLS Tractor XR3135

Engine HPhp

31.7 hp

▲35 hp

PTO HPhp

26.2 hp

▲29.7 hp

28 hp

gearHST

Weightlb

▲3,721 lb

3,175 lb

3,285 lb

3,589 lb

3,655 lb

XR3135 (gear, ROPS)XR3135H (HST, ROPS)XR3135C (gear, cab)XR3135HC (HST, cab)

Loader Liftlb

2,063 lb

2,178 lb

▲2,185 lb

LL3106LL3116

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT232HC	LS TractorXR3135


Engine Manufacturer	YANMAR	LS
Engine Model	3TNV88C-MLST	L3C19-T5
Engine Type	3-cylinder, liquid-cooled	Vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	100.2 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	31.7 hp	35 hp
PTO Power	26.2 hp	XR3135, XR3135C (gear): 29.7 hp; XR3135H, XR3135HC (HST): 28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dry	Dry
Fuel System	CRDI (common rail direct injection)	CRDI (common rail direct injection)
Alternator	55 A, 12 V	70 A, 12 V

Pump Type	Gear pump	Gear pump, engine driven
Implement Flow	6.7 gpm	8.2 gpm
Steering Flow	5.0 gpm	XR3135, XR3135C (gear): 4.1 gpm; XR3135H, XR3135HC (HST): 5.5 gpm
Total Hydraulic Flow	11.7 gpm	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Overall Hydraulic Pump Flow	11.7 gpm	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 pair	2 pairs
No. of Optional Remote Valves	Not Published	Optional (2 or 6 quick couplers)

Fuel Tank Capacity	11.4 gal	XR3135, XR3135H (ROPS): 10.6 gal; XR3135C, XR3135HC (cab): 12.4 gal
Coolant Capacity	Not Published	1.9 gal
Crankcase Capacity	Not Published	1.5 gal
Transmission / Hydraulic System Capacity	Not Published	7.9 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent	Independent
PTO Rear	Standard (540 rpm)	540 rpm (3-speed 540/750/1000 optional)
Mid-PTO Availability	Available (option)	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Position control	Position and draft control

Transmission Type	HST	XR3135, XR3135C (gear): Synchro shuttle; XR3135H, XR3135HC (HST): HST
No. of Speeds	3 ranges	XR3135, XR3135C (gear): F12 x R12; XR3135H, XR3135HC (HST): 3 ranges (HST)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Mechanical: dry single clutch; HST: not applicable
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66 in	62 in
Wheelbase	69 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	11.5 ft (3.5 m)	9.2 ft (with brake applied)
Height to Top of ROPS	Not Published	94 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	90 in	86.6 in
Overall Length	125 in (frame to link)	128.3 in (bumper to link)

Tractor Weight (Base)	3,721 lb	XR3135 (gear, ROPS): 3,175 lb; XR3135H (HST, ROPS): 3,285 lb; XR3135C (gear, cab): 3,589 lb; XR3135HC (HST, cab): 3,655 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, VT and Turf; VT same size as Industrial	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.5-14
R3 Turf - Rear	41x14.00-20	41x14-20
R4 Industrial - Front	27x8.50-15	25x8.5-14
R4 Industrial - Rear	43x16.00-20	43x16-20

Quick Attach Loader System	LL3003: ISO 24410 Quick Attaching Coupler	LL3106, LL3116: quick attach, skid steer compatible
Loader Model	LL3003, LL3004	LL3106; LL3116
Loader Lift Height	LL3003, LL3004: 94.3 in	LL3106: 92.7 in; LL3116: 94.4 in
Loader Lift Capacity (Full Height)	LL3003, LL3004: 2,063 lb (at pivot pin, maximum height)	LL3106: 2,178 lb; LL3116: 2,185 lb (at pivot pin)
Loader Breakout Force	LL3003, LL3004: 3,723 lb (at pivot pin)	LL3106: 3,450 lb; LL3116: 3,612 lb (at pivot pin)

Warranty Length & Coverage	Two-year bumper to bumper; six-year limited powertrain	6-year limited warranty

Find a LS Tractor dealer near you

LS Tractor MT232HC vs LS Tractor XR3135: Quick Answers

Which has more horsepower, the LS Tractor MT232HC or the LS Tractor XR3135?: The LS Tractor XR3135 leads on engine hp at 35 hp hp, compared to 31.7 hp hp for the LS Tractor MT232HC.
Which has more PTO horsepower, the LS Tractor MT232HC or the LS Tractor XR3135?: The LS Tractor XR3135 leads on pto hp at 29.7 hp hp, compared to 26.2 hp hp for the LS Tractor MT232HC.
Which is heavier, the LS Tractor MT232HC or the LS Tractor XR3135?: The LS Tractor MT232HC leads on weight at 3,721 lb lb, compared to 3,655 lb lb for the LS Tractor XR3135.
Which has more loader lift capacity, the LS Tractor MT232HC or the LS Tractor XR3135?: The LS Tractor XR3135 leads on loader lift at 2,185 lb lb, compared to 2,063 lb lb for the LS Tractor MT232HC.
Which has more three-point hitch lift capacity, the LS Tractor MT232HC or the LS Tractor XR3135?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	LS Tractor MT232HC	LS Tractor XR3135
Engine HP (hp)	31.7 hp	▲ 35 hp
PTO HP (hp)	26.2 hp	▲ 29.7 hp
Weight (lb)	▲ 3,721 lb	3,655 lb
Loader Lift (lb)	2,063 lb	▲ 2,185 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	94.3 in	▲ 94.4 in
Breakout Force (lbf)	▲ 3,723 lbf	3,612 lbf
Hydraulic Flow (gpm)	11.7 gpm	▲ 13.7 gpm

The headline numbers at a glance.

LS Tractor MT232HCLS Tractor XR3135

Engine HPhp

31.7 hp

▲35 hp

PTO HPhp

26.2 hp

▲29.7 hp

28 hp

gearHST

Weightlb

▲3,721 lb

3,175 lb

3,285 lb

3,589 lb

3,655 lb

XR3135 (gear, ROPS)XR3135H (HST, ROPS)XR3135C (gear, cab)XR3135HC (HST, cab)

Loader Liftlb

2,063 lb

2,178 lb

▲2,185 lb

LL3106LL3116

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT232HC	LS TractorXR3135


Engine Manufacturer	YANMAR	LS
Engine Model	3TNV88C-MLST	L3C19-T5
Engine Type	3-cylinder, liquid-cooled	Vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	100.2 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	31.7 hp	35 hp
PTO Power	26.2 hp	XR3135, XR3135C (gear): 29.7 hp; XR3135H, XR3135HC (HST): 28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dry	Dry
Fuel System	CRDI (common rail direct injection)	CRDI (common rail direct injection)
Alternator	55 A, 12 V	70 A, 12 V

Pump Type	Gear pump	Gear pump, engine driven
Implement Flow	6.7 gpm	8.2 gpm
Steering Flow	5.0 gpm	XR3135, XR3135C (gear): 4.1 gpm; XR3135H, XR3135HC (HST): 5.5 gpm
Total Hydraulic Flow	11.7 gpm	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Overall Hydraulic Pump Flow	11.7 gpm	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1 pair	2 pairs
No. of Optional Remote Valves	Not Published	Optional (2 or 6 quick couplers)

Fuel Tank Capacity	11.4 gal	XR3135, XR3135H (ROPS): 10.6 gal; XR3135C, XR3135HC (cab): 12.4 gal
Coolant Capacity	Not Published	1.9 gal
Crankcase Capacity	Not Published	1.5 gal
Transmission / Hydraulic System Capacity	Not Published	7.9 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent	Independent
PTO Rear	Standard (540 rpm)	540 rpm (3-speed 540/750/1000 optional)
Mid-PTO Availability	Available (option)	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Position control	Position and draft control

Transmission Type	HST	XR3135, XR3135C (gear): Synchro shuttle; XR3135H, XR3135HC (HST): HST
No. of Speeds	3 ranges	XR3135, XR3135C (gear): F12 x R12; XR3135H, XR3135HC (HST): 3 ranges (HST)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Mechanical: dry single clutch; HST: not applicable
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66 in	62 in
Wheelbase	69 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	11.5 ft (3.5 m)	9.2 ft (with brake applied)
Height to Top of ROPS	Not Published	94 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	90 in	86.6 in
Overall Length	125 in (frame to link)	128.3 in (bumper to link)

Tractor Weight (Base)	3,721 lb	XR3135 (gear, ROPS): 3,175 lb; XR3135H (HST, ROPS): 3,285 lb; XR3135C (gear, cab): 3,589 lb; XR3135HC (HST, cab): 3,655 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, VT and Turf; VT same size as Industrial	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.5-14
R3 Turf - Rear	41x14.00-20	41x14-20
R4 Industrial - Front	27x8.50-15	25x8.5-14
R4 Industrial - Rear	43x16.00-20	43x16-20

Quick Attach Loader System	LL3003: ISO 24410 Quick Attaching Coupler	LL3106, LL3116: quick attach, skid steer compatible
Loader Model	LL3003, LL3004	LL3106; LL3116
Loader Lift Height	LL3003, LL3004: 94.3 in	LL3106: 92.7 in; LL3116: 94.4 in
Loader Lift Capacity (Full Height)	LL3003, LL3004: 2,063 lb (at pivot pin, maximum height)	LL3106: 2,178 lb; LL3116: 2,185 lb (at pivot pin)
Loader Breakout Force	LL3003, LL3004: 3,723 lb (at pivot pin)	LL3106: 3,450 lb; LL3116: 3,612 lb (at pivot pin)

Warranty Length & Coverage	Two-year bumper to bumper; six-year limited powertrain	6-year limited warranty

Find a LS Tractor dealer near you

LS Tractor MT232HC vs LS Tractor XR3135: Quick Answers

Which has more horsepower, the LS Tractor MT232HC or the LS Tractor XR3135?

The LS Tractor XR3135 leads on engine hp at 35 hp hp, compared to 31.7 hp hp for the LS Tractor MT232HC.

Which has more PTO horsepower, the LS Tractor MT232HC or the LS Tractor XR3135?

The LS Tractor XR3135 leads on pto hp at 29.7 hp hp, compared to 26.2 hp hp for the LS Tractor MT232HC.

Which is heavier, the LS Tractor MT232HC or the LS Tractor XR3135?

The LS Tractor MT232HC leads on weight at 3,721 lb lb, compared to 3,655 lb lb for the LS Tractor XR3135.

Which has more loader lift capacity, the LS Tractor MT232HC or the LS Tractor XR3135?

The LS Tractor XR3135 leads on loader lift at 2,185 lb lb, compared to 2,063 lb lb for the LS Tractor MT232HC.

Which has more three-point hitch lift capacity, the LS Tractor MT232HC or the LS Tractor XR3135?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
