Bad Boy Tractors 3026 vs LS Tractor XR3135

Across 8 measurable specs, the LS Tractor XR3135 leads 8 categories to 0. Machine pages: Bad Boy Tractors 3026 and LS Tractor XR3135.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	LS TractorXR3135

▶Engine
Engine Manufacturer	TYM	LS
Engine Model	A1100N2	L3C19-T
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	Vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	71.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	18 hp	XR3135, XR3135C (gear): 30.1 hp; XR3135H, XR3135HC (HST): 28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Dry
Fuel System	Indirect injection (swirl chamber)	CRDI (common rail direct injection)
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Gear pump, engine driven
Implement Flow	4.3 gpm	7.8 gpm
Steering Flow	3.1 gpm	XR3135, XR3135C (gear): 4.1 gpm; XR3135H, XR3135HC (HST): 5.5 gpm
Total Hydraulic Flow	7.4 gpm	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Overall Hydraulic Pump Flow	7.7 gpm	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	2 pairs
No. of Optional Remote Valves	1	1 or 3 optional (2 or 6 quick couplers)
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	XR3135, XR3135H (ROPS): 10.6 gal; XR3135C, XR3135HC (cab): 12.4 gal
Coolant Capacity	1.21 gal	1.9 gal
Crankcase Capacity	0.79 gal	1.5 gal
Transmission / Hydraulic System Capacity	2.90 gal	7.9 gal
Front Axle Fluid Capacity	0.79 gal	1.7 gal
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,808 lb
Hitch Lift Capacity (at 24”)	974 lb	1,433 lb
Lift Control Type	Position control	Position and draft control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	XR3135, XR3135C (gear): Synchro shuttle; XR3135H, XR3135HC (HST): HST
No. of Speeds	3 range (L/M/H)	XR3135, XR3135C (gear): F12 x R12; XR3135H, XR3135HC (HST): 3 ranges (HST)
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Mechanical: dry single clutch; HST: not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.8 in	60 in
Wheelbase	65.7 in	66 in
Ground Clearance	16.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (with brake applied)
Height to Top of ROPS	91.4 in	93 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	88.1 in
Overall Length	110 in	124.3 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	2,106 lb	XR3135 (gear, ROPS): 3,219 lb; XR3135H (HST, ROPS): 3,285 lb; XR3135C (gear, cab): 3,589 lb; XR3135HC (HST, cab): 3,655 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	7-16 6PR	7-14
R1 Agricultural - Rear	11.2-20	11.2-24
R3 Turf - Front	Not Published	25x8.5-14
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	25x8.50-14	25x8.5-14
R4 Industrial - Rear	14x17.5	43x16-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	LL3106: quick attach, skid steer compatible
Loader Model	BBL300	LL3106
Loader Lift Height	86 in	LL3106: 92.7 in
Loader Lift Capacity (Full Height)	1,314 lb	LL3106: 2,178 lb
Loader Breakout Force	1,960 lbf	LL3106: 3,450 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	5-year limited warranty
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

Bad Boy Tractors 3026 vs LS Tractor XR3135: Quick Answers

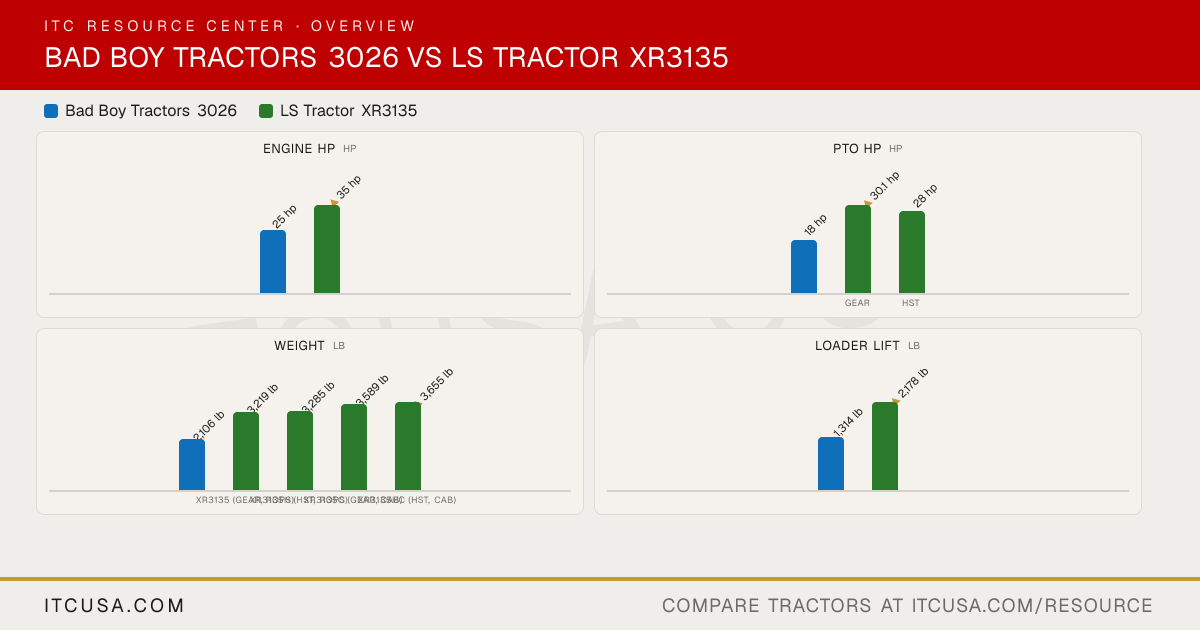

Which has more horsepower, the Bad Boy Tractors 3026 or the LS Tractor XR3135?

The LS Tractor XR3135 leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the LS Tractor XR3135?

The LS Tractor XR3135 leads on pto hp at 30.1 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the LS Tractor XR3135?

The LS Tractor XR3135 leads on weight at 3,655 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the LS Tractor XR3135?

The LS Tractor XR3135 leads on loader lift at 2,178 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the LS Tractor XR3135?

The LS Tractor XR3135 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
