Bad Boy Tractors 4025 vs LS Tractor XR3135

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Bad Boy Tractors 4025, 4 to the LS Tractor XR3135. Machine pages: Bad Boy Tractors 4025 and LS Tractor XR3135.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	LS TractorXR3135

▶Engine
Engine Manufacturer	TYM	LS
Engine Model	A1700N6-BUTR_3	L3C19-T
Engine Type	Vertical, 4-stroke, water-cooled diesel	Vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	3
Displacement	104.7 in³	114.7 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	19.1 hp	XR3135, XR3135C (gear): 30.1 hp; XR3135H, XR3135HC (HST): 28 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry	Dry
Fuel System	Not Published	CRDI (common rail direct injection)
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Gear pump, engine driven
Implement Flow	7.5 gpm	7.8 gpm
Steering Flow	4 gpm	XR3135, XR3135C (gear): 4.1 gpm; XR3135H, XR3135HC (HST): 5.5 gpm
Total Hydraulic Flow	11.5 gpm	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Overall Hydraulic Pump Flow	11.5 gpm	XR3135, XR3135C (gear): 12.3 gpm; XR3135H, XR3135HC (HST): 13.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2 pairs
No. of Optional Remote Valves	2	1 or 3 optional (2 or 6 quick couplers)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	XR3135, XR3135H (ROPS): 10.6 gal; XR3135C, XR3135HC (cab): 12.4 gal
Coolant Capacity	1.32 gal	1.9 gal
Crankcase Capacity	1.14 gal	1.5 gal
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	7.9 gal
Front Axle Fluid Capacity	Not Published	1.7 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Position and draft control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	XR3135, XR3135C (gear): Synchro shuttle; XR3135H, XR3135HC (HST): HST
No. of Speeds	3 range (A/B/C)	XR3135, XR3135C (gear): F12 x R12; XR3135H, XR3135HC (HST): 3 ranges (HST)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Mechanical: dry single clutch; HST: not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	124.3 in
Overall Width	56.7 in	60 in
Wheelbase	65.7 in	66 in
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (with brake applied)
Height to Top of ROPS	96.85 in	93 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	88.1 in
▶Weight
Tractor Weight (Base)	2,970 lb	XR3135 (gear, ROPS): 3,219 lb; XR3135H (HST, ROPS): 3,285 lb; XR3135C (gear, cab): 3,589 lb; XR3135HC (HST, cab): 3,655 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 / 15-19.5)	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	8.0-16	7-14
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	25x8.5-14
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	25x8.50-14	25x8.5-14
R4 Industrial - Rear	15-19.5	43x16-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	LL3106: quick attach, skid steer compatible
Loader Model	BBL400	LL3106
Loader Lift Height	104 in	LL3106: 92.7 in
Loader Lift Capacity (Full Height)	2,200 lb	LL3106: 2,178 lb
Loader Breakout Force	3,660 lbf	LL3106: 3,450 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	5-year limited warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

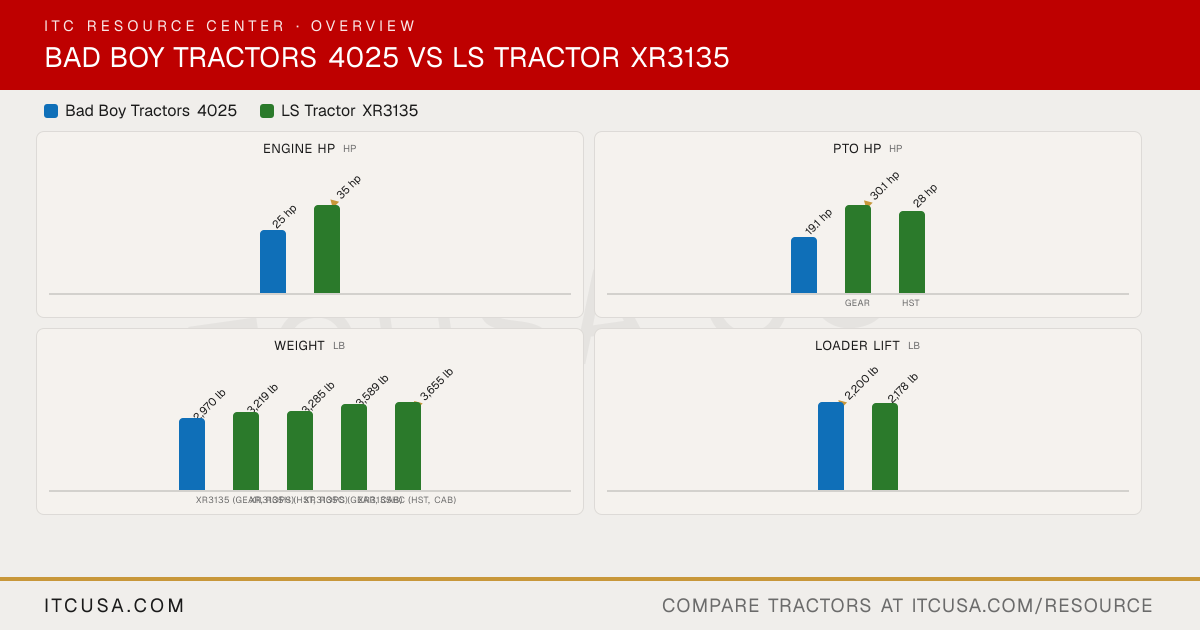

Bad Boy Tractors 4025 vs LS Tractor XR3135: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the LS Tractor XR3135?

The LS Tractor XR3135 leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the LS Tractor XR3135?

The LS Tractor XR3135 leads on pto hp at 30.1 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the LS Tractor XR3135?

The LS Tractor XR3135 leads on weight at 3,655 lb lb, compared to 2,970 lb lb for the Bad Boy Tractors 4025.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the LS Tractor XR3135?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 2,178 lb lb for the LS Tractor XR3135.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the LS Tractor XR3135?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the LS Tractor XR3135.
