Which has more horsepower, the LS Tractor MT335H or the TYM 3515?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor MT335H or the TYM 3515?

The TYM 3515 leads on pto hp at 30 hp hp, compared to 28 hp hp for the LS Tractor MT335H.

Which has more loader lift capacity, the LS Tractor MT335H or the TYM 3515?

The TYM 3515 leads on loader lift at 2,200 lb lb, compared to 2,185 lb lb for the LS Tractor MT335H.

Which has more three-point hitch lift capacity, the LS Tractor MT335H or the TYM 3515?

The TYM 3515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the LS Tractor MT335H.

LS Tractor MT335H vs TYM 3515

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the TYM 3515 leads 4 categories to 2 (1 tied). Machine pages: LS Tractor MT335H and TYM 3515.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT335H	TYM 3515
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	28 hp	▲ 30 hp
Weight (lb)	—	4,191 lb
Loader Lift (lb)	2,185 lb	▲ 2,200 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 2,425 lb
Lift Height (in)	94.4 in	▲ 104.9 in
Breakout Force (lbf)	▲ 3,612 lbf	3,422 lbf
Hydraulic Flow (gpm)	▲ 13.3 gpm	12.3 gpm
Travel Speed (mph)	—	18.8 mph

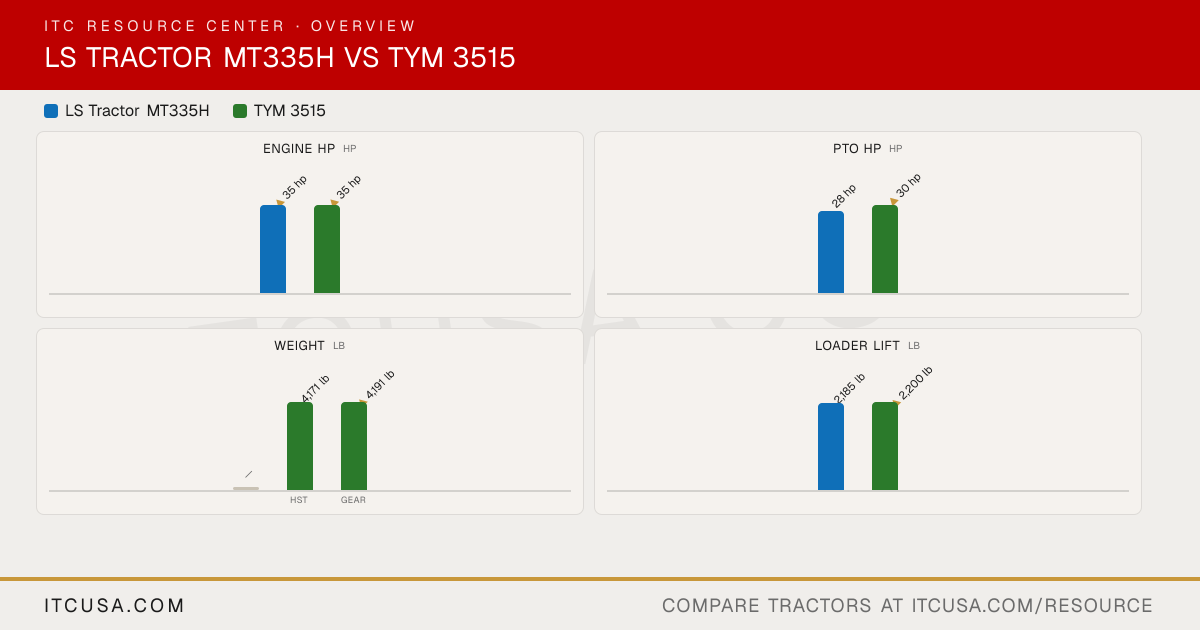

The headline numbers at a glance.

LS Tractor MT335HTYM 3515

Engine HPhp

▲35 hp

PTO HPhp

28 hp

▲30 hp

Weightlb

—

4,171 lb

▲4,191 lb

HSTGear

Loader Liftlb

2,185 lb

▲2,200 lb

3-Pt Lift (24 in)lb

1,433 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT335H	TYM3515


PTO Power	28 hp	30 hp
Alternator	70 A, 12 V	50 A, 12 V
Air Cleaner	Dry	Dry Element
Engine Type	4-stroke, vertical, water cooling, CRDI	3-cylinder, naturally aspirated diesel
Fuel System	Delphi, CRDI	IDI
Displacement	114.7 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	LS Mtron	TYM
Engine Power (Gross)	35 hp	35 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Gear pump, engine drive	Single Gear Pump
Steering Flow	5.5 gpm	8.0 gpm
Implement Flow	7.8 gpm	4.3 gpm
Total Hydraulic Flow	13.3 gpm	12.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	13.3 gpm	12.3 gpm
No. of Optional Remote Valves	Not Published	Up to 4
No. of Standard Remote Valves	2 Pair	0

PTO Rear	540 rpm	560 rpm
PTO Type	Independent PTO with wet disk clutch	Independent
Lift Control Type	Position & Draft	Position control
Hitch Lift Capacity	1,808 lbs	3,306 lb
Mid-PTO Availability	Option (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,433 lbs	2,425 lb

R3 Turf - Rear	41X14-20	Not Published
R3 Turf - Front	25X8.5-14	Not Published
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	43X16-20	43x16.00-20
R4 Industrial - Front	25X8.5-14	28x8.50-15
R1 Agricultural - Rear	11.2-24	12.4-24
R1 Agricultural - Front	7.0-14	8.0-16

Coolant Capacity	1.9 gal	5.28 qt
Crankcase Capacity	1.5 gal	4.5 qt
Fuel Tank Capacity	10.6 gal	7.1 gal
Front Axle Fluid Capacity	1.7 gal	1.7 qt
Transmission / Hydraulic System Capacity	7.9 gal	HST: 9.8 gal; Gear: 8.9 gal

Loader Lift Height	94.4 in	104.9 in
Loader Breakout Force	3,612 lbs	3,422 lb
Quick Attach Loader System	LL3116: Standard Skid Steer Coupler (skid-steer compatible quick-attach)	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	2,185 lbs	2,200 lb

Clutch	Not Applicable	HST: Not Applicable; Gear: Dry Single Plate
No. of Speeds	2 Pedal with 3 Range - HST	HST: 3-Range; Gear: F12 x R12
Transmission Type	Hydrostatic Drive	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	Not Published	HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Differential lock

Brakes	Wet, Multi-disc	Wet, Multi-disc
Steering	Hydrostatic Power Steering	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat

Wheelbase	69.1 in	65.7 in
Overall Width	59.3 in	56.3 in
Ground Clearance	Not Published	14.4 in
Height to Top of ROPS	94.0 in	97.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	102 in
Overall Length with 3-Point Hitch	136.1 in	120.9 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

LS Tractor MT335H vs TYM 3515: Quick Answers

Which has more horsepower, the LS Tractor MT335H or the TYM 3515?: They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor MT335H or the TYM 3515?: The TYM 3515 leads on pto hp at 30 hp hp, compared to 28 hp hp for the LS Tractor MT335H.
Which has more loader lift capacity, the LS Tractor MT335H or the TYM 3515?: The TYM 3515 leads on loader lift at 2,200 lb lb, compared to 2,185 lb lb for the LS Tractor MT335H.
Which has more three-point hitch lift capacity, the LS Tractor MT335H or the TYM 3515?: The TYM 3515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the LS Tractor MT335H.
