Bad Boy Tractors 4025 vs LS Tractor MT335H

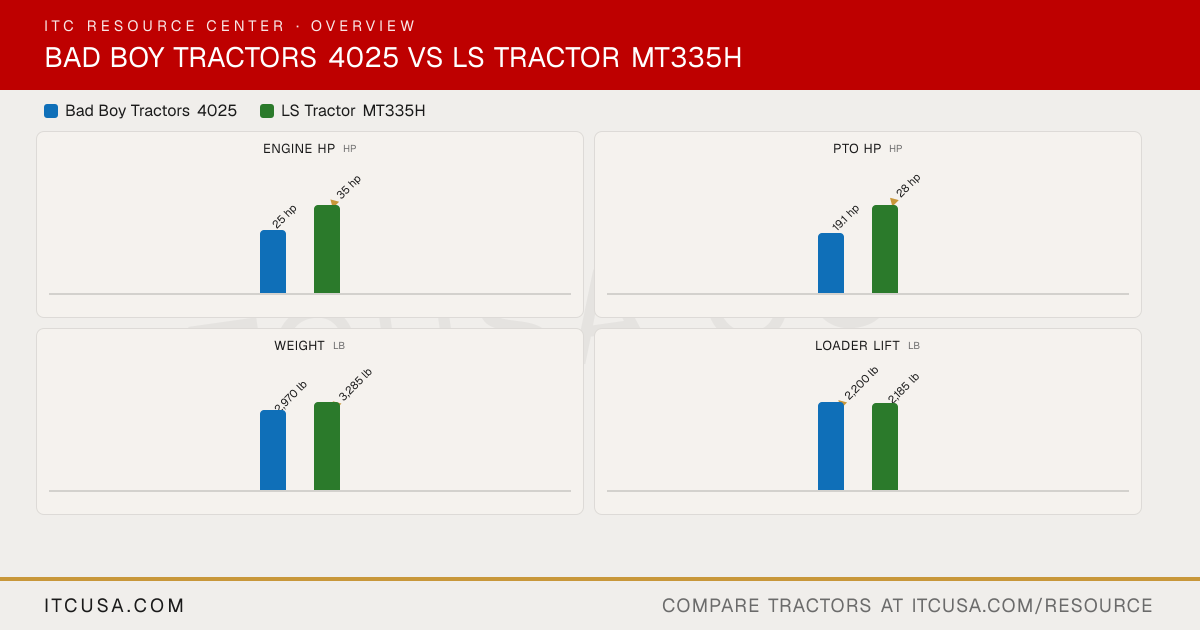

Across 7 measurable specs, the LS Tractor MT335H leads 4 categories to 3. Machine pages: Bad Boy Tractors 4025 and LS Tractor MT335H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	LS TractorMT335H

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N6-BUTR_3	L3C19-T
Engine Type	Vertical, 4-stroke, water-cooled diesel	3 Cylinder, CRDI, water-cooled turbo diesel
No. of Cylinders	3	3
Displacement	104.7 in³	114.7 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	19.1 hp	28 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry	Dry
Fuel System	Not Published	CRDI
Alternator	50 A, 12 V	85 A, 12 V
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Gear pump, engine drive
Implement Flow	7.5 gpm	8.2 gpm
Steering Flow	4 gpm	5.5 gpm
Total Hydraulic Flow	11.5 gpm	13.7 gpm
Overall Hydraulic Pump Flow	11.5 gpm	13.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2 Pair
No. of Optional Remote Valves	2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	10.6 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	Not Published
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	3 range (A/B/C)	Infinite, 3 ranges (HST)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Hydrostatic Power Steering
Brakes	Wet multi-disc	Wet, Multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	124.3 in
Overall Width	56.7 in	Not Published
Wheelbase	65.7 in	66 in
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.85 in	93 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,970 lb	3,285 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 / 15-19.5)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8.0-16	9.5-16
R1 Agricultural - Rear	12.4-24	14.9-24
R3 Turf - Front	Not Published	25x8.5-14
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	25x8.50-14	25x8.5-14
R4 Industrial - Rear	15-19.5	43x16-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	LL3116
Loader Model	BBL400	LL3116
Loader Lift Height	104 in	94.4 in
Loader Lift Capacity (Full Height)	2,200 lb	LL3116: 2,185 lb
Loader Breakout Force	3,660 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	6-year limited powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

Bad Boy Tractors 4025 vs LS Tractor MT335H: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the LS Tractor MT335H?

The LS Tractor MT335H leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the LS Tractor MT335H?

The LS Tractor MT335H leads on pto hp at 28 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the LS Tractor MT335H?

The LS Tractor MT335H leads on weight at 3,285 lb lb, compared to 2,970 lb lb for the Bad Boy Tractors 4025.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the LS Tractor MT335H?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 2,185 lb lb for the LS Tractor MT335H.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the LS Tractor MT335H?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,808 lb lb for the LS Tractor MT335H.
