Bad Boy Tractors 3026 vs LS Tractor MT335H

Across 5 measurable specs, the LS Tractor MT335H leads 5 categories to 0. Machine pages: Bad Boy Tractors 3026 and LS Tractor MT335H.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

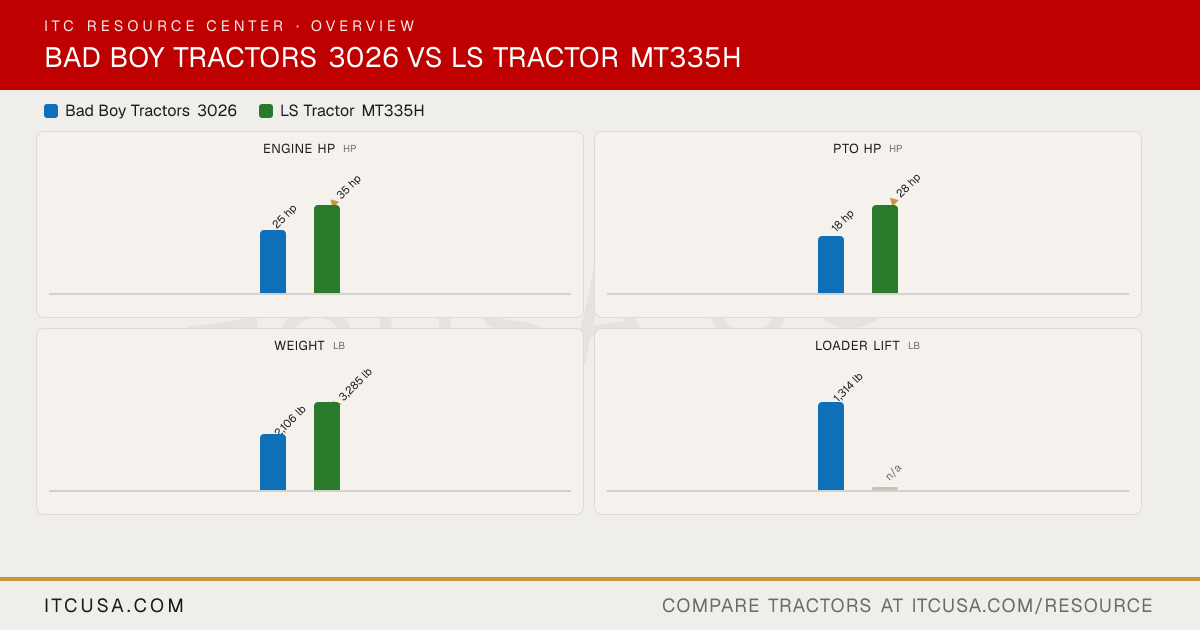

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	LS TractorMT335H

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1100N2	L3C19-T
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	3 Cylinder, CRDI, water-cooled turbo diesel
No. of Cylinders	3	3
Displacement	71.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	18 hp	28 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Dry
Fuel System	Indirect injection (swirl chamber)	CRDI
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Gear pump, engine drive
Implement Flow	4.3 gpm	8.2 gpm
Steering Flow	3.1 gpm	5.5 gpm
Total Hydraulic Flow	7.4 gpm	13.7 gpm
Overall Hydraulic Pump Flow	7.7 gpm	13.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	2 Pair
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	10.6 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,808 lb
Hitch Lift Capacity (at 24”)	974 lb	Not Published
Lift Control Type	Position control	Position & Draft
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	3 range (L/M/H)	Infinite, 3 ranges (HST)
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Brakes	Wet disc	Wet, Multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.8 in	Not Published
Wheelbase	65.7 in	66 in
Ground Clearance	16.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.4 in	93 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	110 in	124.3 in (frame to link)
▶Weight
Tractor Weight (Base)	2,106 lb	3,285 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	Ag, Industrial, Turf
R1 Agricultural - Front	7-16 6PR	9.5-16
R1 Agricultural - Rear	11.2-20	14.9-24
R3 Turf - Front	Not Published	25x8.5-14
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	25x8.50-14	25x8.5-14
R4 Industrial - Rear	14x17.5	43x16-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	Not Published
Loader Lift Height	86 in	Not Published
Loader Lift Capacity (Full Height)	1,314 lb	Not Published
Loader Breakout Force	1,960 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	6-year limited powertrain warranty
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

Bad Boy Tractors 3026 vs LS Tractor MT335H: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the LS Tractor MT335H?

The LS Tractor MT335H leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the LS Tractor MT335H?

The LS Tractor MT335H leads on pto hp at 28 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the LS Tractor MT335H?

The LS Tractor MT335H leads on weight at 3,285 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the LS Tractor MT335H?

The LS Tractor MT335H leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
