LS Tractor XR4140 vs New Holland Boomer 40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor XR4140 leads 5 categories to 2 (1 tied). Machine pages: LS Tractor XR4140 and New Holland Boomer 40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor XR4140	New Holland Boomer 40
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	▲ 34.4 hp	32 hp
Weight (lb)	4,210 lb	n/a
Loader Lift (lb)	▲ 2,713 lb	1,822 lb
3-Pt Lift (24 in) (lb)	▲ 2,469 lb	1,433 lb
Lift Height (in)	96.3 in	▲ 104 in
Breakout Force (lbf)	▲ 3,802 lbf	2,444 lbf
Hydraulic Flow (gpm)	12.3 gpm	▲ 13.8 gpm
Travel Speed (mph)	▲ 16.8 mph	14.8 mph

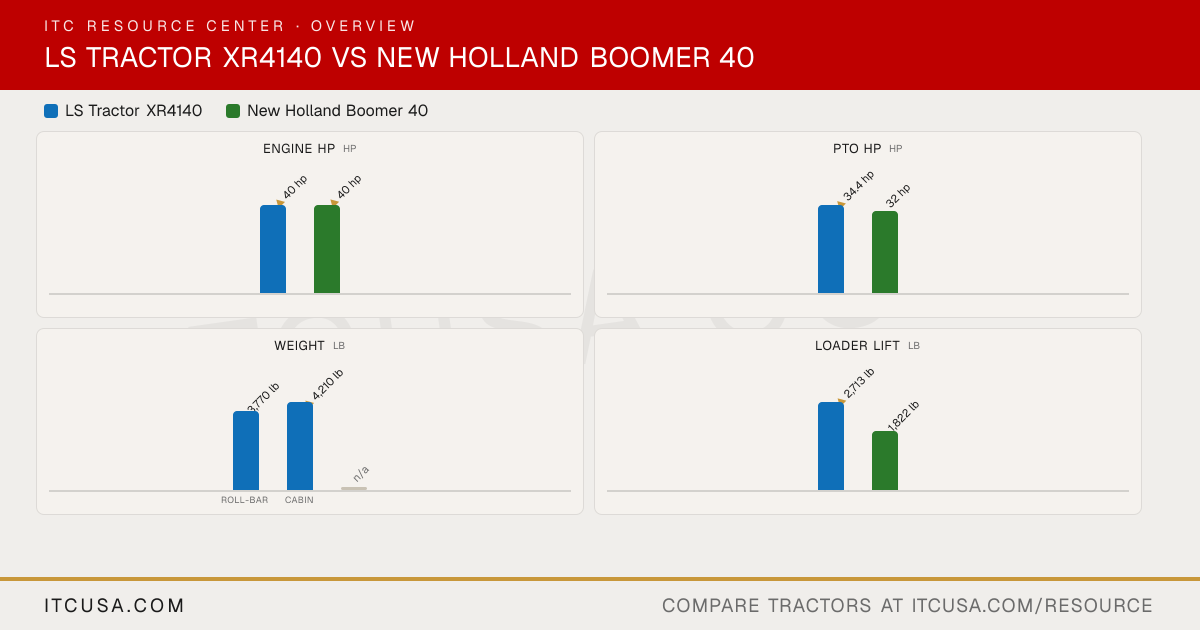

The headline numbers at a glance.

LS Tractor XR4140New Holland Boomer 40

Engine HPhp

▲40 hp

PTO HPhp

▲34.4 hp

32 hp

Weightlb

3,770 lb

▲4,210 lb

n/a

Roll-barCabin

Loader Liftlb

▲2,713 lb

1,822 lb

3-Pt Lift (24 in)lb

▲2,469 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXR4140	New HollandBoomer 40


Engine Manufacturer	LS	LS Mtron
Engine Model	L3C19-T4	LS Mtron L3C19-T
Engine Type	4-stroke, vertical, water cooling, CRDI	Not Published
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	34.4 hp	32 hp
Engine Emissions Constraints	Not Published	T4B Final
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry	Not Published
Fuel System	Delphi CRDI (Common Rail Direct Injection)	CRDI
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear pump type, engine drive	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.1 gpm (mechanical); 5.5 gpm (HST)	HST: 5.6 gpm; Gear: 4.2 gpm
Total Hydraulic Flow	12.3 gpm	HST: 13.8 gpm; Gear: 12.4 gpm
Overall Hydraulic Pump Flow	Not Published	HST: 13.8 gpm; Gear: 12.4 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	Not Published
No. of Optional Remote Valves	Not Published	1 or 2

Fuel Tank Capacity	10.6 gal (roll-bar); 12.4 gal (cabin)	ROPS: 10.5 gal; CAB: 12.4 gal
Coolant Capacity	2.3 gal	Not Published
Crankcase Capacity	1.6 gal	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published
Front Axle Fluid Capacity	2.1 gal	Not Published

PTO Type	Independent PTO with wet disk clutch	Independent (wet clutch, switch-actuated)
PTO Rear	540 (standard); 540 / 750 / 1,000 (optional 3-speed)	540 rpm
Mid-PTO Availability	Yes, 2000 rpm mid-PTO	Standard
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,756 lb	1808 lb
Hitch Lift Capacity (at 24”)	2,469 lb	1433 lb
Lift Control Type	Position and draft control	Not Published

Transmission Type	Synchro-shuttle (mechanical)	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle
No. of Speeds	F16 x R16 (F32 x R16 with creeper, optional)	HST: 3-range; Gear: 12F/12R
Max Travel Speed (Forward)	16.8 mph	HST: 14.8 mph; Gear: 14.2 mph
Max Travel Speed (Reverse)	15.3 mph	Not Published
Clutch	Dry single clutch (mechanical only)	Gear: Dry single disc; HST: Not Applicable
Differential Lock & Limited Slip Options	Mechanical pedal type differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Four-wheel drive (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	133 in	119 in
Overall Width	62.5 in	66.4 in
Wheelbase	73.2 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.5 ft (with brake applied)	Not Published
Height to Top of ROPS	93 in	97.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	92 in	94 in

Tractor Weight (Base)	Roll-bar: 3,770 lb; Cabin: 4,210 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag 9.5-16 / 13.6-24; Turf 28x8.5-15 / 41x14-20; Industrial 12-16.5 / 17.5L-24	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5-16 (6PR)	7.0-14
R1 Agricultural - Rear	13.6-24 (8PR)	11.2-24
R3 Turf - Front	28x8.5-15	25X8.50-14
R3 Turf - Rear	41x14-20	41X14.00-20
R4 Industrial - Front	12-16.5	25X8.50-14
R4 Industrial - Rear	17.5L-24	43X16.00X20; 43X16-20

Quick Attach Loader System	Not Published	250TLA: New Holland Quick Mount; optional skid steer quick attach
Loader Model	LL4104	Not Published
Loader Lift Height	LL4104: 96.3 in	104 in
Loader Lift Capacity (Full Height)	LL4104: 2,713 lb	1822 lb
Loader Breakout Force	LL4104: 3,802 lb	2444 lb

Warranty Length & Coverage	6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty	6-year Boomer Guard Limited Warranty (2-year full + 4-year powertrain)

Find a LS Tractor dealer near you Find a New Holland dealer near you

LS Tractor XR4140 vs New Holland Boomer 40: Quick Answers

Which has more horsepower, the LS Tractor XR4140 or the New Holland Boomer 40?: They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor XR4140 or the New Holland Boomer 40?: The LS Tractor XR4140 leads on pto hp at 34.4 hp hp, compared to 32 hp hp for the New Holland Boomer 40.
Which has more loader lift capacity, the LS Tractor XR4140 or the New Holland Boomer 40?: The LS Tractor XR4140 leads on loader lift at 2,713 lb lb, compared to 1,822 lb lb for the New Holland Boomer 40.
Which has more three-point hitch lift capacity, the LS Tractor XR4140 or the New Holland Boomer 40?: The LS Tractor XR4140 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 1,433 lb lb for the New Holland Boomer 40.

More Head-to-Heads

Category Verdict

Spec	LS Tractor XR4140	New Holland Boomer 40
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	▲ 34.4 hp	32 hp
Weight (lb)	4,210 lb	n/a
Loader Lift (lb)	▲ 2,713 lb	1,822 lb
3-Pt Lift (24 in) (lb)	▲ 2,469 lb	1,433 lb
Lift Height (in)	96.3 in	▲ 104 in
Breakout Force (lbf)	▲ 3,802 lbf	2,444 lbf
Hydraulic Flow (gpm)	12.3 gpm	▲ 13.8 gpm
Travel Speed (mph)	▲ 16.8 mph	14.8 mph

The headline numbers at a glance.

LS Tractor XR4140New Holland Boomer 40

Engine HPhp

▲40 hp

PTO HPhp

▲34.4 hp

32 hp

Weightlb

3,770 lb

▲4,210 lb

n/a

Roll-barCabin

Loader Liftlb

▲2,713 lb

1,822 lb

3-Pt Lift (24 in)lb

▲2,469 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXR4140	New HollandBoomer 40


Engine Manufacturer	LS	LS Mtron
Engine Model	L3C19-T4	LS Mtron L3C19-T
Engine Type	4-stroke, vertical, water cooling, CRDI	Not Published
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	34.4 hp	32 hp
Engine Emissions Constraints	Not Published	T4B Final
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Dry	Not Published
Fuel System	Delphi CRDI (Common Rail Direct Injection)	CRDI
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear pump type, engine drive	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.1 gpm (mechanical); 5.5 gpm (HST)	HST: 5.6 gpm; Gear: 4.2 gpm
Total Hydraulic Flow	12.3 gpm	HST: 13.8 gpm; Gear: 12.4 gpm
Overall Hydraulic Pump Flow	Not Published	HST: 13.8 gpm; Gear: 12.4 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	Not Published
No. of Optional Remote Valves	Not Published	1 or 2

Fuel Tank Capacity	10.6 gal (roll-bar); 12.4 gal (cabin)	ROPS: 10.5 gal; CAB: 12.4 gal
Coolant Capacity	2.3 gal	Not Published
Crankcase Capacity	1.6 gal	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published
Front Axle Fluid Capacity	2.1 gal	Not Published

PTO Type	Independent PTO with wet disk clutch	Independent (wet clutch, switch-actuated)
PTO Rear	540 (standard); 540 / 750 / 1,000 (optional 3-speed)	540 rpm
Mid-PTO Availability	Yes, 2000 rpm mid-PTO	Standard
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,756 lb	1808 lb
Hitch Lift Capacity (at 24”)	2,469 lb	1433 lb
Lift Control Type	Position and draft control	Not Published

Transmission Type	Synchro-shuttle (mechanical)	HST: 3-range hydrostatic; Gear: 12x12 synchronized shuttle
No. of Speeds	F16 x R16 (F32 x R16 with creeper, optional)	HST: 3-range; Gear: 12F/12R
Max Travel Speed (Forward)	16.8 mph	HST: 14.8 mph; Gear: 14.2 mph
Max Travel Speed (Reverse)	15.3 mph	Not Published
Clutch	Dry single clutch (mechanical only)	Gear: Dry single disc; HST: Not Applicable
Differential Lock & Limited Slip Options	Mechanical pedal type differential lock	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Four-wheel drive (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	133 in	119 in
Overall Width	62.5 in	66.4 in
Wheelbase	73.2 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.5 ft (with brake applied)	Not Published
Height to Top of ROPS	93 in	97.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	92 in	94 in

Tractor Weight (Base)	Roll-bar: 3,770 lb; Cabin: 4,210 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag 9.5-16 / 13.6-24; Turf 28x8.5-15 / 41x14-20; Industrial 12-16.5 / 17.5L-24	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5-16 (6PR)	7.0-14
R1 Agricultural - Rear	13.6-24 (8PR)	11.2-24
R3 Turf - Front	28x8.5-15	25X8.50-14
R3 Turf - Rear	41x14-20	41X14.00-20
R4 Industrial - Front	12-16.5	25X8.50-14
R4 Industrial - Rear	17.5L-24	43X16.00X20; 43X16-20

Quick Attach Loader System	Not Published	250TLA: New Holland Quick Mount; optional skid steer quick attach
Loader Model	LL4104	Not Published
Loader Lift Height	LL4104: 96.3 in	104 in
Loader Lift Capacity (Full Height)	LL4104: 2,713 lb	1822 lb
Loader Breakout Force	LL4104: 3,802 lb	2444 lb

Warranty Length & Coverage	6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty	6-year Boomer Guard Limited Warranty (2-year full + 4-year powertrain)

Find a LS Tractor dealer near you Find a New Holland dealer near you

LS Tractor XR4140 vs New Holland Boomer 40: Quick Answers

Which has more horsepower, the LS Tractor XR4140 or the New Holland Boomer 40?

They are effectively tied: both machines are rated at 40 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor XR4140 or the New Holland Boomer 40?

The LS Tractor XR4140 leads on pto hp at 34.4 hp hp, compared to 32 hp hp for the New Holland Boomer 40.

Which has more loader lift capacity, the LS Tractor XR4140 or the New Holland Boomer 40?

The LS Tractor XR4140 leads on loader lift at 2,713 lb lb, compared to 1,822 lb lb for the New Holland Boomer 40.

Which has more three-point hitch lift capacity, the LS Tractor XR4140 or the New Holland Boomer 40?

The LS Tractor XR4140 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 1,433 lb lb for the New Holland Boomer 40.
