Across 3 measurable specs, the Mahindra 1120 leads 2 categories to 1. Machine pages: Mahindra 1120 and Massey Ferguson MF 1M.20.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 1120 | Massey Ferguson MF 1M.20 |
|---|
| Engine HP (hp) | ▲ 20.1 hp | 20 hp |
| PTO HP (hp) | 13.9 hp | — |
| Weight (lb) | 2,026 lb | — |
| Loader Lift (lb) | 794 lb | — |
| 3-Pt Lift (24 in) (lb) | 771 lb | ▲ 1,433 lb |
| Lift Height (in) | 68 in | — |
| Breakout Force (lbf) | 1,433 lbf | — |
| Hydraulic Flow (gpm) | ▲ 11.4 gpm | 8.8 gpm |
| Travel Speed (mph) | 7.3 mph | — |

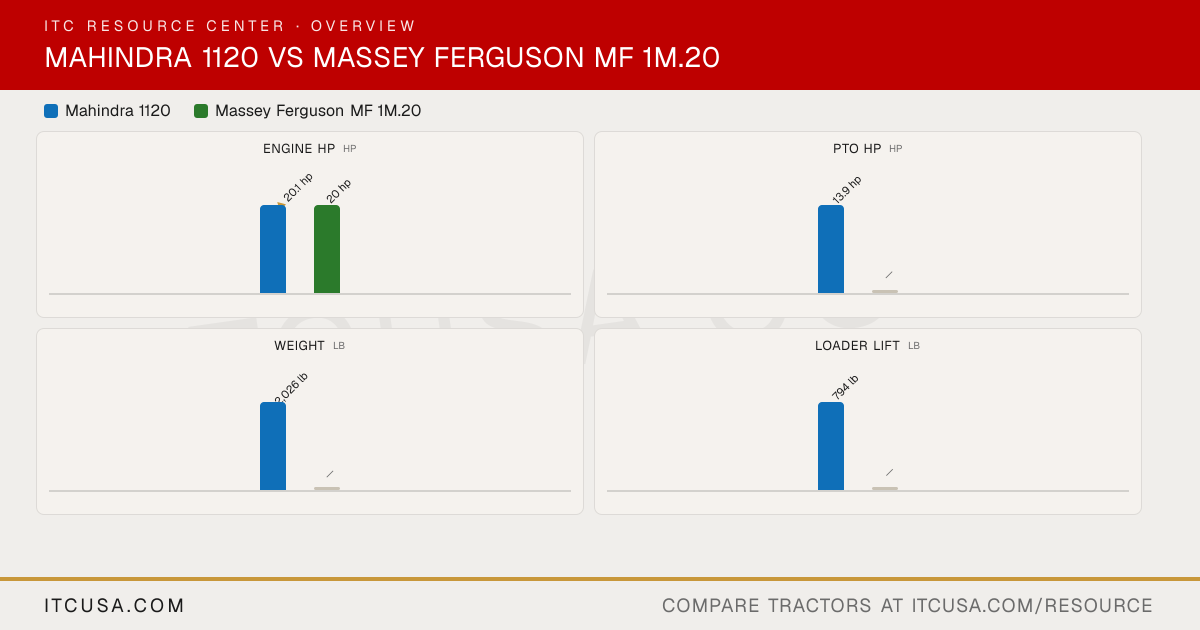

The headline numbers at a glance.
Mahindra 1120Massey Ferguson MF 1M.20
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra1120 | Massey FergusonMF 1M.20 |
|---|
|
|---|
| PTO Power | 13.9 hp | Not Published |
|---|
| Alternator | 55 A, 12 V | Not Published |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Engine Type | Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine | 3-cylinder diesel |
|---|
| Fuel System | Indirect Injection | Not Published |
|---|
| Displacement | 67.2 in³ | 68.5 in³ |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Rated Engine Speed | 2900 rpm | 2500 rpm |
|---|
| Cooling System Type | Water-Cooled | Not Published |
|---|
| Engine Manufacturer | Mitsubishi | Massey Ferguson (AGCO) |
|---|
| Engine Power (Gross) | 20.1 hp @ 900 rpm | 20 hp |
|---|
| Engine Emissions Constraints | No DPF | Not Published |
|---|
|
|---|
| Weight with ROPS and Loader | 2026 lb | Not Published |
|---|
| Weight with Cab and Loader | Not Applicable | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | 7-Year Limited Powertrain Warranty | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Steering Flow | 3.8 gpm | 3.2 gpm |
|---|
| Implement Flow | 7.6 gpm | 5.5 gpm |
|---|
| Total Hydraulic Flow | 11.4 gpm | 8.8 gpm |
|---|
| Hydraulic System Type | Open Center, full-live hydraulic with position control | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 11.4 gpm | 8.8 gpm |
|---|
| No. of Optional Remote Valves | Single or dual | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | 1 |
|---|
|
|---|
| PTO Rear | 540 rpm @ 2837 rpm | 540 rpm |
|---|
| PTO Type | Independent Wet Clutch | Sliding gear |
|---|
| Lift Control Type | Position Control | Not Published |
|---|
| Hitch Lift Capacity | Not Published | 1,433 lb |
|---|
| Mid-PTO Availability | Optional; 2500 rpm @ 2837 rpm | Not Applicable |
|---|
| Category, 3-Point Hitch | CAT I with check chains | Category I |
|---|
| Hitch Lift Capacity (at 24”) | 771 lb | Not Published |
|---|
|
|---|
| R3 Turf - Rear | 26X12-12 | 315X75D-15 |
|---|
| R3 Turf - Front | 18X8.5-10 | 24X8.50-12 |
|---|
| Tire Size & Options | R3 Turf, R4 Industrial | R1 Agricultural, R3 Turf |
|---|
| R4 Industrial - Rear | 26X12-12 | Not Published |
|---|
| R4 Industrial - Front | 18X8.5-10 | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | 9.5-18 |
|---|
| R1 Agricultural - Front | Not Published | 6.00-12 |
|---|
|
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Fuel Tank Capacity | 6.6 gal | 7.4 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
|
|---|
| Loader Lift Height | 68 in | Not Published |
|---|
| Loader Breakout Force | 1433 lb | Not Published |
|---|
| Quick Attach Loader System | L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups. | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 794 lb | Not Published |
|---|
|
|---|
| Clutch | Not Applicable | Not Published |
|---|
| No. of Speeds | Infinite / 2 ranges | 9F / 9R |
|---|
| Transmission Type | HST | Mechanical |
|---|
| Max Travel Speed (Forward) | 7.3 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Differential lock (RHS pedal) |
|---|
|
|---|
| Brakes | Single Pedal | Internal wet disc |
|---|
| Steering | Hydrostatic Power Steering | Not Published |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
|
|---|
| Wheelbase | 55.1 in | 61.4 in |
|---|
| Overall Width | 46.3 in | 45.7 in |
|---|
| Ground Clearance | 6.7 in | Not Published |
|---|
| Height to Top of ROPS | 86.6 in | 79.5 in |
|---|
| Height to Top of Cab Model | Not Applicable | Not Applicable |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 100.4 in | 115.9 in |
|---|
Mahindra 1120 vs Massey Ferguson MF 1M.20: Quick Answers
- Which has more horsepower, the Mahindra 1120 or the Massey Ferguson MF 1M.20?
- The Mahindra 1120 leads on engine hp at 20.1 hp hp, compared to 20 hp hp for the Massey Ferguson MF 1M.20.
- Which has more three-point hitch lift capacity, the Mahindra 1120 or the Massey Ferguson MF 1M.20?
- The Massey Ferguson MF 1M.20 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 771 lb lb for the Mahindra 1120.
