Mahindra 1126 vs Mahindra 1626 Shuttle

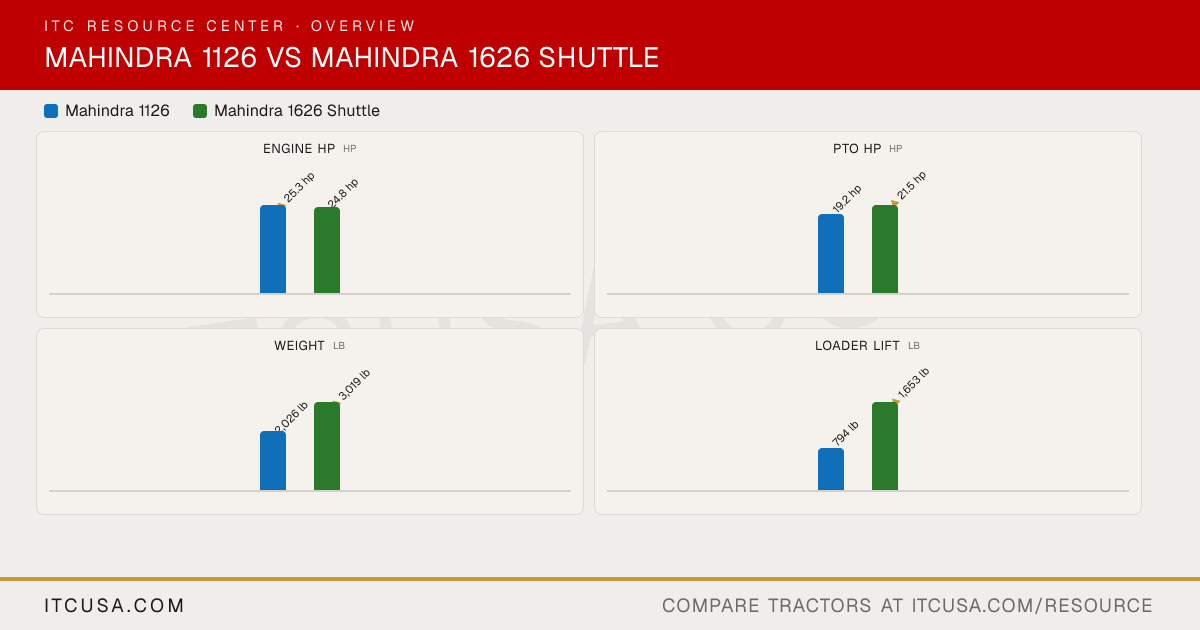

Across 9 measurable specs, the Mahindra 1626 Shuttle leads 7 categories to 2. Machine pages: Mahindra 1126 and Mahindra 1626 Shuttle.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1126	Mahindra1626 Shuttle

▶Engine
Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	MVL3E3	S3L2-W415H
Engine Type	Four Stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel	Four Stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel
No. of Cylinders	3	3
Displacement	67.2 in³	80.4 in³
Rated Engine Speed	3000 rpm	2500 rpm
Engine Power (Gross)	25.3 hp	24.8 hp
PTO Power	19.2 hp	21.5 hp
Engine Emissions Constraints	No DPF	Tier 4
Cooling System Type	Water-Cooled	Water-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect Injection	Indirect injection
Alternator	55 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	7.6 gpm	7.5 gpm
Steering Flow	3.8 gpm	3.3 gpm
Total Hydraulic Flow	11.2 gpm	10.8 gpm
Overall Hydraulic Pump Flow	11.2 gpm	10.8 gpm
Hydraulic System Type	Open Center, full-live hydraulic with position control	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Single or dual	Single
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	7.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
▶PTO & Hitch
PTO Type	Independent Wet Clutch	Independent
PTO Rear	540 rpm @ 2837 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Optional; 2500 rpm @ 2837 rpm	Optional; 2000 rpm @ 2526 rpm
Category, 3-Point Hitch	CAT I with check chains	CAT I with Telescoping Stabilizers
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	771 lb	1,720 lb
Lift Control Type	Position Control	Position control
▶Transmission & Drivetrain
Transmission Type	HST - 2 Range	Constant mesh on gearshift and synchromesh on F-R shuttle
No. of Speeds	Infinite	8F / 8R
Max Travel Speed (Forward)	7.3 mph	11.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Dry-Single
Differential Lock & Limited Slip Options	Not Published	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic Power Steering
Brakes	Single Pedal	Wet Disc
Seat Suspension & Adjustability	Not Published	Seat with contoured cushions, folding armrests, adjustable legroom and retractable seat belt
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	46.3 in	63 in
Wheelbase	55.1 in	67.3 in
Ground Clearance	6.7 in	11.4 in
Min. Turn Radius without Brakes	7.2 ft (with brake applied)	7.9 ft (with brake applied)
Height to Top of ROPS	86.6 in	81.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	100.4 in	121.3 in
▶Weight
Tractor Weight (Base)	1,620 lb (operating weight)	2,437 lb (operating weight)
Weight with ROPS and Loader	2,026 lb (1,620 + 406, computed; L11 loader shipping weight)	3,019 lb (2,437 + 582, computed; 429.5 gal loader shipping weight)
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Industrial, Turf	Agricultural, Industrial, Turf
R1 Agricultural - Front	Not Published	7 x 16
R1 Agricultural - Rear	Not Published	11.2 x 24
R3 Turf - Front	18x8.5-10	25 x 8.5-14
R3 Turf - Rear	26x12-12	13.6 x 16
R4 Industrial - Front	18x8.5-10	27 x 8.5-15
R4 Industrial - Rear	26x12-12	15 x 19.5
▶Loader & Attachments
Quick Attach Loader System	L11: Front loader skid-steer couplers for superfast hookups	Front loader with skid-steer couplers for superfast hookups
Loader Model	L11	Mahindra 1626L: front loader; Bucket size: 64 in
Loader Lift Height	L11: 68 in	Mahindra 1626L: 84 in; Measured as: maximum lift height
Loader Lift Capacity (Full Height)	L11: 794 lb; Measured at: pivot pin, full height	Mahindra 1626L: 1,653 lb; Measured at: pivot pin, full height
Loader Breakout Force	L11: 1,433 lb	Mahindra 1626L: 2,557 lb
▶Warranty
Warranty Length & Coverage	7-Year Limited Powertrain Warranty	7-year/3,000-hour, $0 deductible limited powertrain warranty
▶ITC Company Accessories
Accessories that fit	None tagged yet	Mahindra 1626 Brush Screen Insert $249.99

Find a Mahindra dealer near you→

Mahindra 1126 vs Mahindra 1626 Shuttle: Quick Answers

Which has more horsepower, the Mahindra 1126 or the Mahindra 1626 Shuttle?

The Mahindra 1126 leads on engine hp at 25.3 hp hp, compared to 24.8 hp hp for the Mahindra 1626 Shuttle.

Which has more PTO horsepower, the Mahindra 1126 or the Mahindra 1626 Shuttle?

The Mahindra 1626 Shuttle leads on pto hp at 21.5 hp hp, compared to 19.2 hp hp for the Mahindra 1126.

Which is heavier, the Mahindra 1126 or the Mahindra 1626 Shuttle?

The Mahindra 1626 Shuttle leads on weight at 2,437 lb lb, compared to 1,620 lb lb for the Mahindra 1126.

Which has more loader lift capacity, the Mahindra 1126 or the Mahindra 1626 Shuttle?

The Mahindra 1626 Shuttle leads on loader lift at 1,653 lb lb, compared to 794 lb lb for the Mahindra 1126.

Which has more three-point hitch lift capacity, the Mahindra 1126 or the Mahindra 1626 Shuttle?

The Mahindra 1626 Shuttle leads on 3-pt lift (24 in) at 1,720 lb lb, compared to 771 lb lb for the Mahindra 1126.
