Bad Boy Tractors 1022 vs Mahindra 1626 Shuttle

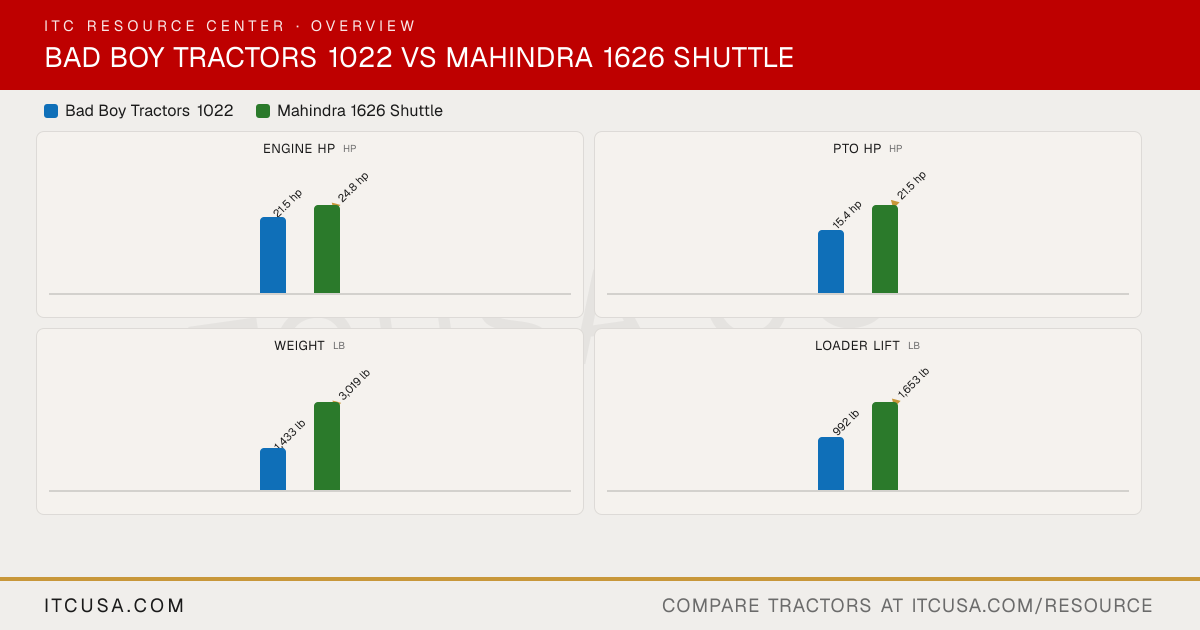

Across 9 measurable specs, the Mahindra 1626 Shuttle leads 9 categories to 0. Machine pages: Bad Boy Tractors 1022 and Mahindra 1626 Shuttle.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	Mahindra1626 Shuttle

▶Engine
Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNM74F	S3L2-W415H
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Four Stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel
No. of Cylinders	3	3
Displacement	60.6 in³	80.4 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	21.5 hp	24.8 hp
PTO Power	15.4 hp	21.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Single dry element	Dry
Fuel System	Indirect injection	Indirect injection
Alternator	40 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Single gear pump with flow divider	Not Published
Implement Flow	4.17 gpm	7.5 gpm
Steering Flow	2.11 gpm	3.3 gpm
Total Hydraulic Flow	6.3 gpm	10.8 gpm
Overall Hydraulic Pump Flow	6.97 gpm	10.8 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	Single
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	7.1 gal
Coolant Capacity	3.7 qt	Not Published
Crankcase Capacity	2.1 qt	Not Published
Transmission / Hydraulic System Capacity	3.6 gal	Not Published
Front Axle Fluid Capacity	2.6 qt	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional; 2000 rpm @ 2526 rpm
Category, 3-Point Hitch	Category I (limited)	CAT I with Telescoping Stabilizers
Hitch Lift Capacity	1,100 lb	Not Published
Hitch Lift Capacity (at 24”)	679 lb	1,720 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Constant mesh on gearshift and synchromesh on F-R shuttle
No. of Speeds	2 range	8F / 8R
Max Travel Speed (Forward)	7.8 mph	11.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	Dry-Single
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Sub-compact tractor	Not Published
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Brakes	Wet disc	Wet Disc
Seat Suspension & Adjustability	Not Published	Seat with contoured cushions, folding armrests, adjustable legroom and retractable seat belt
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	44.5 in	63 in
Wheelbase	53.1 in	67.3 in
Ground Clearance	8.3 in	11.4 in
Min. Turn Radius without Brakes	86.6 in	7.9 ft (with brake applied)
Height to Top of ROPS	86.6 in	81.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	94.2 in (with 3-point hitch)	121.3 in
▶Weight
Tractor Weight (Base)	1,433 lb	2,437 lb (operating weight)
Weight with ROPS and Loader	Not Published	3,019 lb (2,437 + 582, computed; 429.5 gal loader shipping weight)
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Agricultural, Industrial, Turf
R1 Agricultural - Front	16x7.50-9	7 x 16
R1 Agricultural - Rear	24x12.00-12	11.2 x 24
R3 Turf - Front	16x7.50-8	25 x 8.5-14
R3 Turf - Rear	26x12.00-12	13.6 x 16
R4 Industrial - Front	18x8.5-10	27 x 8.5-15
R4 Industrial - Rear	26x12-12	15 x 19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Front loader with skid-steer couplers for superfast hookups
Loader Model	BBL100	Mahindra 1626L: front loader; Bucket size: 64 in
Loader Lift Height	78.5 in (at pivot pin)	Mahindra 1626L: 84 in; Measured as: maximum lift height
Loader Lift Capacity (Full Height)	617 lb (at pivot pin)	Mahindra 1626L: 1,653 lb; Measured at: pivot pin, full height
Loader Breakout Force	1,253 lbf	Mahindra 1626L: 2,557 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	7-year/3,000-hour, $0 deductible limited powertrain warranty
▶ITC Company Accessories
Accessories that fit	None tagged yet	Mahindra 1626 Brush Screen Insert $249.99

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

Bad Boy Tractors 1022 vs Mahindra 1626 Shuttle: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the Mahindra 1626 Shuttle?

The Mahindra 1626 Shuttle leads on engine hp at 24.8 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the Mahindra 1626 Shuttle?

The Mahindra 1626 Shuttle leads on pto hp at 21.5 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the Mahindra 1626 Shuttle?

The Mahindra 1626 Shuttle leads on weight at 2,437 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the Mahindra 1626 Shuttle?

The Mahindra 1626 Shuttle leads on loader lift at 1,653 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the Mahindra 1626 Shuttle?

The Mahindra 1626 Shuttle leads on 3-pt lift (24 in) at 1,720 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
