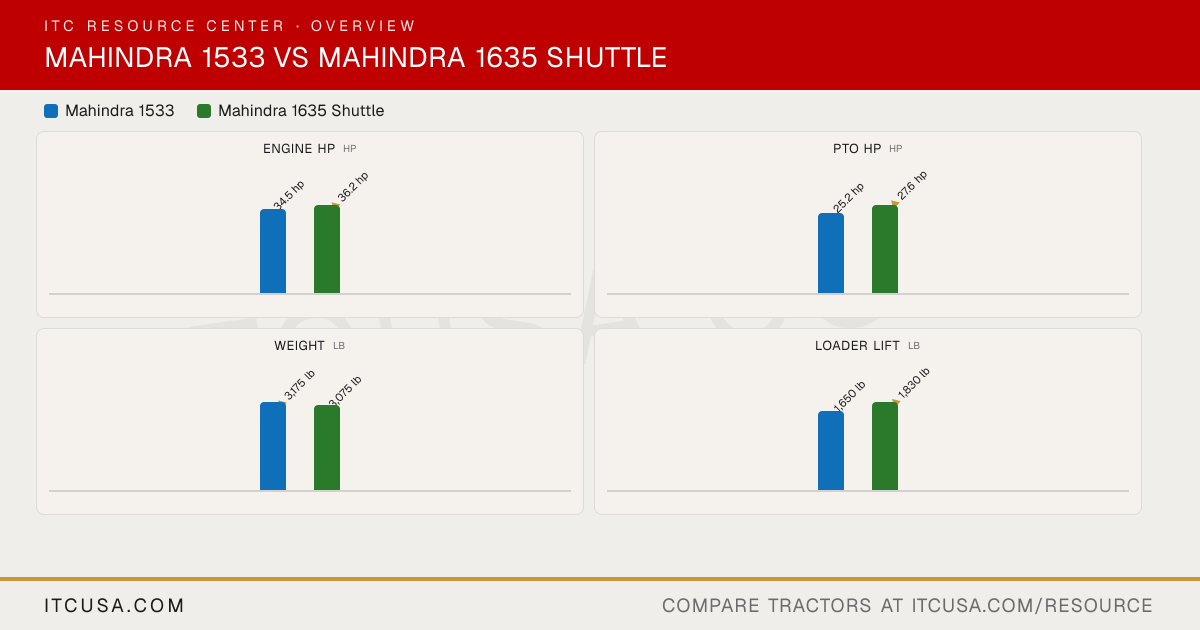

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Mahindra 1533, 4 to the Mahindra 1635 Shuttle. Machine pages: Mahindra 1533 and Mahindra 1635 Shuttle .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Mahindra 1533 Mahindra 1635 Shuttle Engine HP (hp) 34.5 hp ▲ 36.2 hpPTO HP (hp) 25.2 hp ▲ 27.6 hpWeight (lb) ▲ 3,175 lb3,075 lb Loader Lift (lb) 1,650 lb ▲ 1,830 lb3-Pt Lift (24 in) (lb) ▲ 2,646 lb1,720 lb Lift Height (in) ▲ 99 in92 in Breakout Force (lbf) 2,650 lbf ▲ 2,777 lbfHydraulic Flow (gpm) ▲ 11 gpm10.8 gpm Travel Speed (mph) n/a 12.2 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
Mahindra 1533 Mahindra 1635 Shuttle
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Mahindra 1533 Mahindra 1635 Shuttle
▶ EngineEngine Manufacturer Mahindra Mahindra Engine Model Not Published CE-35 Engine Type Naturally aspirated direct injection diesel (mCRD common rail) Four-stroke, naturally aspirated, direct injection, water cooled diesel No. of Cylinders 4 3 Displacement 166.7 in³ 125.0 in³ Rated Engine Speed 2400 rpm 2500 rpm Engine Power (Gross) 34.5 hp 36.2 hp PTO Power 25.2 hp 27.6 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Not Published Fuel System Direct injection, common rail (mCRD) Direct injection Alternator 90 A, 12 V 90 A, 12 V ▶ HydraulicsPump Type Not Published Not Published Implement Flow 7.7 gpm 7.5 gpm Steering Flow 3.4 gpm 3.3 gpm Total Hydraulic Flow 11 gpm 10.8 gpm Overall Hydraulic Pump Flow Not Published 10.8 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves 1 1 ▶ Fluid CapacityFuel Tank Capacity 7.7 gal 7.7 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent (1533 Shuttle); Live (1533 HST) Independent PTO Rear 540 rpm @ 2376 rpm 540 rpm @ 2376 rpm Mid-PTO Availability Optional; 2000 rpm @ 2525 rpm Optional; 2000 rpm @ 2526 rpm Category, 3-Point Hitch CAT I with telescopic stabilizers CAT I with Telescoping Stabilizers & Flex Links Hitch Lift Capacity 2646 lb 2646 lb Hitch Lift Capacity (at 24”) Not Published 1720 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Constant mesh shuttle (1533 Shuttle); HST, 3 ranges (1533 HST) Constant mesh on gearshift and synchromesh on F-R shuttle No. of Speeds 8F/8R (1533 Shuttle); Infinite, 3 ranges (1533 HST) 8F / 8R Max Travel Speed (Forward) Not Published 12.2 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Dry single disc Dry-Single Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Power Steering Brakes Wet disc Wet Disc Seat Suspension & Adjustability Deluxe suspension seat mComfort seat with contoured cushions, folding armrests, legroom adjustment and retractable seatbelt Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 127.8 in 123.8 in Overall Width 63 in 64 in Wheelbase Not Published 73 in Ground Clearance Not Published 12.2 in Min. Turn Radius without Brakes 9.2 ft 8.5 ft (with brake applied) Height to Top of ROPS 90.2 in 90.2 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 3175 lb (1533 Shuttle); 3164 lb (1533 HST) 3,075 lb Weight with ROPS and Loader Not Published 3698 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag, Industrial, Turf R1 Agriculture, R3 Turf, R4 Industrial R1 Agricultural - Front 7x16 7 x 16 R1 Agricultural - Rear 11.2x24 11.2 x 24 R3 Turf - Front 25x8.5-14 25 x 8.5-14 R3 Turf - Rear 13.6x16 13.6 x 16 R4 Industrial - Front 27x8.5-15 27 x 8.5-15 R4 Industrial - Rear 15x19.5 15 x 19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Front loader with skid-steer couplers for superfast hookups Loader Model 1538L 1635L (64 in bucket) Loader Lift Height 1538L: 99 in 1635L: 92 in Loader Lift Capacity (Full Height) 1538L: 1,650 lb 1635L: 1,830 lb Loader Breakout Force 1538L: 2,650 lb 1635L: 2,777 lb ▶ WarrantyWarranty Length & Coverage 5-year powertrain warranty 7-year/3,000-hour, $0 deductible limited powertrain warranty
Mahindra 1533 vs Mahindra 1635 Shuttle: Quick Answers
Which has more horsepower, the Mahindra 1533 or the Mahindra 1635 Shuttle? The Mahindra 1635 Shuttle leads on engine hp at 36.2 hp hp, compared to 34.5 hp hp for the Mahindra 1533.
Which has more PTO horsepower, the Mahindra 1533 or the Mahindra 1635 Shuttle? The Mahindra 1635 Shuttle leads on pto hp at 27.6 hp hp, compared to 25.2 hp hp for the Mahindra 1533.
Which is heavier, the Mahindra 1533 or the Mahindra 1635 Shuttle? The Mahindra 1533 leads on weight at 3,175 lb lb, compared to 3,075 lb lb for the Mahindra 1635 Shuttle.
Which has more loader lift capacity, the Mahindra 1533 or the Mahindra 1635 Shuttle? The Mahindra 1635 Shuttle leads on loader lift at 1,830 lb lb, compared to 1,650 lb lb for the Mahindra 1533.
Which has more three-point hitch lift capacity, the Mahindra 1533 or the Mahindra 1635 Shuttle? The Mahindra 1533 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,720 lb lb for the Mahindra 1635 Shuttle. More Head-to-Heads
