Mahindra 1533 vs Massey Ferguson 1735E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Mahindra 1533 leads 6 categories to 1. Machine pages: Mahindra 1533 and Massey Ferguson 1735E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 1533	Massey Ferguson 1735E
Engine HP (hp)	▲ 34.5 hp	34.1 hp
PTO HP (hp)	25.2 hp	▲ 29 hp
Weight (lb)	3,175 lb	n/a
Loader Lift (lb)	▲ 1,650 lb	1,450 lb
3-Pt Lift (24 in) (lb)	▲ 2,646 lb	1,598 lb
Lift Height (in)	▲ 99 in	94.3 in
Breakout Force (lbf)	▲ 2,650 lbf	2,288 lbf
Hydraulic Flow (gpm)	▲ 11.1 gpm	9.7 gpm

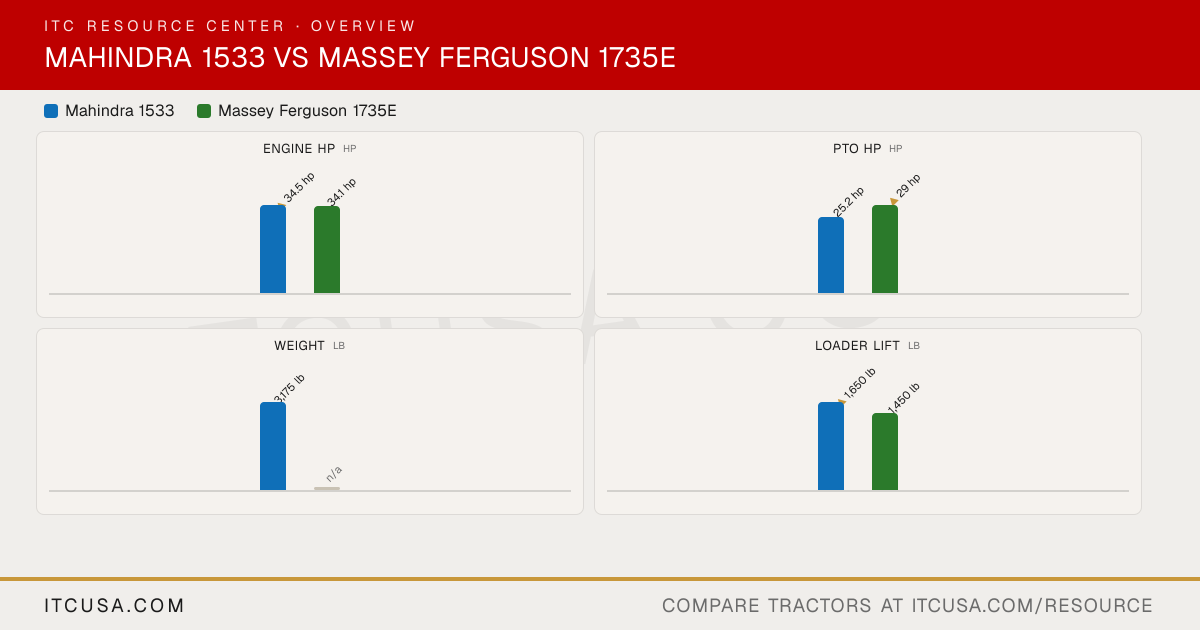

The headline numbers at a glance.

Mahindra 1533Massey Ferguson 1735E

Engine HPhp

▲34.5 hp

34.1 hp

PTO HPhp

25.2 hp

▲29 hp

Weightlb

3,175 lb

n/a

Loader Liftlb

▲1,650 lb

1,450 lb

3-Pt Lift (24 in)lb

▲2,646 lb

1,598 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1533	Massey Ferguson1735E


Engine Manufacturer	Mahindra	Shibaura
Engine Model	Not Published	Not Published
Engine Type	Naturally aspirated, direct injection, common-rail diesel	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	4	3
Displacement	166.7 in³	91.3 in³
Rated Engine Speed	2400 rpm	2600 rpm
Engine Power (Gross)	34.5 hp	34.1 hp
PTO Power	25.2 hp	29 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Direct injection, common rail (mCRD)	Indirect injection
Alternator	90 A, 12 V	Not Published

Pump Type	Not Published	Dual engine-driven gear pumps
Implement Flow	7.7 gpm	Not Published
Steering Flow	3.4 gpm	Not Published
Total Hydraulic Flow	11.1 gpm (7.7 + 3.4, computed)	9.7 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	2

Fuel Tank Capacity	7.7 gal	Not Published
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent (1533 Shuttle); Live (1533 HST)	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm @ 2376 rpm	540 rpm (6-spline)
Mid-PTO Availability	Optional; 2000 rpm @ 2525 rpm	Not Published
Category, 3-Point Hitch	CAT I with telescopic stabilizers	Category I
Hitch Lift Capacity	2,646 lb	Not Published
Hitch Lift Capacity (at 24”)	Not Published	1,598 lb
Lift Control Type	Position control	Position control

Transmission Type	Constant mesh on gear shift, synchro mesh on F/R shuttle (1533 Shuttle); 3 range HST (1533 HST)	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	8F/8R (1533 Shuttle); Infinite, 3 ranges (1533 HST)	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single plate, dry	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	63 in	Not Published
Wheelbase	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.2 ft	Not Published
Height to Top of ROPS	90.2 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	127.8 in (with industrial tires)	Not Published

Tractor Weight (Base)	3,175 lb (1533 Shuttle, operating weight); 3,164 lb (1533 HST, operating weight)	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, Turf	Agricultural, Industrial
R1 Agricultural - Front	7x16	7-16
R1 Agricultural - Rear	11.2x24	11.2-24
R3 Turf - Front	25x8.5-14	Not Published
R3 Turf - Rear	13.6x16	Not Published
R4 Industrial - Front	27x8.5-15	27x8.50-15
R4 Industrial - Rear	15x19.5	15-19.5

Quick Attach Loader System	Not Published	FLx2407: pin-on (skid steer quick attach optional)
Loader Model	1538L	FLx2407
Loader Lift Height	1538L: 99 in	FLx2407: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	1538L: 1,650 lb (at pivot pin)	FLx2407: 1,450 lb (at pivot pin, full height)
Loader Breakout Force	1538L: 2,650 lb (at pivot pin)	FLx2407: 2,288 lb (at pivot pin)

Warranty Length & Coverage	7-year limited powertrain warranty	5-year powertrain warranty

Find a Mahindra dealer near you Find a dealer near you

Mahindra 1533 vs Massey Ferguson 1735E: Quick Answers

Which has more horsepower, the Mahindra 1533 or the Massey Ferguson 1735E?: The Mahindra 1533 leads on engine hp at 34.5 hp hp, compared to 34.1 hp hp for the Massey Ferguson 1735E.
Which has more PTO horsepower, the Mahindra 1533 or the Massey Ferguson 1735E?: The Massey Ferguson 1735E leads on pto hp at 29 hp hp, compared to 25.2 hp hp for the Mahindra 1533.
Which has more loader lift capacity, the Mahindra 1533 or the Massey Ferguson 1735E?: The Mahindra 1533 leads on loader lift at 1,650 lb lb, compared to 1,450 lb lb for the Massey Ferguson 1735E.
Which has more three-point hitch lift capacity, the Mahindra 1533 or the Massey Ferguson 1735E?: The Mahindra 1533 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1735E.

More Head-to-Heads

Category Verdict

Spec	Mahindra 1533	Massey Ferguson 1735E
Engine HP (hp)	▲ 34.5 hp	34.1 hp
PTO HP (hp)	25.2 hp	▲ 29 hp
Weight (lb)	3,175 lb	n/a
Loader Lift (lb)	▲ 1,650 lb	1,450 lb
3-Pt Lift (24 in) (lb)	▲ 2,646 lb	1,598 lb
Lift Height (in)	▲ 99 in	94.3 in
Breakout Force (lbf)	▲ 2,650 lbf	2,288 lbf
Hydraulic Flow (gpm)	▲ 11.1 gpm	9.7 gpm

The headline numbers at a glance.

Mahindra 1533Massey Ferguson 1735E

Engine HPhp

▲34.5 hp

34.1 hp

PTO HPhp

25.2 hp

▲29 hp

Weightlb

3,175 lb

n/a

Loader Liftlb

▲1,650 lb

1,450 lb

3-Pt Lift (24 in)lb

▲2,646 lb

1,598 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1533	Massey Ferguson1735E


Engine Manufacturer	Mahindra	Shibaura
Engine Model	Not Published	Not Published
Engine Type	Naturally aspirated, direct injection, common-rail diesel	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	4	3
Displacement	166.7 in³	91.3 in³
Rated Engine Speed	2400 rpm	2600 rpm
Engine Power (Gross)	34.5 hp	34.1 hp
PTO Power	25.2 hp	29 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Direct injection, common rail (mCRD)	Indirect injection
Alternator	90 A, 12 V	Not Published

Pump Type	Not Published	Dual engine-driven gear pumps
Implement Flow	7.7 gpm	Not Published
Steering Flow	3.4 gpm	Not Published
Total Hydraulic Flow	11.1 gpm (7.7 + 3.4, computed)	9.7 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	2

Fuel Tank Capacity	7.7 gal	Not Published
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent (1533 Shuttle); Live (1533 HST)	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm @ 2376 rpm	540 rpm (6-spline)
Mid-PTO Availability	Optional; 2000 rpm @ 2525 rpm	Not Published
Category, 3-Point Hitch	CAT I with telescopic stabilizers	Category I
Hitch Lift Capacity	2,646 lb	Not Published
Hitch Lift Capacity (at 24”)	Not Published	1,598 lb
Lift Control Type	Position control	Position control

Transmission Type	Constant mesh on gear shift, synchro mesh on F/R shuttle (1533 Shuttle); 3 range HST (1533 HST)	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	8F/8R (1533 Shuttle); Infinite, 3 ranges (1533 HST)	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single plate, dry	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	63 in	Not Published
Wheelbase	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	9.2 ft	Not Published
Height to Top of ROPS	90.2 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	127.8 in (with industrial tires)	Not Published

Tractor Weight (Base)	3,175 lb (1533 Shuttle, operating weight); 3,164 lb (1533 HST, operating weight)	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, Turf	Agricultural, Industrial
R1 Agricultural - Front	7x16	7-16
R1 Agricultural - Rear	11.2x24	11.2-24
R3 Turf - Front	25x8.5-14	Not Published
R3 Turf - Rear	13.6x16	Not Published
R4 Industrial - Front	27x8.5-15	27x8.50-15
R4 Industrial - Rear	15x19.5	15-19.5

Quick Attach Loader System	Not Published	FLx2407: pin-on (skid steer quick attach optional)
Loader Model	1538L	FLx2407
Loader Lift Height	1538L: 99 in	FLx2407: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	1538L: 1,650 lb (at pivot pin)	FLx2407: 1,450 lb (at pivot pin, full height)
Loader Breakout Force	1538L: 2,650 lb (at pivot pin)	FLx2407: 2,288 lb (at pivot pin)

Warranty Length & Coverage	7-year limited powertrain warranty	5-year powertrain warranty

Find a Mahindra dealer near you Find a dealer near you

Mahindra 1533 vs Massey Ferguson 1735E: Quick Answers

Which has more horsepower, the Mahindra 1533 or the Massey Ferguson 1735E?

The Mahindra 1533 leads on engine hp at 34.5 hp hp, compared to 34.1 hp hp for the Massey Ferguson 1735E.

Which has more PTO horsepower, the Mahindra 1533 or the Massey Ferguson 1735E?

The Massey Ferguson 1735E leads on pto hp at 29 hp hp, compared to 25.2 hp hp for the Mahindra 1533.

Which has more loader lift capacity, the Mahindra 1533 or the Massey Ferguson 1735E?

The Mahindra 1533 leads on loader lift at 1,650 lb lb, compared to 1,450 lb lb for the Massey Ferguson 1735E.

Which has more three-point hitch lift capacity, the Mahindra 1533 or the Massey Ferguson 1735E?

The Mahindra 1533 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1735E.
