Across 3 measurable specs, the Massey Ferguson MF 35 leads 2 categories to 1. Machine pages: Mahindra 1635 Shuttle and Massey Ferguson MF 35.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Mahindra 1635 Shuttle | Massey Ferguson MF 35 |
|---|
| Engine HP (hp) | 36.2 hp | ▲ 36.5 hp |
| PTO HP (hp) | 27.6 hp | — |
| Weight (lb) | 3,698 lb | — |
| Loader Lift (lb) | 1,830 lb | — |
| 3-Pt Lift (24 in) (lb) | 1,720 lb | ▲ 2,425 lb |
| Lift Height (in) | 92 in | — |
| Breakout Force (lbf) | 2,777 lbf | — |
| Hydraulic Flow (gpm) | ▲ 10.8 gpm | 4.2 gpm |
| Travel Speed (mph) | 12.2 mph | — |

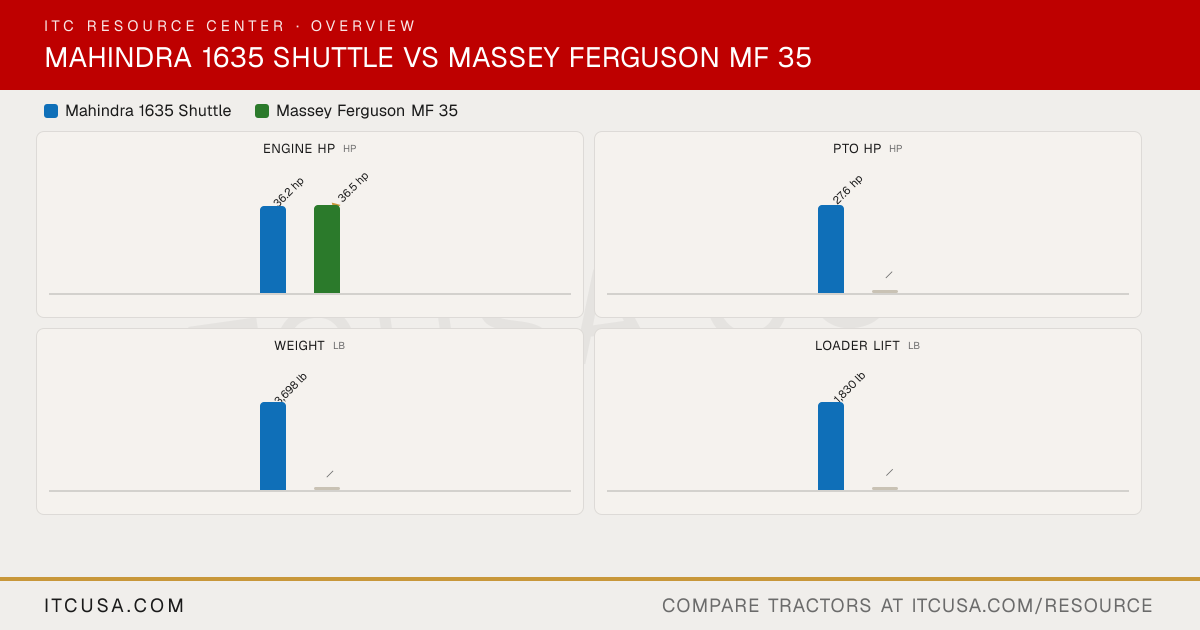

The headline numbers at a glance.
Mahindra 1635 ShuttleMassey Ferguson MF 35
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Mahindra1635 Shuttle | Massey FergusonMF 35 |
|---|
|
|---|
| PTO Power | 27.6 hp | Not Published |
|---|
| Alternator | 90 A, 12 V | Not Published |
|---|
| Air Cleaner | Not Published | Oil bath with pre-cleaner |
|---|
| Engine Type | Four-stroke, Naturally Aspirated, Direct Injection, Water-Cooled Diesel | Diesel, natural aspiration |
|---|
| Fuel System | Direct Injection | Not Published |
|---|
| Displacement | 125 in³ | 146.5 in³ |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Rated Engine Speed | 2500 rpm | Not Published |
|---|
| Cooling System Type | Water-cooled | Not Published |
|---|
| Engine Manufacturer | Mahindra | Simpson |
|---|
| Engine Power (Gross) | 36.2 hp @ 500 rpm | 36.5 hp |
|---|
| Engine Emissions Constraints | DOC / No DPF | Not Published |
|---|
|
|---|
| Weight with ROPS and Loader | 3698 lb | Not Applicable |
|---|
| Weight with Cab and Loader | Not Applicable | Not Applicable |
|---|
|
|---|
| Warranty Length & Coverage | 7-Year Limited Powertrain Warranty | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Steering Flow | 3.3 gpm | Not Applicable |
|---|
| Implement Flow | 7.5 gpm | 4.2 gpm |
|---|
| Total Hydraulic Flow | 10.8 gpm | 4.2 gpm |
|---|
| Hydraulic System Type | Open Center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 10.8 gpm | 4.2 gpm |
|---|
| No. of Optional Remote Valves | 1 | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
|
|---|
| PTO Rear | 540 rpm @ 2376 rpm | 540 rpm |
|---|
| PTO Type | Independent | Not Published |
|---|
| Lift Control Type | Position Control | Ferguson System |
|---|
| Hitch Lift Capacity | 2646 lb | 2,425 lb |
|---|
| Mid-PTO Availability | Optional; 2000 @ 2526 rpm | Not Published |
|---|
| Category, 3-Point Hitch | CAT I with Telescoping Stabilizers & Flex Links | Category I or II |
|---|
| Hitch Lift Capacity (at 24”) | 1720 lb | Not Published |
|---|
|
|---|
| R3 Turf - Rear | 13.6X16 | Not Published |
|---|
| R3 Turf - Front | 25X8.5-14 | Not Published |
|---|
| Tire Size & Options | R1 Agriculture, R3 Turf, R4 Industrial | R1 Agricultural |
|---|
| R4 Industrial - Rear | 15X19.5 | Not Published |
|---|
| R4 Industrial - Front | 27X8.5-15 | Not Published |
|---|
| R1 Agricultural - Rear | 11.2X24 | 12.4-28 |
|---|
| R1 Agricultural - Front | 7X16 | 6.00-16 |
|---|
|
|---|
| Coolant Capacity | Not Published | Not Published |
|---|
| Crankcase Capacity | Not Published | Not Published |
|---|
| Fuel Tank Capacity | 7.7 gal | 9.2 gal |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
|
|---|
| Loader Lift Height | 92 in | Not Published |
|---|
| Loader Breakout Force | 2777 lb | Not Published |
|---|
| Quick Attach Loader System | 431.9 gal: Front loader with skid-steer couplers for superfast hookups. | Not Published |
|---|
| Loader Lift Capacity (Full Height) | 1830 lb | Not Published |
|---|
|
|---|
| Clutch | Dry-Single | Single dry plate |
|---|
| No. of Speeds | 8F / 8R | 6F / 2R |
|---|
| Transmission Type | Constant mesh on gearshift and synchromesh on F-R shuttle | Mechanical |
|---|
| Max Travel Speed (Forward) | 12.2 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Brakes | Wet Disc | Dry, independent |
|---|
| Steering | Hydrostatic Power Steering | Mechanical |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Mechanical |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
|
|---|
| Wheelbase | 73.0 in | Not Published |
|---|
| Overall Width | 64.0 in | Not Published |
|---|
| Ground Clearance | 12.2 in | Not Published |
|---|
| Height to Top of ROPS | 90.2 in | Not Published |
|---|
| Height to Top of Cab Model | Not Applicable | Not Applicable |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 123.8 in | Not Published |
|---|
Mahindra 1635 Shuttle vs Massey Ferguson MF 35: Quick Answers
- Which has more horsepower, the Mahindra 1635 Shuttle or the Massey Ferguson MF 35?
- The Massey Ferguson MF 35 leads on engine hp at 36.5 hp hp, compared to 36.2 hp hp for the Mahindra 1635 Shuttle.
- Which has more three-point hitch lift capacity, the Mahindra 1635 Shuttle or the Massey Ferguson MF 35?
- The Massey Ferguson MF 35 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,720 lb lb for the Mahindra 1635 Shuttle.
