Mahindra 5145 vs Mahindra 5155 Shuttle

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 5155 Shuttle leads 2 categories to 0 (6 tied). Machine pages: Mahindra 5145 and Mahindra 5155 Shuttle.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 5145	Mahindra 5155 Shuttle
Engine HP (hp)	45 hp	▲ 55 hp
PTO HP (hp)	38 hp	▲ 47 hp
Loader Lift (lb)	3,100 lb	3,100 lb
3-Pt Lift (24 in) (lb)	3,748 lb	3,748 lb
Lift Height (in)	122 in	122 in
Breakout Force (lbf)	5,200 lbf	5,200 lbf
Hydraulic Flow (gpm)	13.3 gpm	13.3 gpm
Travel Speed (mph)	17.9 mph	17.9 mph

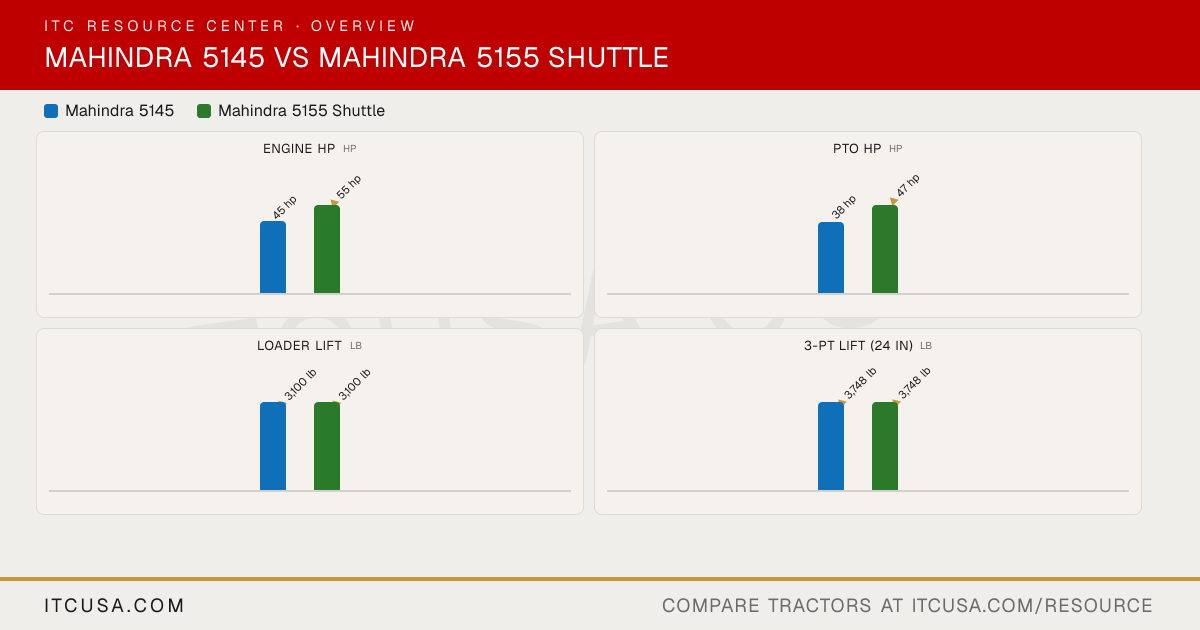

The headline numbers at a glance.

Mahindra 5145Mahindra 5155 Shuttle

Engine HPhp

45 hp

▲55 hp

PTO HPhp

38 hp

▲47 hp

Weightlb

—

Loader Liftlb

▲3,100 lb

3-Pt Lift (24 in)lb

▲3,748 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra5145	Mahindra5155 Shuttle


PTO Power	38 hp @ 300 rpm	47 hp @ 300 rpm
Alternator	55 A	55 A
Air Cleaner	Not Published	Not Published
Engine Type	Four-stroke, direct-injection, turbocharged and intercooled, water-cooled diesel	Four-stroke, direct-injection, turbocharged and intercooled, water-cooled diesel
Fuel System	Direct injection	Direct injection
Displacement	166.2 in³	166.2 in³
No. of Cylinders	4	4
Rated Engine Speed	2300 rpm	2300 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	Mahindra	Mahindra
Engine Power (Gross)	45 hp @ 300 rpm	55 hp @ 300 rpm
Engine Emissions Constraints	No DPF	No DPF

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	5-Year limited powertrain warranty	5-Year limited powertrain warranty

Pump Type	Not Published	Not Published
Steering Flow	4.62 gpm	4.62 gpm
Implement Flow	8.71 gpm	8.71 gpm
Total Hydraulic Flow	13.3 gpm	13.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	13.3 gpm	13.3 gpm
No. of Optional Remote Valves	1 additional (expandable to 2 total)	1 additional (expandable to 2 total)
No. of Standard Remote Valves	1 standard	1 standard

PTO Rear	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm
PTO Type	Independent	Independent
Lift Control Type	Position & draft control	Position & draft control
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Not Applicable	Not Applicable
Category, 3-Point Hitch	CAT I & II with telescopic stabilizers & flex links	CAT I & II with telescopic stabilizers & flex links
Hitch Lift Capacity (at 24”)	3748 lbs	3748 lbs

R3 Turf - Rear	Not Applicable	Not Applicable
R3 Turf - Front	Not Applicable	Not Applicable
Tire Size & Options	R1 Agricultural or R4 Industrial	R1 Agricultural or R4 Industrial
R4 Industrial - Rear	16.9X24	16.9X24
R4 Industrial - Front	10.5/80X18	10.5/80X18
R1 Agricultural - Rear	14.9X28	14.9X28
R1 Agricultural - Front	9.5X20	9.5X20

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	17.1 gal	17.1 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	122 inches	122 inches
Loader Breakout Force	5200 lbs	5200 lbs
Quick Attach Loader System	5155-1.1 gal: Skid-steer style quick-attach coupler	5155-1.1 gal: Skid-steer style quick-attach coupler
Loader Lift Capacity (Full Height)	3100 lbs	3100 lbs

Clutch	Dual dry, with cerametallic lining	Dual dry, with cerametallic lining
No. of Speeds	12F / 12R	12F / 12R
Transmission Type	Full synchromesh with forward/reverse synchro shuttle & constant mesh range	Full synchromesh with forward/reverse synchro shuttle & constant mesh range
Max Travel Speed (Forward)	17.9 mph	17.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Fully-enclosed 7-inch diameter dry disc	Fully-enclosed 7-inch diameter dry disc
Steering	Hydrostatic power steering with tilt steering wheel	Hydrostatic power steering with tilt steering wheel
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat with soft-coil suspension	Adjustable seat with soft-coil suspension

Wheelbase	74.8 inches	74.8 inches
Overall Width	80.3 inches	80.3 inches
Ground Clearance	15.2 inches	16.4 inches
Height to Top of ROPS	60.6 inches	60.6 inches
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	136.6 inches	140.0 inches

Mahindra 5145 vs Mahindra 5155 Shuttle: Quick Answers

Which has more horsepower, the Mahindra 5145 or the Mahindra 5155 Shuttle?: The Mahindra 5155 Shuttle leads on engine hp at 55 hp hp, compared to 45 hp hp for the Mahindra 5145.
Which has more PTO horsepower, the Mahindra 5145 or the Mahindra 5155 Shuttle?: The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 38 hp hp for the Mahindra 5145.
Which has more loader lift capacity, the Mahindra 5145 or the Mahindra 5155 Shuttle?: They are effectively tied: both machines are rated at 3,100 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Mahindra 5145 or the Mahindra 5155 Shuttle?: They are effectively tied: both machines are rated at 3,748 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Mahindra 5145	Mahindra 5155 Shuttle
Engine HP (hp)	45 hp	▲ 55 hp
PTO HP (hp)	38 hp	▲ 47 hp
Loader Lift (lb)	3,100 lb	3,100 lb
3-Pt Lift (24 in) (lb)	3,748 lb	3,748 lb
Lift Height (in)	122 in	122 in
Breakout Force (lbf)	5,200 lbf	5,200 lbf
Hydraulic Flow (gpm)	13.3 gpm	13.3 gpm
Travel Speed (mph)	17.9 mph	17.9 mph

The headline numbers at a glance.

Mahindra 5145Mahindra 5155 Shuttle

Engine HPhp

45 hp

▲55 hp

PTO HPhp

38 hp

▲47 hp

Weightlb

—

Loader Liftlb

▲3,100 lb

3-Pt Lift (24 in)lb

▲3,748 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra5145	Mahindra5155 Shuttle


PTO Power	38 hp @ 300 rpm	47 hp @ 300 rpm
Alternator	55 A	55 A
Air Cleaner	Not Published	Not Published
Engine Type	Four-stroke, direct-injection, turbocharged and intercooled, water-cooled diesel	Four-stroke, direct-injection, turbocharged and intercooled, water-cooled diesel
Fuel System	Direct injection	Direct injection
Displacement	166.2 in³	166.2 in³
No. of Cylinders	4	4
Rated Engine Speed	2300 rpm	2300 rpm
Cooling System Type	Water-cooled	Water-cooled
Engine Manufacturer	Mahindra	Mahindra
Engine Power (Gross)	45 hp @ 300 rpm	55 hp @ 300 rpm
Engine Emissions Constraints	No DPF	No DPF

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	5-Year limited powertrain warranty	5-Year limited powertrain warranty

Pump Type	Not Published	Not Published
Steering Flow	4.62 gpm	4.62 gpm
Implement Flow	8.71 gpm	8.71 gpm
Total Hydraulic Flow	13.3 gpm	13.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	13.3 gpm	13.3 gpm
No. of Optional Remote Valves	1 additional (expandable to 2 total)	1 additional (expandable to 2 total)
No. of Standard Remote Valves	1 standard	1 standard

PTO Rear	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm
PTO Type	Independent	Independent
Lift Control Type	Position & draft control	Position & draft control
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Not Applicable	Not Applicable
Category, 3-Point Hitch	CAT I & II with telescopic stabilizers & flex links	CAT I & II with telescopic stabilizers & flex links
Hitch Lift Capacity (at 24”)	3748 lbs	3748 lbs

R3 Turf - Rear	Not Applicable	Not Applicable
R3 Turf - Front	Not Applicable	Not Applicable
Tire Size & Options	R1 Agricultural or R4 Industrial	R1 Agricultural or R4 Industrial
R4 Industrial - Rear	16.9X24	16.9X24
R4 Industrial - Front	10.5/80X18	10.5/80X18
R1 Agricultural - Rear	14.9X28	14.9X28
R1 Agricultural - Front	9.5X20	9.5X20

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	17.1 gal	17.1 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	122 inches	122 inches
Loader Breakout Force	5200 lbs	5200 lbs
Quick Attach Loader System	5155-1.1 gal: Skid-steer style quick-attach coupler	5155-1.1 gal: Skid-steer style quick-attach coupler
Loader Lift Capacity (Full Height)	3100 lbs	3100 lbs

Clutch	Dual dry, with cerametallic lining	Dual dry, with cerametallic lining
No. of Speeds	12F / 12R	12F / 12R
Transmission Type	Full synchromesh with forward/reverse synchro shuttle & constant mesh range	Full synchromesh with forward/reverse synchro shuttle & constant mesh range
Max Travel Speed (Forward)	17.9 mph	17.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Fully-enclosed 7-inch diameter dry disc	Fully-enclosed 7-inch diameter dry disc
Steering	Hydrostatic power steering with tilt steering wheel	Hydrostatic power steering with tilt steering wheel
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable seat with soft-coil suspension	Adjustable seat with soft-coil suspension

Wheelbase	74.8 inches	74.8 inches
Overall Width	80.3 inches	80.3 inches
Ground Clearance	15.2 inches	16.4 inches
Height to Top of ROPS	60.6 inches	60.6 inches
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	136.6 inches	140.0 inches

Mahindra 5145 vs Mahindra 5155 Shuttle: Quick Answers

Which has more horsepower, the Mahindra 5145 or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on engine hp at 55 hp hp, compared to 45 hp hp for the Mahindra 5145.

Which has more PTO horsepower, the Mahindra 5145 or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 38 hp hp for the Mahindra 5145.

Which has more loader lift capacity, the Mahindra 5145 or the Mahindra 5155 Shuttle?

They are effectively tied: both machines are rated at 3,100 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Mahindra 5145 or the Mahindra 5155 Shuttle?

They are effectively tied: both machines are rated at 3,748 lb lb for 3-pt lift (24 in).
