Across 3 measurable specs, this matchup is a dead heat: 1 categories to the Mahindra 5145, 1 to the TYM 4520, 1 tied. Machine pages: Mahindra 5145 and TYM 4520 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Mahindra 5145 TYM 4520 Engine HP (hp) 45 hp 45 hp PTO HP (hp) 38 hp ▲ 40 hpWeight (lb) ▲ 5,390 lb3,624 lb Loader Lift (lb) 3,100 lb n/a 3-Pt Lift (24 in) (lb) 3,748 lb n/a Lift Height (in) 122 in n/a Breakout Force (lbf) 5,200 lbf n/a Hydraulic Flow (gpm) 13.3 gpm n/a Travel Speed (mph) 17.9 mph n/a

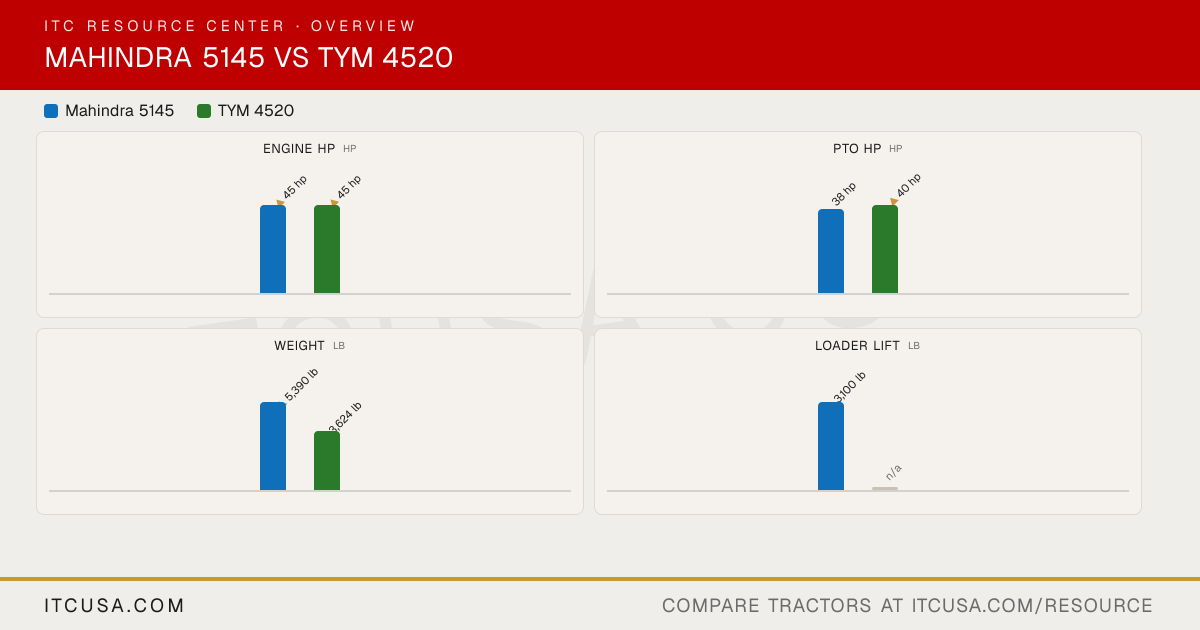

Overview Loader Work PTO Work
The headline numbers at a glance.
Mahindra 5145 TYM 4520
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
▶ EngineEngine Manufacturer Mahindra Yanmar Engine Model DH45 4TNE-88 Engine Type Four-stroke, naturally aspirated, direct injection, water cooled diesel Diesel, liquid-cooled No. of Cylinders 4 4 Displacement 166.2 in³ 133.6 in³ Rated Engine Speed 2300 rpm 2600 rpm Engine Power (Gross) 45 hp 45 hp PTO Power 38 hp 40 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner Not Published Dry element Fuel System Direct injection Not Published Alternator 55 A Not Published ▶ HydraulicsPump Type Not Published Not Published Implement Flow 8.71 gpm Not Published Steering Flow 4.62 gpm Not Published Total Hydraulic Flow 13.3 gpm Not Published Overall Hydraulic Pump Flow 13.3 gpm Not Published Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 Not Published No. of Optional Remote Valves 1 Not Published ▶ Fluid CapacityFuel Tank Capacity 17.1 gal 10.6 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Transmission-driven PTO Rear 540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm 540 / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch CAT I & II with telescopic stabilizers & flex links Category I Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 3748 lb Not Published Lift Control Type Position control Not Published ▶ Transmission & DrivetrainTransmission Type Full synchromesh with forward/reverse synchro shuttle & constant mesh range Synchronized shuttle No. of Speeds 12F / 12R 12F/12R Max Travel Speed (Forward) 17.9 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dual dry with cerametallic lining Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering with tilt steering wheel Hydrostatic power steering Brakes Fully-enclosed, 7-in diameter, dry disc Wet disc Seat Suspension & Adjustability Adjustable seat with contoured cushions, armrests and a soft-coil suspension Not Published Front Axle Type Not Published 4WD (MFWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 136.6 in 129.7 in Overall Width 74.8 in 60 in Wheelbase 77.9 in 68.8 in Ground Clearance 15.2 in 12.2 in Min. Turn Radius without Brakes 10.8 ft Not Published Height to Top of ROPS Not Published 86.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 5390 lb 3,624 lb Weight with ROPS and Loader 6,690 lb Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural or R4 Industrial Agricultural: 8-18 front / 12.4-28 rear R1 Agricultural - Front 9.5 x 20 8-18 R1 Agricultural - Rear 14.9 x 28 12.4-28 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 10.5/80 x 18 Not Published R4 Industrial - Rear 16.9 x 24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid-steer style quick-attach coupler Not Published Loader Model 5155-4L (front loader); 65B (rear backhoe) Not Published Loader Lift Height 5155-4L: 122 in Not Published Loader Lift Capacity (Full Height) 5155-4L: 3,100 lb Not Published Loader Breakout Force 5155-4L: 5,200 lb Not Published ▶ WarrantyWarranty Length & Coverage 5-year limited powertrain warranty Not Published
Mahindra 5145 vs TYM 4520: Quick Answers
Which has more horsepower, the Mahindra 5145 or the TYM 4520? They are effectively tied: both machines are rated at 45 hp hp for engine hp.
Which has more PTO horsepower, the Mahindra 5145 or the TYM 4520? The TYM 4520 leads on pto hp at 40 hp hp, compared to 38 hp hp for the Mahindra 5145.
Which is heavier, the Mahindra 5145 or the TYM 4520? The Mahindra 5145 leads on weight at 5,390 lb lb, compared to 3,624 lb lb for the TYM 4520. More Head-to-Heads
