Mahindra eMax 20S vs TYM T194

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, this matchup is a dead heat: 2 categories to the Mahindra eMax 20S, 2 to the TYM T194, 4 tied. Machine pages: Mahindra eMax 20S and TYM T194.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra eMax 20S	TYM T194
Engine HP (hp)	▲ 19.4 hp	19 hp
PTO HP (hp)	14.2 hp	▲ 14.6 hp
Weight (lb)	▲ 1,499 lb	1,433 lb
Loader Lift (lb)	617 lb	617 lb
3-Pt Lift (24 in) (lb)	679 lb	679 lb
Lift Height (in)	71.3 in	71.3 in
Breakout Force (lbf)	1,235 lbf	1,235 lbf
Hydraulic Flow (gpm)	6.2 gpm	▲ 6.3 gpm
Travel Speed (mph)	n/a	7.8 mph

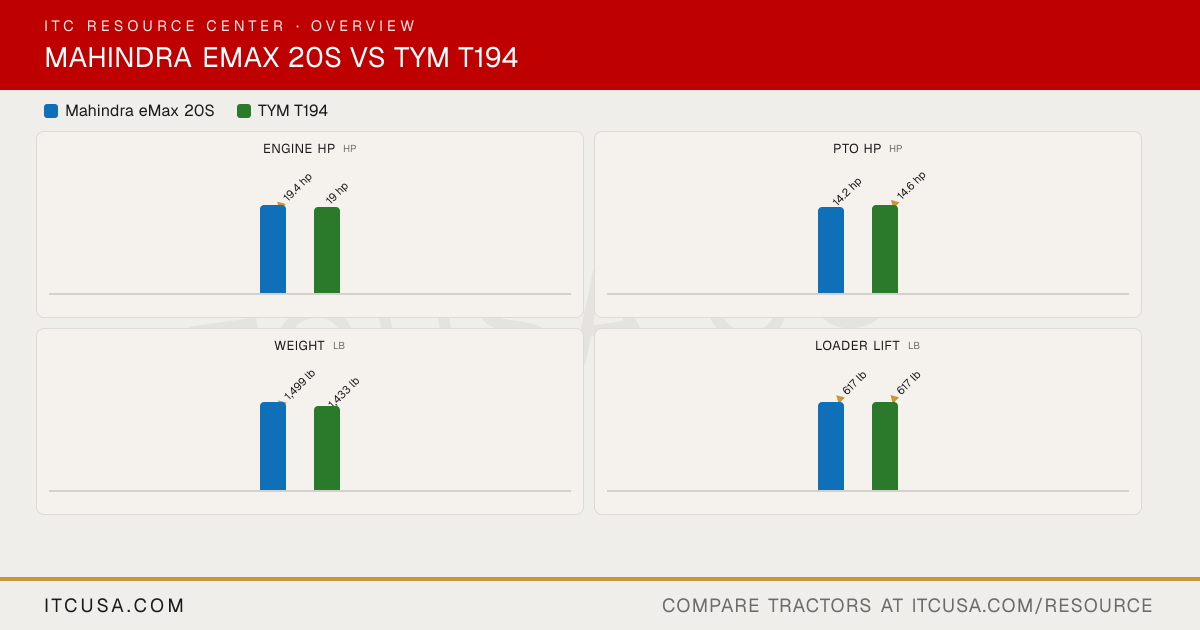

The headline numbers at a glance.

Mahindra eMax 20STYM T194

Engine HPhp

▲19.4 hp

19 hp

PTO HPhp

14.2 hp

▲14.6 hp

Weightlb

▲1,499 lb

1,433 lb

Loader Liftlb

▲617 lb

3-Pt Lift (24 in)lb

▲679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 20S	TYMT194


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNV74F	3TNV74F
Engine Type	Naturally aspirated, indirect injection, liquid-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	60.6 in³	60.6 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	19.4 hp	19 hp
PTO Power	14.2 hp	14.6 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Single dry
Fuel System	Indirect Injection	IDI
Alternator	45 A, 12 V	40 A, 12 V

Pump Type	Not Published	Single gear pump
Implement Flow	4.1 gpm	4.17 gpm
Steering Flow	2.11 gpm	2.11 gpm
Total Hydraulic Flow	6.2 gpm	6.28 gpm
Overall Hydraulic Pump Flow	6.2 gpm	6.28 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	3.7 qt
Crankcase Capacity	Not Published	2.1 qt
Transmission / Hydraulic System Capacity	Not Published	3.6 gal
Front Axle Fluid Capacity	Not Published	2.6 qt

PTO Type	Independent	Independent
PTO Rear	540 @ 2942 rpm	540 rpm
Mid-PTO Availability	Available; 2500 @ 2958 rpm	Available
Category, 3-Point Hitch	CAT I Narrow with Check Chains	Category I (Narrow)
Hitch Lift Capacity	680 lb	1,100 lb
Hitch Lift Capacity (at 24”)	679 lb	679 lb
Lift Control Type	Position	Position control

Transmission Type	HST - 2 range	HST
No. of Speeds	Infinite	2 Range
Max Travel Speed (Forward)	Not Published	7.8 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry-Single	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Wet Disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	44.5 in	44.5 in
Wheelbase	53.1 in	53.1 in
Ground Clearance	8.3 in	8.3 in
Min. Turn Radius without Brakes	7.2 ft	86.6 in
Height to Top of ROPS	86.6 in	86.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	94.2 in (with 3-point hitch)	94.2 in (with 3-point hitch)

Tractor Weight (Base)	1,499 lb	1,433 lb
Weight with ROPS and Loader	1,918 lb (1,499 + 419, computed; 6.1 gal loader shipping weight)	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Agricultural, Industrial, Turf	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	18x8.5-10	BAR F 16x6.50-8
R1 Agricultural - Rear	26x12-12	BAR R 24x12.00-12
R3 Turf - Front	18x8.5-10	16x7.50-8
R3 Turf - Rear	26x12-12	24x12.00-12
R4 Industrial - Front	18x8.5-10	16x7.50-8
R4 Industrial - Rear	26x12-12	24x12.00-12

Quick Attach Loader System	23L: Skid steer style quick coupler, standard	TX19H: Quick attach mechanism
Loader Model	23L	TX19H
Loader Lift Height	71.3 in	TX19H: 71.3 in
Loader Lift Capacity (Full Height)	617 lb (at pivot pin)	TX19H: 617 lb
Loader Breakout Force	1,235 lb (at pivot pin, ground level)	TX19H: 1,235 lb (at pivot pin, ground level)

Warranty Length & Coverage	Two Year All Aggregate (bumper to bumper) Warranty and Five-Year Limited Powertrain Warranty	Not Published

Find a Mahindra dealer near you Find a TYM dealer near you

Mahindra eMax 20S vs TYM T194: Quick Answers

Which has more horsepower, the Mahindra eMax 20S or the TYM T194?: The Mahindra eMax 20S leads on engine hp at 19.4 hp hp, compared to 19 hp hp for the TYM T194.
Which has more PTO horsepower, the Mahindra eMax 20S or the TYM T194?: The TYM T194 leads on pto hp at 14.6 hp hp, compared to 14.2 hp hp for the Mahindra eMax 20S.
Which is heavier, the Mahindra eMax 20S or the TYM T194?: The Mahindra eMax 20S leads on weight at 1,499 lb lb, compared to 1,433 lb lb for the TYM T194.
Which has more loader lift capacity, the Mahindra eMax 20S or the TYM T194?: They are effectively tied: both machines are rated at 617 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Mahindra eMax 20S or the TYM T194?: They are effectively tied: both machines are rated at 679 lb lb for 3-pt lift (24 in).
