Across 9 measurable specs, the Bad Boy Tractors 3026 leads 9 categories to 0. Machine pages: Bad Boy Tractors 3026 and TYM T194 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

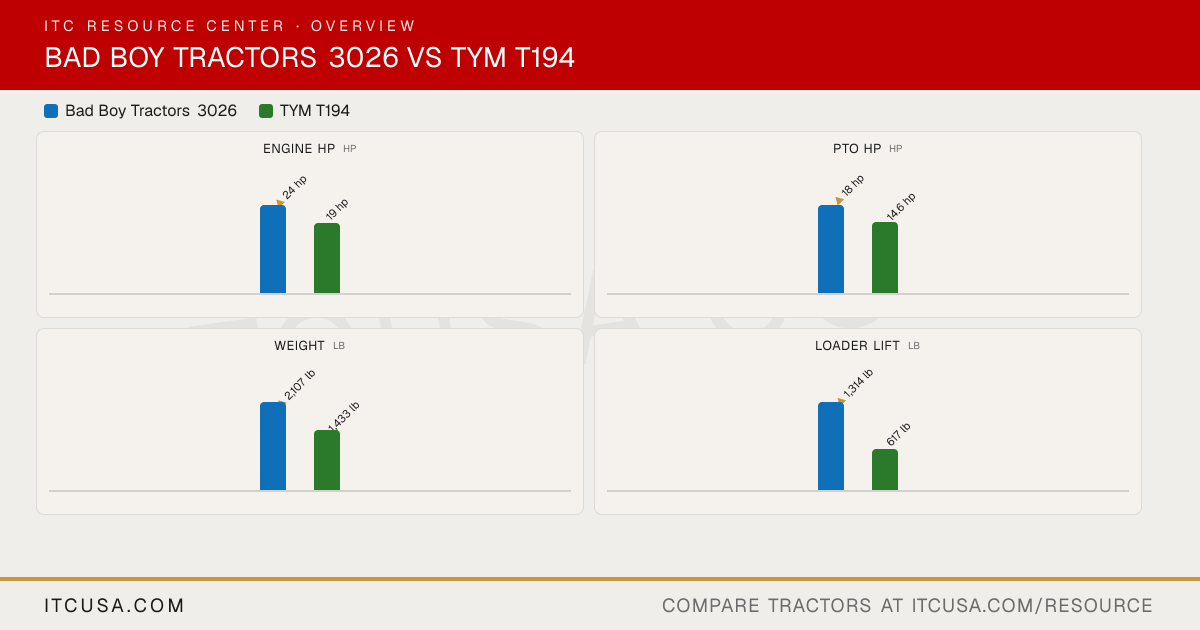

Category Verdict Spec Bad Boy Tractors 3026 TYM T194 Engine HP (hp) ▲ 24 hp19 hp PTO HP (hp) ▲ 18 hp14.6 hp Weight (lb) ▲ 2,107 lb1,433 lb Loader Lift (lb) ▲ 1,314 lb617 lb 3-Pt Lift (24 in) (lb) ▲ 974 lb679 lb Lift Height (in) ▲ 87.5 in71.3 in Breakout Force (lbf) ▲ 1,960 lbf1,235 lbf Hydraulic Flow (gpm) ▲ 7.4 gpm6.3 gpm Travel Speed (mph) ▲ 14.8 mph7.8 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 3026 TYM T194
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 3026 TYM T194
▶ EngineEngine Manufacturer TYM Yanmar Engine Model A1100N2 3TNV74F Engine Type 3 cylinder, water-cooled diesel, swirl chamber, natural aspiration 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 70.7 in³ 60.6 in³ Rated Engine Speed 2600 rpm 3000 rpm Engine Power (Gross) 24 hp 19 hp PTO Power 18 hp 14.6 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Water-cooled Air Cleaner Dry element Single dry Fuel System Indirect injection (swirl chamber) IDI Alternator 50 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Gear type pump with primary and secondary pumps Single gear pump Implement Flow 4.3 gpm 4.17 gpm Steering Flow 3.1 gpm 2.11 gpm Total Hydraulic Flow 7.4 gpm 6.28 gpm Overall Hydraulic Pump Flow 7.7 gpm 6.28 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 Not Published No. of Optional Remote Valves 1 1 ▶ Fluid CapacityFuel Tank Capacity 6.08 gal 6.6 gal Coolant Capacity 1.21 gal 3.7 qt Crankcase Capacity 0.79 gal 2.1 qt Transmission / Hydraulic System Capacity 2.90 gal 3.6 gal Front Axle Fluid Capacity 0.79 gal 2.6 qt ▶ PTO & HitchPTO Type Live PTO (6 spline shaft) Independent PTO Rear 540 / 960 rpm 540 rpm Mid-PTO Availability Optional, 2,500 rpm Available Category, 3-Point Hitch Category I Category I (Narrow) Hitch Lift Capacity 1,433 lb 1,100 lb Hitch Lift Capacity (at 24”) 974 lb 679 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) HST No. of Speeds 3 range (L/M/H) 2 Range Max Travel Speed (Forward) 14.8 mph 7.8 mph Max Travel Speed (Reverse) 14.8 mph Not Published Clutch Dry, single plate Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Differential lock ▶ Chassis, Steering & ControlsFrame Type Steel frame with cast iron axles Not Published Steering Hydrostatic power steering Hydrostatic Brakes Wet disc Wet disc Seat Suspension & Adjustability Adjustable seat, flips up and back for rear backhoe operation Not Published Front Axle Type Selectable 4WD Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 110 in 94.2 in Overall Width 53.9 in 44.5 in Wheelbase 65.7 in 53.1 in Ground Clearance 16.4 in 8.3 in Min. Turn Radius without Brakes Not Published 86.6 in Height to Top of ROPS 91.4 in 86.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2,107 lb 1,433 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5) R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 7-16 6PR BAR F 16x6.50-8 R1 Agricultural - Rear 11.2-20 BAR R 24x12.00-12 R3 Turf - Front Not Published 16x7.50-8 R3 Turf - Rear Not Published 24x12.00-12 R4 Industrial - Front 25x8.50-14 16x7.50-8 R4 Industrial - Rear 14-17.5 24x12.00-12 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach front loader TX19H: Quick attach mechanism Loader Model BBL300 TX19H Loader Lift Height 87.5 in TX19H: 71.3 in Loader Lift Capacity (Full Height) 1,314 lb TX19H: 617 lb Loader Breakout Force 1,960 lbf TX19H: 1,235 lb ▶ WarrantyWarranty Length & Coverage Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bad Boy Tractors 3026 vs TYM T194: Quick Answers
Which has more horsepower, the Bad Boy Tractors 3026 or the TYM T194? The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 19 hp hp for the TYM T194.
Which has more PTO horsepower, the Bad Boy Tractors 3026 or the TYM T194? The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 14.6 hp hp for the TYM T194.
Which is heavier, the Bad Boy Tractors 3026 or the TYM T194? The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,433 lb lb for the TYM T194.
Which has more loader lift capacity, the Bad Boy Tractors 3026 or the TYM T194? The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 617 lb lb for the TYM T194.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the TYM T194? The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 679 lb lb for the TYM T194. More Head-to-Heads
