Bad Boy Tractors 1022 vs TYM T194

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 1022 leads 5 categories to 0 (4 tied). Machine pages: Bad Boy Tractors 1022 and TYM T194.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1022	TYM T194
Engine HP (hp)	▲ 21.5 hp	19 hp
PTO HP (hp)	▲ 15.4 hp	14.6 hp
Weight (lb)	1,433 lb	1,433 lb
Loader Lift (lb)	617 lb	617 lb
3-Pt Lift (24 in) (lb)	679 lb	679 lb
Lift Height (in)	▲ 78.5 in	71.3 in
Breakout Force (lbf)	▲ 1,253 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 6.3 gpm	6.3 gpm
Travel Speed (mph)	7.8 mph	7.8 mph

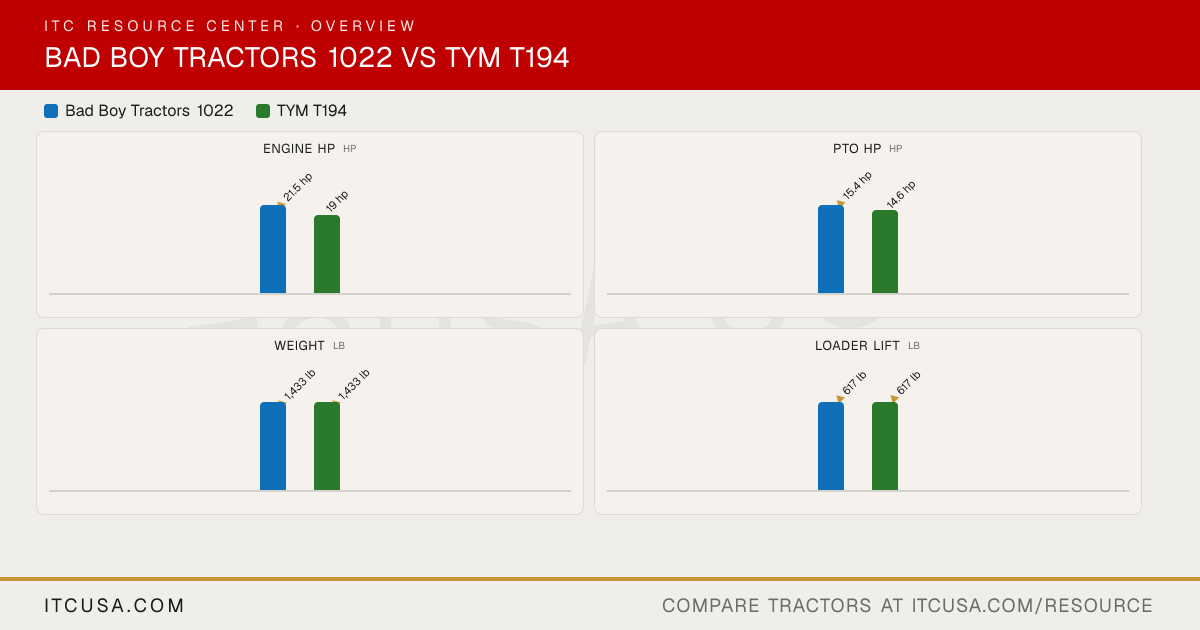

The headline numbers at a glance.

Bad Boy Tractors 1022TYM T194

Engine HPhp

▲21.5 hp

19 hp

PTO HPhp

▲15.4 hp

14.6 hp

Weightlb

▲1,433 lb

Loader Liftlb

▲617 lb

3-Pt Lift (24 in)lb

▲679 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	TYMT194


Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNM74F	3TNV74F
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	60.6 in³	60.6 in³
Rated Engine Speed	3200 rpm	3000 rpm
Engine Power (Gross)	21.5 hp	19 hp
PTO Power	15.4 hp	14.6 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Single dry element	Single dry
Fuel System	Indirect injection	IDI
Alternator	40 A, 12 V	40 A, 12 V

Pump Type	Single gear pump with flow divider	Single gear pump
Implement Flow	4.17 gpm	4.17 gpm
Steering Flow	2.11 gpm	2.11 gpm
Total Hydraulic Flow	6.3 gpm	6.28 gpm
Overall Hydraulic Pump Flow	6.97 gpm	6.28 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	3.7 qt	3.7 qt
Crankcase Capacity	2.1 qt	2.1 qt
Transmission / Hydraulic System Capacity	3.6 gal	3.6 gal
Front Axle Fluid Capacity	2.6 qt	2.6 qt

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Available
Category, 3-Point Hitch	Category I (limited)	Category I (Narrow)
Hitch Lift Capacity	1,100 lb	1,100 lb
Hitch Lift Capacity (at 24”)	679 lb	679 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	HST
No. of Speeds	2 range	2 Range
Max Travel Speed (Forward)	7.8 mph	7.8 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Standard adjustable seat	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	94.2 in
Overall Width	44.5 in	44.5 in
Wheelbase	53.1 in	53.1 in
Ground Clearance	8.3 in	8.3 in
Min. Turn Radius without Brakes	86.6 in	86.6 in
Height to Top of ROPS	86.6 in	86.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	1,433 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	16x7.50-9	BAR F 16x6.50-8
R1 Agricultural - Rear	24x12.00-12	BAR R 24x12.00-12
R3 Turf - Front	18x8.5-10	16x7.50-8
R3 Turf - Rear	26x12.00-12	24x12.00-12
R4 Industrial - Front	18x8.5-10	16x7.50-8
R4 Industrial - Rear	26x12.00-12	24x12.00-12

Quick Attach Loader System	Quick attach front loader	TX19H: Quick attach mechanism
Loader Model	BBL100	TX19H
Loader Lift Height	78.5 in	TX19H: 71.3 in
Loader Lift Capacity (Full Height)	617 lb	TX19H: 617 lb
Loader Breakout Force	1,253 lbf	TX19H: 1,235 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Find a Bad Boy dealer near you Find a TYM dealer near you

Bad Boy Tractors 1022 vs TYM T194: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the TYM T194?: The Bad Boy Tractors 1022 leads on engine hp at 21.5 hp hp, compared to 19 hp hp for the TYM T194.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM T194?: The Bad Boy Tractors 1022 leads on pto hp at 15.4 hp hp, compared to 14.6 hp hp for the TYM T194.
Which is heavier, the Bad Boy Tractors 1022 or the TYM T194?: They are effectively tied: both machines are rated at 1,433 lb lb for weight.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM T194?: They are effectively tied: both machines are rated at 617 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM T194?: They are effectively tied: both machines are rated at 679 lb lb for 3-pt lift (24 in).
