Mahindra eMax 25L vs TYM 2400

Across 8 measurable specs, the TYM 2400 leads 5 categories to 2 (1 tied). Machine pages: Mahindra eMax 25L and TYM 2400.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

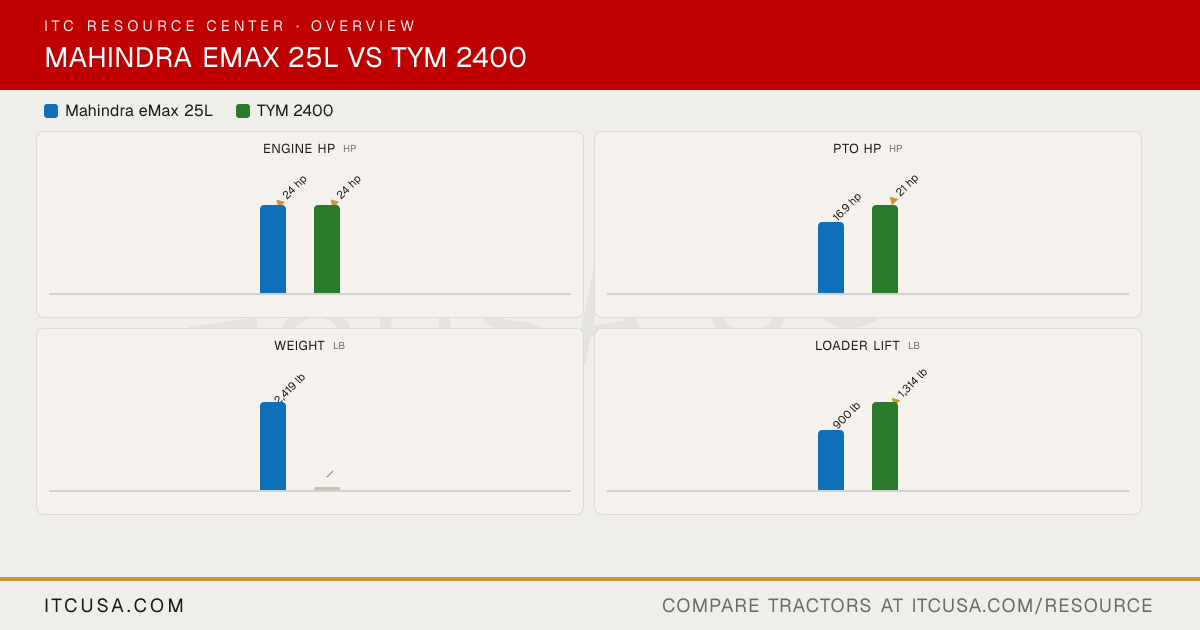

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	MahindraeMax 25L	TYM2400

▶Engine
Engine Manufacturer	Kukje	TYM
Engine Model	A1100N2	T1100N2
Engine Type	Four-stroke, naturally aspirated, indirect injection, water-cooled diesel	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	71.7 in³	71.7 in³
Rated Engine Speed	2600 rpm	2850 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	16.9 hp	21 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Not Published	Dry element
Fuel System	Indirect Injection	IDI
Alternator	50 A, 12 V	60 A, 12 V
▶Hydraulics
Pump Type	Not Published	Dual gear pump
Implement Flow	4.5 gpm	4.7 gpm
Steering Flow	Not Published	3.3 gpm
Total Hydraulic Flow	7.1 gpm	7.9 gpm
Overall Hydraulic Pump Flow	7.1 gpm	7.9 gpm
Hydraulic System Type	Open Center	Dual gear pump
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None
No. of Optional Remote Valves	Not Published	2
▶Fluid Capacity
Fuel Tank Capacity	5.8 gal	6.0 gal
Coolant Capacity	3.7 qt	5.3 qt
Crankcase Capacity	2.3 qt	2.9 qt
Transmission / Hydraulic System Capacity	15.3 qt	3.7 gal
Front Axle Fluid Capacity	Not Published	3.5 qt
▶PTO & Hitch
PTO Type	Independent	Live
PTO Rear	540 @ 2550 rpm	540/1000 rpm
Mid-PTO Availability	Available; 2000 @ 2550 rpm	Available
Category, 3-Point Hitch	CAT I with Check Chains	Category I
Hitch Lift Capacity	1,323 lb	1,499 lb
Hitch Lift Capacity (at 24”)	Not Published	974 lb
Lift Control Type	Not Published	Position control
▶Transmission & Drivetrain
Transmission Type	HST - 2 range	2400R: Constant Mesh; 2400H: HST
No. of Speeds	Infinite	2400R: F6 x R2; 2400H: 2-Range
Max Travel Speed (Forward)	Not Published	2400R: 9.9 mph; 2400H: 12.1 mph
Max Travel Speed (Reverse)	Not Published	2400R: 3.9 mph; 2400H: 12.1 mph
Clutch	Dry-Single	Dry single plate
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Wet Disc	Wet, Multi disc
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat
Front Axle Type	Not Published	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	45.8 in	44.2 in
Wheelbase	57.5 in	59.1 in
Ground Clearance	9.4 in	12.1 in
Min. Turn Radius without Brakes	7.2 ft	(L) 9.6 ft; (R) 9.5 ft
Height to Top of ROPS	91.3 in	87.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	78.2 in	Not Published
Overall Length	100.5 in	120.3 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	1,638 lb	2400R: 1,792 lb; 2400H: 1,829 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	2,419 lb (1,870 + 549, computed; 25LSK loader shipping weight)	Not Published
▶Tire Options
Tire Size & Options	AG, IND, TURF	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	6x12	6-12
R1 Agricultural - Rear	9.5x16	9.5-16
R3 Turf - Front	20x8-10	23x8.50-12
R3 Turf - Rear	29x12.5-15	33x12.50-16.5
R4 Industrial - Front	20x8-10	23x8.50-12
R4 Industrial - Rear	27x12.5-15	12-16.5
▶Loader & Attachments
Quick Attach Loader System	25LSK: Skid steer style quick coupler, standard	BL100S: Quick attach mechanism
Loader Model	25LSK	BL100S
Loader Lift Height	25LSK: 75.3 in	BL100S: 88.3 in
Loader Lift Capacity (Full Height)	25LSK: 900 lb	BL100S: 1,314 lb (at pivot pin)
Loader Breakout Force	25LSK: 2,000 lb	BL100S: 1,960 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Not Published	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	TYM T254 / T2505 Rural King RK24 Mahindra EMAXX 25 Brush Screen Insert $249.99	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99

Find a Mahindra dealer near you→Find a TYM dealer near you→

Mahindra eMax 25L vs TYM 2400: Quick Answers

Which has more horsepower, the Mahindra eMax 25L or the TYM 2400?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more PTO horsepower, the Mahindra eMax 25L or the TYM 2400?

The TYM 2400 leads on pto hp at 21 hp hp, compared to 16.9 hp hp for the Mahindra eMax 25L.

Which is heavier, the Mahindra eMax 25L or the TYM 2400?

The TYM 2400 leads on weight at 1,829 lb lb, compared to 1,638 lb lb for the Mahindra eMax 25L.

Which has more loader lift capacity, the Mahindra eMax 25L or the TYM 2400?

The TYM 2400 leads on loader lift at 1,314 lb lb, compared to 900 lb lb for the Mahindra eMax 25L.

Which has more three-point hitch lift capacity, the Mahindra eMax 25L or the TYM 2400?

The Mahindra eMax 25L leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 974 lb lb for the TYM 2400.
