Massey Ferguson 1533 vs Massey Ferguson 1635

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Massey Ferguson 1635 leads 4 categories to 1 (2 tied). Machine pages: Massey Ferguson 1533 and Massey Ferguson 1635.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1533	Massey Ferguson 1635
Engine HP (hp)	33 hp	▲ 35.7 hp
PTO HP (hp)	26 hp	▲ 27.1 hp
Weight (lb)	3,384 lb	▲ 3,527 lb
Loader Lift (lb)	1,900 lb	1,900 lb
3-Pt Lift (24 in) (lb)	▲ 2,800 lb	2,535 lb
Lift Height (in)	102 in	102 in
Breakout Force (lbf)	n/a	2,562 lbf
Hydraulic Flow (gpm)	15.1 gpm	▲ 17.6 gpm

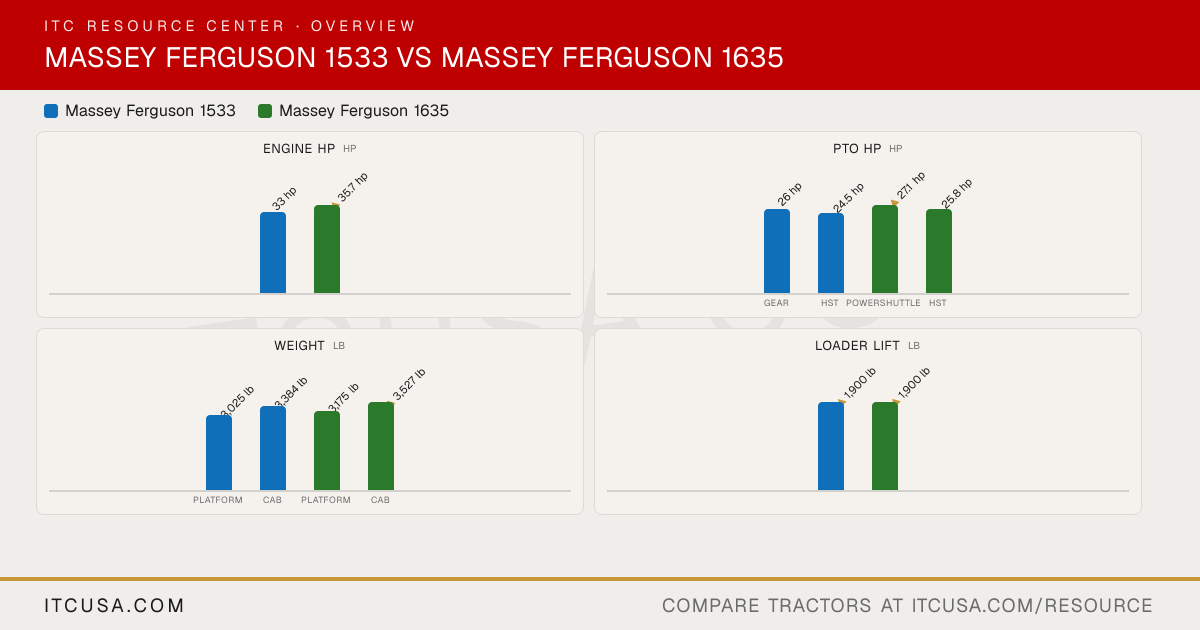

The headline numbers at a glance.

Massey Ferguson 1533Massey Ferguson 1635

Engine HPhp

33 hp

▲35.7 hp

PTO HPhp

26 hp

24.5 hp

▲27.1 hp

25.8 hp

GearHSTPowerShuttleHST

Weightlb

3,025 lb

3,384 lb

3,175 lb

▲3,527 lb

PlatformCabPlatformCab

Loader Liftlb

▲1,900 lb

3-Pt Lift (24 in)lb

▲2,800 lb

2,535 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1533	Massey Ferguson1635


Engine Manufacturer	Iseki	Iseki
Engine Model	Not Published	E3CG
Engine Type	3-cylinder liquid-cooled diesel	3-cylinder liquid-cooled indirect-injection diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	91.4 in³	100.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	33 hp	35.7 hp
PTO Power	Gear: 26 hp; HST: 24.5 hp	PowerShuttle: 27.1 hp; HST: 25.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Dry pleated paper, 2 elements
Fuel System	Not Published	Indirect injection
Alternator	Not Published	Platform: 40 A; Cab: 60 A

Pump Type	Not Published	Gear pump, engine timing gear driven
Implement Flow	9.1 gpm	11.6 gpm
Steering Flow	SynchroShuttle: 4.9 gpm; HST and PowerShuttle: 6 gpm	HST: 4.9 gpm; PowerShuttle: 6 gpm
Total Hydraulic Flow	SynchroShuttle: 14.0 gpm; HST and PowerShuttle: 15.1 gpm	HST: 16.5 gpm; PowerShuttle: 17.6 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	9.1 gpm	11.6 gpm
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	2 spool optional	Up to 3

Fuel Tank Capacity	10.6 gal	Platform: 9.2 gal; Cab: 10.5 gal
Coolant Capacity	7.1 qt	6.6 qt
Crankcase Capacity	5 qt	5.6 qt
Transmission / Hydraulic System Capacity	32.8 qt	8.2 gal
Front Axle Fluid Capacity	7.9 qt	7.9 qt

PTO Type	Independent, electro-hydraulic control	Independent, electro-hydraulic push-button control
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,800 lb	2,800 lb
Hitch Lift Capacity (at 24”)	Not Published	2,535 lb
Lift Control Type	Position control with rate of drop control	Position control with rate of drop control

Transmission Type	8x8 SynchroShuttle (platform only), 12x12 PowerShuttle, or 3-range hydrostatic with cruise (platform only)	12x12 PowerShuttle or 3-range hydrostatic with cruise control
No. of Speeds	Not Published	Not Published
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet multi-disc (PowerShuttle)	PowerShuttle: dry single disc engine clutch (9.4 in) with wet multi-disc shuttle clutch
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock, pedal engaged

Frame Type	Semi-flat isolated platform, folding ROPS	Flat isolated platform, folding ROPS, one-piece flip-up hood
Steering	Power steering	Hydrostatic power steering, 3-position tilt wheel
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable suspension seat with retractable seat belt and adjustable armrest	Suspended seat with retractable seat belt
Front Axle Type	4WD front axle, push-pull engagement lever	4WD front axle, mechanical lever engagement, 56 degree steering angle, 1.61 drive ratio
Front Axle Rating	Not Published	3,968 lb
Drawbar Capacity	Not Published	880 lb

Overall Length with 3-Point Hitch	121.0 in	122.0 in
Overall Width	62.0 in	64.5 in
Wheelbase	70.0 in	69.7 in
Ground Clearance	14.0 in	14.2 in
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake applied)
Height to Top of ROPS	87.4 in	100.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	86.6 in

Tractor Weight (Base)	Platform: 3,025 lb; Cab: 3,384 lb	Platform: 3,175 lb; Cab: 3,527 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)
R1 Agricultural - Front	8-16	8-16
R1 Agricultural - Rear	12.4-24 (13.6-24 optional)	12.4-24 (13.6-24 optional)
R3 Turf - Front	27x8.50-15 (LSW305 R343 optional)	27x8.50-15 (LSW305 R343 optional)
R3 Turf - Rear	41x14.00-20 (LSW610 R470 optional)	41x14.00-20 (LSW610 R470 optional)
R4 Industrial - Front	10-16.5 or 25x8.5-14	10-16.5 or 25x8.5-14
R4 Industrial - Rear	14.9-24 or 15x19.5	14.9-24 or 15x19.5

Quick Attach Loader System	DL120: pin-type or skid-steer quick attach	DL120: pin type or skid steer type quick attach, pedestal mount
Loader Model	DL120	DL120
Loader Lift Height	DL120: 102 in	DL120: 102 in
Loader Lift Capacity (Full Height)	DL120: 1,900 lb	DL120: 1,900 lb
Loader Breakout Force	Not Published	DL120: 2,562 lb

Warranty Length & Coverage	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain

Find a dealer near you

Massey Ferguson 1533 vs Massey Ferguson 1635: Quick Answers

Which has more horsepower, the Massey Ferguson 1533 or the Massey Ferguson 1635?: The Massey Ferguson 1635 leads on engine hp at 35.7 hp hp, compared to 33 hp hp for the Massey Ferguson 1533.
Which has more PTO horsepower, the Massey Ferguson 1533 or the Massey Ferguson 1635?: The Massey Ferguson 1635 leads on pto hp at 27.1 hp hp, compared to 26 hp hp for the Massey Ferguson 1533.
Which is heavier, the Massey Ferguson 1533 or the Massey Ferguson 1635?: The Massey Ferguson 1635 leads on weight at 3,527 lb lb, compared to 3,384 lb lb for the Massey Ferguson 1533.
Which has more loader lift capacity, the Massey Ferguson 1533 or the Massey Ferguson 1635?: They are effectively tied: both machines are rated at 1,900 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Massey Ferguson 1533 or the Massey Ferguson 1635?: The Massey Ferguson 1533 leads on 3-pt lift (24 in) at 2,800 lb lb, compared to 2,535 lb lb for the Massey Ferguson 1635.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1533	Massey Ferguson 1635
Engine HP (hp)	33 hp	▲ 35.7 hp
PTO HP (hp)	26 hp	▲ 27.1 hp
Weight (lb)	3,384 lb	▲ 3,527 lb
Loader Lift (lb)	1,900 lb	1,900 lb
3-Pt Lift (24 in) (lb)	▲ 2,800 lb	2,535 lb
Lift Height (in)	102 in	102 in
Breakout Force (lbf)	n/a	2,562 lbf
Hydraulic Flow (gpm)	15.1 gpm	▲ 17.6 gpm

The headline numbers at a glance.

Massey Ferguson 1533Massey Ferguson 1635

Engine HPhp

33 hp

▲35.7 hp

PTO HPhp

26 hp

24.5 hp

▲27.1 hp

25.8 hp

GearHSTPowerShuttleHST

Weightlb

3,025 lb

3,384 lb

3,175 lb

▲3,527 lb

PlatformCabPlatformCab

Loader Liftlb

▲1,900 lb

3-Pt Lift (24 in)lb

▲2,800 lb

2,535 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1533	Massey Ferguson1635


Engine Manufacturer	Iseki	Iseki
Engine Model	Not Published	E3CG
Engine Type	3-cylinder liquid-cooled diesel	3-cylinder liquid-cooled indirect-injection diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	91.4 in³	100.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	33 hp	35.7 hp
PTO Power	Gear: 26 hp; HST: 24.5 hp	PowerShuttle: 27.1 hp; HST: 25.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Dry pleated paper, 2 elements
Fuel System	Not Published	Indirect injection
Alternator	Not Published	Platform: 40 A; Cab: 60 A

Pump Type	Not Published	Gear pump, engine timing gear driven
Implement Flow	9.1 gpm	11.6 gpm
Steering Flow	SynchroShuttle: 4.9 gpm; HST and PowerShuttle: 6 gpm	HST: 4.9 gpm; PowerShuttle: 6 gpm
Total Hydraulic Flow	SynchroShuttle: 14.0 gpm; HST and PowerShuttle: 15.1 gpm	HST: 16.5 gpm; PowerShuttle: 17.6 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	9.1 gpm	11.6 gpm
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	2 spool optional	Up to 3

Fuel Tank Capacity	10.6 gal	Platform: 9.2 gal; Cab: 10.5 gal
Coolant Capacity	7.1 qt	6.6 qt
Crankcase Capacity	5 qt	5.6 qt
Transmission / Hydraulic System Capacity	32.8 qt	8.2 gal
Front Axle Fluid Capacity	7.9 qt	7.9 qt

PTO Type	Independent, electro-hydraulic control	Independent, electro-hydraulic push-button control
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,800 lb	2,800 lb
Hitch Lift Capacity (at 24”)	Not Published	2,535 lb
Lift Control Type	Position control with rate of drop control	Position control with rate of drop control

Transmission Type	8x8 SynchroShuttle (platform only), 12x12 PowerShuttle, or 3-range hydrostatic with cruise (platform only)	12x12 PowerShuttle or 3-range hydrostatic with cruise control
No. of Speeds	Not Published	Not Published
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet multi-disc (PowerShuttle)	PowerShuttle: dry single disc engine clutch (9.4 in) with wet multi-disc shuttle clutch
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock, pedal engaged

Frame Type	Semi-flat isolated platform, folding ROPS	Flat isolated platform, folding ROPS, one-piece flip-up hood
Steering	Power steering	Hydrostatic power steering, 3-position tilt wheel
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable suspension seat with retractable seat belt and adjustable armrest	Suspended seat with retractable seat belt
Front Axle Type	4WD front axle, push-pull engagement lever	4WD front axle, mechanical lever engagement, 56 degree steering angle, 1.61 drive ratio
Front Axle Rating	Not Published	3,968 lb
Drawbar Capacity	Not Published	880 lb

Overall Length with 3-Point Hitch	121.0 in	122.0 in
Overall Width	62.0 in	64.5 in
Wheelbase	70.0 in	69.7 in
Ground Clearance	14.0 in	14.2 in
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake applied)
Height to Top of ROPS	87.4 in	100.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	86.6 in

Tractor Weight (Base)	Platform: 3,025 lb; Cab: 3,384 lb	Platform: 3,175 lb; Cab: 3,527 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)
R1 Agricultural - Front	8-16	8-16
R1 Agricultural - Rear	12.4-24 (13.6-24 optional)	12.4-24 (13.6-24 optional)
R3 Turf - Front	27x8.50-15 (LSW305 R343 optional)	27x8.50-15 (LSW305 R343 optional)
R3 Turf - Rear	41x14.00-20 (LSW610 R470 optional)	41x14.00-20 (LSW610 R470 optional)
R4 Industrial - Front	10-16.5 or 25x8.5-14	10-16.5 or 25x8.5-14
R4 Industrial - Rear	14.9-24 or 15x19.5	14.9-24 or 15x19.5

Quick Attach Loader System	DL120: pin-type or skid-steer quick attach	DL120: pin type or skid steer type quick attach, pedestal mount
Loader Model	DL120	DL120
Loader Lift Height	DL120: 102 in	DL120: 102 in
Loader Lift Capacity (Full Height)	DL120: 1,900 lb	DL120: 1,900 lb
Loader Breakout Force	Not Published	DL120: 2,562 lb

Warranty Length & Coverage	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain

Find a dealer near you

Massey Ferguson 1533 vs Massey Ferguson 1635: Quick Answers

Which has more horsepower, the Massey Ferguson 1533 or the Massey Ferguson 1635?

The Massey Ferguson 1635 leads on engine hp at 35.7 hp hp, compared to 33 hp hp for the Massey Ferguson 1533.

Which has more PTO horsepower, the Massey Ferguson 1533 or the Massey Ferguson 1635?

The Massey Ferguson 1635 leads on pto hp at 27.1 hp hp, compared to 26 hp hp for the Massey Ferguson 1533.

Which is heavier, the Massey Ferguson 1533 or the Massey Ferguson 1635?

The Massey Ferguson 1635 leads on weight at 3,527 lb lb, compared to 3,384 lb lb for the Massey Ferguson 1533.

Which has more loader lift capacity, the Massey Ferguson 1533 or the Massey Ferguson 1635?

They are effectively tied: both machines are rated at 1,900 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Massey Ferguson 1533 or the Massey Ferguson 1635?

The Massey Ferguson 1533 leads on 3-pt lift (24 in) at 2,800 lb lb, compared to 2,535 lb lb for the Massey Ferguson 1635.
