Massey Ferguson 1533 vs Massey Ferguson 1735M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Massey Ferguson 1735M leads 4 categories to 3. Machine pages: Massey Ferguson 1533 and Massey Ferguson 1735M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1533	Massey Ferguson 1735M
Engine HP (hp)	33 hp	▲ 36.2 hp
PTO HP (hp)	26 hp	▲ 27.5 hp
Weight (lb)	3,384 lb	▲ 3,406 lb
Loader Lift (lb)	▲ 1,900 lb	1,660 lb
3-Pt Lift (24 in) (lb)	▲ 2,800 lb	2,535 lb
Lift Height (in)	102 in	▲ 106 in
Breakout Force (lbf)	n/a	3,000 lbf
Hydraulic Flow (gpm)	▲ 15.1 gpm	12.6 gpm

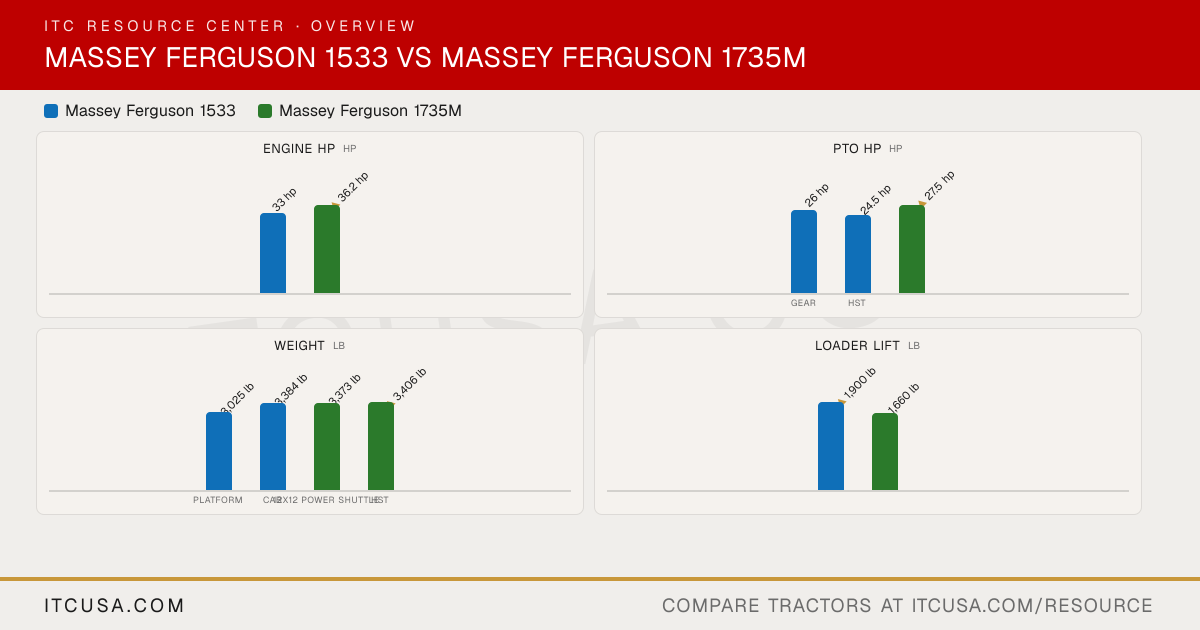

The headline numbers at a glance.

Massey Ferguson 1533Massey Ferguson 1735M

Engine HPhp

33 hp

▲36.2 hp

PTO HPhp

26 hp

24.5 hp

▲27.5 hp

GearHST

Weightlb

3,025 lb

3,384 lb

3,373 lb

▲3,406 lb

PlatformCab12x12 Power ShuttleHST

Loader Liftlb

▲1,900 lb

1,660 lb

3-Pt Lift (24 in)lb

▲2,800 lb

2,535 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1533	Massey Ferguson1735M


Engine Manufacturer	Iseki	Shibaura
Engine Model	Not Published	N3LDI-T
Engine Type	3-cylinder liquid-cooled diesel	3-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.4 in³	101.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	33 hp	36.2 hp
PTO Power	Gear: 26 hp; HST: 24.5 hp	27.5 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Dry
Fuel System	Not Published	Common rail direct injection
Alternator	Not Published	Not Published

Pump Type	Not Published	Engine-driven gear-type pump
Implement Flow	9.1 gpm	11.0 gpm
Steering Flow	SynchroShuttle: 4.9 gpm; HST and PowerShuttle: 6 gpm	Not Published
Total Hydraulic Flow	SynchroShuttle: 14.0 gpm; HST and PowerShuttle: 15.1 gpm	Not Published
Overall Hydraulic Pump Flow	Not Published	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	9.1 gpm	12.1 gpm
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	2 spool optional	Up to 3

Fuel Tank Capacity	10.6 gal	10.56 gal
Coolant Capacity	7.1 qt	6.34 qt
Crankcase Capacity	5 qt	4.86 qt
Transmission / Hydraulic System Capacity	32.8 qt	12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal
Front Axle Fluid Capacity	7.9 qt	7.9 qt

PTO Type	Independent, electro-hydraulic control	Independent, with soft-start feature
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Optional, 2000 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I with extendable ball ends
Hitch Lift Capacity	2,800 lb	2,646 lb
Hitch Lift Capacity (at 24”)	Not Published	2,535 lb
Lift Control Type	Position control with rate of drop control	Position and draft control

Transmission Type	8x8 SynchroShuttle (platform only), 12x12 PowerShuttle, or 3-range hydrostatic with cruise (platform only)	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	Not Published	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet multi-disc (PowerShuttle)	Single stage dry type
Differential Lock & Limited Slip Options	Not Published	Mechanical engagement via right side heel pedal

Frame Type	Semi-flat isolated platform, folding ROPS	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Adjustable suspension seat with retractable seat belt and adjustable armrest	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	4WD front axle, push-pull engagement lever	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	121.0 in	122.0 in
Overall Width	62.0 in	64.2 in
Wheelbase	70.0 in	69.7 in
Ground Clearance	14.0 in	15.4 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	87.4 in	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	91.3 in

Tractor Weight (Base)	Platform: 3,025 lb; Cab: 3,384 lb	12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8-16	8-16
R1 Agricultural - Rear	12.4-24 (13.6-24 optional)	12.4x24
R3 Turf - Front	27x8.50-15 (LSW305 R343 optional)	27x8.50-15
R3 Turf - Rear	41x14.00-20 (LSW610 R470 optional)	41x14.00-20
R4 Industrial - Front	10-16.5 or 25x8.5-14	10-16.5
R4 Industrial - Rear	14.9-24 or 15x19.5	17.5L-24

Quick Attach Loader System	DL120: pin-type or skid-steer quick attach	DL125: Pin-on (skid steer quick attach optional)
Loader Model	DL120	DL125
Loader Lift Height	DL120: 102 in	DL125: 106 in
Loader Lift Capacity (Full Height)	DL120: 1,900 lb	DL125: 1,660 lb
Loader Breakout Force	Not Published	DL125: 3,000 lb

Warranty Length & Coverage	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1533 vs Massey Ferguson 1735M: Quick Answers

Which has more horsepower, the Massey Ferguson 1533 or the Massey Ferguson 1735M?: The Massey Ferguson 1735M leads on engine hp at 36.2 hp hp, compared to 33 hp hp for the Massey Ferguson 1533.
Which has more PTO horsepower, the Massey Ferguson 1533 or the Massey Ferguson 1735M?: The Massey Ferguson 1735M leads on pto hp at 27.5 hp hp, compared to 26 hp hp for the Massey Ferguson 1533.
Which is heavier, the Massey Ferguson 1533 or the Massey Ferguson 1735M?: The Massey Ferguson 1735M leads on weight at 3,406 lb lb, compared to 3,384 lb lb for the Massey Ferguson 1533.
Which has more loader lift capacity, the Massey Ferguson 1533 or the Massey Ferguson 1735M?: The Massey Ferguson 1533 leads on loader lift at 1,900 lb lb, compared to 1,660 lb lb for the Massey Ferguson 1735M.
Which has more three-point hitch lift capacity, the Massey Ferguson 1533 or the Massey Ferguson 1735M?: The Massey Ferguson 1533 leads on 3-pt lift (24 in) at 2,800 lb lb, compared to 2,535 lb lb for the Massey Ferguson 1735M.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1533	Massey Ferguson 1735M
Engine HP (hp)	33 hp	▲ 36.2 hp
PTO HP (hp)	26 hp	▲ 27.5 hp
Weight (lb)	3,384 lb	▲ 3,406 lb
Loader Lift (lb)	▲ 1,900 lb	1,660 lb
3-Pt Lift (24 in) (lb)	▲ 2,800 lb	2,535 lb
Lift Height (in)	102 in	▲ 106 in
Breakout Force (lbf)	n/a	3,000 lbf
Hydraulic Flow (gpm)	▲ 15.1 gpm	12.6 gpm

The headline numbers at a glance.

Massey Ferguson 1533Massey Ferguson 1735M

Engine HPhp

33 hp

▲36.2 hp

PTO HPhp

26 hp

24.5 hp

▲27.5 hp

GearHST

Weightlb

3,025 lb

3,384 lb

3,373 lb

▲3,406 lb

PlatformCab12x12 Power ShuttleHST

Loader Liftlb

▲1,900 lb

1,660 lb

3-Pt Lift (24 in)lb

▲2,800 lb

2,535 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1533	Massey Ferguson1735M


Engine Manufacturer	Iseki	Shibaura
Engine Model	Not Published	N3LDI-T
Engine Type	3-cylinder liquid-cooled diesel	3-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.4 in³	101.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	33 hp	36.2 hp
PTO Power	Gear: 26 hp; HST: 24.5 hp	27.5 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Dry
Fuel System	Not Published	Common rail direct injection
Alternator	Not Published	Not Published

Pump Type	Not Published	Engine-driven gear-type pump
Implement Flow	9.1 gpm	11.0 gpm
Steering Flow	SynchroShuttle: 4.9 gpm; HST and PowerShuttle: 6 gpm	Not Published
Total Hydraulic Flow	SynchroShuttle: 14.0 gpm; HST and PowerShuttle: 15.1 gpm	Not Published
Overall Hydraulic Pump Flow	Not Published	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	9.1 gpm	12.1 gpm
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	2 spool optional	Up to 3

Fuel Tank Capacity	10.6 gal	10.56 gal
Coolant Capacity	7.1 qt	6.34 qt
Crankcase Capacity	5 qt	4.86 qt
Transmission / Hydraulic System Capacity	32.8 qt	12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal
Front Axle Fluid Capacity	7.9 qt	7.9 qt

PTO Type	Independent, electro-hydraulic control	Independent, with soft-start feature
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Optional, 2000 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I with extendable ball ends
Hitch Lift Capacity	2,800 lb	2,646 lb
Hitch Lift Capacity (at 24”)	Not Published	2,535 lb
Lift Control Type	Position control with rate of drop control	Position and draft control

Transmission Type	8x8 SynchroShuttle (platform only), 12x12 PowerShuttle, or 3-range hydrostatic with cruise (platform only)	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	Not Published	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet multi-disc (PowerShuttle)	Single stage dry type
Differential Lock & Limited Slip Options	Not Published	Mechanical engagement via right side heel pedal

Frame Type	Semi-flat isolated platform, folding ROPS	Not Published
Steering	Power steering	Power steering
Brakes	Wet disc	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Adjustable suspension seat with retractable seat belt and adjustable armrest	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	4WD front axle, push-pull engagement lever	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	121.0 in	122.0 in
Overall Width	62.0 in	64.2 in
Wheelbase	70.0 in	69.7 in
Ground Clearance	14.0 in	15.4 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	87.4 in	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	91.3 in

Tractor Weight (Base)	Platform: 3,025 lb; Cab: 3,384 lb	12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8-16	8-16
R1 Agricultural - Rear	12.4-24 (13.6-24 optional)	12.4x24
R3 Turf - Front	27x8.50-15 (LSW305 R343 optional)	27x8.50-15
R3 Turf - Rear	41x14.00-20 (LSW610 R470 optional)	41x14.00-20
R4 Industrial - Front	10-16.5 or 25x8.5-14	10-16.5
R4 Industrial - Rear	14.9-24 or 15x19.5	17.5L-24

Quick Attach Loader System	DL120: pin-type or skid-steer quick attach	DL125: Pin-on (skid steer quick attach optional)
Loader Model	DL120	DL125
Loader Lift Height	DL120: 102 in	DL125: 106 in
Loader Lift Capacity (Full Height)	DL120: 1,900 lb	DL125: 1,660 lb
Loader Breakout Force	Not Published	DL125: 3,000 lb

Warranty Length & Coverage	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1533 vs Massey Ferguson 1735M: Quick Answers

Which has more horsepower, the Massey Ferguson 1533 or the Massey Ferguson 1735M?

The Massey Ferguson 1735M leads on engine hp at 36.2 hp hp, compared to 33 hp hp for the Massey Ferguson 1533.

Which has more PTO horsepower, the Massey Ferguson 1533 or the Massey Ferguson 1735M?

The Massey Ferguson 1735M leads on pto hp at 27.5 hp hp, compared to 26 hp hp for the Massey Ferguson 1533.

Which is heavier, the Massey Ferguson 1533 or the Massey Ferguson 1735M?

The Massey Ferguson 1735M leads on weight at 3,406 lb lb, compared to 3,384 lb lb for the Massey Ferguson 1533.

Which has more loader lift capacity, the Massey Ferguson 1533 or the Massey Ferguson 1735M?

The Massey Ferguson 1533 leads on loader lift at 1,900 lb lb, compared to 1,660 lb lb for the Massey Ferguson 1735M.

Which has more three-point hitch lift capacity, the Massey Ferguson 1533 or the Massey Ferguson 1735M?

The Massey Ferguson 1533 leads on 3-pt lift (24 in) at 2,800 lb lb, compared to 2,535 lb lb for the Massey Ferguson 1735M.
