Bad Boy Tractors 4035 vs Massey Ferguson 1735M

Across 8 measurable specs, the Massey Ferguson 1735M leads 4 categories to 3 (1 tied). Machine pages: Bad Boy Tractors 4035 and Massey Ferguson 1735M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

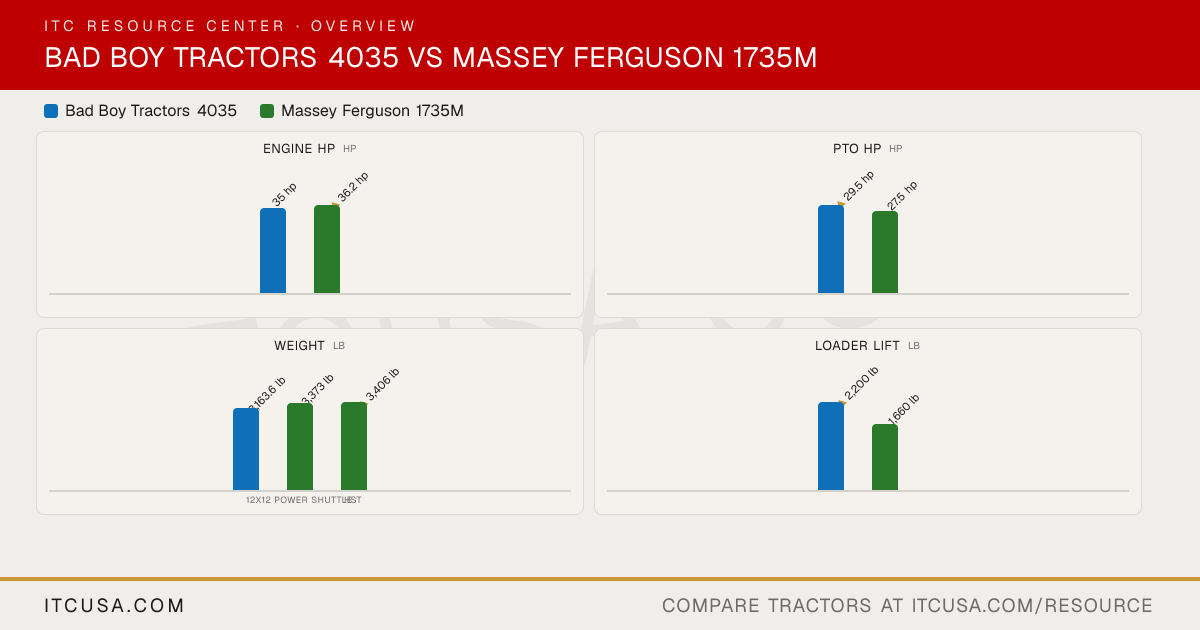

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	Massey Ferguson1735M

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A1700N4-BUTR_4	Shibaura N3LDI-T
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	104.7 in³	101.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	36.2 hp
PTO Power	29.5 hp	27.5 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Engine-driven gear-type pump
Implement Flow	8.2 gpm	11.0 gpm
Steering Flow	4.4 gpm	Not Published
Total Hydraulic Flow	12.6 gpm	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	12.1 gpm
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 2	Up to 3
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	10.56 gal
Coolant Capacity	1.32 gal	6.34 qt
Crankcase Capacity	1.14 gal	4.86 qt
Transmission / Hydraulic System Capacity	9.77 gal	12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal
Front Axle Fluid Capacity	1.69 gal	7.9 qt
▶PTO & Hitch
PTO Type	Independent	Independent, with soft-start feature
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category I with extendable ball ends
Hitch Lift Capacity	3,306.9 lb	2,646 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,535 lb
Lift Control Type	Position control	Position and draft control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	3 range (HST)	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	19.08 mph	Not Published
Max Travel Speed (Reverse)	19.08 mph	Not Published
Clutch	None (HST)	Single stage dry type
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical engagement via right side heel pedal
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Not Published	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	Selectable 4WD	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	122.0 in
Overall Width	56.7 in	64.2 in
Wheelbase	65.7 in	69.7 in
Ground Clearance	15 in	15.4 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	96.85 in	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	91.3 in
▶Weight
Tractor Weight (Base)	3,163.6 lb	12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8.0-16	8-16
R1 Agricultural - Rear	12.4-24	12.4x24
R3 Turf - Front	Not Published	27x8.50-15
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	28x8.50-15	10-16.5
R4 Industrial - Rear	43x16.00-20	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	DL125: Pin-on (skid steer quick attach optional)
Loader Model	BBL400	DL125
Loader Lift Height	104 in	DL125: 106 in
Loader Lift Capacity (Full Height)	2,200 lb	DL125: 1,660 lb
Loader Breakout Force	3,660 lb	DL125: 3,000 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

Bad Boy Tractors 4035 vs Massey Ferguson 1735M: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the Massey Ferguson 1735M?

The Massey Ferguson 1735M leads on engine hp at 36.2 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Massey Ferguson 1735M?

The Bad Boy Tractors 4035 leads on pto hp at 29.5 hp hp, compared to 27.5 hp hp for the Massey Ferguson 1735M.

Which is heavier, the Bad Boy Tractors 4035 or the Massey Ferguson 1735M?

The Massey Ferguson 1735M leads on weight at 3,406 lb lb, compared to 3,163.6 lb lb for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Massey Ferguson 1735M?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,660 lb lb for the Massey Ferguson 1735M.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Massey Ferguson 1735M?

The Massey Ferguson 1735M leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035.
