Massey Ferguson 1635 vs Massey Ferguson 1735E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 6 measurable specs, the Massey Ferguson 1635 leads 5 categories to 1. Machine pages: Massey Ferguson 1635 and Massey Ferguson 1735E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1635	Massey Ferguson 1735E
Engine HP (hp)	▲ 35.7 hp	34.1 hp
PTO HP (hp)	27.1 hp	▲ 29 hp
Weight (lb)	3,527 lb	n/a
Loader Lift (lb)	▲ 1,900 lb	1,450 lb
3-Pt Lift (24 in) (lb)	▲ 2,800 lb	1,598 lb
Lift Height (in)	▲ 102 in	94.3 in
Breakout Force (lbf)	n/a	2,288 lbf
Hydraulic Flow (gpm)	▲ 17.6 gpm	9.7 gpm

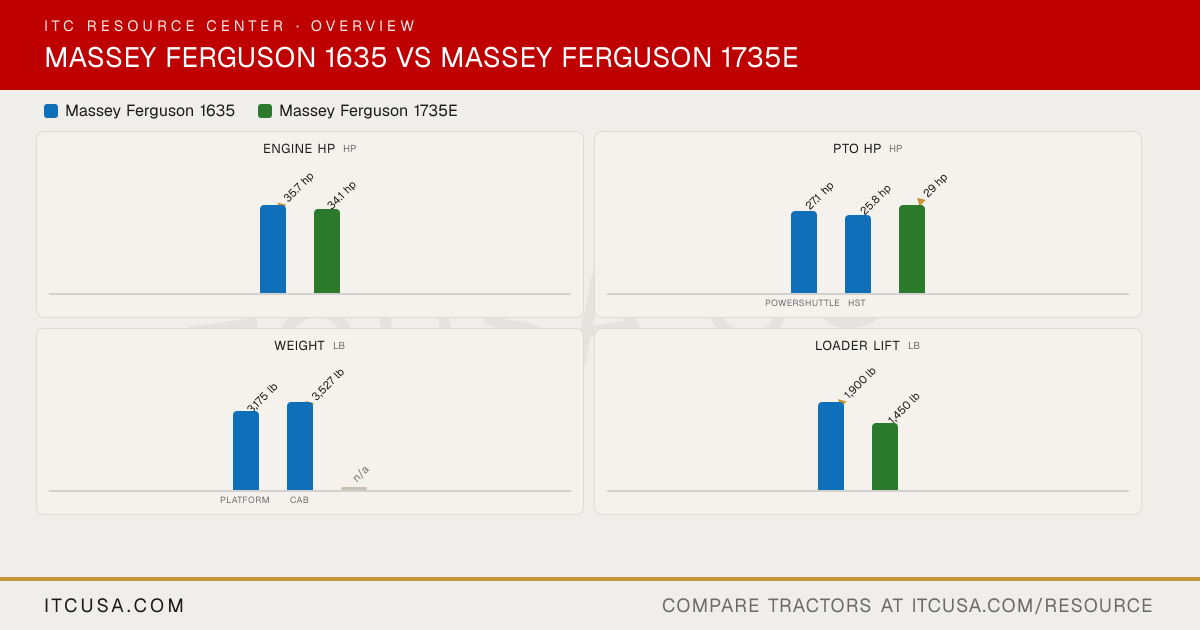

The headline numbers at a glance.

Massey Ferguson 1635Massey Ferguson 1735E

Engine HPhp

▲35.7 hp

34.1 hp

PTO HPhp

27.1 hp

25.8 hp

▲29 hp

PowerShuttleHST

Weightlb

3,175 lb

▲3,527 lb

n/a

PlatformCab

Loader Liftlb

▲1,900 lb

1,450 lb

3-Pt Lift (24 in)lb

▲2,800 lb

1,598 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1635	Massey Ferguson1735E


Engine Manufacturer	Not Published	Shibaura
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, naturally aspirated, indirect injection, liquid-cooled diesel	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	100.5 in³	91.3 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35.7 hp	34.1 hp
PTO Power	PowerShuttle: 27.1 hp; HST: 25.8 hp	29 hp
Engine Emissions Constraints	Tier 4i	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect injection	Indirect injection
Alternator	Not Published	Not Published

Pump Type	Not Published	Dual engine-driven gear pumps
Implement Flow	11.6 gpm	Not Published
Steering Flow	HST: 4.9 gpm; PowerShuttle: 6 gpm	Not Published
Total Hydraulic Flow	HST: 16.5 gpm; PowerShuttle: 17.6 gpm	9.7 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	11.6 gpm	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	3 spool optional	2

Fuel Tank Capacity	Platform: 9.2 gal; Cab: 10.5 gal	Not Published
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent, electro-hydraulic push-button control	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm	540 rpm (6-spline)
Mid-PTO Availability	Optional, 2000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,800 lb	Not Published
Hitch Lift Capacity (at 24”)	Not Published	1,598 lb
Lift Control Type	Position control with rate of drop control	Position control

Transmission Type	12x12 PowerShuttle or 3-range hydrostatic with cruise control	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	Not Published	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Frame Type	Flat isolated platform, folding ROPS, one-piece flip-up hood	Not Published
Steering	Not Published	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Suspended seat with retractable seat belt	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	64.5 in	Not Published
Wheelbase	69.7 in	Not Published
Ground Clearance	14.2 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	100.0 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	122.0 in	Not Published

Tractor Weight (Base)	Platform: 3,175 lb; Cab: 3,527 lb (shipping weight)	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)	Agricultural, Industrial
R1 Agricultural - Front	Not Published	7-16
R1 Agricultural - Rear	12.4-24 (13.6-24 optional)	11.2-24
R3 Turf - Front	27x8.50-15 (LSW305 R343 optional)	Not Published
R3 Turf - Rear	41x14.00-20 (LSW610 R470 optional)	Not Published
R4 Industrial - Front	10-16.5 or 25x8.5-14	27x8.50-15
R4 Industrial - Rear	14.9-24 or 15x19.5	15-19.5

Quick Attach Loader System	DL120: pin type or skid steer type quick attach, pedestal mount	FLx2407: pin-on (skid steer quick attach optional)
Loader Model	DL120	FLx2407
Loader Lift Height	DL120: 102 in (at pivot pin)	FLx2407: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	DL120: 1,900 lb (to full height, at pivot pin)	FLx2407: 1,450 lb (at pivot pin, full height)
Loader Breakout Force	Not Published	FLx2407: 2,288 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years or 2,000 hours; powertrain 3 years or 2,000 hours	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1635 vs Massey Ferguson 1735E: Quick Answers

Which has more horsepower, the Massey Ferguson 1635 or the Massey Ferguson 1735E?: The Massey Ferguson 1635 leads on engine hp at 35.7 hp hp, compared to 34.1 hp hp for the Massey Ferguson 1735E.
Which has more PTO horsepower, the Massey Ferguson 1635 or the Massey Ferguson 1735E?: The Massey Ferguson 1735E leads on pto hp at 29 hp hp, compared to 27.1 hp hp for the Massey Ferguson 1635.
Which has more loader lift capacity, the Massey Ferguson 1635 or the Massey Ferguson 1735E?: The Massey Ferguson 1635 leads on loader lift at 1,900 lb lb, compared to 1,450 lb lb for the Massey Ferguson 1735E.
Which has more three-point hitch lift capacity, the Massey Ferguson 1635 or the Massey Ferguson 1735E?: The Massey Ferguson 1635 leads on 3-pt lift (24 in) at 2,800 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1735E.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1635	Massey Ferguson 1735E
Engine HP (hp)	▲ 35.7 hp	34.1 hp
PTO HP (hp)	27.1 hp	▲ 29 hp
Weight (lb)	3,527 lb	n/a
Loader Lift (lb)	▲ 1,900 lb	1,450 lb
3-Pt Lift (24 in) (lb)	▲ 2,800 lb	1,598 lb
Lift Height (in)	▲ 102 in	94.3 in
Breakout Force (lbf)	n/a	2,288 lbf
Hydraulic Flow (gpm)	▲ 17.6 gpm	9.7 gpm

The headline numbers at a glance.

Massey Ferguson 1635Massey Ferguson 1735E

Engine HPhp

▲35.7 hp

34.1 hp

PTO HPhp

27.1 hp

25.8 hp

▲29 hp

PowerShuttleHST

Weightlb

3,175 lb

▲3,527 lb

n/a

PlatformCab

Loader Liftlb

▲1,900 lb

1,450 lb

3-Pt Lift (24 in)lb

▲2,800 lb

1,598 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1635	Massey Ferguson1735E


Engine Manufacturer	Not Published	Shibaura
Engine Model	Not Published	Not Published
Engine Type	3-cylinder, naturally aspirated, indirect injection, liquid-cooled diesel	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	100.5 in³	91.3 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35.7 hp	34.1 hp
PTO Power	PowerShuttle: 27.1 hp; HST: 25.8 hp	29 hp
Engine Emissions Constraints	Tier 4i	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect injection	Indirect injection
Alternator	Not Published	Not Published

Pump Type	Not Published	Dual engine-driven gear pumps
Implement Flow	11.6 gpm	Not Published
Steering Flow	HST: 4.9 gpm; PowerShuttle: 6 gpm	Not Published
Total Hydraulic Flow	HST: 16.5 gpm; PowerShuttle: 17.6 gpm	9.7 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	11.6 gpm	Not Published
No. of Standard Remote Valves	1	Not Published
No. of Optional Remote Valves	3 spool optional	2

Fuel Tank Capacity	Platform: 9.2 gal; Cab: 10.5 gal	Not Published
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent, electro-hydraulic push-button control	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm	540 rpm (6-spline)
Mid-PTO Availability	Optional, 2000 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,800 lb	Not Published
Hitch Lift Capacity (at 24”)	Not Published	1,598 lb
Lift Control Type	Position control with rate of drop control	Position control

Transmission Type	12x12 PowerShuttle or 3-range hydrostatic with cruise control	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	Not Published	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Frame Type	Flat isolated platform, folding ROPS, one-piece flip-up hood	Not Published
Steering	Not Published	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Suspended seat with retractable seat belt	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	64.5 in	Not Published
Wheelbase	69.7 in	Not Published
Ground Clearance	14.2 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	100.0 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	122.0 in	Not Published

Tractor Weight (Base)	Platform: 3,175 lb; Cab: 3,527 lb (shipping weight)	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)	Agricultural, Industrial
R1 Agricultural - Front	Not Published	7-16
R1 Agricultural - Rear	12.4-24 (13.6-24 optional)	11.2-24
R3 Turf - Front	27x8.50-15 (LSW305 R343 optional)	Not Published
R3 Turf - Rear	41x14.00-20 (LSW610 R470 optional)	Not Published
R4 Industrial - Front	10-16.5 or 25x8.5-14	27x8.50-15
R4 Industrial - Rear	14.9-24 or 15x19.5	15-19.5

Quick Attach Loader System	DL120: pin type or skid steer type quick attach, pedestal mount	FLx2407: pin-on (skid steer quick attach optional)
Loader Model	DL120	FLx2407
Loader Lift Height	DL120: 102 in (at pivot pin)	FLx2407: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	DL120: 1,900 lb (to full height, at pivot pin)	FLx2407: 1,450 lb (at pivot pin, full height)
Loader Breakout Force	Not Published	FLx2407: 2,288 lb (at pivot pin)

Warranty Length & Coverage	Basic 2 years or 2,000 hours; powertrain 3 years or 2,000 hours	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1635 vs Massey Ferguson 1735E: Quick Answers

Which has more horsepower, the Massey Ferguson 1635 or the Massey Ferguson 1735E?

The Massey Ferguson 1635 leads on engine hp at 35.7 hp hp, compared to 34.1 hp hp for the Massey Ferguson 1735E.

Which has more PTO horsepower, the Massey Ferguson 1635 or the Massey Ferguson 1735E?

The Massey Ferguson 1735E leads on pto hp at 29 hp hp, compared to 27.1 hp hp for the Massey Ferguson 1635.

Which has more loader lift capacity, the Massey Ferguson 1635 or the Massey Ferguson 1735E?

The Massey Ferguson 1635 leads on loader lift at 1,900 lb lb, compared to 1,450 lb lb for the Massey Ferguson 1735E.

Which has more three-point hitch lift capacity, the Massey Ferguson 1635 or the Massey Ferguson 1735E?

The Massey Ferguson 1635 leads on 3-pt lift (24 in) at 2,800 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1735E.
