Massey Ferguson 1726E vs TYM 2400

Across 7 measurable specs, this matchup is a dead heat: 3 categories to the Massey Ferguson 1726E, 3 to the TYM 2400, 1 tied. Machine pages: Massey Ferguson 1726E and TYM 2400.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

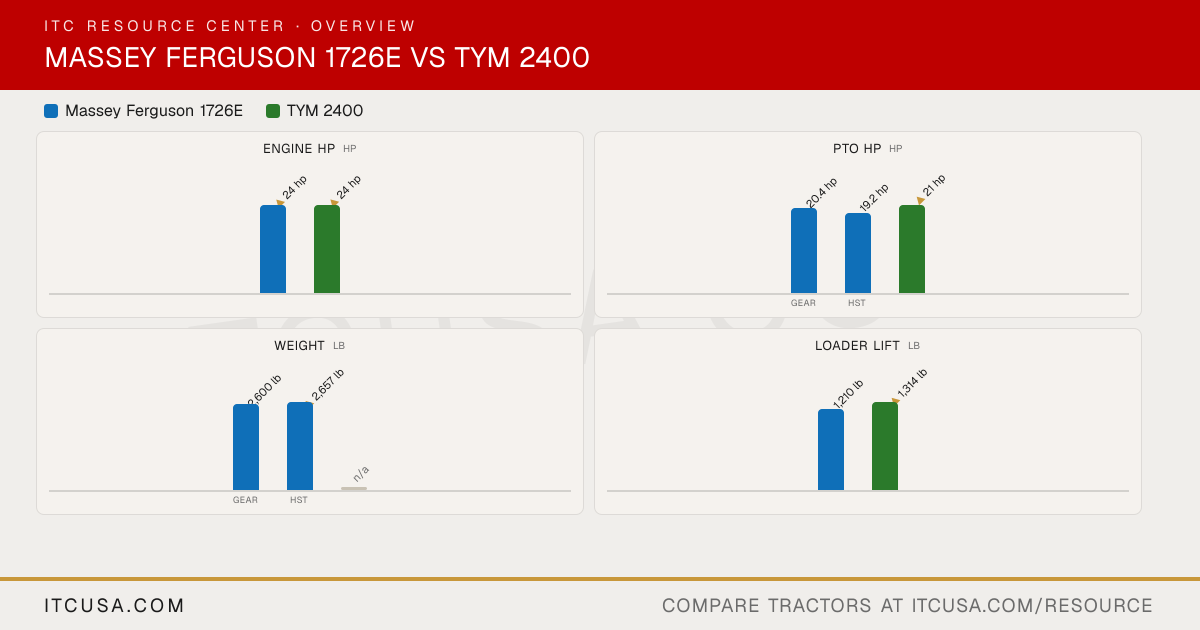

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1726E	TYM2400

▶Engine
Engine Manufacturer	Shibaura	TYM
Engine Model	Not Published	n/a
Engine Type	3-cylinder diesel, liquid-cooled	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	91.5 in³	71.7 in³
Rated Engine Speed	2600 rpm	2850 rpm
Engine Power (Gross)	24 hp	24 hp
PTO Power	Gear: 20.4 hp; HST: 19.2 hp	21 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Not Published	Dry element
Fuel System	Indirect low-pressure injection	IDI
Alternator	Not Published	60 A, 12 V
▶Hydraulics
Pump Type	Gear-type pump	Dual gear pump
Implement Flow	Not Published	4.7 gpm
Steering Flow	3.8 gpm	3.3 gpm
Total Hydraulic Flow	10.5 gpm	7.9 gpm
Overall Hydraulic Pump Flow	Not Published	7.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 2	2
▶Fluid Capacity
Fuel Tank Capacity	10.0 gal	6.0 gal
Coolant Capacity	1.32 gal	5.3 qt
Crankcase Capacity	1.22 gal	2.9 qt
Transmission / Hydraulic System Capacity	10.04 gal	3.7 gal
Front Axle Fluid Capacity	1.48 gal	3.5 qt
▶PTO & Hitch
PTO Type	Transmission driven	Live
PTO Rear	540 rpm (1-3/8 in 6-spline)	540/1000 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	1,499 lb
Hitch Lift Capacity (at 24”)	1,600 lb	974 lb
Lift Control Type	Not Published	Position control
▶Transmission & Drivetrain
Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	Gear: Constant Mesh; HST: HST
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	Gear: F6 x R2; HST: 2-Range
Max Travel Speed (Forward)	Not Published	Gear: 9.9 mph; HST: 12.1 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Dry single plate
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Wet, multi disc
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Comfortable suspension seat
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	120.3 in
Overall Width	52.4 in	44.2 in
Wheelbase	65.9 in	59.1 in
Ground Clearance	Not Published	12.1 in
Min. Turn Radius without Brakes	Not Published	115.4 in
Height to Top of ROPS	97.6 in	87.3 in
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Applicable
▶Weight
Tractor Weight (Base)	Gear: 2,600 lb; HST: 2,657 lb	n/a
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable
▶Tire Options
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	6.0-12
R1 Agricultural - Rear	Not Published	9.5-16
R3 Turf - Front	Not Published	23x8.50-12
R3 Turf - Rear	Not Published	33x12.50-16.5
R4 Industrial - Front	Not Published	23x8.50-12
R4 Industrial - Rear	Not Published	12-16.5
▶Loader & Attachments
Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	BL100S: Skid-type quick attachment
Loader Model	L105E	n/a
Loader Lift Height	L105E: 95.7 in	88.3 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	1,314 lb
Loader Breakout Force	L105E: 1,460 lb	1,960 lb
▶Warranty
Warranty Length & Coverage	5-year powertrain warranty	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99

Find a dealer near you→Find a TYM dealer near you→

Massey Ferguson 1726E vs TYM 2400: Quick Answers

Which has more horsepower, the Massey Ferguson 1726E or the TYM 2400?

They are effectively tied: both machines are rated at 24 hp hp for engine hp.

Which has more PTO horsepower, the Massey Ferguson 1726E or the TYM 2400?

The TYM 2400 leads on pto hp at 21 hp hp, compared to 20.4 hp hp for the Massey Ferguson 1726E.

Which has more loader lift capacity, the Massey Ferguson 1726E or the TYM 2400?

The TYM 2400 leads on loader lift at 1,314 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1726E.

Which has more three-point hitch lift capacity, the Massey Ferguson 1726E or the TYM 2400?

The Massey Ferguson 1726E leads on 3-pt lift (24 in) at 1,600 lb lb, compared to 974 lb lb for the TYM 2400.
