Massey Ferguson 1734E vs Massey Ferguson 1735E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, this matchup is a dead heat: 3 categories to the Massey Ferguson 1734E, 3 to the Massey Ferguson 1735E, 1 tied. Machine pages: Massey Ferguson 1734E and Massey Ferguson 1735E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1734E	Massey Ferguson 1735E
Engine HP (hp)	34 hp	▲ 34.1 hp
PTO HP (hp)	29 hp	29 hp
Weight (lb)	2,767 lb	n/a
Loader Lift (lb)	1,210 lb	▲ 1,450 lb
3-Pt Lift (24 in) (lb)	▲ 1,600 lb	1,598 lb
Lift Height (in)	▲ 95.7 in	94.3 in
Breakout Force (lbf)	1,460 lbf	▲ 2,288 lbf
Hydraulic Flow (gpm)	▲ 10.5 gpm	9.7 gpm

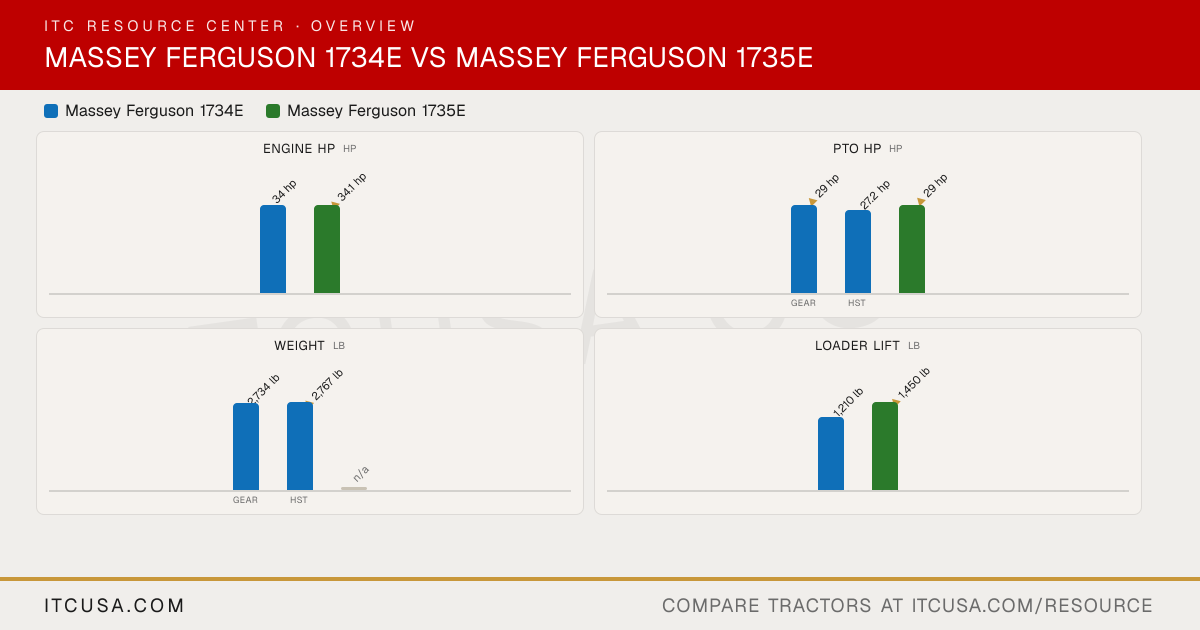

The headline numbers at a glance.

Massey Ferguson 1734EMassey Ferguson 1735E

Engine HPhp

34 hp

▲34.1 hp

PTO HPhp

▲29 hp

27.2 hp

▲29 hp

GearHST

Weightlb

2,734 lb

▲2,767 lb

n/a

GearHST

Loader Liftlb

1,210 lb

▲1,450 lb

3-Pt Lift (24 in)lb

▲1,600 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1734E	Massey Ferguson1735E


Engine Manufacturer	Shibaura	Shibaura
Engine Model	Shibaura N843T-F	Not Published
Engine Type	3-cylinder diesel, liquid-cooled, turbocharged	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.5 in³	91.3 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	34 hp	34.1 hp
PTO Power	Gear: 29 hp; HST: 27.2 hp	29 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Turbocharged, indirect low-pressure injection	Indirect injection
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Dual engine-driven gear pumps
Implement Flow	Not Published	Not Published
Steering Flow	3.8 gpm	Not Published
Total Hydraulic Flow	10.5 gpm	9.7 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	2

Fuel Tank Capacity	10.0 gal	Not Published
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.22 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published

PTO Type	Not Published	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	Not Published
Hitch Lift Capacity (at 24”)	1,600 lb	1,598 lb
Lift Control Type	Not Published	Position control

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Not Published
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Wet disc
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Not Published
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	Not Published
Overall Width	52.4 in	Not Published
Wheelbase	65.9 in	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	Not Published
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Gear: 2,734 lb; HST: 2,767 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	Not Published	7-16
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	27x8.50-15	Not Published
R3 Turf - Rear	38x14.00-20	Not Published
R4 Industrial - Front	27x8.50-15	27x8.50-15
R4 Industrial - Rear	15x19.5	15-19.5

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	FLx2407: pin-on (skid steer quick attach optional)
Loader Model	L105E	FLx2407
Loader Lift Height	L105E: 95.7 in	FLx2407: 94.3 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	FLx2407: 1,450 lb
Loader Breakout Force	L105E: 1,460 lb	FLx2407: 2,288 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1734E vs Massey Ferguson 1735E: Quick Answers

Which has more horsepower, the Massey Ferguson 1734E or the Massey Ferguson 1735E?: The Massey Ferguson 1735E leads on engine hp at 34.1 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.
Which has more PTO horsepower, the Massey Ferguson 1734E or the Massey Ferguson 1735E?: They are effectively tied: both machines are rated at 29 hp hp for pto hp.
Which has more loader lift capacity, the Massey Ferguson 1734E or the Massey Ferguson 1735E?: The Massey Ferguson 1735E leads on loader lift at 1,450 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1734E.
Which has more three-point hitch lift capacity, the Massey Ferguson 1734E or the Massey Ferguson 1735E?: The Massey Ferguson 1734E leads on 3-pt lift (24 in) at 1,600 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1735E.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1734E	Massey Ferguson 1735E
Engine HP (hp)	34 hp	▲ 34.1 hp
PTO HP (hp)	29 hp	29 hp
Weight (lb)	2,767 lb	n/a
Loader Lift (lb)	1,210 lb	▲ 1,450 lb
3-Pt Lift (24 in) (lb)	▲ 1,600 lb	1,598 lb
Lift Height (in)	▲ 95.7 in	94.3 in
Breakout Force (lbf)	1,460 lbf	▲ 2,288 lbf
Hydraulic Flow (gpm)	▲ 10.5 gpm	9.7 gpm

The headline numbers at a glance.

Massey Ferguson 1734EMassey Ferguson 1735E

Engine HPhp

34 hp

▲34.1 hp

PTO HPhp

▲29 hp

27.2 hp

▲29 hp

GearHST

Weightlb

2,734 lb

▲2,767 lb

n/a

GearHST

Loader Liftlb

1,210 lb

▲1,450 lb

3-Pt Lift (24 in)lb

▲1,600 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1734E	Massey Ferguson1735E


Engine Manufacturer	Shibaura	Shibaura
Engine Model	Shibaura N843T-F	Not Published
Engine Type	3-cylinder diesel, liquid-cooled, turbocharged	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.5 in³	91.3 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	34 hp	34.1 hp
PTO Power	Gear: 29 hp; HST: 27.2 hp	29 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Turbocharged, indirect low-pressure injection	Indirect injection
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Dual engine-driven gear pumps
Implement Flow	Not Published	Not Published
Steering Flow	3.8 gpm	Not Published
Total Hydraulic Flow	10.5 gpm	9.7 gpm
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	2

Fuel Tank Capacity	10.0 gal	Not Published
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.22 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.48 gal	Not Published

PTO Type	Not Published	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,205 lb	Not Published
Hitch Lift Capacity (at 24”)	1,600 lb	1,598 lb
Lift Control Type	Not Published	Position control

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Not Published
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Wet disc
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Not Published
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	Not Published
Overall Width	52.4 in	Not Published
Wheelbase	65.9 in	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	Not Published
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	Gear: 2,734 lb; HST: 2,767 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	Not Published	7-16
R1 Agricultural - Rear	Not Published	11.2-24
R3 Turf - Front	27x8.50-15	Not Published
R3 Turf - Rear	38x14.00-20	Not Published
R4 Industrial - Front	27x8.50-15	27x8.50-15
R4 Industrial - Rear	15x19.5	15-19.5

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	FLx2407: pin-on (skid steer quick attach optional)
Loader Model	L105E	FLx2407
Loader Lift Height	L105E: 95.7 in	FLx2407: 94.3 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	FLx2407: 1,450 lb
Loader Breakout Force	L105E: 1,460 lb	FLx2407: 2,288 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1734E vs Massey Ferguson 1735E: Quick Answers

Which has more horsepower, the Massey Ferguson 1734E or the Massey Ferguson 1735E?

The Massey Ferguson 1735E leads on engine hp at 34.1 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.

Which has more PTO horsepower, the Massey Ferguson 1734E or the Massey Ferguson 1735E?

They are effectively tied: both machines are rated at 29 hp hp for pto hp.

Which has more loader lift capacity, the Massey Ferguson 1734E or the Massey Ferguson 1735E?

The Massey Ferguson 1735E leads on loader lift at 1,450 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1734E.

Which has more three-point hitch lift capacity, the Massey Ferguson 1734E or the Massey Ferguson 1735E?

The Massey Ferguson 1734E leads on 3-pt lift (24 in) at 1,600 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1735E.
