Massey Ferguson 1734E vs Massey Ferguson 1735M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Massey Ferguson 1735M leads 7 categories to 1. Machine pages: Massey Ferguson 1734E and Massey Ferguson 1735M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson 1734E	Massey Ferguson 1735M
Engine HP (hp)	34 hp	▲ 36.2 hp
PTO HP (hp)	▲ 29 hp	27.5 hp
Weight (lb)	2,767 lb	▲ 3,406 lb
Loader Lift (lb)	1,210 lb	▲ 1,660 lb
3-Pt Lift (24 in) (lb)	1,600 lb	▲ 2,535 lb
Lift Height (in)	95.7 in	▲ 106 in
Breakout Force (lbf)	1,460 lbf	▲ 3,000 lbf
Hydraulic Flow (gpm)	10.5 gpm	▲ 12.6 gpm

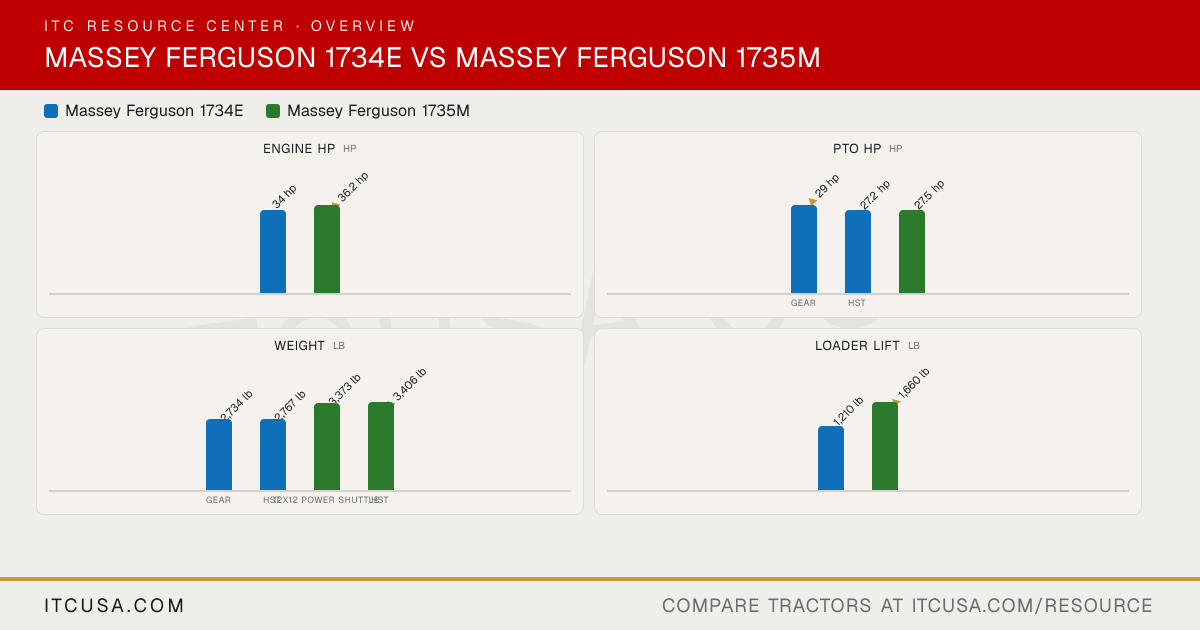

The headline numbers at a glance.

Massey Ferguson 1734EMassey Ferguson 1735M

Engine HPhp

34 hp

▲36.2 hp

PTO HPhp

▲29 hp

27.2 hp

27.5 hp

GearHST

Weightlb

2,734 lb

2,767 lb

3,373 lb

▲3,406 lb

GearHST12x12 Power ShuttleHST

Loader Liftlb

1,210 lb

▲1,660 lb

3-Pt Lift (24 in)lb

1,600 lb

▲2,535 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1734E	Massey Ferguson1735M


Engine Manufacturer	Shibaura	Shibaura
Engine Model	Shibaura N843T-F	Shibaura N3LDI-T
Engine Type	3-cylinder diesel, liquid-cooled, turbocharged	3-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.5 in³	101.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	34 hp	36.2 hp
PTO Power	Gear: 29 hp; HST: 27.2 hp	27.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Turbocharged, indirect low-pressure injection	Common rail direct injection
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Engine-driven gear-type pump
Implement Flow	Not Published	11.0 gpm
Steering Flow	3.8 gpm	Not Published
Total Hydraulic Flow	10.5 gpm	Not Published
Overall Hydraulic Pump Flow	Not Published	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	12.1 gpm
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 2	Up to 3

Fuel Tank Capacity	10.0 gal	10.56 gal
Coolant Capacity	1.32 gal	6.34 qt
Crankcase Capacity	1.22 gal	4.86 qt
Transmission / Hydraulic System Capacity	10.04 gal	12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal
Front Axle Fluid Capacity	1.48 gal	7.9 qt

PTO Type	Not Published	Independent, with soft-start feature
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I with extendable ball ends
Hitch Lift Capacity	2,205 lb	2,646 lb
Hitch Lift Capacity (at 24”)	1,600 lb	2,535 lb
Lift Control Type	Not Published	Position and draft control

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Single stage dry type
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Mechanical engagement via right side heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	122.0 in
Overall Width	52.4 in	64.2 in
Wheelbase	65.9 in	69.7 in
Ground Clearance	Not Published	15.4 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	99.2 in
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	91.3 in

Tractor Weight (Base)	Gear: 2,734 lb; HST: 2,767 lb	12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	8-16
R1 Agricultural - Rear	Not Published	12.4x24
R3 Turf - Front	27x8.50-15	27x8.50-15
R3 Turf - Rear	38x14.00-20	41x14.00-20
R4 Industrial - Front	27x8.50-15	10-16.5
R4 Industrial - Rear	15x19.5	17.5L-24

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	DL125: Pin-on (skid steer quick attach optional)
Loader Model	L105E	DL125
Loader Lift Height	L105E: 95.7 in	DL125: 106 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	DL125: 1,660 lb
Loader Breakout Force	L105E: 1,460 lb	DL125: 3,000 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1734E vs Massey Ferguson 1735M: Quick Answers

Which has more horsepower, the Massey Ferguson 1734E or the Massey Ferguson 1735M?: The Massey Ferguson 1735M leads on engine hp at 36.2 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.
Which has more PTO horsepower, the Massey Ferguson 1734E or the Massey Ferguson 1735M?: The Massey Ferguson 1734E leads on pto hp at 29 hp hp, compared to 27.5 hp hp for the Massey Ferguson 1735M.
Which is heavier, the Massey Ferguson 1734E or the Massey Ferguson 1735M?: The Massey Ferguson 1735M leads on weight at 3,406 lb lb, compared to 2,767 lb lb for the Massey Ferguson 1734E.
Which has more loader lift capacity, the Massey Ferguson 1734E or the Massey Ferguson 1735M?: The Massey Ferguson 1735M leads on loader lift at 1,660 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1734E.
Which has more three-point hitch lift capacity, the Massey Ferguson 1734E or the Massey Ferguson 1735M?: The Massey Ferguson 1735M leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 1,600 lb lb for the Massey Ferguson 1734E.

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson 1734E	Massey Ferguson 1735M
Engine HP (hp)	34 hp	▲ 36.2 hp
PTO HP (hp)	▲ 29 hp	27.5 hp
Weight (lb)	2,767 lb	▲ 3,406 lb
Loader Lift (lb)	1,210 lb	▲ 1,660 lb
3-Pt Lift (24 in) (lb)	1,600 lb	▲ 2,535 lb
Lift Height (in)	95.7 in	▲ 106 in
Breakout Force (lbf)	1,460 lbf	▲ 3,000 lbf
Hydraulic Flow (gpm)	10.5 gpm	▲ 12.6 gpm

The headline numbers at a glance.

Massey Ferguson 1734EMassey Ferguson 1735M

Engine HPhp

34 hp

▲36.2 hp

PTO HPhp

▲29 hp

27.2 hp

27.5 hp

GearHST

Weightlb

2,734 lb

2,767 lb

3,373 lb

▲3,406 lb

GearHST12x12 Power ShuttleHST

Loader Liftlb

1,210 lb

▲1,660 lb

3-Pt Lift (24 in)lb

1,600 lb

▲2,535 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey Ferguson1734E	Massey Ferguson1735M


Engine Manufacturer	Shibaura	Shibaura
Engine Model	Shibaura N843T-F	Shibaura N3LDI-T
Engine Type	3-cylinder diesel, liquid-cooled, turbocharged	3-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	91.5 in³	101.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	34 hp	36.2 hp
PTO Power	Gear: 29 hp; HST: 27.2 hp	27.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Turbocharged, indirect low-pressure injection	Common rail direct injection
Alternator	Not Published	Not Published

Pump Type	Gear-type pump	Engine-driven gear-type pump
Implement Flow	Not Published	11.0 gpm
Steering Flow	3.8 gpm	Not Published
Total Hydraulic Flow	10.5 gpm	Not Published
Overall Hydraulic Pump Flow	Not Published	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	6.7 gpm	12.1 gpm
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 2	Up to 3

Fuel Tank Capacity	10.0 gal	10.56 gal
Coolant Capacity	1.32 gal	6.34 qt
Crankcase Capacity	1.22 gal	4.86 qt
Transmission / Hydraulic System Capacity	10.04 gal	12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal
Front Axle Fluid Capacity	1.48 gal	7.9 qt

PTO Type	Not Published	Independent, with soft-start feature
PTO Rear	540 rpm (1-3/8 in 6-spline)	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I with extendable ball ends
Hitch Lift Capacity	2,205 lb	2,646 lb
Hitch Lift Capacity (at 24”)	1,600 lb	2,535 lb
Lift Control Type	Not Published	Position and draft control

Transmission Type	9 x 3 mechanical shift constant mesh gears or 3-range hydrostatic	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	Gear: 9F / 3R; HST: 3-range infinite	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Gear: dry single disc	Single stage dry type
Differential Lock & Limited Slip Options	Mechanical engagement via heel pedal	Mechanical engagement via right side heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Internal wet brakes, single brake pedal on HST, two brake pedals on gear models	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Suspended vinyl seat with retractable seatbelt, fixed steering wheel	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	Cast steel 4WD front axle with center drive line and bevel-gear final drives	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	116.0 in (w/o 3-point linkage) (without 3-point hitch)	122.0 in
Overall Width	52.4 in	64.2 in
Wheelbase	65.9 in	69.7 in
Ground Clearance	Not Published	15.4 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	97.6 in	99.2 in
Height to Top of ROPS (folded)	63.8 in	Not Published
Height to Top of Cab Model	Not Published	91.3 in

Tractor Weight (Base)	Gear: 2,734 lb; HST: 2,767 lb	12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	8-16
R1 Agricultural - Rear	Not Published	12.4x24
R3 Turf - Front	27x8.50-15	27x8.50-15
R3 Turf - Rear	38x14.00-20	41x14.00-20
R4 Industrial - Front	27x8.50-15	10-16.5
R4 Industrial - Rear	15x19.5	17.5L-24

Quick Attach Loader System	L105E: skid steer or pin-type implement attachments	DL125: Pin-on (skid steer quick attach optional)
Loader Model	L105E	DL125
Loader Lift Height	L105E: 95.7 in	DL125: 106 in
Loader Lift Capacity (Full Height)	L105E: 1,210 lb	DL125: 1,660 lb
Loader Breakout Force	L105E: 1,460 lb	DL125: 3,000 lb

Warranty Length & Coverage	5-year powertrain warranty	5-year powertrain warranty

Find a dealer near you

Massey Ferguson 1734E vs Massey Ferguson 1735M: Quick Answers

Which has more horsepower, the Massey Ferguson 1734E or the Massey Ferguson 1735M?

The Massey Ferguson 1735M leads on engine hp at 36.2 hp hp, compared to 34 hp hp for the Massey Ferguson 1734E.

Which has more PTO horsepower, the Massey Ferguson 1734E or the Massey Ferguson 1735M?

The Massey Ferguson 1734E leads on pto hp at 29 hp hp, compared to 27.5 hp hp for the Massey Ferguson 1735M.

Which is heavier, the Massey Ferguson 1734E or the Massey Ferguson 1735M?

The Massey Ferguson 1735M leads on weight at 3,406 lb lb, compared to 2,767 lb lb for the Massey Ferguson 1734E.

Which has more loader lift capacity, the Massey Ferguson 1734E or the Massey Ferguson 1735M?

The Massey Ferguson 1735M leads on loader lift at 1,660 lb lb, compared to 1,210 lb lb for the Massey Ferguson 1734E.

Which has more three-point hitch lift capacity, the Massey Ferguson 1734E or the Massey Ferguson 1735M?

The Massey Ferguson 1735M leads on 3-pt lift (24 in) at 2,535 lb lb, compared to 1,600 lb lb for the Massey Ferguson 1734E.
