Massey Ferguson 1735M vs Massey Ferguson 1736
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Massey Ferguson 1735M leads 3 categories to 2 (3 tied). Machine pages: Massey Ferguson 1735M and Massey Ferguson 1736.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

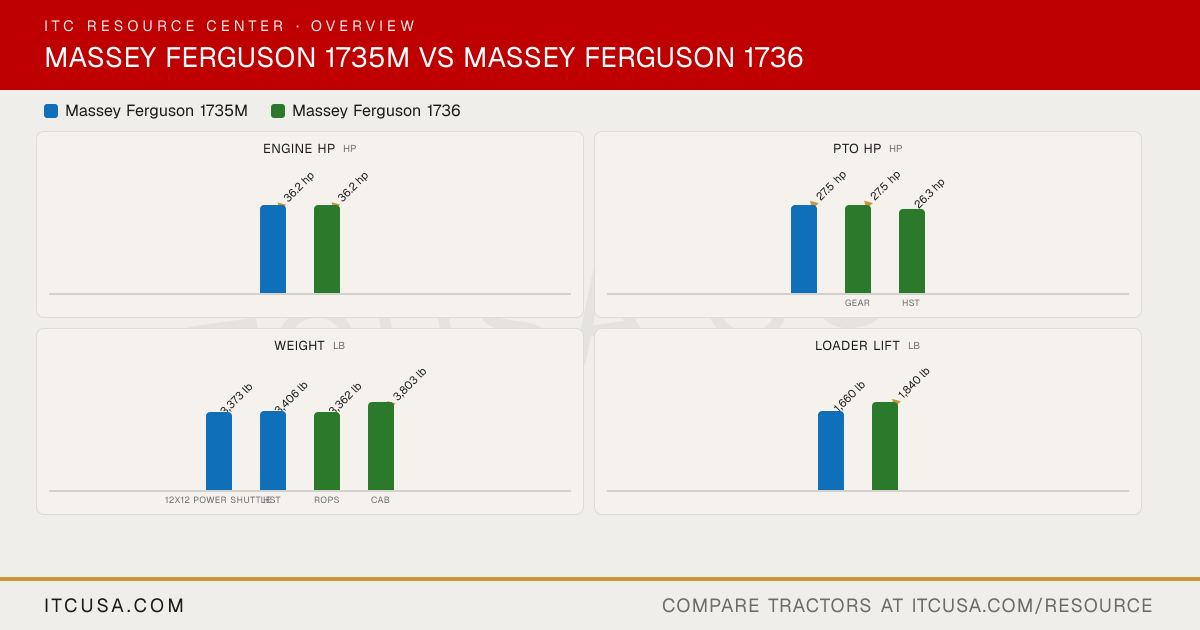

Category Verdict
| Spec | Massey Ferguson 1735M | Massey Ferguson 1736 |
|---|---|---|
| Engine HP (hp) | 36.2 hp | 36.2 hp |
| PTO HP (hp) | 27.5 hp | 27.5 hp |
| Weight (lb) | 3,406 lb | ▲ 3,803 lb |
| Loader Lift (lb) | 1,660 lb | ▲ 1,840 lb |
| 3-Pt Lift (24 in) (lb) | 2,535 lb | 2,535 lb |
| Lift Height (in) | ▲ 106 in | 102.4 in |
| Breakout Force (lbf) | ▲ 3,000 lbf | 2,190 lbf |
| Hydraulic Flow (gpm) | ▲ 12.6 gpm | 11.6 gpm |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Massey Ferguson1735M | Massey Ferguson1736 |
|---|
| Engine Manufacturer | Shibaura | Mitsubishi |
|---|---|---|
| Engine Model | N3LDI-T | K38 |
| Engine Type | 3-cylinder turbocharged intercooled diesel, liquid-cooled | 3-cylinder turbocharged and intercooled diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 101.4 in³ | 101 in³ |
| Rated Engine Speed | 2600 rpm | 2500 rpm |
| Engine Power (Gross) | 36.2 hp | 36.2 hp |
| PTO Power | 27.5 hp | Gear: 27.5 hp; HST: 26.3 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry | Not Published |
| Fuel System | Common rail direct injection | Common rail direct injection with electronic engine management |
| Alternator | Not Published | Not Published |
Massey Ferguson 1735M vs Massey Ferguson 1736: Quick Answers
- Which has more horsepower, the Massey Ferguson 1735M or the Massey Ferguson 1736?
- They are effectively tied: both machines are rated at 36.2 hp hp for engine hp.
- Which has more PTO horsepower, the Massey Ferguson 1735M or the Massey Ferguson 1736?
- They are effectively tied: both machines are rated at 27.5 hp hp for pto hp.
- Which is heavier, the Massey Ferguson 1735M or the Massey Ferguson 1736?
- The Massey Ferguson 1736 leads on weight at 3,803 lb lb, compared to 3,406 lb lb for the Massey Ferguson 1735M.
- Which has more loader lift capacity, the Massey Ferguson 1735M or the Massey Ferguson 1736?
- The Massey Ferguson 1736 leads on loader lift at 1,840 lb lb, compared to 1,660 lb lb for the Massey Ferguson 1735M.
- Which has more three-point hitch lift capacity, the Massey Ferguson 1735M or the Massey Ferguson 1736?
- They are effectively tied: both machines are rated at 2,535 lb lb for 3-pt lift (24 in).
