Massey Ferguson MF 1M.40 vs Massey Ferguson 1740M

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Massey Ferguson 1740M leads 4 categories to 3 (1 tied). Machine pages: Massey Ferguson MF 1M.40 and Massey Ferguson 1740M.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Massey Ferguson MF 1M.40	Massey Ferguson 1740M
Engine HP (hp)	39.4 hp	▲ 40 hp
PTO HP (hp)	30 hp	▲ 31.2 hp
Weight (lb)	▲ 3,858 lb	3,406 lb
Loader Lift (lb)	▲ 1,870 lb	1,660 lb
3-Pt Lift (24 in) (lb)	2,535 lb	2,535 lb
Lift Height (in)	100 in	▲ 106 in
Breakout Force (lbf)	2,950 lbf	▲ 3,000 lbf
Hydraulic Flow (gpm)	▲ 19.6 gpm	12.6 gpm

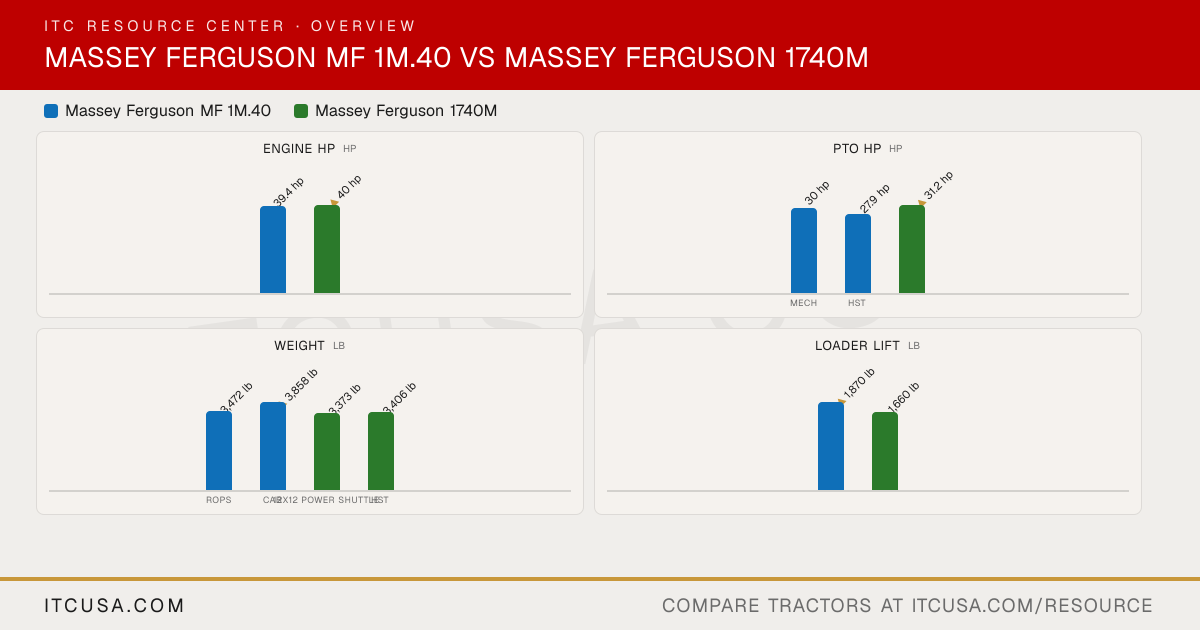

The headline numbers at a glance.

Massey Ferguson MF 1M.40Massey Ferguson 1740M

Engine HPhp

39.4 hp

▲40 hp

PTO HPhp

30 hp

27.9 hp

▲31.2 hp

MechHST

Weightlb

3,472 lb

▲3,858 lb

3,373 lb

3,406 lb

ROPSCab12x12 Power ShuttleHST

Loader Liftlb

▲1,870 lb

1,660 lb

3-Pt Lift (24 in)lb

▲2,535 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1M.40	Massey Ferguson1740M


Engine Manufacturer	Iseki	Shibaura
Engine Model	Not Published	Shibaura N3LDI-T
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	111.4 in³	101.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	39.4 hp	40 hp
PTO Power	Mech: 30 hp; HST: 27.9 hp	31.2 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Common rail direct injection
Alternator	Not Published	Not Published

Pump Type	Two gear-type pumps	Engine-driven gear-type pump
Implement Flow	12.6 gpm	11.0 gpm
Steering Flow	7.0 gpm	Not Published
Total Hydraulic Flow	19.6 gpm (12.6 + 7.0, computed)	Not Published
Overall Hydraulic Pump Flow	19.6 gpm (12.6 + 7.0, computed)	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	12.1 gpm
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Not Published	Up to 3

Fuel Tank Capacity	10.6 gal	10.56 gal
Coolant Capacity	Not Published	6.34 qt
Crankcase Capacity	Not Published	4.86 qt
Transmission / Hydraulic System Capacity	Not Published	12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal
Front Axle Fluid Capacity	Not Published	7.9 qt

PTO Type	Independent with SoftStart electronic modulation	Independent, with soft-start feature
PTO Rear	540 rpm, 1.375 in	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I with extendable ball ends
Hitch Lift Capacity	2,800 lb	2,646 lb
Hitch Lift Capacity (at 24”)	2,535 lb	2,535 lb
Lift Control Type	Not Published	Position and draft control

Transmission Type	Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Single stage dry type
Differential Lock & Limited Slip Options	Not Published	Mechanical engagement via right side heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Not Published	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Not Published	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	Not Published	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	122.0 in	122.0 in
Overall Width	67.5 in	64.2 in
Wheelbase	Not Published	69.7 in
Ground Clearance	14.4 in	15.4 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	99.2 in	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	91.3 in	91.3 in

Tractor Weight (Base)	ROPS: 3,472 lb; Cab: 3,858 lb	12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	8-16
R1 Agricultural - Rear	Not Published	12.4x24
R3 Turf - Front	Not Published	27x8.50-15
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	17.5L-24

Quick Attach Loader System	Skid steer	DL125: Pin-on (skid steer quick attach optional)
Loader Model	FL2611	DL125
Loader Lift Height	FL2611: 100 in	DL125: 106 in
Loader Lift Capacity (Full Height)	FL2611: 1,870 lb	DL125: 1,660 lb
Loader Breakout Force	FL2611: 2,950 lb	DL125: 3,000 lb

Warranty Length & Coverage	Not Published	5-year powertrain warranty

Find a dealer near you

Massey Ferguson MF 1M.40 vs Massey Ferguson 1740M: Quick Answers

Which has more horsepower, the Massey Ferguson MF 1M.40 or the Massey Ferguson 1740M?: The Massey Ferguson 1740M leads on engine hp at 40 hp hp, compared to 39.4 hp hp for the Massey Ferguson MF 1M.40.
Which has more PTO horsepower, the Massey Ferguson MF 1M.40 or the Massey Ferguson 1740M?: The Massey Ferguson 1740M leads on pto hp at 31.2 hp hp, compared to 30 hp hp for the Massey Ferguson MF 1M.40.
Which is heavier, the Massey Ferguson MF 1M.40 or the Massey Ferguson 1740M?: The Massey Ferguson MF 1M.40 leads on weight at 3,858 lb lb, compared to 3,406 lb lb for the Massey Ferguson 1740M.
Which has more loader lift capacity, the Massey Ferguson MF 1M.40 or the Massey Ferguson 1740M?: The Massey Ferguson MF 1M.40 leads on loader lift at 1,870 lb lb, compared to 1,660 lb lb for the Massey Ferguson 1740M.
Which has more three-point hitch lift capacity, the Massey Ferguson MF 1M.40 or the Massey Ferguson 1740M?: They are effectively tied: both machines are rated at 2,535 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Massey Ferguson MF 1M.40	Massey Ferguson 1740M
Engine HP (hp)	39.4 hp	▲ 40 hp
PTO HP (hp)	30 hp	▲ 31.2 hp
Weight (lb)	▲ 3,858 lb	3,406 lb
Loader Lift (lb)	▲ 1,870 lb	1,660 lb
3-Pt Lift (24 in) (lb)	2,535 lb	2,535 lb
Lift Height (in)	100 in	▲ 106 in
Breakout Force (lbf)	2,950 lbf	▲ 3,000 lbf
Hydraulic Flow (gpm)	▲ 19.6 gpm	12.6 gpm

The headline numbers at a glance.

Massey Ferguson MF 1M.40Massey Ferguson 1740M

Engine HPhp

39.4 hp

▲40 hp

PTO HPhp

30 hp

27.9 hp

▲31.2 hp

MechHST

Weightlb

3,472 lb

▲3,858 lb

3,373 lb

3,406 lb

ROPSCab12x12 Power ShuttleHST

Loader Liftlb

▲1,870 lb

1,660 lb

3-Pt Lift (24 in)lb

▲2,535 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Massey FergusonMF 1M.40	Massey Ferguson1740M


Engine Manufacturer	Iseki	Shibaura
Engine Model	Not Published	Shibaura N3LDI-T
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder turbocharged intercooled diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	111.4 in³	101.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	39.4 hp	40 hp
PTO Power	Mech: 30 hp; HST: 27.9 hp	31.2 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Common rail direct injection
Alternator	Not Published	Not Published

Pump Type	Two gear-type pumps	Engine-driven gear-type pump
Implement Flow	12.6 gpm	11.0 gpm
Steering Flow	7.0 gpm	Not Published
Total Hydraulic Flow	19.6 gpm (12.6 + 7.0, computed)	Not Published
Overall Hydraulic Pump Flow	19.6 gpm (12.6 + 7.0, computed)	12.6 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	12.1 gpm
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Not Published	Up to 3

Fuel Tank Capacity	10.6 gal	10.56 gal
Coolant Capacity	Not Published	6.34 qt
Crankcase Capacity	Not Published	4.86 qt
Transmission / Hydraulic System Capacity	Not Published	12x12 Power Shuttle: 8.18 gal; HST: 7.4 gal
Front Axle Fluid Capacity	Not Published	7.9 qt

PTO Type	Independent with SoftStart electronic modulation	Independent, with soft-start feature
PTO Rear	540 rpm, 1.375 in	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I with extendable ball ends
Hitch Lift Capacity	2,800 lb	2,646 lb
Hitch Lift Capacity (at 24”)	2,535 lb	2,535 lb
Lift Control Type	Not Published	Position and draft control

Transmission Type	Mech: 12x12 power shuttle; HST: 3-range hydrostatic (Servo-HST, electronically controlled)	12 x 12 power shuttle or 3-range hydrostatic
No. of Speeds	Mech: 12 forward and 12 reverse; HST: infinite forward and reverse (3-range)	12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Single stage dry type
Differential Lock & Limited Slip Options	Not Published	Mechanical engagement via right side heel pedal

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Not Published	Internal wet disc brakes, individual control via independent foot pedals
Seat Suspension & Adjustability	Not Published	Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering
Front Axle Type	Not Published	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	122.0 in	122.0 in
Overall Width	67.5 in	64.2 in
Wheelbase	Not Published	69.7 in
Ground Clearance	14.4 in	15.4 in
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	99.2 in	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	91.3 in	91.3 in

Tractor Weight (Base)	ROPS: 3,472 lb; Cab: 3,858 lb	12x12 Power Shuttle: 3,373 lb; HST: 3,406 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	Not Published	8-16
R1 Agricultural - Rear	Not Published	12.4x24
R3 Turf - Front	Not Published	27x8.50-15
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	17.5L-24

Quick Attach Loader System	Skid steer	DL125: Pin-on (skid steer quick attach optional)
Loader Model	FL2611	DL125
Loader Lift Height	FL2611: 100 in	DL125: 106 in
Loader Lift Capacity (Full Height)	FL2611: 1,870 lb	DL125: 1,660 lb
Loader Breakout Force	FL2611: 2,950 lb	DL125: 3,000 lb

Warranty Length & Coverage	Not Published	5-year powertrain warranty

Find a dealer near you

Massey Ferguson MF 1M.40 vs Massey Ferguson 1740M: Quick Answers

Which has more horsepower, the Massey Ferguson MF 1M.40 or the Massey Ferguson 1740M?

The Massey Ferguson 1740M leads on engine hp at 40 hp hp, compared to 39.4 hp hp for the Massey Ferguson MF 1M.40.

Which has more PTO horsepower, the Massey Ferguson MF 1M.40 or the Massey Ferguson 1740M?

The Massey Ferguson 1740M leads on pto hp at 31.2 hp hp, compared to 30 hp hp for the Massey Ferguson MF 1M.40.

Which is heavier, the Massey Ferguson MF 1M.40 or the Massey Ferguson 1740M?

The Massey Ferguson MF 1M.40 leads on weight at 3,858 lb lb, compared to 3,406 lb lb for the Massey Ferguson 1740M.

Which has more loader lift capacity, the Massey Ferguson MF 1M.40 or the Massey Ferguson 1740M?

The Massey Ferguson MF 1M.40 leads on loader lift at 1,870 lb lb, compared to 1,660 lb lb for the Massey Ferguson 1740M.

Which has more three-point hitch lift capacity, the Massey Ferguson MF 1M.40 or the Massey Ferguson 1740M?

They are effectively tied: both machines are rated at 2,535 lb lb for 3-pt lift (24 in).
