New Holland Boomer 40 vs TYM 4720

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, this matchup is a dead heat: 3 categories to the New Holland Boomer 40, 3 to the TYM 4720, 1 tied. Machine pages: New Holland Boomer 40 and TYM 4720.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 40	TYM 4720
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	34 hp	n/a
Weight (lb)	3,574 lb	▲ 3,883 lb
Loader Lift (lb)	1,822 lb	▲ 2,094 lb
3-Pt Lift (24 in) (lb)	1,345 lb	▲ 2,580 lb
Lift Height (in)	▲ 104 in	103 in
Breakout Force (lbf)	▲ 3,257 lbf	2,755 lbf
Hydraulic Flow (gpm)	▲ 13.5 gpm	13.2 gpm
Travel Speed (mph)	14.8 mph	n/a

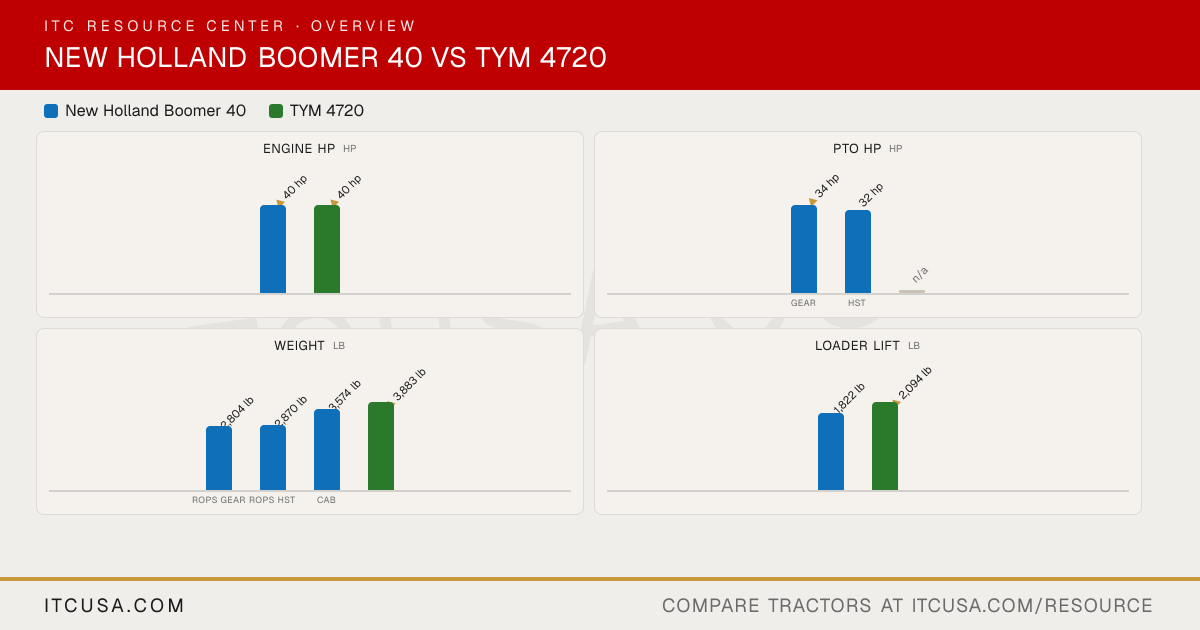

The headline numbers at a glance.

New Holland Boomer 40TYM 4720

Engine HPhp

▲40 hp

PTO HPhp

▲34 hp

32 hp

n/a

GearHST

Weightlb

2,804 lb

2,870 lb

3,574 lb

▲3,883 lb

ROPS GearROPS HSTCab

Loader Liftlb

1,822 lb

▲2,094 lb

3-Pt Lift (24 in)lb

1,345 lb

▲2,580 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 40	TYM4720


Engine Manufacturer	LS Mtron	Kukje
Engine Model	L3CRV-T4	A2300N2
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	Diesel, liquid-cooled
No. of Cylinders	3	4
Displacement	114.7 in³	139 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	Gear: 34 hp; HST: 32 hp	Not Published
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid cooled	Liquid-cooled
Air Cleaner	Replaceable primary and inner elements	Not Published
Fuel System	Electronically controlled common rail direct injection	Not Published
Alternator	ROPS: 70 A, 12 V; Cab: 85 A, 12 V	45 A, 12 V

Pump Type	Gear	Not Published
Implement Flow	8.2 gpm	8.9 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	Not Published
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.2 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0
No. of Optional Remote Valves	Up to 2 (second valve optional)	Up to 2

Fuel Tank Capacity	ROPS: 10.5 gal; Cab: 12.4 gal	11.1 gal
Coolant Capacity	7.5 qt	9.8 qt
Crankcase Capacity	5.8 qt	6 qt
Transmission / Hydraulic System Capacity	8.5 gal	9.7 gal
Front Axle Fluid Capacity	6.87 qt	Not Published

PTO Type	Independent, electro-hydraulic engagement	Live (2-stage clutch)
PTO Rear	540 rpm	540 / 1000 rpm
Mid-PTO Availability	Standard (2000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	2,580 lb
Hitch Lift Capacity (at 24”)	1,345 lb	Not Published
Lift Control Type	Position control (draft control optional)	Not Published

Transmission Type	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	Synchromesh
No. of Speeds	Gear: 12F/12R; HST: 3-range	12F/12R
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Not Published
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 13.60 mph	Not Published
Clutch	Gear: dry single disc (9.4 in); HST: n/a	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests	Not Published
Front Axle Type	Four-wheel drive (FWD)	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	127 in
Overall Width	66.4 in	61 in
Wheelbase	66 in	71 in
Ground Clearance	Not Published	12.2 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	Not Published
Height to Top of ROPS	92.7 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	90 in	Not Published

Tractor Weight (Base)	ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb	3,883 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Agricultural: 8-18 front / 12.4-28 rear; Turf: 29x12.00-15 front / 44x18.00-20 rear; Industrial: 12-16.5 front / 17.5L-24 rear
R1 Agricultural - Front	7-14	8-18
R1 Agricultural - Rear	11.2-24	12.4-28
R3 Turf - Front	25x8.50-14	29x12.00-15
R3 Turf - Rear	41x14.00-20	44x18.00-20
R4 Industrial - Front	25x8.50-14	12-16.5
R4 Industrial - Rear	43x16.00-20	17.5L-24

Quick Attach Loader System	New Holland Quick Mount loader; optional skid steer quick attach plates	Not Published
Loader Model	250TLA	BL20
Loader Lift Height	250TLA: 104 in	BL20: 103 in
Loader Lift Capacity (Full Height)	250TLA: 1,822 lb	BL20: 2,094 lb
Loader Breakout Force	250TLA: 3,257 lb	BL20: 2,755 lbf (at 19.7 in reach, not pivot pin) (19.7 in forward of pivot pin)

Warranty Length & Coverage	Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)	Not Published

Find a New Holland dealer near you Find a TYM dealer near you

New Holland Boomer 40 vs TYM 4720: Quick Answers

Which has more horsepower, the New Holland Boomer 40 or the TYM 4720?: They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which is heavier, the New Holland Boomer 40 or the TYM 4720?: The TYM 4720 leads on weight at 3,883 lb lb, compared to 3,574 lb lb for the New Holland Boomer 40.
Which has more loader lift capacity, the New Holland Boomer 40 or the TYM 4720?: The TYM 4720 leads on loader lift at 2,094 lb lb, compared to 1,822 lb lb for the New Holland Boomer 40.
Which has more three-point hitch lift capacity, the New Holland Boomer 40 or the TYM 4720?: The TYM 4720 leads on 3-pt lift (24 in) at 2,580 lb lb, compared to 1,345 lb lb for the New Holland Boomer 40.

More Head-to-Heads

Category Verdict

Spec	New Holland Boomer 40	TYM 4720
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	34 hp	n/a
Weight (lb)	3,574 lb	▲ 3,883 lb
Loader Lift (lb)	1,822 lb	▲ 2,094 lb
3-Pt Lift (24 in) (lb)	1,345 lb	▲ 2,580 lb
Lift Height (in)	▲ 104 in	103 in
Breakout Force (lbf)	▲ 3,257 lbf	2,755 lbf
Hydraulic Flow (gpm)	▲ 13.5 gpm	13.2 gpm
Travel Speed (mph)	14.8 mph	n/a

The headline numbers at a glance.

New Holland Boomer 40TYM 4720

Engine HPhp

▲40 hp

PTO HPhp

▲34 hp

32 hp

n/a

GearHST

Weightlb

2,804 lb

2,870 lb

3,574 lb

▲3,883 lb

ROPS GearROPS HSTCab

Loader Liftlb

1,822 lb

▲2,094 lb

3-Pt Lift (24 in)lb

1,345 lb

▲2,580 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 40	TYM4720


Engine Manufacturer	LS Mtron	Kukje
Engine Model	L3CRV-T4	A2300N2
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	Diesel, liquid-cooled
No. of Cylinders	3	4
Displacement	114.7 in³	139 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	Gear: 34 hp; HST: 32 hp	Not Published
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid cooled	Liquid-cooled
Air Cleaner	Replaceable primary and inner elements	Not Published
Fuel System	Electronically controlled common rail direct injection	Not Published
Alternator	ROPS: 70 A, 12 V; Cab: 85 A, 12 V	45 A, 12 V

Pump Type	Gear	Not Published
Implement Flow	8.2 gpm	8.9 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	Not Published
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.2 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0
No. of Optional Remote Valves	Up to 2 (second valve optional)	Up to 2

Fuel Tank Capacity	ROPS: 10.5 gal; Cab: 12.4 gal	11.1 gal
Coolant Capacity	7.5 qt	9.8 qt
Crankcase Capacity	5.8 qt	6 qt
Transmission / Hydraulic System Capacity	8.5 gal	9.7 gal
Front Axle Fluid Capacity	6.87 qt	Not Published

PTO Type	Independent, electro-hydraulic engagement	Live (2-stage clutch)
PTO Rear	540 rpm	540 / 1000 rpm
Mid-PTO Availability	Standard (2000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	2,580 lb
Hitch Lift Capacity (at 24”)	1,345 lb	Not Published
Lift Control Type	Position control (draft control optional)	Not Published

Transmission Type	Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	Synchromesh
No. of Speeds	Gear: 12F/12R; HST: 3-range	12F/12R
Max Travel Speed (Forward)	Gear: 14.2 mph; HST: 14.8 mph	Not Published
Max Travel Speed (Reverse)	Gear: 13.63 mph; HST: 13.60 mph	Not Published
Clutch	Gear: dry single disc (9.4 in); HST: n/a	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet disc
Seat Suspension & Adjustability	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests	Not Published
Front Axle Type	Four-wheel drive (FWD)	4WD (MFWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	127 in
Overall Width	66.4 in	61 in
Wheelbase	66 in	71 in
Ground Clearance	Not Published	12.2 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	Not Published
Height to Top of ROPS	92.7 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	90 in	Not Published

Tractor Weight (Base)	ROPS Gear: 2,804 lb; ROPS HST: 2,870 lb; Cab: 3,574 lb	3,883 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Agricultural: 8-18 front / 12.4-28 rear; Turf: 29x12.00-15 front / 44x18.00-20 rear; Industrial: 12-16.5 front / 17.5L-24 rear
R1 Agricultural - Front	7-14	8-18
R1 Agricultural - Rear	11.2-24	12.4-28
R3 Turf - Front	25x8.50-14	29x12.00-15
R3 Turf - Rear	41x14.00-20	44x18.00-20
R4 Industrial - Front	25x8.50-14	12-16.5
R4 Industrial - Rear	43x16.00-20	17.5L-24

Quick Attach Loader System	New Holland Quick Mount loader; optional skid steer quick attach plates	Not Published
Loader Model	250TLA	BL20
Loader Lift Height	250TLA: 104 in	BL20: 103 in
Loader Lift Capacity (Full Height)	250TLA: 1,822 lb	BL20: 2,094 lb
Loader Breakout Force	250TLA: 3,257 lb	BL20: 2,755 lbf (at 19.7 in reach, not pivot pin) (19.7 in forward of pivot pin)

Warranty Length & Coverage	Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)	Not Published

Find a New Holland dealer near you Find a TYM dealer near you

New Holland Boomer 40 vs TYM 4720: Quick Answers

Which has more horsepower, the New Holland Boomer 40 or the TYM 4720?

They are effectively tied: both machines are rated at 40 hp hp for engine hp.

Which is heavier, the New Holland Boomer 40 or the TYM 4720?

The TYM 4720 leads on weight at 3,883 lb lb, compared to 3,574 lb lb for the New Holland Boomer 40.

Which has more loader lift capacity, the New Holland Boomer 40 or the TYM 4720?

The TYM 4720 leads on loader lift at 2,094 lb lb, compared to 1,822 lb lb for the New Holland Boomer 40.

Which has more three-point hitch lift capacity, the New Holland Boomer 40 or the TYM 4720?

The TYM 4720 leads on 3-pt lift (24 in) at 2,580 lb lb, compared to 1,345 lb lb for the New Holland Boomer 40.
