New Holland Boomer 45 vs New Holland Workmaster 40C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Boomer 45 leads 9 categories to 0. Machine pages: New Holland Boomer 45 and New Holland Workmaster 40C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 45	New Holland Workmaster 40C
Engine HP (hp)	▲ 45 hp	40 hp
PTO HP (hp)	▲ 38.2 hp	35.9 hp
Weight (lb)	▲ 4,194 lb	3,073 lb
Loader Lift (lb)	▲ 2,371 lb	1,344 lb
3-Pt Lift (24 in) (lb)	▲ 2,116 lb	1,596 lb
Lift Height (in)	▲ 109 in	92 in
Breakout Force (lbf)	▲ 4,081 lbf	2,138 lbf
Hydraulic Flow (gpm)	▲ 13.5 gpm	13.3 gpm
Travel Speed (mph)	▲ 17.9 mph	14.9 mph

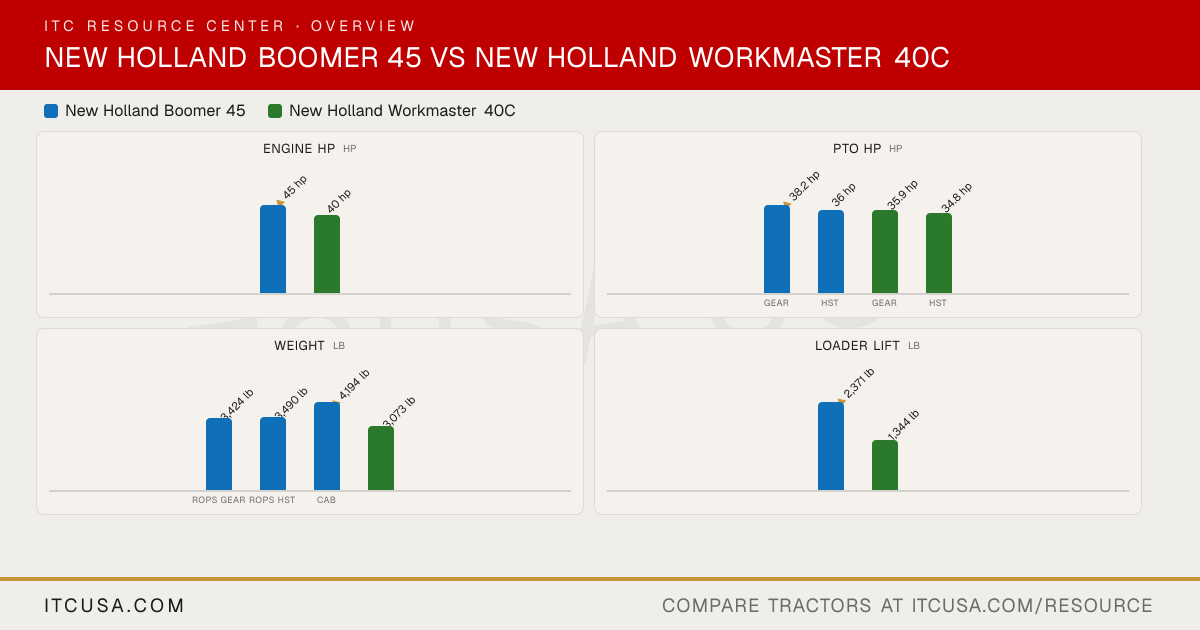

The headline numbers at a glance.

New Holland Boomer 45New Holland Workmaster 40C

Engine HPhp

▲45 hp

40 hp

PTO HPhp

▲38.2 hp

36 hp

35.9 hp

34.8 hp

GearHSTGearHST

Weightlb

3,424 lb

3,490 lb

▲4,194 lb

3,073 lb

ROPS GearROPS HSTCab

Loader Liftlb

▲2,371 lb

1,344 lb

3-Pt Lift (24 in)lb

▲2,116 lb

1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 45	New HollandWorkmaster 40C


Engine Manufacturer	LS Mtron	LS Mtron
Engine Model	L3CRV-T9A	Not Published
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	3-cylinder, turbocharged diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	40 hp
PTO Power	Gear: 38.2 hp; HST: 36 hp	Gear: 35.9 hp; HST: 34.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid cooled	Liquid cooled
Air Cleaner	Replaceable primary and inner elements	Dual-element
Fuel System	Electronically controlled common rail direct injection	Common rail direct injection
Alternator	ROPS: 70 A, 12 V; Cab: 85 A, 12 V	70 A

Pump Type	Gear	Dual pump (dedicated steering pump)
Implement Flow	8.2 gpm	8.4 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	4.9 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.3 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0 (rear remotes optional)
No. of Optional Remote Valves	Up to 2 (second valve optional)	Up to 3

Fuel Tank Capacity	ROPS: 10.5 gal; Cab: 12.4 gal	12.6 gal
Coolant Capacity	2.3 gal	Not Published
Crankcase Capacity	5.8 qt	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published
Front Axle Fluid Capacity	2.2 gal	Not Published

PTO Type	Independent, electro-hydraulic engagement	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard (2000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	2,756 lb	2067 lb
Hitch Lift Capacity (at 24”)	2,116 lb	1596 lb
Lift Control Type	Position control (draft control optional)	Position control with drop-rate control

Transmission Type	Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	Gear: 16F/16R; HST: 3-range	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	Gear: 17.0 mph; HST: 17.9 mph	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Gear: 15.3 mph; HST: 11.37 mph	Not Published
Clutch	Gear: dry single disc (10.8 in); HST: n/a	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering (dedicated steering pump)
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	Four-wheel drive (FWD)	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb	Not Published

Overall Length with 3-Point Hitch	128.1 in	133 in
Overall Width	69.1 in	65.4 in
Wheelbase	73.2 in	66 in
Ground Clearance	15 in	12.7 in
Min. Turn Radius without Brakes	111.8 in (right turn); 123.2 in (left turn) (with brake applied)	123.2 in
Height to Top of ROPS	97.1 in	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	94 in	Not Published

Tractor Weight (Base)	ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb	3073 lb
Weight with ROPS and Loader	Not Published	4142 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	9.5-16	Not Published
R1 Agricultural - Rear	13.6-24	Not Published
R3 Turf - Front	28x8.50-15	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	12x16.5	25x8.50-14
R4 Industrial - Rear	17.5Lx24	43x16-20

Quick Attach Loader System	New Holland Quick Mount loader; optional skid steer quick attach plates	Skid steer quick attach
Loader Model	260TLA	250LC
Loader Lift Height	260TLA: 109 in	250LC: 92 in
Loader Lift Capacity (Full Height)	260TLA: 2,371 lb	250LC: 1344 lb
Loader Breakout Force	260TLA: 4,081 lb	250LC: 2,138 lb

Warranty Length & Coverage	Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain

Find a New Holland dealer near you

New Holland Boomer 45 vs New Holland Workmaster 40C: Quick Answers

Which has more horsepower, the New Holland Boomer 45 or the New Holland Workmaster 40C?: The New Holland Boomer 45 leads on engine hp at 45 hp hp, compared to 40 hp hp for the New Holland Workmaster 40C.
Which has more PTO horsepower, the New Holland Boomer 45 or the New Holland Workmaster 40C?: The New Holland Boomer 45 leads on pto hp at 38.2 hp hp, compared to 35.9 hp hp for the New Holland Workmaster 40C.
Which is heavier, the New Holland Boomer 45 or the New Holland Workmaster 40C?: The New Holland Boomer 45 leads on weight at 4,194 lb lb, compared to 3,073 lb lb for the New Holland Workmaster 40C.
Which has more loader lift capacity, the New Holland Boomer 45 or the New Holland Workmaster 40C?: The New Holland Boomer 45 leads on loader lift at 2,371 lb lb, compared to 1,344 lb lb for the New Holland Workmaster 40C.
Which has more three-point hitch lift capacity, the New Holland Boomer 45 or the New Holland Workmaster 40C?: The New Holland Boomer 45 leads on 3-pt lift (24 in) at 2,116 lb lb, compared to 1,596 lb lb for the New Holland Workmaster 40C.
