Bad Boy Tractors 4035 vs New Holland Boomer 45

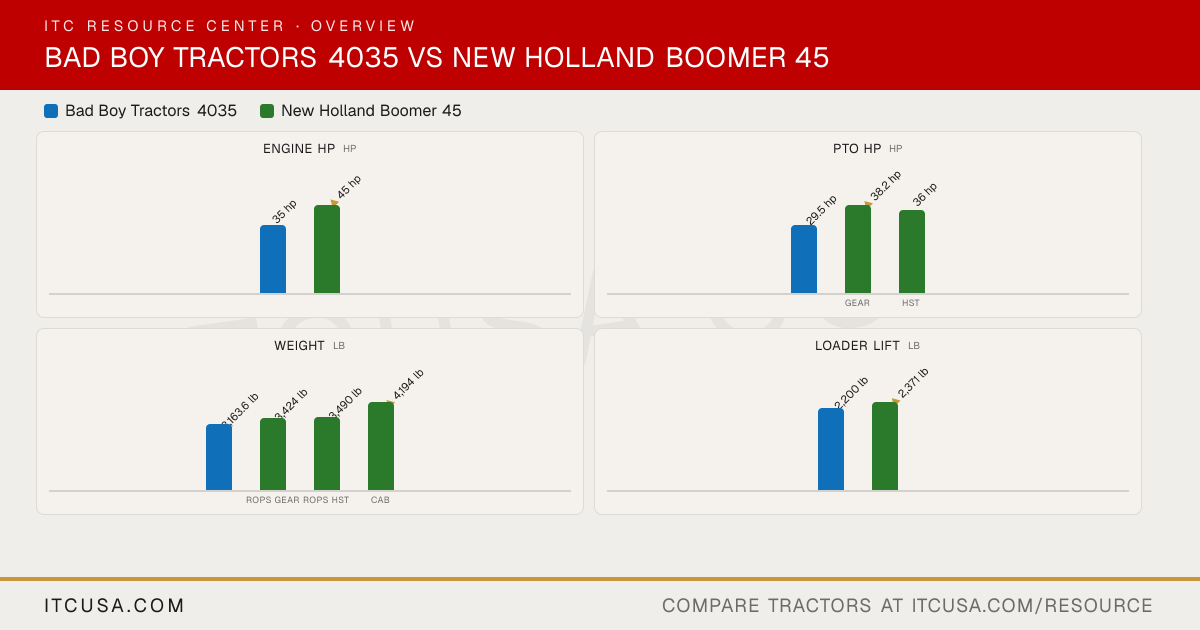

Across 9 measurable specs, the New Holland Boomer 45 leads 7 categories to 2. Machine pages: Bad Boy Tractors 4035 and New Holland Boomer 45.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	New HollandBoomer 45

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N4-BUTR_4	L3CRV-T9A
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	104.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	45 hp
PTO Power	29.5 hp	Gear: 38.2 hp; HST: 36 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Not Published	Replaceable primary and inner elements
Fuel System	Not Published	Electronically controlled common rail direct injection
Alternator	50 A, 12 V	ROPS: 70 A, 12 V; Cab: 85 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.4 gpm	Gear: 4.2 gpm; HST: 5.3 gpm
Total Hydraulic Flow	12.6 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Overall Hydraulic Pump Flow	12.6 gpm	Gear: 12.4 gpm; HST: 13.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	Up to 2	Up to 2 (second valve optional)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	ROPS: 10.5 gal; Cab: 12.4 gal
Coolant Capacity	1.32 gal	2.3 gal
Crankcase Capacity	1.14 gal	5.8 qt
Transmission / Hydraulic System Capacity	9.77 gal	11.4 gal
Front Axle Fluid Capacity	1.69 gal	2.2 gal
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Standard (2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	2,756 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,116 lb
Lift Control Type	Position control	Position control (draft control optional)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal
No. of Speeds	3 range (HST)	Gear: 16F/16R; HST: 3-range
Max Travel Speed (Forward)	19.08 mph	Gear: 17.0 mph; HST: 17.9 mph
Max Travel Speed (Reverse)	19.08 mph	Gear: 15.3 mph; HST: 11.37 mph
Clutch	None (HST)	Gear: dry single disc (10.8 in); HST: n/a
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Not Published	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests
Front Axle Type	Selectable 4WD	Four-wheel drive (FWD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	128.1 in
Overall Width	56.7 in	69.1 in
Wheelbase	65.7 in	73.2 in
Ground Clearance	15 in	15 in
Min. Turn Radius without Brakes	Not Published	111.8 in (right turn); 123.2 in (left turn) (with brake applied)
Height to Top of ROPS	96.85 in	97.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	94 in
▶Weight
Tractor Weight (Base)	3,163.6 lb	ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	8.0-16	9.5-16
R1 Agricultural - Rear	12.4-24	13.6-24
R3 Turf - Front	Not Published	28x8.50-15
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	28x8.50-15	12x16.5
R4 Industrial - Rear	43x16.00-20	17.5Lx24
▶Loader & Attachments
Quick Attach Loader System	SSQA	New Holland Quick Mount loader; optional skid steer quick attach plates
Loader Model	BBL400	260TLA
Loader Lift Height	104 in	260TLA: 109 in
Loader Lift Capacity (Full Height)	2,200 lb	260TLA: 2,371 lb
Loader Breakout Force	3,660 lb	260TLA: 4,081 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Boomer Guard6 limited warranty: 2 years/750 hours full coverage plus 4 more years of powertrain coverage (6 years/1,500 hours total)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 4035 vs New Holland Boomer 45: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the New Holland Boomer 45?

The New Holland Boomer 45 leads on engine hp at 45 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the New Holland Boomer 45?

The New Holland Boomer 45 leads on pto hp at 38.2 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035.

Which is heavier, the Bad Boy Tractors 4035 or the New Holland Boomer 45?

The New Holland Boomer 45 leads on weight at 4,194 lb lb, compared to 3,163.6 lb lb for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the New Holland Boomer 45?

The New Holland Boomer 45 leads on loader lift at 2,371 lb lb, compared to 2,200 lb lb for the Bad Boy Tractors 4035.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the New Holland Boomer 45?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,116 lb lb for the New Holland Boomer 45.
