New Holland Boomer 45 vs New Holland Workmaster 50

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the New Holland Workmaster 50 leads 6 categories to 1. Machine pages: New Holland Boomer 45 and New Holland Workmaster 50.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 45	New Holland Workmaster 50
Engine HP (hp)	45 hp	▲ 53 hp
PTO HP (hp)	38.2 hp	▲ 45 hp
Weight (lb)	4,194 lb	▲ 5,059 lb
Loader Lift (lb)	2,371 lb	n/a
3-Pt Lift (24 in) (lb)	2,116 lb	▲ 2,701 lb
Lift Height (in)	109 in	▲ 122 in
Breakout Force (lbf)	▲ 4,081 lbf	3,527 lbf
Hydraulic Flow (gpm)	13.5 gpm	▲ 17.5 gpm
Travel Speed (mph)	17.9 mph	n/a

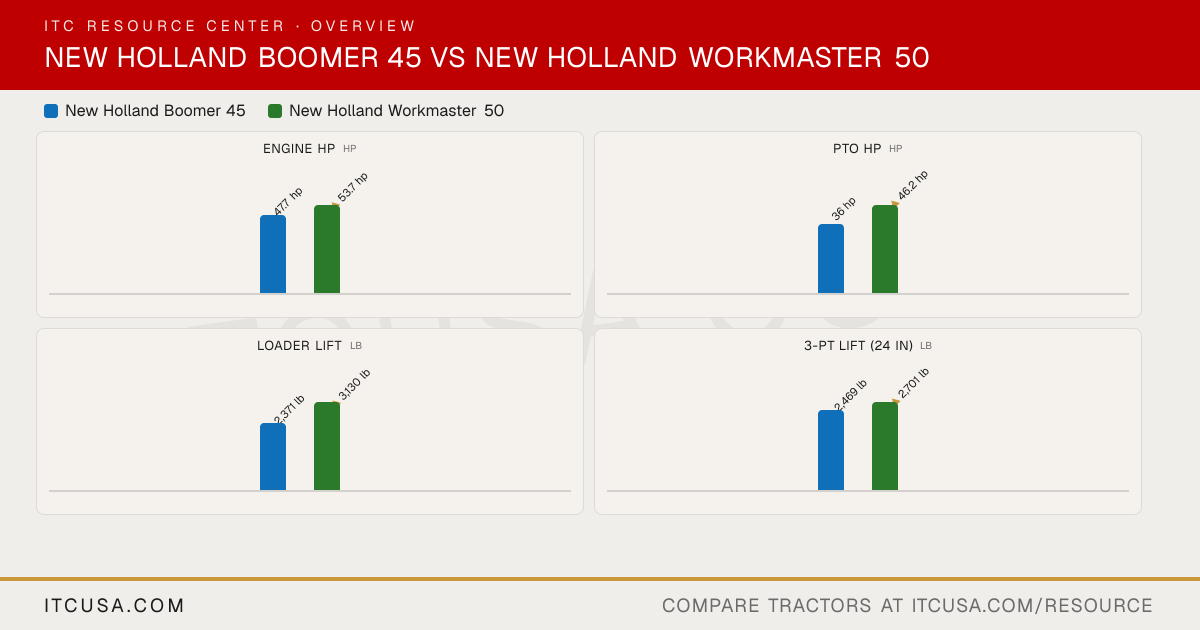

The headline numbers at a glance.

New Holland Boomer 45New Holland Workmaster 50

Engine HPhp

45 hp

▲53 hp

PTO HPhp

38.2 hp

36 hp

▲45 hp

GearHST

Weightlb

3,424 lb

3,490 lb

4,194 lb

4,442 lb

▲5,059 lb

ROPS GearROPS HSTCabROPS 2WDROPS 4WD

Loader Liftlb

2,371 lb

n/a

3-Pt Lift (24 in)lb

2,116 lb

▲2,701 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 45	New HollandWorkmaster 50


Engine Manufacturer	LS Mtron	FPT
Engine Model	L3CRV-T9A	R753
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	Turbocharged 3-cylinder diesel
No. of Cylinders	3	3
Displacement	114.7 in³	136 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	53 hp
PTO Power	Gear: 38.2 hp; HST: 36 hp	45 hp
Engine Emissions Constraints	Tier 4B (final)	Tier 4B Final
Cooling System Type	Liquid cooled	Not Published
Air Cleaner	Replaceable primary and inner elements	2-stage
Fuel System	Electronically controlled common rail direct injection	Direct injection / Common rail
Alternator	ROPS: 70 A, 12 V; Cab: 85 A, 12 V	75 A

Pump Type	Gear	Dual hydraulic pumps; open center, fixed displacement gear pump
Implement Flow	8.2 gpm	12 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	5.5 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	17.5 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	17.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	Up to 2 (second valve optional)	2

Fuel Tank Capacity	ROPS: 10.5 gal; Cab: 12.4 gal	17.2 gal
Coolant Capacity	2.3 gal	Not Published
Crankcase Capacity	5.8 qt	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published
Front Axle Fluid Capacity	2.2 gal	Not Published

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm (540E optional)
Mid-PTO Availability	Standard (2000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category II/I
Hitch Lift Capacity	2,756 lb	Not Published
Hitch Lift Capacity (at 24”)	2,116 lb	2,701 lb
Lift Control Type	Position control (draft control optional)	Position control with mechanical draft control

Transmission Type	Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	8x8 synchronized shuttle
No. of Speeds	Gear: 16F/16R; HST: 3-range	8F/8R
Max Travel Speed (Forward)	Gear: 17.0 mph; HST: 17.9 mph	Not Published
Max Travel Speed (Reverse)	Gear: 15.3 mph; HST: 11.37 mph	Not Published
Clutch	Gear: dry single disc (10.8 in); HST: n/a	Dry, 11 in diameter, organic plate
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Mechanical rear differential lock (foot pedal); 4WD front axle with limited slip and front differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Not Published
Brakes	Wet multi-disc	Individual mechanically actuated wet disc
Seat Suspension & Adjustability	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests	Deluxe contoured suspension seat, adjusts to operator height
Front Axle Type	Four-wheel drive (FWD)	4WD: limited-slip front axle with front differential lock, mechanical engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb	Not Published

Overall Width	69.1 in	67.5 in (shipping width)
Wheelbase	73.2 in	ROPS 4WD: 77.6 in
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	111.8 in (right turn); 123.2 in (left turn) (with brake applied)	Not Published
Height to Top of ROPS	97.1 in	ROPS 4WD: 97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94 in	Not Applicable
Overall Length	128.1 in	ROPS 4WD: 134 in

Tractor Weight (Base)	ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb	ROPS 2WD: 4,442 lb (shipping weight); ROPS 4WD: 5,059 lb (shipping weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 agricultural, R3 turf, R4 industrial
R1 Agricultural - Front	9.5-16	Not Published
R1 Agricultural - Rear	13.6-24	13.6x28 R1
R3 Turf - Front	28x8.50-15	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	12x16.5	Not Published
R4 Industrial - Rear	17.5Lx24	18.4x24 R4

Quick Attach Loader System	Tool-free loader mount; optional skid-steer quick-attach plates	600TL Series quick-attach loader (611TL, 621TL, 616TL, 626TL)
Loader Model	260TLA	611TL, 616TL, 621TL, 626TL (611TL and 621TL non self-leveling; 616TL and 626TL mechanical self-leveling)
Loader Lift Height	260TLA: 109 in (at pivot pin)	611TL: 112 in; 616TL: 115 in; 621TL: 119 in; 626TL: 122 in
Loader Lift Capacity (Full Height)	260TLA: 2,371 lb (at bucket pivot pin, max height)	Not Published
Loader Breakout Force	260TLA: 4,081 lb (at bucket pivot pin)	611TL: 2,998 lb; 616TL: 3,130 lb; 621TL: 3,086 lb; 626TL: 3,527 lb (at 31.5 in in front of pivot pin)

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)	Not Published

Find a New Holland dealer near you

New Holland Boomer 45 vs New Holland Workmaster 50: Quick Answers

Which has more horsepower, the New Holland Boomer 45 or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on engine hp at 53 hp hp, compared to 45 hp hp for the New Holland Boomer 45.
Which has more PTO horsepower, the New Holland Boomer 45 or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on pto hp at 45 hp hp, compared to 38.2 hp hp for the New Holland Boomer 45.
Which is heavier, the New Holland Boomer 45 or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on weight at 5,059 lb lb, compared to 4,194 lb lb for the New Holland Boomer 45.
Which has more three-point hitch lift capacity, the New Holland Boomer 45 or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on 3-pt lift (24 in) at 2,701 lb lb, compared to 2,116 lb lb for the New Holland Boomer 45.

More Head-to-Heads

Category Verdict

Spec	New Holland Boomer 45	New Holland Workmaster 50
Engine HP (hp)	45 hp	▲ 53 hp
PTO HP (hp)	38.2 hp	▲ 45 hp
Weight (lb)	4,194 lb	▲ 5,059 lb
Loader Lift (lb)	2,371 lb	n/a
3-Pt Lift (24 in) (lb)	2,116 lb	▲ 2,701 lb
Lift Height (in)	109 in	▲ 122 in
Breakout Force (lbf)	▲ 4,081 lbf	3,527 lbf
Hydraulic Flow (gpm)	13.5 gpm	▲ 17.5 gpm
Travel Speed (mph)	17.9 mph	n/a

The headline numbers at a glance.

New Holland Boomer 45New Holland Workmaster 50

Engine HPhp

45 hp

▲53 hp

PTO HPhp

38.2 hp

36 hp

▲45 hp

GearHST

Weightlb

3,424 lb

3,490 lb

4,194 lb

4,442 lb

▲5,059 lb

ROPS GearROPS HSTCabROPS 2WDROPS 4WD

Loader Liftlb

2,371 lb

n/a

3-Pt Lift (24 in)lb

2,116 lb

▲2,701 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 45	New HollandWorkmaster 50


Engine Manufacturer	LS Mtron	FPT
Engine Model	L3CRV-T9A	R753
Engine Type	3-cylinder, turbocharged, liquid-cooled diesel	Turbocharged 3-cylinder diesel
No. of Cylinders	3	3
Displacement	114.7 in³	136 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	53 hp
PTO Power	Gear: 38.2 hp; HST: 36 hp	45 hp
Engine Emissions Constraints	Tier 4B (final)	Tier 4B Final
Cooling System Type	Liquid cooled	Not Published
Air Cleaner	Replaceable primary and inner elements	2-stage
Fuel System	Electronically controlled common rail direct injection	Direct injection / Common rail
Alternator	ROPS: 70 A, 12 V; Cab: 85 A, 12 V	75 A

Pump Type	Gear	Dual hydraulic pumps; open center, fixed displacement gear pump
Implement Flow	8.2 gpm	12 gpm
Steering Flow	Gear: 4.2 gpm; HST: 5.3 gpm	5.5 gpm
Total Hydraulic Flow	Gear: 12.4 gpm; HST: 13.5 gpm	17.5 gpm
Overall Hydraulic Pump Flow	Gear: 12.4 gpm; HST: 13.5 gpm	17.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	Up to 2 (second valve optional)	2

Fuel Tank Capacity	ROPS: 10.5 gal; Cab: 12.4 gal	17.2 gal
Coolant Capacity	2.3 gal	Not Published
Crankcase Capacity	5.8 qt	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published
Front Axle Fluid Capacity	2.2 gal	Not Published

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm (540E optional)
Mid-PTO Availability	Standard (2000 rpm)	Not Published
Category, 3-Point Hitch	Category I	Category II/I
Hitch Lift Capacity	2,756 lb	Not Published
Hitch Lift Capacity (at 24”)	2,116 lb	2,701 lb
Lift Control Type	Position control (draft control optional)	Position control with mechanical draft control

Transmission Type	Gear: 16x16 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal	8x8 synchronized shuttle
No. of Speeds	Gear: 16F/16R; HST: 3-range	8F/8R
Max Travel Speed (Forward)	Gear: 17.0 mph; HST: 17.9 mph	Not Published
Max Travel Speed (Reverse)	Gear: 15.3 mph; HST: 11.37 mph	Not Published
Clutch	Gear: dry single disc (10.8 in); HST: n/a	Dry, 11 in diameter, organic plate
Differential Lock & Limited Slip Options	Mechanical rear differential lock (pedal)	Mechanical rear differential lock (foot pedal); 4WD front axle with limited slip and front differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Not Published
Brakes	Wet multi-disc	Individual mechanically actuated wet disc
Seat Suspension & Adjustability	ROPS: adjustable suspension seat (fore/aft, weight and height adjustment); Cab: cloth suspension seat with weight control, fore/aft adjustment and adjustable armrests	Deluxe contoured suspension seat, adjusts to operator height
Front Axle Type	Four-wheel drive (FWD)	4WD: limited-slip front axle with front differential lock, mechanical engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Short position: 2,317 lb; Regular position: 1,598 lb; Extended position: 1,091 lb	Not Published

Overall Width	69.1 in	67.5 in (shipping width)
Wheelbase	73.2 in	ROPS 4WD: 77.6 in
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	111.8 in (right turn); 123.2 in (left turn) (with brake applied)	Not Published
Height to Top of ROPS	97.1 in	ROPS 4WD: 97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	94 in	Not Applicable
Overall Length	128.1 in	ROPS 4WD: 134 in

Tractor Weight (Base)	ROPS Gear: 3,424 lb; ROPS HST: 3,490 lb; Cab: 4,194 lb	ROPS 2WD: 4,442 lb (shipping weight); ROPS 4WD: 5,059 lb (shipping weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 agricultural, R3 turf, R4 industrial
R1 Agricultural - Front	9.5-16	Not Published
R1 Agricultural - Rear	13.6-24	13.6x28 R1
R3 Turf - Front	28x8.50-15	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	12x16.5	Not Published
R4 Industrial - Rear	17.5Lx24	18.4x24 R4

Quick Attach Loader System	Tool-free loader mount; optional skid-steer quick-attach plates	600TL Series quick-attach loader (611TL, 621TL, 616TL, 626TL)
Loader Model	260TLA	611TL, 616TL, 621TL, 626TL (611TL and 621TL non self-leveling; 616TL and 626TL mechanical self-leveling)
Loader Lift Height	260TLA: 109 in (at pivot pin)	611TL: 112 in; 616TL: 115 in; 621TL: 119 in; 626TL: 122 in
Loader Lift Capacity (Full Height)	260TLA: 2,371 lb (at bucket pivot pin, max height)	Not Published
Loader Breakout Force	260TLA: 4,081 lb (at bucket pivot pin)	611TL: 2,998 lb; 616TL: 3,130 lb; 621TL: 3,086 lb; 626TL: 3,527 lb (at 31.5 in in front of pivot pin)

Warranty Length & Coverage	Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)	Not Published

Find a New Holland dealer near you

New Holland Boomer 45 vs New Holland Workmaster 50: Quick Answers

Which has more horsepower, the New Holland Boomer 45 or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on engine hp at 53 hp hp, compared to 45 hp hp for the New Holland Boomer 45.

Which has more PTO horsepower, the New Holland Boomer 45 or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on pto hp at 45 hp hp, compared to 38.2 hp hp for the New Holland Boomer 45.

Which is heavier, the New Holland Boomer 45 or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on weight at 5,059 lb lb, compared to 4,194 lb lb for the New Holland Boomer 45.

Which has more three-point hitch lift capacity, the New Holland Boomer 45 or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on 3-pt lift (24 in) at 2,701 lb lb, compared to 2,116 lb lb for the New Holland Boomer 45.
