New Holland Boomer 55 vs New Holland T3.60F

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 4 measurable specs, this matchup is a dead heat: 2 categories to the New Holland Boomer 55, 2 to the New Holland T3.60F. Machine pages: New Holland Boomer 55 and New Holland T3.60F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Boomer 55	New Holland T3.60F
Engine HP (hp)	▲ 57.8 hp	54 hp
PTO HP (hp)	▲ 44 hp	40 hp
Loader Lift (lb)	2,371 lb	—
3-Pt Lift (24 in) (lb)	2,469 lb	▲ 4,000 lb
Lift Height (in)	109 in	—
Breakout Force (lbf)	4,081 lbf	—
Hydraulic Flow (gpm)	14.8 gpm	▲ 20.2 gpm
Travel Speed (mph)	16.8 mph	—

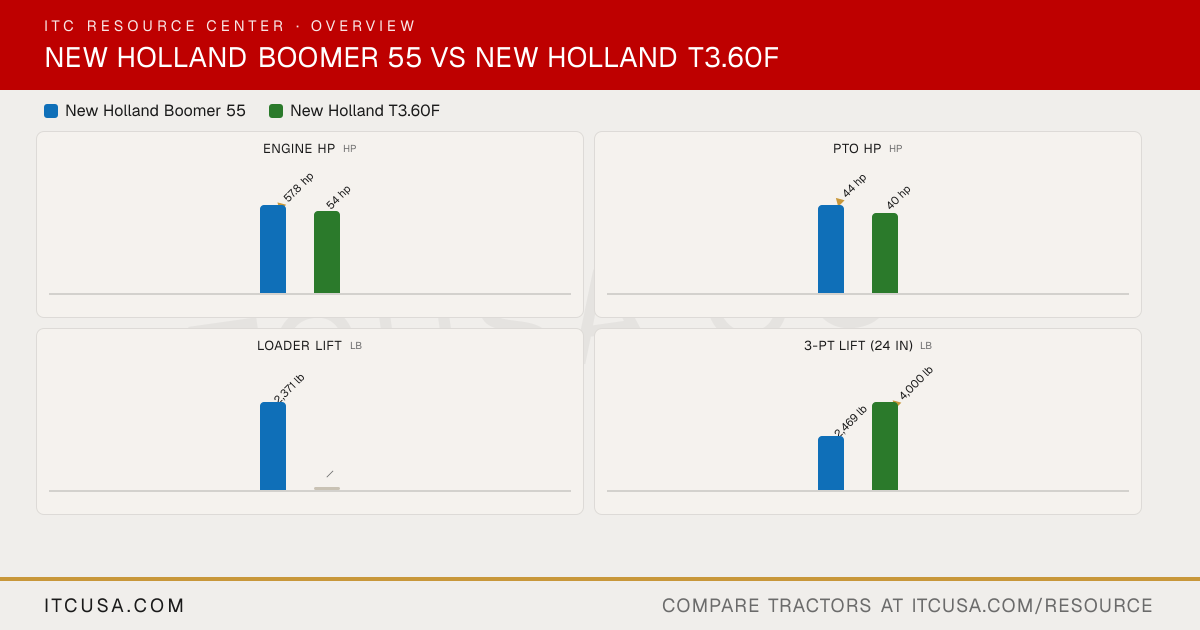

The headline numbers at a glance.

New Holland Boomer 55New Holland T3.60F

Engine HPhp

▲57.8 hp

54 hp

PTO HPhp

▲44 hp

40 hp

Weightlb

—

Loader Liftlb

2,371 lb

—

3-Pt Lift (24 in)lb

2,469 lb

▲4,000 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandBoomer 55	New HollandT3.60F


PTO Power	44 hp	40 hp
Alternator	70 A, 12 V	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Water-cooled, 4-stroke common rail turbocharged diesel	Turbocharged, intercooled 3-cylinder diesel
Fuel System	High pressure common rail (ECU controlled)	Common rail fuel injection
Displacement	0.1 in³	179 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2300 rpm
Cooling System Type	Pressurized liquid w/ recirculating bypass	Not Published
Engine Manufacturer	LS Mtron	FPT Industrial
Engine Power (Gross)	57.8 hp @ 600 rpm	54 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4B CEGR + DOC

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	6-year limited powertrain, 2-year full coverage	Not Published

Pump Type	Gear	Dual-pump
Steering Flow	HST: 6.3 gpm; Gear: 4.2 gpm	7.6 gpm
Implement Flow	8.5 gpm	12.6 gpm
Total Hydraulic Flow	HST: 14.8 gpm; Gear: 12.7 gpm	20.2 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	HST: 14.8 gpm; Gear: 12.7 gpm	20.2 gpm
No. of Optional Remote Valves	1	3
No. of Standard Remote Valves	1	2

PTO Rear	540 rpm	540/540E
PTO Type	Independent, electro-hydraulic engagement	Not Published
Lift Control Type	Position control	Lift-O-Matic
Hitch Lift Capacity	2,756 lb	Not Published
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	Category I	Not Published
Hitch Lift Capacity (at 24”)	2,469 lb	4,000 lb

R3 Turf - Rear	41X14.00-20	Not Published
R3 Turf - Front	28X8.50-15	Not Published
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Not Published
R4 Industrial - Rear	17.5LX24	Not Published
R4 Industrial - Front	12X16.5	Not Published
R1 Agricultural - Rear	13.6-24	320/70R20
R1 Agricultural - Front	9.5-16	Not Published

Coolant Capacity	2.3 gal	Not Published
Crankcase Capacity	5.8 qt	Not Published
Fuel Tank Capacity	11.0 gal	Not Published
Front Axle Fluid Capacity	2.2 gal	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published

Loader Lift Height	109 in	Not Published
Loader Breakout Force	4,081 lb	Not Published
Quick Attach Loader System	260TLA: New Holland Quick Mount; optional skid steer quick attach plates	Not Published
Loader Lift Capacity (Full Height)	2,371 lb	Not Published

Clutch	HST: Not Applicable; Gear: Dry disc	Not Published
No. of Speeds	HST: 3-range; Gear: 16F/16R	12F/12R
Transmission Type	HST: 3-range hydrostatic; Gear: 16x16	12x12 Mechanical Shuttle
Max Travel Speed (Forward)	HST: 15.63 mph; Gear: 16.8 mph	Not Published
Max Travel Speed (Reverse)	HST: 11.37 mph; Gear: 15.3 mph	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Brakes	Wet disc	Not Published
Steering	Power steering	Not Published
Frame Type	Not Published	Straddle-deck platform
Front Axle Type	4WD (FWD)	4WD front axle (electronic engagement)
Drawbar Capacity	Short: 2,317 lb; Regular: 1,598 lb; Extend: 1,091 lb	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Vinyl suspension seat

Wheelbase	73 in	73 in
Overall Width	63 in	57 in
Ground Clearance	15 in	Not Published
Height to Top of ROPS	96 in	97 in
Height to Top of Cab Model	91 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	142 in	143 in
