New Holland TC30 vs New Holland Workmaster 25S
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the New Holland TC30 leads 7 categories to 2. Machine pages: New Holland TC30 and New Holland Workmaster 25S.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

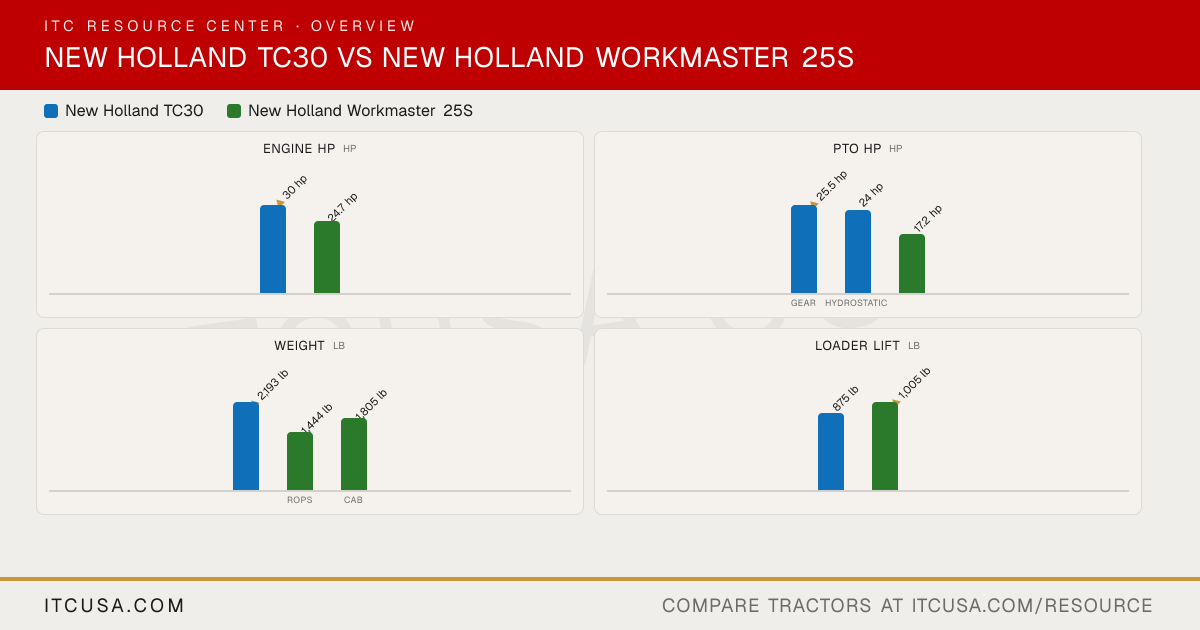

Category Verdict
| Spec | New Holland TC30 | New Holland Workmaster 25S |
|---|---|---|
| Engine HP (hp) | ▲ 30 hp | 24.7 hp |
| PTO HP (hp) | ▲ 25.5 hp | 17.2 hp |
| Weight (lb) | ▲ 2,193 lb | 1,805 lb |
| Loader Lift (lb) | 875 lb | ▲ 1,005 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 1,635 lb | 728 lb |
| Lift Height (in) | ▲ 100.5 in | 72 in |
| Breakout Force (lbf) | 1,602 lbf | ▲ 2,078 lbf |
| Hydraulic Flow (gpm) | ▲ 10 gpm | 6.7 gpm |
| Travel Speed (mph) | ▲ 14.5 mph | 9.1 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | New HollandTC30 | New HollandWorkmaster 25S |
|---|
| Engine Manufacturer | Shibaura | Yanmar |
|---|---|---|
| Engine Model | N843 | 3TNV80F |
| Engine Type | 3-cylinder naturally aspirated diesel | 3-cylinder, naturally aspirated, liquid-cooled diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 91.3 in³ | 77.3 in³ |
| Rated Engine Speed | 2600 rpm | 3000 rpm |
| Engine Power (Gross) | 30 hp | 24.7 hp |
| PTO Power | Gear: 25.5 hp; Hydrostatic: 24 hp | 17.2 hp |
| Engine Emissions Constraints | Not Published | Tier 4 |
| Cooling System Type | Liquid-cooled | Pressurized liquid with recirculating bypass |
| Air Cleaner | Not Published | Single-element dry air cleaner |
| Fuel System | Not Published | In-line injection pump, indirect injection (swirl chamber) |
| Alternator | Not Published | 40 A, 12 V |
New Holland TC30 vs New Holland Workmaster 25S: Quick Answers
- Which has more horsepower, the New Holland TC30 or the New Holland Workmaster 25S?
- The New Holland TC30 leads on engine hp at 30 hp hp, compared to 24.7 hp hp for the New Holland Workmaster 25S.
- Which has more PTO horsepower, the New Holland TC30 or the New Holland Workmaster 25S?
- The New Holland TC30 leads on pto hp at 25.5 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
- Which is heavier, the New Holland TC30 or the New Holland Workmaster 25S?
- The New Holland TC30 leads on weight at 2,193 lb lb, compared to 1,805 lb lb for the New Holland Workmaster 25S.
- Which has more loader lift capacity, the New Holland TC30 or the New Holland Workmaster 25S?
- The New Holland Workmaster 25S leads on loader lift at 1,005 lb lb, compared to 875 lb lb for the New Holland TC30.
- Which has more three-point hitch lift capacity, the New Holland TC30 or the New Holland Workmaster 25S?
- The New Holland TC30 leads on 3-pt lift (24 in) at 1,635 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
