Bad Boy Tractors 4035 Cab vs New Holland TC30

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 9 categories to 0. Machine pages: Bad Boy Tractors 4035 Cab and New Holland TC30.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	New HollandTC30

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A1700N4-BUTC_4	N843
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder naturally aspirated diesel
No. of Cylinders	3	3
Displacement	104.7 in³	91.3 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	30 hp
PTO Power	29.5 hp	Gear: 25.5 hp; Hydrostatic: 24 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	6.2 gpm
Steering Flow	4.4 gpm	3.8 gpm
Total Hydraulic Flow	12.6 gpm	10.0 gpm (6.2 + 3.8, computed)
Overall Hydraulic Pump Flow	12.6 gpm	10.0 gpm (6.2 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.1 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Live (FWD); transmission-driven (2WD gear)
PTO Rear	540 rpm	Gear 2WD: transmission-driven 540 rpm; Gear FWD: live 540 rpm; Hydrostatic FWD: live 540 rpm
Mid-PTO Availability	Not Published	Optional on gear transmission: 2WD gear transmission-driven with overrunning clutch, 2000 rpm; FWD gear and hydrostatic: live 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	1,635 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Gear: 9x3; Hydrostatic: 3-range (FWD only)
No. of Speeds	3 range (HST)	Gear: 9F/3R; Hydrostatic: 3 ranges
Max Travel Speed (Forward)	18.21 mph	Gear: 12.9 mph (R1 tires), 12.1 mph (R4 tires); Hydrostatic: 14.5 mph (R1 tires), 13.6 mph (R4 tires)
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical rear differential lock (heel pedal)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power steering
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Padded contoured seat on an inclined track
Front Axle Type	Selectable 4WD	FWD (standard); 2WD (optional)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	2WD, ag tires: 108.9 in; FWD, R4 tires: 111.4 in (both with 3-point hitch raised)
Overall Width	56.3 in	54.3 in (minimum, ag tires); 62 in (R4 tires)
Wheelbase	65.7 in	63.0 in
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	Not Published	82.3 in (R4 tires)
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	2,193 lb (2WD, ag tires, 9x3 gear); 2,385 lb (FWD, R4 tires, 9x3 gear)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Ag 7.4x14 / 11.2x24; R3 Turf 24x8.50-14 / 13.6x16; R4 Industrial 25x8.50-14 / 15x19.5
R1 Agricultural - Front	7-16	Not Published
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	Not Published	24x8.50-14
R3 Turf - Rear	Not Published	13.6x16
R4 Industrial - Front	28x8.50-15	25x8.50-14
R4 Industrial - Rear	43x16.00-20	15x19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL400	7308
Loader Lift Height	104 in	7308: 100.5 in
Loader Lift Capacity (Full Height)	2,200 lb	7308: 875 lb
Loader Breakout Force	3,660 lb	7308: 1,602 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 4035 Cab vs New Holland TC30: Quick Answers

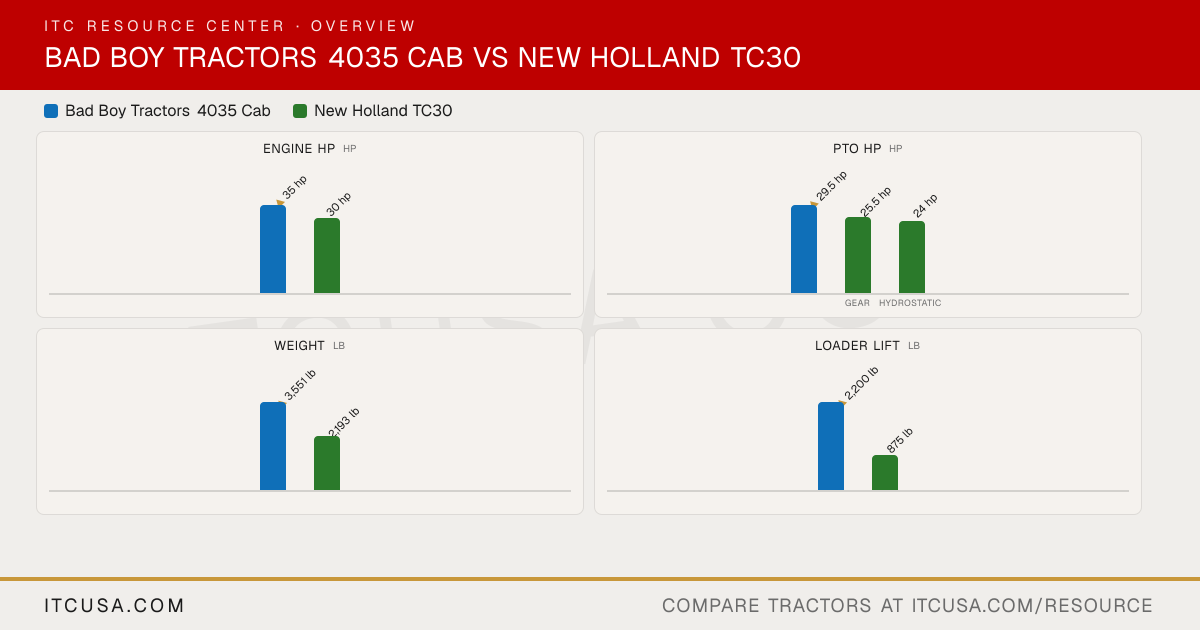

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the New Holland TC30?

The Bad Boy Tractors 4035 Cab leads on engine hp at 35 hp hp, compared to 30 hp hp for the New Holland TC30.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the New Holland TC30?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 25.5 hp hp for the New Holland TC30.

Which is heavier, the Bad Boy Tractors 4035 Cab or the New Holland TC30?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 2,193 lb lb for the New Holland TC30.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the New Holland TC30?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 875 lb lb for the New Holland TC30.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the New Holland TC30?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,635 lb lb for the New Holland TC30.
