New Holland TC45DA vs New Holland Workmaster 40C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the New Holland TC45DA leads 8 categories to 0. Machine pages: New Holland TC45DA and New Holland Workmaster 40C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland TC45DA	New Holland Workmaster 40C
Engine HP (hp)	▲ 45 hp	40 hp
PTO HP (hp)	▲ 37.8 hp	35.9 hp
Weight (lb)	▲ 3,565 lb	3,073 lb
Loader Lift (lb)	▲ 2,000 lb	1,344 lb
3-Pt Lift (24 in) (lb)	▲ 2,330 lb	1,596 lb
Lift Height (in)	▲ 106 in	92 in
Breakout Force (lbf)	▲ 3,540 lbf	2,138 lbf
Hydraulic Flow (gpm)	▲ 14.9 gpm	13.3 gpm
Travel Speed (mph)	n/a	14.9 mph

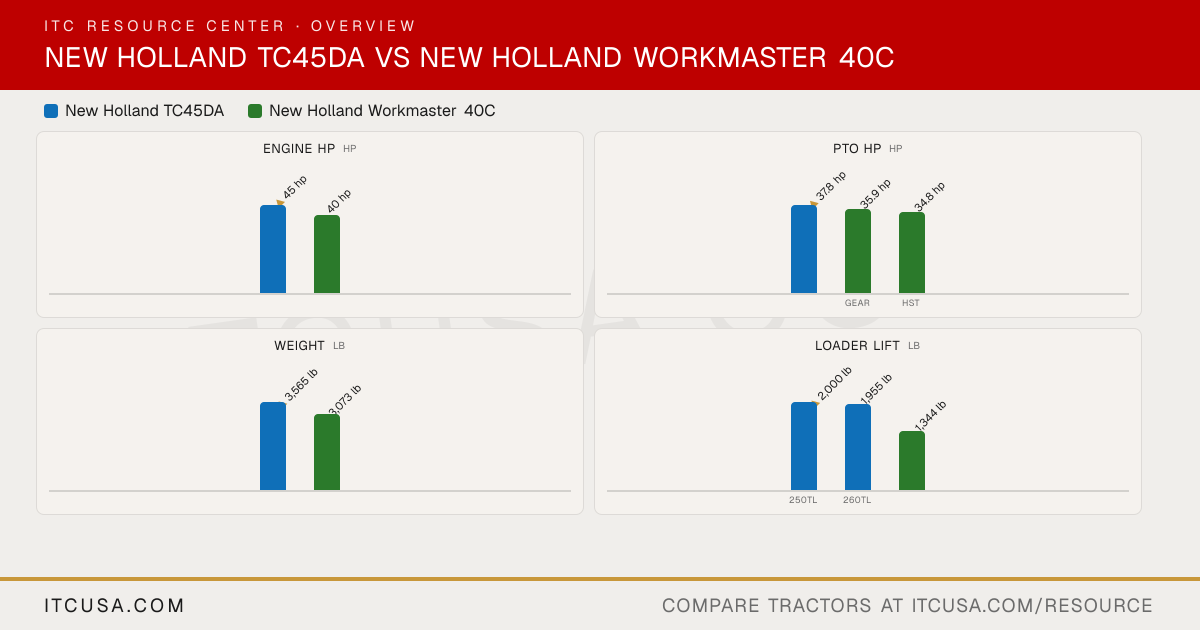

The headline numbers at a glance.

New Holland TC45DANew Holland Workmaster 40C

Engine HPhp

▲45 hp

40 hp

PTO HPhp

▲37.8 hp

35.9 hp

34.8 hp

GearHST

Weightlb

▲3,565 lb

3,073 lb

Loader Liftlb

▲2,000 lb

1,955 lb

1,344 lb

250TL260TL

3-Pt Lift (24 in)lb

▲2,330 lb

1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandTC45DA	New HollandWorkmaster 40C


Engine Manufacturer	Shibaura	LS Mtron
Engine Model	N844L	Not Published
Engine Type	4-cylinder diesel	3-cylinder, turbocharged diesel
No. of Cylinders	4	3
Displacement	135.2 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	40 hp
PTO Power	37.8 hp	Gear: 35.9 hp; HST: 34.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Dual dry element	Dual-element
Fuel System	Not Published	Common rail direct injection
Alternator	40 A	70 A

Pump Type	Gear pump	Dual pump (dedicated steering pump)
Implement Flow	9.8 gpm	8.4 gpm
Steering Flow	5.1 gpm	4.9 gpm
Total Hydraulic Flow	14.9 gpm	13.3 gpm
Overall Hydraulic Pump Flow	14.9 gpm	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0 (rear remotes optional)
No. of Optional Remote Valves	3 rear (optional); 2 mid (optional)	Up to 3

Fuel Tank Capacity	13 gal	12.6 gal
Coolant Capacity	8.4 qt	Not Published
Crankcase Capacity	6.3 qt	Not Published
Transmission / Hydraulic System Capacity	38 qt	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 rpm (1.375 in) at 2400 engine rpm	540 rpm
Mid-PTO Availability	Optional (with hydrostatic transmission)	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	Not Published	2067 lb
Hitch Lift Capacity (at 24”)	2,330 lb	1596 lb
Lift Control Type	Deluxe 3-point hitch with flexible link ends, telescoping stabilizers, swinging drawbar and crank-style leveling (most models)	Position control with drop-rate control

Transmission Type	2-range hydrostatic with DualPower Hi/Lo powershift	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	Infinite (2 hydrostatic ranges, each with DualPower High/Low)	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	Not Published	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering (dedicated steering pump)
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Accommodator seat on an inclined sliding track, 3 in of vertical suspension, swivels up to 20 degrees (5 positions); cab: cloth seat with weight-adjustable suspension	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	FWD (standard); SuperSteer FWD with Sensitrak automatic 4WD engagement (optional); 2WD not available	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	FWD: 125.2 in; SuperSteer FWD: 129.5 in	133 in
Overall Width	66.6 in (ag tires)	65.4 in
Wheelbase	FWD: 73.5 in; SuperSteer FWD: 81.0 in	66 in
Ground Clearance	Not Published	12.7 in
Min. Turn Radius without Brakes	Not Published	123.2 in
Height to Top of ROPS	95 in	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	90.1 in (R4 tires)	Not Published

Tractor Weight (Base)	3,565 lb (FWD ROPS, R4 tires); 4,115 lb (TC45DA CAB)	3073 lb
Weight with ROPS and Loader	4,770 lb	4142 lb
Weight with Cab and Loader	5,320 lb	Not Published

Tire Size & Options	Agricultural, industrial or turf tires; Galaxy Turf Special available from the factory	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	2WD: 5.50-16 or 7.50-15; 4WD: 7-16 or 8-16	Not Published
R1 Agricultural - Rear	13.6-24 or 14.9-24	Not Published
R3 Turf - Front	2WD: 25x8.50-14; 4WD: 27x8.50-15	Not Published
R3 Turf - Rear	44x18-20	Not Published
R4 Industrial - Front	10-16.5	25x8.50-14
R4 Industrial - Rear	17.5-24	43x16-20

Quick Attach Loader System	Quick-Mount loader mounting; pin-on or quick-attach buckets	Skid steer quick attach
Loader Model	250TL (non SuperSteer); 260TL (with SuperSteer)	250LC
Loader Lift Height	250TL: 105 in; 260TL: 106 in	250LC: 92 in
Loader Lift Capacity (Full Height)	250TL: 2,000 lb; 260TL: 1,955 lb (at pins, max height)	250LC: 1344 lb
Loader Breakout Force	250TL: 3,540 lb; 260TL: 3,254 lb (at pins)	250LC: 2,138 lb

Warranty Length & Coverage	Not Published	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain

Find a New Holland dealer near you

New Holland TC45DA vs New Holland Workmaster 40C: Quick Answers

Which has more horsepower, the New Holland TC45DA or the New Holland Workmaster 40C?: The New Holland TC45DA leads on engine hp at 45 hp hp, compared to 40 hp hp for the New Holland Workmaster 40C.
Which has more PTO horsepower, the New Holland TC45DA or the New Holland Workmaster 40C?: The New Holland TC45DA leads on pto hp at 37.8 hp hp, compared to 35.9 hp hp for the New Holland Workmaster 40C.
Which is heavier, the New Holland TC45DA or the New Holland Workmaster 40C?: The New Holland TC45DA leads on weight at 3,565 lb lb, compared to 3,073 lb lb for the New Holland Workmaster 40C.
Which has more loader lift capacity, the New Holland TC45DA or the New Holland Workmaster 40C?: The New Holland TC45DA leads on loader lift at 2,000 lb lb, compared to 1,344 lb lb for the New Holland Workmaster 40C.
Which has more three-point hitch lift capacity, the New Holland TC45DA or the New Holland Workmaster 40C?: The New Holland TC45DA leads on 3-pt lift (24 in) at 2,330 lb lb, compared to 1,596 lb lb for the New Holland Workmaster 40C.

More Head-to-Heads

Category Verdict

Spec	New Holland TC45DA	New Holland Workmaster 40C
Engine HP (hp)	▲ 45 hp	40 hp
PTO HP (hp)	▲ 37.8 hp	35.9 hp
Weight (lb)	▲ 3,565 lb	3,073 lb
Loader Lift (lb)	▲ 2,000 lb	1,344 lb
3-Pt Lift (24 in) (lb)	▲ 2,330 lb	1,596 lb
Lift Height (in)	▲ 106 in	92 in
Breakout Force (lbf)	▲ 3,540 lbf	2,138 lbf
Hydraulic Flow (gpm)	▲ 14.9 gpm	13.3 gpm
Travel Speed (mph)	n/a	14.9 mph

The headline numbers at a glance.

New Holland TC45DANew Holland Workmaster 40C

Engine HPhp

▲45 hp

40 hp

PTO HPhp

▲37.8 hp

35.9 hp

34.8 hp

GearHST

Weightlb

▲3,565 lb

3,073 lb

Loader Liftlb

▲2,000 lb

1,955 lb

1,344 lb

250TL260TL

3-Pt Lift (24 in)lb

▲2,330 lb

1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandTC45DA	New HollandWorkmaster 40C


Engine Manufacturer	Shibaura	LS Mtron
Engine Model	N844L	Not Published
Engine Type	4-cylinder diesel	3-cylinder, turbocharged diesel
No. of Cylinders	4	3
Displacement	135.2 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	40 hp
PTO Power	37.8 hp	Gear: 35.9 hp; HST: 34.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid cooled
Air Cleaner	Dual dry element	Dual-element
Fuel System	Not Published	Common rail direct injection
Alternator	40 A	70 A

Pump Type	Gear pump	Dual pump (dedicated steering pump)
Implement Flow	9.8 gpm	8.4 gpm
Steering Flow	5.1 gpm	4.9 gpm
Total Hydraulic Flow	14.9 gpm	13.3 gpm
Overall Hydraulic Pump Flow	14.9 gpm	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0 (rear remotes optional)
No. of Optional Remote Valves	3 rear (optional); 2 mid (optional)	Up to 3

Fuel Tank Capacity	13 gal	12.6 gal
Coolant Capacity	8.4 qt	Not Published
Crankcase Capacity	6.3 qt	Not Published
Transmission / Hydraulic System Capacity	38 qt	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 rpm (1.375 in) at 2400 engine rpm	540 rpm
Mid-PTO Availability	Optional (with hydrostatic transmission)	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	Not Published	2067 lb
Hitch Lift Capacity (at 24”)	2,330 lb	1596 lb
Lift Control Type	Deluxe 3-point hitch with flexible link ends, telescoping stabilizers, swinging drawbar and crank-style leveling (most models)	Position control with drop-rate control

Transmission Type	2-range hydrostatic with DualPower Hi/Lo powershift	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	Infinite (2 hydrostatic ranges, each with DualPower High/Low)	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	Not Published	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering (dedicated steering pump)
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Accommodator seat on an inclined sliding track, 3 in of vertical suspension, swivels up to 20 degrees (5 positions); cab: cloth seat with weight-adjustable suspension	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	FWD (standard); SuperSteer FWD with Sensitrak automatic 4WD engagement (optional); 2WD not available	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	FWD: 125.2 in; SuperSteer FWD: 129.5 in	133 in
Overall Width	66.6 in (ag tires)	65.4 in
Wheelbase	FWD: 73.5 in; SuperSteer FWD: 81.0 in	66 in
Ground Clearance	Not Published	12.7 in
Min. Turn Radius without Brakes	Not Published	123.2 in
Height to Top of ROPS	95 in	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	90.1 in (R4 tires)	Not Published

Tractor Weight (Base)	3,565 lb (FWD ROPS, R4 tires); 4,115 lb (TC45DA CAB)	3073 lb
Weight with ROPS and Loader	4,770 lb	4142 lb
Weight with Cab and Loader	5,320 lb	Not Published

Tire Size & Options	Agricultural, industrial or turf tires; Galaxy Turf Special available from the factory	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	2WD: 5.50-16 or 7.50-15; 4WD: 7-16 or 8-16	Not Published
R1 Agricultural - Rear	13.6-24 or 14.9-24	Not Published
R3 Turf - Front	2WD: 25x8.50-14; 4WD: 27x8.50-15	Not Published
R3 Turf - Rear	44x18-20	Not Published
R4 Industrial - Front	10-16.5	25x8.50-14
R4 Industrial - Rear	17.5-24	43x16-20

Quick Attach Loader System	Quick-Mount loader mounting; pin-on or quick-attach buckets	Skid steer quick attach
Loader Model	250TL (non SuperSteer); 260TL (with SuperSteer)	250LC
Loader Lift Height	250TL: 105 in; 260TL: 106 in	250LC: 92 in
Loader Lift Capacity (Full Height)	250TL: 2,000 lb; 260TL: 1,955 lb (at pins, max height)	250LC: 1344 lb
Loader Breakout Force	250TL: 3,540 lb; 260TL: 3,254 lb (at pins)	250LC: 2,138 lb

Warranty Length & Coverage	Not Published	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain

Find a New Holland dealer near you

New Holland TC45DA vs New Holland Workmaster 40C: Quick Answers

Which has more horsepower, the New Holland TC45DA or the New Holland Workmaster 40C?

The New Holland TC45DA leads on engine hp at 45 hp hp, compared to 40 hp hp for the New Holland Workmaster 40C.

Which has more PTO horsepower, the New Holland TC45DA or the New Holland Workmaster 40C?

The New Holland TC45DA leads on pto hp at 37.8 hp hp, compared to 35.9 hp hp for the New Holland Workmaster 40C.

Which is heavier, the New Holland TC45DA or the New Holland Workmaster 40C?

The New Holland TC45DA leads on weight at 3,565 lb lb, compared to 3,073 lb lb for the New Holland Workmaster 40C.

Which has more loader lift capacity, the New Holland TC45DA or the New Holland Workmaster 40C?

The New Holland TC45DA leads on loader lift at 2,000 lb lb, compared to 1,344 lb lb for the New Holland Workmaster 40C.

Which has more three-point hitch lift capacity, the New Holland TC45DA or the New Holland Workmaster 40C?

The New Holland TC45DA leads on 3-pt lift (24 in) at 2,330 lb lb, compared to 1,596 lb lb for the New Holland Workmaster 40C.
