New Holland TC45DA vs New Holland Workmaster 50

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the New Holland Workmaster 50 leads 6 categories to 1. Machine pages: New Holland TC45DA and New Holland Workmaster 50.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland TC45DA	New Holland Workmaster 50
Engine HP (hp)	45 hp	▲ 53 hp
PTO HP (hp)	37.8 hp	▲ 45 hp
Weight (lb)	3,565 lb	▲ 5,059 lb
Loader Lift (lb)	2,000 lb	n/a
3-Pt Lift (24 in) (lb)	2,330 lb	▲ 2,701 lb
Lift Height (in)	106 in	▲ 122 in
Breakout Force (lbf)	▲ 3,540 lbf	3,527 lbf
Hydraulic Flow (gpm)	14.9 gpm	▲ 17.5 gpm

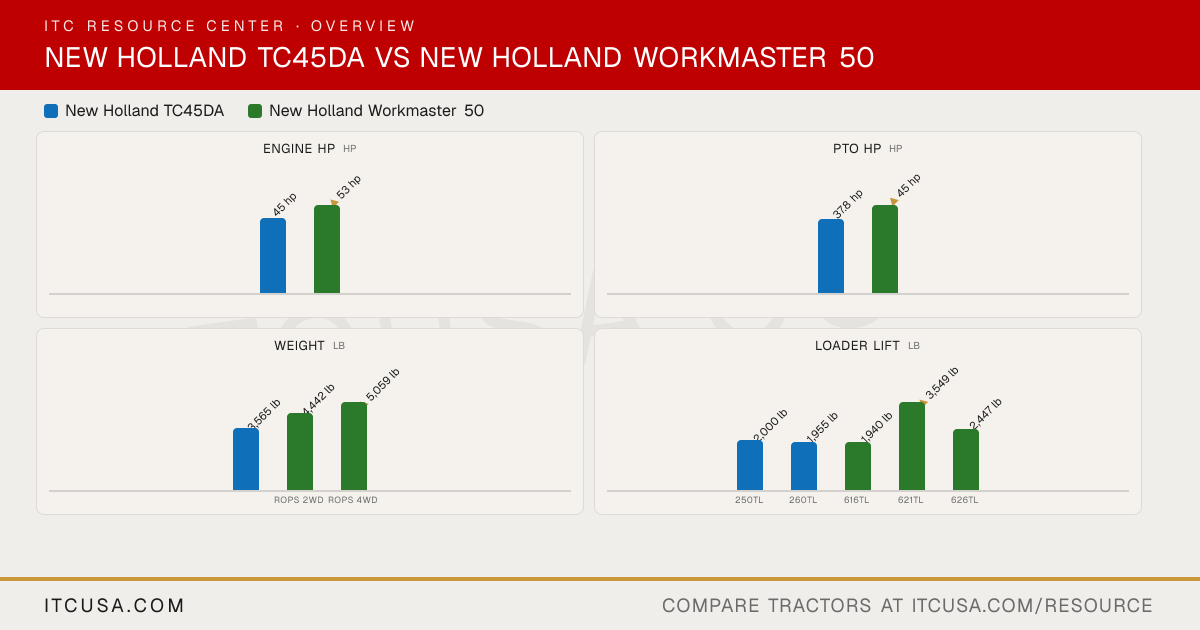

The headline numbers at a glance.

New Holland TC45DANew Holland Workmaster 50

Engine HPhp

45 hp

▲53 hp

PTO HPhp

37.8 hp

▲45 hp

Weightlb

3,565 lb

4,442 lb

▲5,059 lb

ROPS 2WDROPS 4WD

Loader Liftlb

▲2,000 lb

1,955 lb

n/a

250TL260TL

3-Pt Lift (24 in)lb

2,330 lb

▲2,701 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandTC45DA	New HollandWorkmaster 50


Engine Manufacturer	Shibaura	FPT
Engine Model	N844L	R753
Engine Type	4-cylinder diesel	Turbocharged 3-cylinder diesel
No. of Cylinders	4	3
Displacement	135.2 in³	136 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	53 hp
PTO Power	37.8 hp	45 hp
Engine Emissions Constraints	Not Published	Tier 4B Final
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Dual dry element	2-stage
Fuel System	Not Published	Direct injection / Common rail
Alternator	40 A	75 A

Pump Type	Gear pump	Dual hydraulic pumps; open center, fixed displacement gear pump
Implement Flow	9.8 gpm	12 gpm
Steering Flow	5.1 gpm	5.5 gpm
Total Hydraulic Flow	14.9 gpm	17.5 gpm
Overall Hydraulic Pump Flow	14.9 gpm	17.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	3 rear (optional); 2 mid (optional)	2

Fuel Tank Capacity	13 gal	17.2 gal
Coolant Capacity	8.4 qt	Not Published
Crankcase Capacity	6.3 qt	Not Published
Transmission / Hydraulic System Capacity	38 qt	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm (1.375 in) at 2400 engine rpm	540 rpm (540E optional)
Mid-PTO Availability	Optional (with hydrostatic transmission)	Not Published
Category, 3-Point Hitch	Category I	Category II/I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	2,330 lb	2,701 lb
Lift Control Type	Deluxe three-point hitch with flexible link ends, telescoping stabilizers, swinging drawbar and crank-style leveling (most models)	Position control with mechanical draft control

Transmission Type	2-range hydrostatic with DualPower Hi/Lo powershift	8x8 synchronized shuttle
No. of Speeds	2 hydrostatic ranges, each with DualPower High/Low	8F/8R
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Dry, 11 in diameter, organic plate
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock (foot pedal); 4WD front axle with limited slip and front differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Not Published
Brakes	Wet disc	Individual mechanically actuated wet disc
Seat Suspension & Adjustability	Seat on an inclined sliding track, three inches of vertical suspension, swivels up to 20° (5 positions); cab: cloth seat with weight-adjustable suspension	Deluxe contoured suspension seat, adjusts to operator height
Front Axle Type	FWD (standard); SuperSteer FWD with Sensitrak automatic FWD (optional); 2WD not available	4WD: limited-slip front axle with front differential lock, mechanical engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.6 in (ag tires)	67.5 in (shipping width)
Wheelbase	FWD: 73.5 in; SuperSteer FWD: 81.0 in	ROPS 4WD: 77.6 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	95 in	ROPS 4WD: 97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	90.1 in (R4 tires)	Not Applicable
Overall Length	FWD: 125.2 in (with 3-point hitch); SuperSteer FWD: 129.5 in	ROPS 4WD: 134 in

Tractor Weight (Base)	3,565 lb (FWD ROPS, R4 tires); 4,115 lb (TC45DA CAB)	ROPS 2WD: 4,442 lb (shipping weight); ROPS 4WD: 5,059 lb (shipping weight)
Weight with ROPS and Loader	4,770 lb	Not Published
Weight with Cab and Loader	5,320 lb	Not Applicable

Tire Size & Options	Agricultural, industrial or turf tires; Galaxy Turf Special available from the factory	R1 agricultural, R3 turf, R4 industrial
R1 Agricultural - Front	2WD: 5.50-16 or 7.50-15; 4WD: 7-16 or 8-16	Not Published
R1 Agricultural - Rear	13.6-24 or 14.9-24	13.6x28 R1
R3 Turf - Front	2WD: 25x8.50-14; 4WD: 27x8.50-15	Not Published
R3 Turf - Rear	44x18-20	Not Published
R4 Industrial - Front	10-16.5	Not Published
R4 Industrial - Rear	17.5-24	18.4x24 R4

Quick Attach Loader System	Quick-Mount loader mounting; pin-on or quick-attach buckets	600TL Series quick-attach loader (611TL, 621TL, 616TL, 626TL)
Loader Model	250TL (non SuperSteer); 260TL (with SuperSteer)	611TL, 616TL, 621TL, 626TL (611TL and 621TL non self-leveling; 616TL and 626TL mechanical self-leveling)
Loader Lift Height	250TL: 105 in; 260TL: 106 in	611TL: 112 in; 616TL: 115 in; 621TL: 119 in; 626TL: 122 in
Loader Lift Capacity (Full Height)	250TL: 2,000 lb; 260TL: 1,955 lb (at pins, max height)	Not Published
Loader Breakout Force	250TL: 3,540 lb; 260TL: 3,254 lb (at pins)	611TL: 2,998 lb; 616TL: 3,130 lb; 621TL: 3,086 lb; 626TL: 3,527 lb (at 31.5 in in front of pivot pin)

Warranty Length & Coverage	Not Published	Not Published

Find a New Holland dealer near you

New Holland TC45DA vs New Holland Workmaster 50: Quick Answers

Which has more horsepower, the New Holland TC45DA or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on engine hp at 53 hp hp, compared to 45 hp hp for the New Holland TC45DA.
Which has more PTO horsepower, the New Holland TC45DA or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on pto hp at 45 hp hp, compared to 37.8 hp hp for the New Holland TC45DA.
Which is heavier, the New Holland TC45DA or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on weight at 5,059 lb lb, compared to 3,565 lb lb for the New Holland TC45DA.
Which has more three-point hitch lift capacity, the New Holland TC45DA or the New Holland Workmaster 50?: The New Holland Workmaster 50 leads on 3-pt lift (24 in) at 2,701 lb lb, compared to 2,330 lb lb for the New Holland TC45DA.

More Head-to-Heads

Category Verdict

Spec	New Holland TC45DA	New Holland Workmaster 50
Engine HP (hp)	45 hp	▲ 53 hp
PTO HP (hp)	37.8 hp	▲ 45 hp
Weight (lb)	3,565 lb	▲ 5,059 lb
Loader Lift (lb)	2,000 lb	n/a
3-Pt Lift (24 in) (lb)	2,330 lb	▲ 2,701 lb
Lift Height (in)	106 in	▲ 122 in
Breakout Force (lbf)	▲ 3,540 lbf	3,527 lbf
Hydraulic Flow (gpm)	14.9 gpm	▲ 17.5 gpm

The headline numbers at a glance.

New Holland TC45DANew Holland Workmaster 50

Engine HPhp

45 hp

▲53 hp

PTO HPhp

37.8 hp

▲45 hp

Weightlb

3,565 lb

4,442 lb

▲5,059 lb

ROPS 2WDROPS 4WD

Loader Liftlb

▲2,000 lb

1,955 lb

n/a

250TL260TL

3-Pt Lift (24 in)lb

2,330 lb

▲2,701 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandTC45DA	New HollandWorkmaster 50


Engine Manufacturer	Shibaura	FPT
Engine Model	N844L	R753
Engine Type	4-cylinder diesel	Turbocharged 3-cylinder diesel
No. of Cylinders	4	3
Displacement	135.2 in³	136 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	53 hp
PTO Power	37.8 hp	45 hp
Engine Emissions Constraints	Not Published	Tier 4B Final
Cooling System Type	Liquid-cooled	Not Published
Air Cleaner	Dual dry element	2-stage
Fuel System	Not Published	Direct injection / Common rail
Alternator	40 A	75 A

Pump Type	Gear pump	Dual hydraulic pumps; open center, fixed displacement gear pump
Implement Flow	9.8 gpm	12 gpm
Steering Flow	5.1 gpm	5.5 gpm
Total Hydraulic Flow	14.9 gpm	17.5 gpm
Overall Hydraulic Pump Flow	14.9 gpm	17.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	3 rear (optional); 2 mid (optional)	2

Fuel Tank Capacity	13 gal	17.2 gal
Coolant Capacity	8.4 qt	Not Published
Crankcase Capacity	6.3 qt	Not Published
Transmission / Hydraulic System Capacity	38 qt	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent
PTO Rear	540 rpm (1.375 in) at 2400 engine rpm	540 rpm (540E optional)
Mid-PTO Availability	Optional (with hydrostatic transmission)	Not Published
Category, 3-Point Hitch	Category I	Category II/I
Hitch Lift Capacity	Not Published	Not Published
Hitch Lift Capacity (at 24”)	2,330 lb	2,701 lb
Lift Control Type	Deluxe three-point hitch with flexible link ends, telescoping stabilizers, swinging drawbar and crank-style leveling (most models)	Position control with mechanical draft control

Transmission Type	2-range hydrostatic with DualPower Hi/Lo powershift	8x8 synchronized shuttle
No. of Speeds	2 hydrostatic ranges, each with DualPower High/Low	8F/8R
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Dry, 11 in diameter, organic plate
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock (foot pedal); 4WD front axle with limited slip and front differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Not Published
Brakes	Wet disc	Individual mechanically actuated wet disc
Seat Suspension & Adjustability	Seat on an inclined sliding track, three inches of vertical suspension, swivels up to 20° (5 positions); cab: cloth seat with weight-adjustable suspension	Deluxe contoured suspension seat, adjusts to operator height
Front Axle Type	FWD (standard); SuperSteer FWD with Sensitrak automatic FWD (optional); 2WD not available	4WD: limited-slip front axle with front differential lock, mechanical engagement
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	66.6 in (ag tires)	67.5 in (shipping width)
Wheelbase	FWD: 73.5 in; SuperSteer FWD: 81.0 in	ROPS 4WD: 77.6 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	95 in	ROPS 4WD: 97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	90.1 in (R4 tires)	Not Applicable
Overall Length	FWD: 125.2 in (with 3-point hitch); SuperSteer FWD: 129.5 in	ROPS 4WD: 134 in

Tractor Weight (Base)	3,565 lb (FWD ROPS, R4 tires); 4,115 lb (TC45DA CAB)	ROPS 2WD: 4,442 lb (shipping weight); ROPS 4WD: 5,059 lb (shipping weight)
Weight with ROPS and Loader	4,770 lb	Not Published
Weight with Cab and Loader	5,320 lb	Not Applicable

Tire Size & Options	Agricultural, industrial or turf tires; Galaxy Turf Special available from the factory	R1 agricultural, R3 turf, R4 industrial
R1 Agricultural - Front	2WD: 5.50-16 or 7.50-15; 4WD: 7-16 or 8-16	Not Published
R1 Agricultural - Rear	13.6-24 or 14.9-24	13.6x28 R1
R3 Turf - Front	2WD: 25x8.50-14; 4WD: 27x8.50-15	Not Published
R3 Turf - Rear	44x18-20	Not Published
R4 Industrial - Front	10-16.5	Not Published
R4 Industrial - Rear	17.5-24	18.4x24 R4

Quick Attach Loader System	Quick-Mount loader mounting; pin-on or quick-attach buckets	600TL Series quick-attach loader (611TL, 621TL, 616TL, 626TL)
Loader Model	250TL (non SuperSteer); 260TL (with SuperSteer)	611TL, 616TL, 621TL, 626TL (611TL and 621TL non self-leveling; 616TL and 626TL mechanical self-leveling)
Loader Lift Height	250TL: 105 in; 260TL: 106 in	611TL: 112 in; 616TL: 115 in; 621TL: 119 in; 626TL: 122 in
Loader Lift Capacity (Full Height)	250TL: 2,000 lb; 260TL: 1,955 lb (at pins, max height)	Not Published
Loader Breakout Force	250TL: 3,540 lb; 260TL: 3,254 lb (at pins)	611TL: 2,998 lb; 616TL: 3,130 lb; 621TL: 3,086 lb; 626TL: 3,527 lb (at 31.5 in in front of pivot pin)

Warranty Length & Coverage	Not Published	Not Published

Find a New Holland dealer near you

New Holland TC45DA vs New Holland Workmaster 50: Quick Answers

Which has more horsepower, the New Holland TC45DA or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on engine hp at 53 hp hp, compared to 45 hp hp for the New Holland TC45DA.

Which has more PTO horsepower, the New Holland TC45DA or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on pto hp at 45 hp hp, compared to 37.8 hp hp for the New Holland TC45DA.

Which is heavier, the New Holland TC45DA or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on weight at 5,059 lb lb, compared to 3,565 lb lb for the New Holland TC45DA.

Which has more three-point hitch lift capacity, the New Holland TC45DA or the New Holland Workmaster 50?

The New Holland Workmaster 50 leads on 3-pt lift (24 in) at 2,701 lb lb, compared to 2,330 lb lb for the New Holland TC45DA.
