New Holland Workmaster 25S vs New Holland Workmaster 35

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the New Holland Workmaster 35 leads 9 categories to 0. Machine pages: New Holland Workmaster 25S and New Holland Workmaster 35.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	New Holland Workmaster 25S	New Holland Workmaster 35
Engine HP (hp)	24.7 hp	▲ 35 hp
PTO HP (hp)	17.2 hp	▲ 25.7 hp
Weight (lb)	1,444 lb	▲ 2,400 lb
Loader Lift (lb)	1,005 lb	▲ 1,500 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,433 lb
Lift Height (in)	72 in	▲ 91.5 in
Breakout Force (lbf)	2,078 lbf	▲ 2,700 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 13 gpm
Travel Speed (mph)	9.1 mph	▲ 15 mph

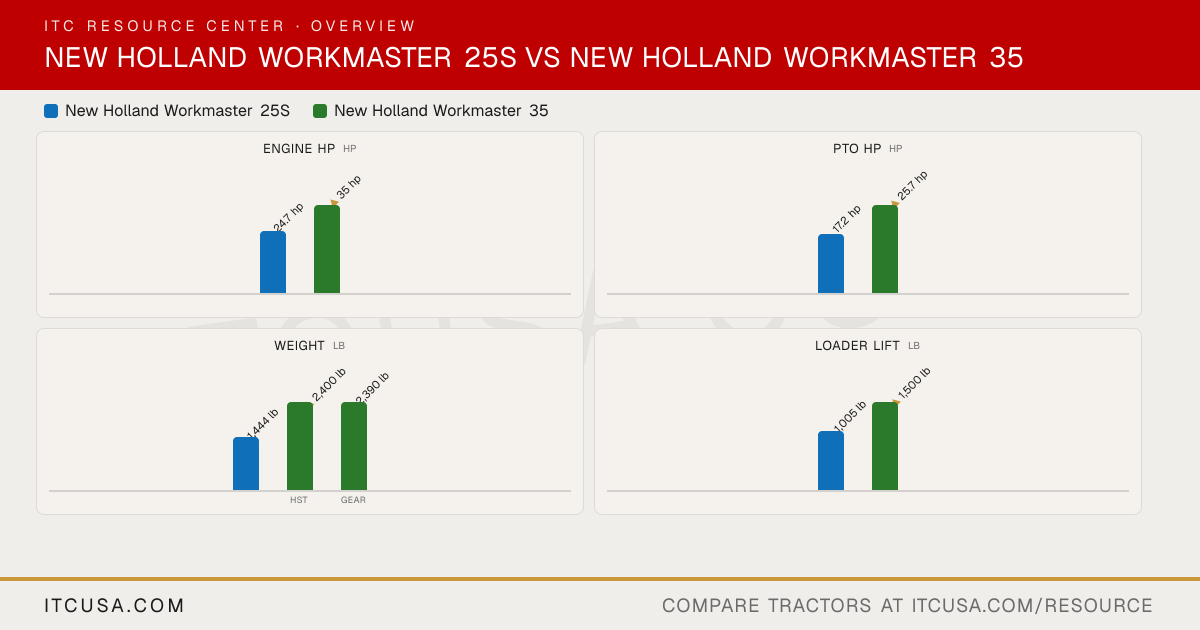

The headline numbers at a glance.

New Holland Workmaster 25SNew Holland Workmaster 35

Engine HPhp

24.7 hp

▲35 hp

PTO HPhp

17.2 hp

▲25.7 hp

Weightlb

1,444 lb

▲2,400 lb

2,390 lb

HSTGear

Loader Liftlb

1,005 lb

▲1,500 lb

3-Pt Lift (24 in)lb

728 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 25S	New HollandWorkmaster 35


PTO Power	17.2 hp	25.7 hp
Alternator	40 A, 12 V	70 A, 12 V
Air Cleaner	Not Published	Dual element dry air cleaner
Engine Type	3-cylinder, naturally aspirated diesel	Turbocharged diesel
Fuel System	In-line injection pump	High pressure common rail (ECU controlled timing)
Displacement	76.9 in³	0.1 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	2600 rpm
Cooling System Type	Pressurized liquid with recirculating bypass	Pressurized liquid with recirculating bypass
Engine Manufacturer	Yanmar	LS Mtron
Engine Power (Gross)	24.7 hp	35 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4B Final

Weight with ROPS and Loader	1,444 lb (ROPS tractor only)	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	1,805 lb (Cab tractor only)	Not Applicable

Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear	Gear
Steering Flow	2.1 gpm	4.8 gpm
Implement Flow	4.6 gpm	8.2 gpm
Total Hydraulic Flow	6.7 gpm	13.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.7 gpm	13.0 gpm
No. of Optional Remote Valves	1	1 or 2
No. of Standard Remote Valves	0	0

PTO Rear	540 rpm	540 rpm (6-spline)
PTO Type	Independent, electro-hydraulic engagement	Independent
Lift Control Type	Lift-hold-lower	Position control
Hitch Lift Capacity	992 lb at ball ends	1,808 lb
Mid-PTO Availability	Standard (2,500 rpm)	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	728 lb	1,433 lb

R3 Turf - Rear	26X12.0-12	41X14.00-20
R3 Turf - Front	18X8.50-10	25X8.50-14
Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	26X12.0-12	43X16-20
R4 Industrial - Front	18X8.50-10	25X8.50-14
R1 Agricultural - Rear	Not Applicable	11.2-24
R1 Agricultural - Front	Not Applicable	7.0-14

Coolant Capacity	3.5 qt	7.5 qt
Crankcase Capacity	3.0 qt	5.8 qt
Fuel Tank Capacity	6.6 gal	7.4 gal
Front Axle Fluid Capacity	0.5 gal	6.9 qt
Transmission / Hydraulic System Capacity	3.0 gal	8.5 gal

Loader Lift Height	72 in	91.5 in (to bucket pivot pin)
Loader Breakout Force	2,078 lb	2,700 lb (bucket pivot pin)
Quick Attach Loader System	100LC: Quick Mount system (no tools)	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	1,005 lb	1,500 lb (bucket pivot pin, max height)

Clutch	Not Applicable	HST: Not Applicable; Gear: Dry disc, 9.4 in
No. of Speeds	Infinite (2-range)	HST: Infinite (3-range); Gear: 12F/12R
Transmission Type	2-Range Hydrostatic / Dual Pedal	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
Max Travel Speed (Forward)	9.1 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	5.5 mph	HST: 14.96 mph; Gear: 13.63 mph
Differential Lock & Limited Slip Options	Mechanical, foot-operated rear diff lock	Mechanical rear differential lock

Brakes	Wet, multi-disc	Wet disc
Steering	Central support, bevel gear type	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	4WD (FWD)	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	56.1 in	69 in
Overall Width	46.7 in	54 in
Ground Clearance	12 in	13 in
Height to Top of ROPS	90 in	89 in
Height to Top of Cab Model	87.4 in	Not Applicable
Height to Top of ROPS (folded)	64 in	Not Published
Min. Turn Radius without Brakes	94 in	Not Published
Overall Length with 3-Point Hitch	97.4 in	134 in

New Holland Workmaster 25S vs New Holland Workmaster 35: Quick Answers

Which has more horsepower, the New Holland Workmaster 25S or the New Holland Workmaster 35?: The New Holland Workmaster 35 leads on engine hp at 35 hp hp, compared to 24.7 hp hp for the New Holland Workmaster 25S.
Which has more PTO horsepower, the New Holland Workmaster 25S or the New Holland Workmaster 35?: The New Holland Workmaster 35 leads on pto hp at 25.7 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which is heavier, the New Holland Workmaster 25S or the New Holland Workmaster 35?: The New Holland Workmaster 35 leads on weight at 2,400 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.
Which has more loader lift capacity, the New Holland Workmaster 25S or the New Holland Workmaster 35?: The New Holland Workmaster 35 leads on loader lift at 1,500 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.
Which has more three-point hitch lift capacity, the New Holland Workmaster 25S or the New Holland Workmaster 35?: The New Holland Workmaster 35 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.

More Head-to-Heads

Category Verdict

Spec	New Holland Workmaster 25S	New Holland Workmaster 35
Engine HP (hp)	24.7 hp	▲ 35 hp
PTO HP (hp)	17.2 hp	▲ 25.7 hp
Weight (lb)	1,444 lb	▲ 2,400 lb
Loader Lift (lb)	1,005 lb	▲ 1,500 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,433 lb
Lift Height (in)	72 in	▲ 91.5 in
Breakout Force (lbf)	2,078 lbf	▲ 2,700 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 13 gpm
Travel Speed (mph)	9.1 mph	▲ 15 mph

The headline numbers at a glance.

New Holland Workmaster 25SNew Holland Workmaster 35

Engine HPhp

24.7 hp

▲35 hp

PTO HPhp

17.2 hp

▲25.7 hp

Weightlb

1,444 lb

▲2,400 lb

2,390 lb

HSTGear

Loader Liftlb

1,005 lb

▲1,500 lb

3-Pt Lift (24 in)lb

728 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	New HollandWorkmaster 25S	New HollandWorkmaster 35


PTO Power	17.2 hp	25.7 hp
Alternator	40 A, 12 V	70 A, 12 V
Air Cleaner	Not Published	Dual element dry air cleaner
Engine Type	3-cylinder, naturally aspirated diesel	Turbocharged diesel
Fuel System	In-line injection pump	High pressure common rail (ECU controlled timing)
Displacement	76.9 in³	0.1 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	2600 rpm
Cooling System Type	Pressurized liquid with recirculating bypass	Pressurized liquid with recirculating bypass
Engine Manufacturer	Yanmar	LS Mtron
Engine Power (Gross)	24.7 hp	35 hp
Engine Emissions Constraints	Tier 4B Final	Tier 4B Final

Weight with ROPS and Loader	1,444 lb (ROPS tractor only)	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	1,805 lb (Cab tractor only)	Not Applicable

Warranty Length & Coverage	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear	Gear
Steering Flow	2.1 gpm	4.8 gpm
Implement Flow	4.6 gpm	8.2 gpm
Total Hydraulic Flow	6.7 gpm	13.0 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	6.7 gpm	13.0 gpm
No. of Optional Remote Valves	1	1 or 2
No. of Standard Remote Valves	0	0

PTO Rear	540 rpm	540 rpm (6-spline)
PTO Type	Independent, electro-hydraulic engagement	Independent
Lift Control Type	Lift-hold-lower	Position control
Hitch Lift Capacity	992 lb at ball ends	1,808 lb
Mid-PTO Availability	Standard (2,500 rpm)	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	728 lb	1,433 lb

R3 Turf - Rear	26X12.0-12	41X14.00-20
R3 Turf - Front	18X8.50-10	25X8.50-14
Tire Size & Options	R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	26X12.0-12	43X16-20
R4 Industrial - Front	18X8.50-10	25X8.50-14
R1 Agricultural - Rear	Not Applicable	11.2-24
R1 Agricultural - Front	Not Applicable	7.0-14

Coolant Capacity	3.5 qt	7.5 qt
Crankcase Capacity	3.0 qt	5.8 qt
Fuel Tank Capacity	6.6 gal	7.4 gal
Front Axle Fluid Capacity	0.5 gal	6.9 qt
Transmission / Hydraulic System Capacity	3.0 gal	8.5 gal

Loader Lift Height	72 in	91.5 in (to bucket pivot pin)
Loader Breakout Force	2,078 lb	2,700 lb (bucket pivot pin)
Quick Attach Loader System	100LC: Quick Mount system (no tools)	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	1,005 lb	1,500 lb (bucket pivot pin, max height)

Clutch	Not Applicable	HST: Not Applicable; Gear: Dry disc, 9.4 in
No. of Speeds	Infinite (2-range)	HST: Infinite (3-range); Gear: 12F/12R
Transmission Type	2-Range Hydrostatic / Dual Pedal	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
Max Travel Speed (Forward)	9.1 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	5.5 mph	HST: 14.96 mph; Gear: 13.63 mph
Differential Lock & Limited Slip Options	Mechanical, foot-operated rear diff lock	Mechanical rear differential lock

Brakes	Wet, multi-disc	Wet disc
Steering	Central support, bevel gear type	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	4WD (FWD)	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	56.1 in	69 in
Overall Width	46.7 in	54 in
Ground Clearance	12 in	13 in
Height to Top of ROPS	90 in	89 in
Height to Top of Cab Model	87.4 in	Not Applicable
Height to Top of ROPS (folded)	64 in	Not Published
Min. Turn Radius without Brakes	94 in	Not Published
Overall Length with 3-Point Hitch	97.4 in	134 in

New Holland Workmaster 25S vs New Holland Workmaster 35: Quick Answers

Which has more horsepower, the New Holland Workmaster 25S or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on engine hp at 35 hp hp, compared to 24.7 hp hp for the New Holland Workmaster 25S.

Which has more PTO horsepower, the New Holland Workmaster 25S or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on pto hp at 25.7 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which is heavier, the New Holland Workmaster 25S or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on weight at 2,400 lb lb, compared to 1,444 lb lb for the New Holland Workmaster 25S.

Which has more loader lift capacity, the New Holland Workmaster 25S or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on loader lift at 1,500 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.

Which has more three-point hitch lift capacity, the New Holland Workmaster 25S or the New Holland Workmaster 35?

The New Holland Workmaster 35 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
